Energy stands at the heart of modern civilization, influencing economic, social, and environmental dynamics worldwide. Yet the current paradigm, still heavily dependent on centralized and fossil-based energy systems, is increasingly incompatible with both climate goals and the pursuit of universal access to clean resources. In this context, the ongoing energy transition requires a shift toward decentralized, resilient configurations in which renewable sources, energy efficiency, and storage technologies play a central role.

Heating and cooling are among the main contributors to global energy consumption and greenhouse gas emissions. Alongside transportation, these fields represent a substantial share of final energy use, with thermal comfort in buildings alone representing nearly 30% of global final demand and over 25% of energy-related CO₂ emissions [1]. While heating has traditionally dominated this share, rising global temperatures and improved living standards are rapidly increasing the demand for cooling, especially in urban environments, making sustainable cooling a major challenge for the coming decades.

District Heating and Cooling (DHC) networks are increasingly recognized as strategic infrastructures in the sustainable transformation of urban energy systems. By harnessing renewable sources and recovering waste heat from industrial processes, they offer a scalable and adaptable approach to decarbonizing thermal energy use across multiple sectors. Among the different generations of DHC systems, fourth-generation district heating and cooling (4GDHC) systems distinguish themselves through smart control, low-temperature operation, and high levels of sector integration, making them especially suited to the development of climate-neutral cities.

To fully unlock the potential of these networks, thermal energy storage (TES) plays a crucial role by decoupling energy supply from demand in time. Among the various TES technologies, Phase Change Materials (PCMs) have gained particular attention for their ability to store and release large amounts of energy within narrow temperature ranges. When applied to cooling systems, CTES can be charged during night-time hours, when electricity is cheaper and the grid is less stressed, and discharged during the day to meet peak cooling loads. This strategy, known as peak shaving and load shifting, enhances grid stability, optimizes energy use, and reduces operational costs. Moreover, thermal storage enables Power-to-Thermal strategy, where excess renewable electricity, often produced at times of low demand, is converted into thermal energy, stored, and later used when needed. This improves self-consumption, strengthens user autonomy, and minimizes electricity injections into the grid.

The growing interest in PCM-based storage has led to several experimental and real-world implementations. A notable example is the 2014 installation at Bergen University in Norway, where a salt hydrate PCM was used in combination with a 1.4 MW chiller to cover a peak cooling load of 3 MW. The system consisted of four 60 m³ tanks, each filled with FlatICE containers, reaching a total storage capacity of 11,200 kWh. Charged at night and discharged during the day, the setup also included 81 geothermal boreholes for seasonal storage. However, as shown in the performance assessment by Jokiel [2], the system operated below its potential due to subcooling effects and uneven heat transfer caused by natural convection, especially during the melting phase.

A second case is the installation at an educational facility in Melbourne, Australia, where 5,120 FlatICE panels containing PCM were arranged in 40 m³ of insulated tanks to support the building’s cooling system. Charging relied on nighttime temperatures falling below 11 °C, with water used as the heat transfer medium. Alam et al. [3] observed that only 15% of the theoretical storage capacity was effectively utilized, mainly due to insufficient night-time cooling during summer and the high electricity consumption of auxiliary equipment, revealing a considerable mismatch between design expectations and real-world performance.

A further study by Tan et al. [4] focused on a district cooling application in Gothenburg, Sweden, where Rubitherm SP11, chemically similar to the SP9 GEL analyzed in this study, was used in a PCM storage tank integrated with a district loop. Despite an initial design capacity of 275 kWh, the actual system underperformed due to limited charge/discharge rates and the parasitic consumption of auxiliary components. Additionally, the economic evaluation revealed that high capital costs and operational inefficiencies hindered financial viability.

These case studies clearly illustrate both the potential and the limitations of PCM-based TES in real settings. While promising in concept, the translation of lab-scale performance into fully operational, efficient storage systems remains a significant challenge. In particular, few studies have addressed the behaviour of low-temperature PCMs within dynamically operated 4GDHC networks, highlighting a critical research gap in terms of experimental validation and system-level integration.

This study seeks to bridge that gap by combining laboratory-scale characterization of a commercial salt hydrate PCM, with a detailed performance assessment through dynamic simulation in TRNSYS. The experimental activity is used to characterize the material’s charging and discharging dynamics, effective phase change temperature range, and thermal response under operating conditions relevant for low-temperature cooling storage. These results are then employed to calibrate the PCM storage component within an already validated TRNSYS model, enabling a consistent evaluation of the material’s behaviour at system scale.

By linking experimentally derived PCM properties to the operational dynamics of a real 4GDHC network, this work offers new insights into the practical feasibility of PCM-based cold thermal storage as a key enabler for future low-carbon and renewable-integrated urban infrastructures.

This section outlines the materials, instrumentation and experimental procedures used to investigate the thermal response of the selected PCM under controlled laboratory conditions.

The configuration of the setup, the measurement strategy and the operating conditions adopted during the charging and discharging cycles are presented in a systematic manner.

The aim is to propose a solution that reduces the charging time, a critical limitation that may otherwise prevent the use of low-temperature thermal storage in industrial applications.

Experimental Setup

To evaluate the performance of a phase change material potentially suitable for integration with Heating, Ventilation, and Air Conditioning (HVAC) systems, an experimental campaign was carried out at the Process & Energy laboratory of Delft University of Technology.

The experimental setup (Figure 1 and Figure 2) was designed to be simple yet effective, enabling precise thermal assessment during the phase change process. It consisted of the following main components: a cooling thermostat for system temperature control, a dedicated PCM enclosure where the material was housed and monitored, and several thermocouples connected to a Data Acquisition system (DAQ), which continuously recorded temperature data in real time. A flow meter was used to measure the circulation rate of the cooling fluid, while expanded polystyrene (EPS) panels were employed to provide thermal insulation. A GoPro camera was used for visual monitoring and time-lapse recording, with an LED strip installed to illuminate the enclosure and enhance the visual clarity of the phase change process during video recordings.

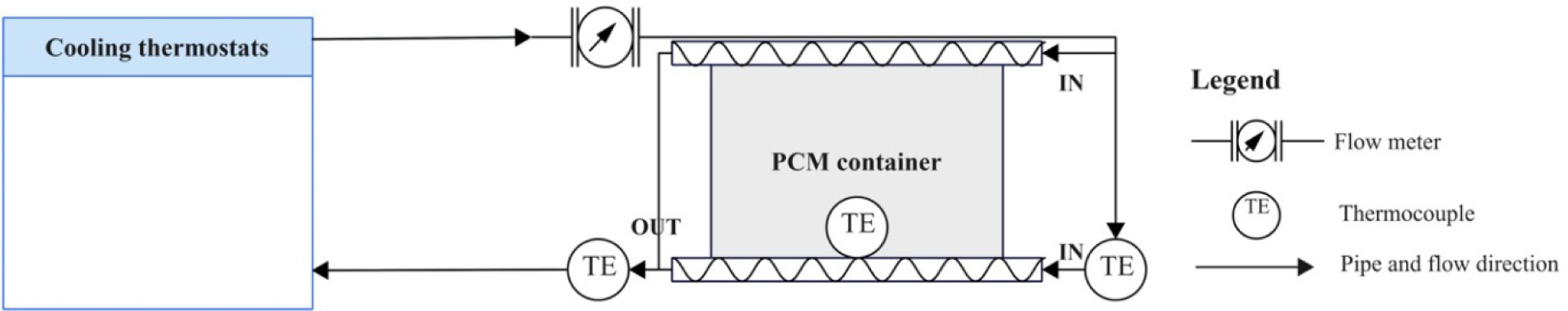

Figure 1.

Schematic representation of the experimental setup

The experimental investigation aimed to characterize the thermal behavior of the selected PCM under controlled cooling and heating conditions. Specifically, the following objectives were established:

• To determine the duration of both charging and discharging processes;

• To monitor the temperature evolution of the PCM, highlighting key features such as the melting and solidification plateaus;

• To evaluate different charging methods.

Figure 2.

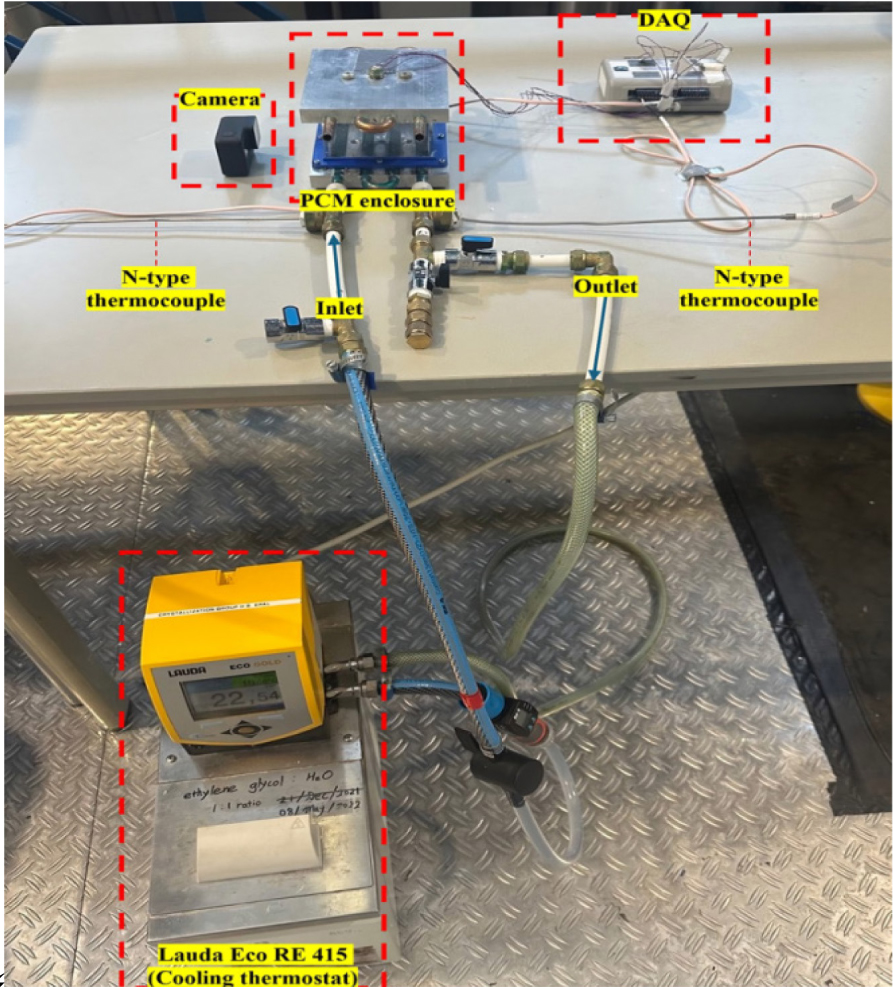

Experimental setup

Cooling thermostat.

The thermal control of the experimental system was ensured by a Lauda Eco RE 415 thermostat (Figure 3), a versatile unit capable of both heating and cooling the working fluid. Equipped with an integrated circulation pump, the device provides a steady flow through the circuit, enabling efficient heat exchange with the PCM enclosure during both charging and discharging phases.

The unit is equipped with a 4L thermostatic bath and a digital display for setting the desired set point, which is then accurately maintained through automated control. The system offers high thermal stability, with temperature fluctuations limited to ±0.02 K, making it ideal for experiments that require consistent and accurate control of thermal conditions.

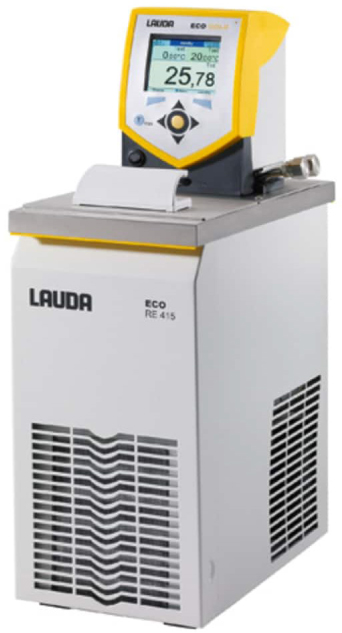

Figure 3.

Lauda Eco RE 415

Enclosure

The Phase Change Material was placed inside a custom-designed plexiglass container with internal dimensions of 100 mm × 100 mm × 50 mm and a wall thickness of 4 mm (Figure 4).

Thermal exchange between the PCM and the working fluid was enabled using two tubed cold plates from Wakefield Thermal. The lower plate served as the main interface for heat transfer, while the upper one functioned as a lid, effectively sealing the system.

Inside the container, five T-type thermocouples were installed at 1 cm intervals and mounted on a PETG 3D-printed support placed at the centre of the enclosure.

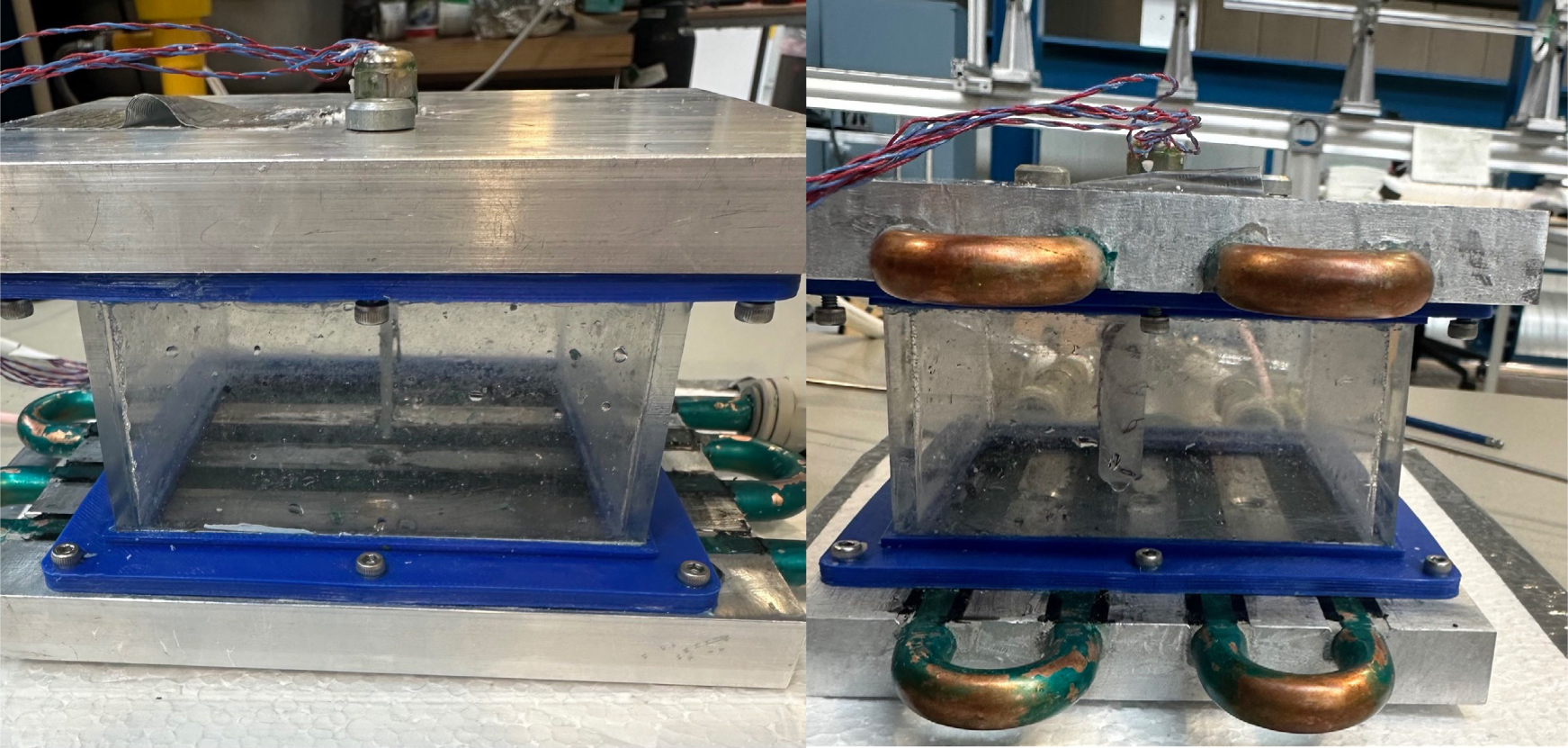

Figure 4.

PCM enclosure: frontal view (a); lateral view (b)

To minimise heat losses and ensure better thermal isolation from the surrounding environment, the container was enclosed within a set of expanded polystyrene panels. As a consequence of this opaque configuration, a quantitative determination of phase fractions during solidification was not possible. Future work could address this limitation through the use of transparent enclosures or enthalpy-based measurement approaches.

The properties of the insulating material are detailed in Table 2, which summarises thermal conductivity and resistance, along with operational temperature range suitable for the scope of the experimental campaign:

Table 2.

EPS material properties

Parameter	Value
Thickness	20 mm
Operating temperature range	-40 °C to +70 °C
λ	0.03 W mk
R d	0.50 m 2 k W

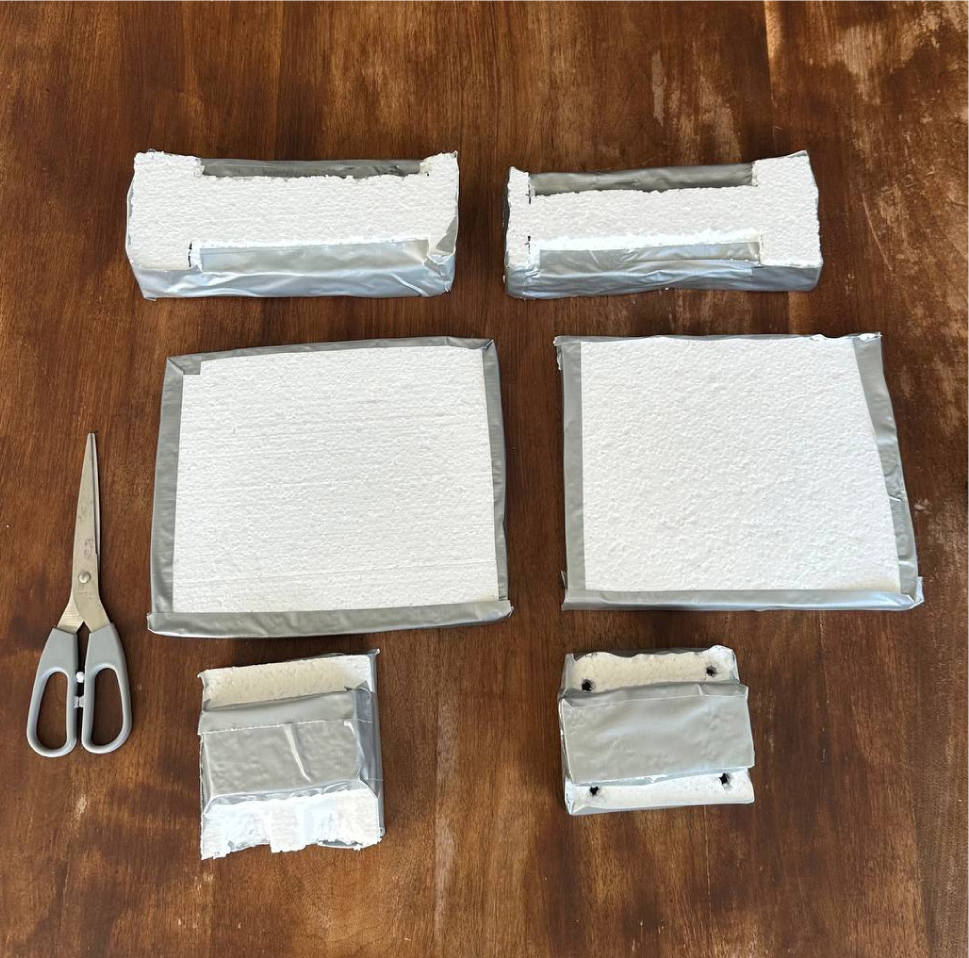

Figure 5.

EPS panels

One of the main objectives of the experimental campaign was to evaluate the time required to charge the phase change material using different operating strategies. In this context, the charging time is defined as the duration necessary for the entire PCM volume to reach a temperature equal to or lower than the peak point of the congealing area, identified at 8.5 °C.

Three different methods were tested to assess their effectiveness in reducing the recharge duration. Temperature readings were recorded every second at three key locations: within the PCM, at the inlet, and at the outlet of the embedded serpentine coil.

Method 1

In the first configuration, a total mass of 0.45 kg of SP9 GEL was cooled exclusively from the bottom.

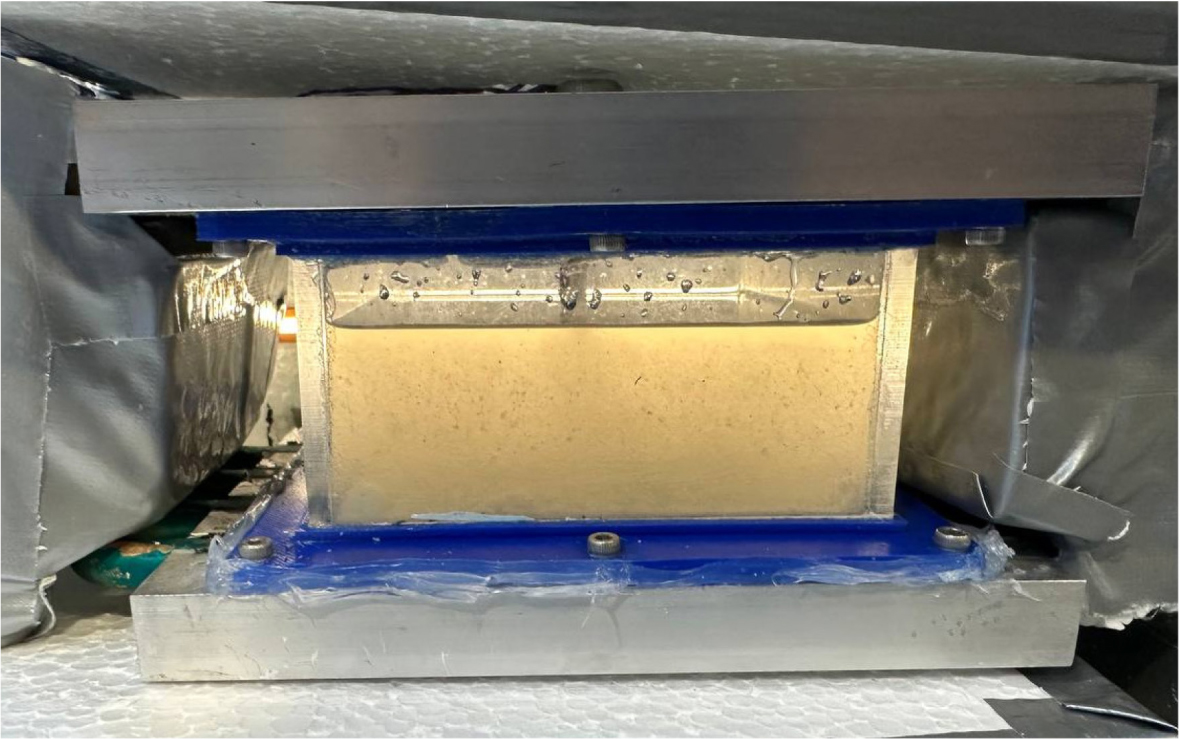

Figure 6.

PCM at t = 0

Prior to the charging process, a pre-cooling step was performed to bring the material to an initial temperature of approximately 20 °C. The heat transfer fluid was maintained at 2 °C, and under these conditions the measured recharge time for the system was 4.75 hours (Figure 7).

Figure 7.

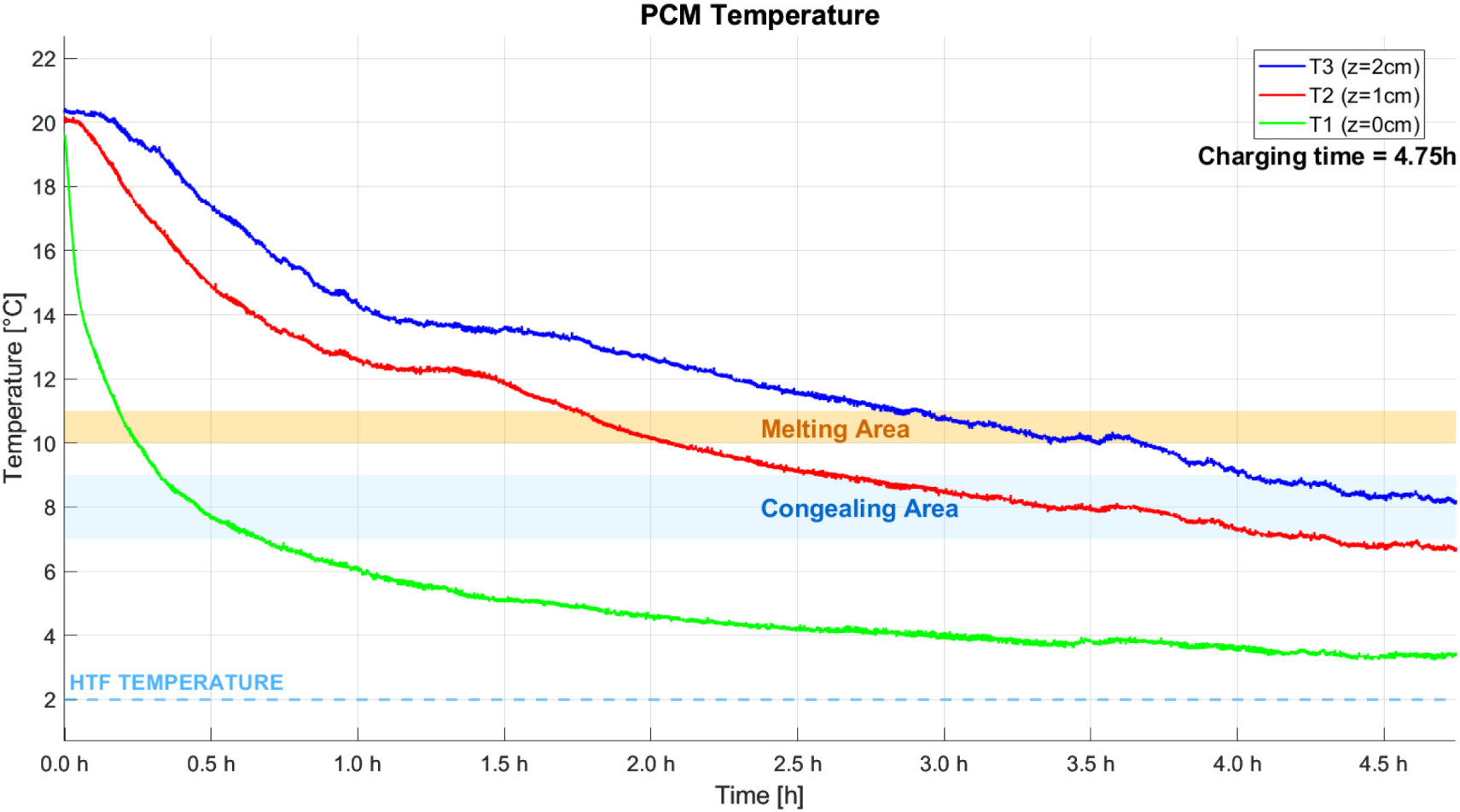

Results with the first method: PCM temperature over time during charging

The temperature profiles reveal a marked vertical stratification from the onset of the charging phase, leading to a small temperature difference between the inlet and outlet of the serpentine coil and consequently, limited heat-exchange efficiency.

During the early stage, heat transfer was driven by natural convection and conduction, leading to relatively fast solidification near the coil. This behaviour is confirmed by thermocouple T1, located close to the heat exchanger, which reached the solidification peak within the first 30 minutes (Figure 8), indicating the rapid formation of a solid layer around the coil.

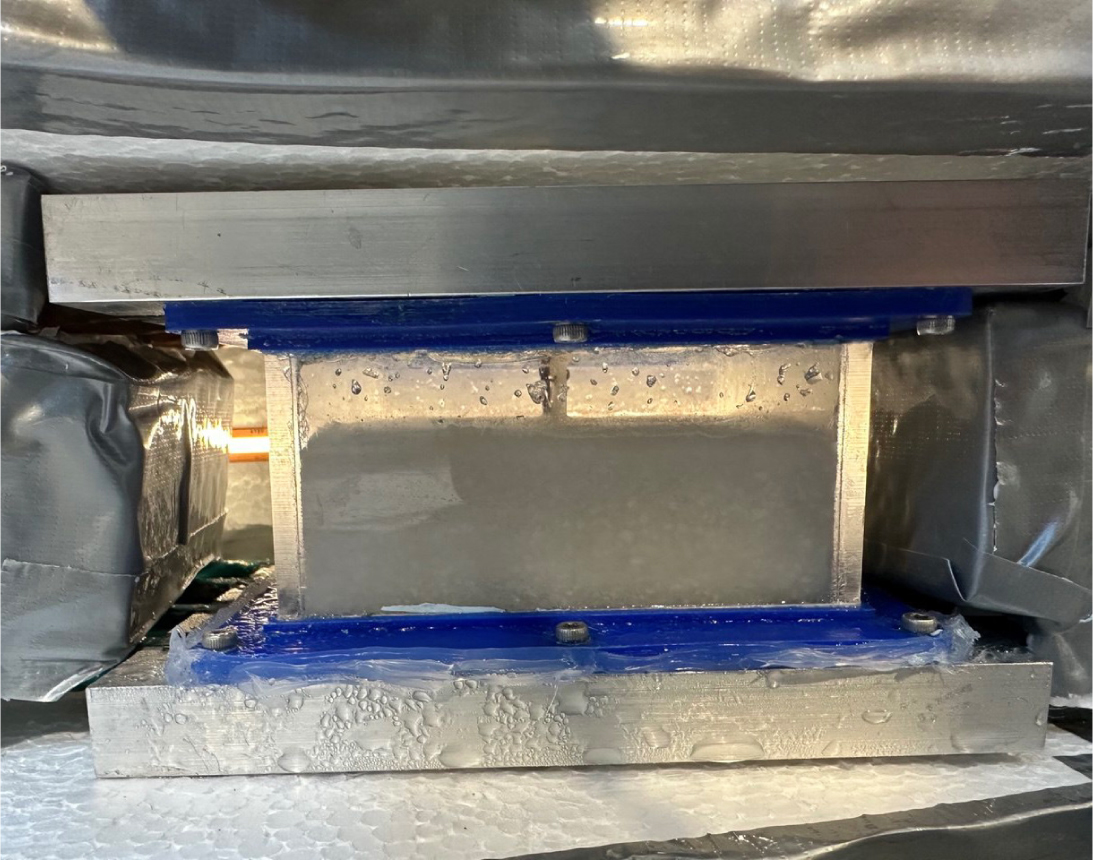

Figure 8.

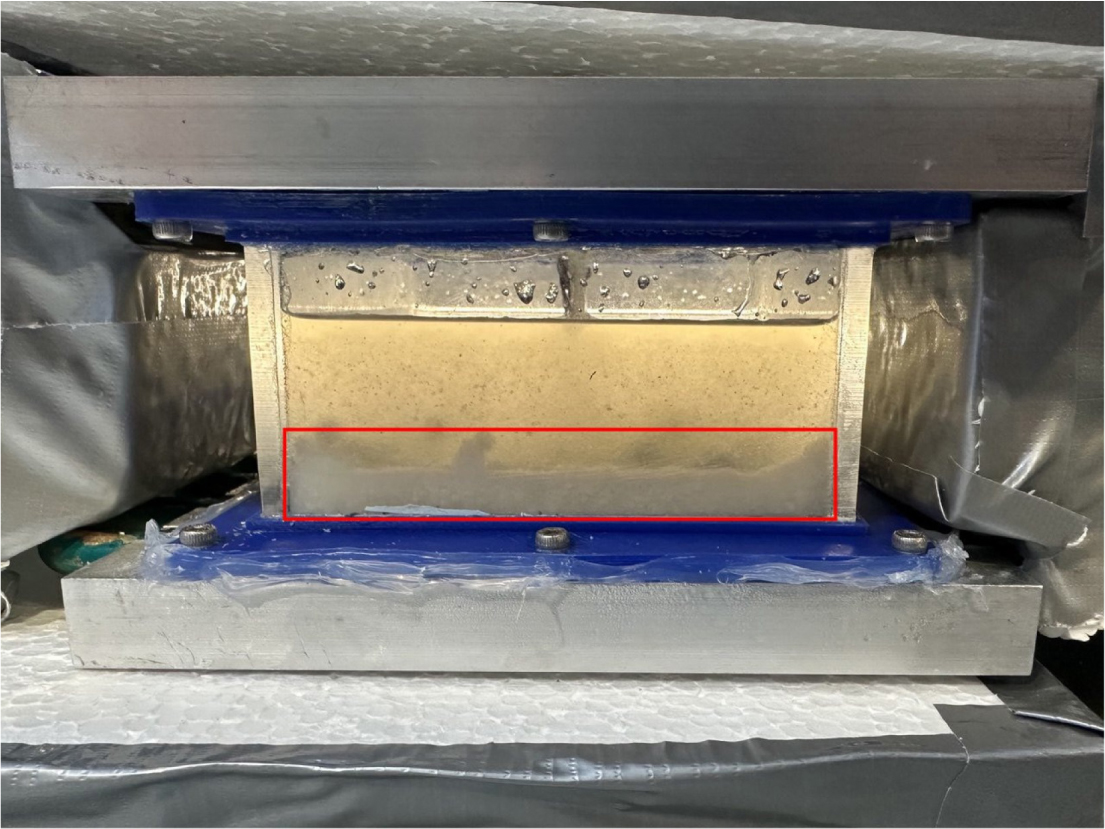

PCM at t = 30 min, with solid layer highlighted in red

Once this layer formed, convective heat transfer was progressively suppressed, and conduction became the dominant mechanism. This outcome reflects a well-known limitation of PCMs: as the solid region thickens, natural convection is inhibited, and conduction alone, limited by the low thermal conductivity of the material, is insufficient to sustain a fast or uniform solidification. In industrial applications, this issue is commonly addressed by installing additional heat exchangers in the upper and central sections of the enclosure to enhance thermal penetration throughout the entire PCM volume.

Figure 9.

PCM at t = 4.75 h

In contrast, during the discharging phase the density difference between solid and liquid phases enhanced upward convection of the lighter liquid fraction.

This mechanism favoured a more uniform temperature distribution within the PCM and led to a complete discharging time of 1.52 hours, which explains why the experimental campaign primarily focused on the charging process.

Method 2

With the aim of reducing the time required for PCM solidification, an alternative configuration was designed to increase the effective heat exchange surface. A mass of 0.225 kg of SP9 GEL, corresponding to half the quantity used in Method 1, was distributed into eight syringes (Figure 10), thereby shifting from a rectangular geometry to a cylindrical one.

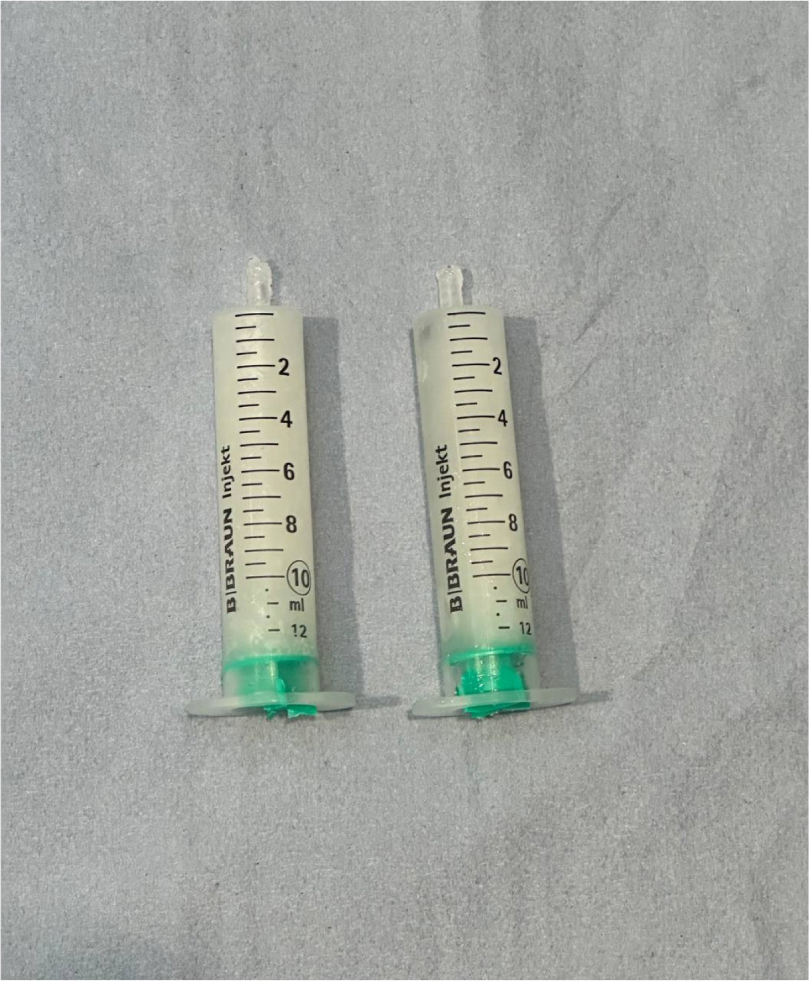

Figure 10.

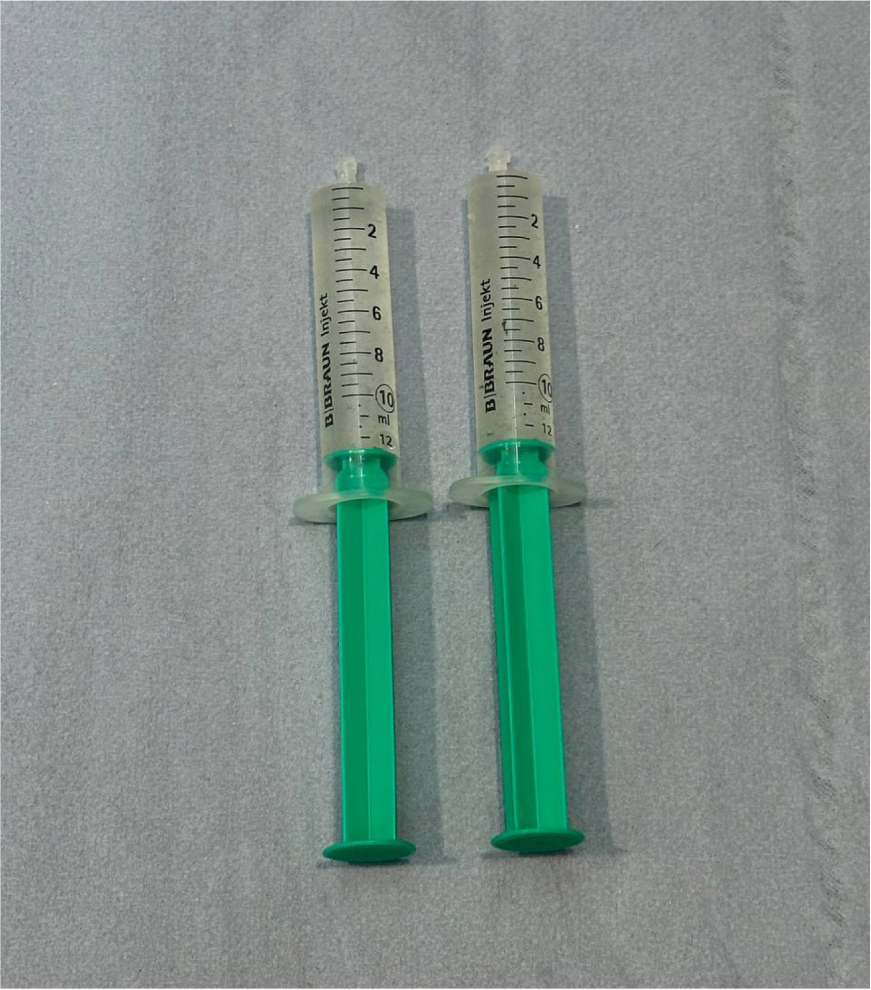

PCM inside syringes

The enclosure was then filled with water, with the syringes were fully immersed. In this configuration, maintaining the heat transfer fluid (HTF) temperature at 2 °C prevented the water from freezing, ensuring that heat exchange was not limited to conduction, as in the previous configuration.

Figure 11.

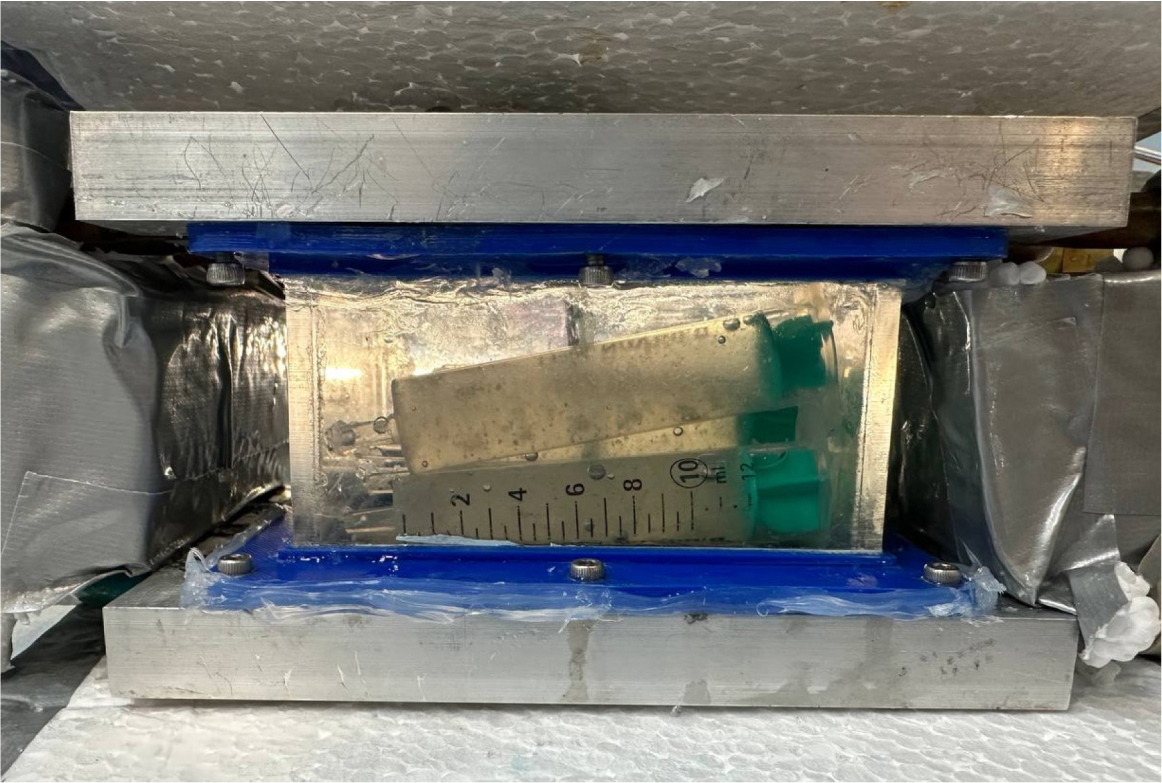

Charging with the 2° method

Nevertheless, the results were not particularly encouraging. A complete solidification of the PCM required approximately 3 hours (Figure 12). Although this might seem like an improvement compared to Method 1, it must be emphasized that the amount of material processed was only half of that in the previous test.

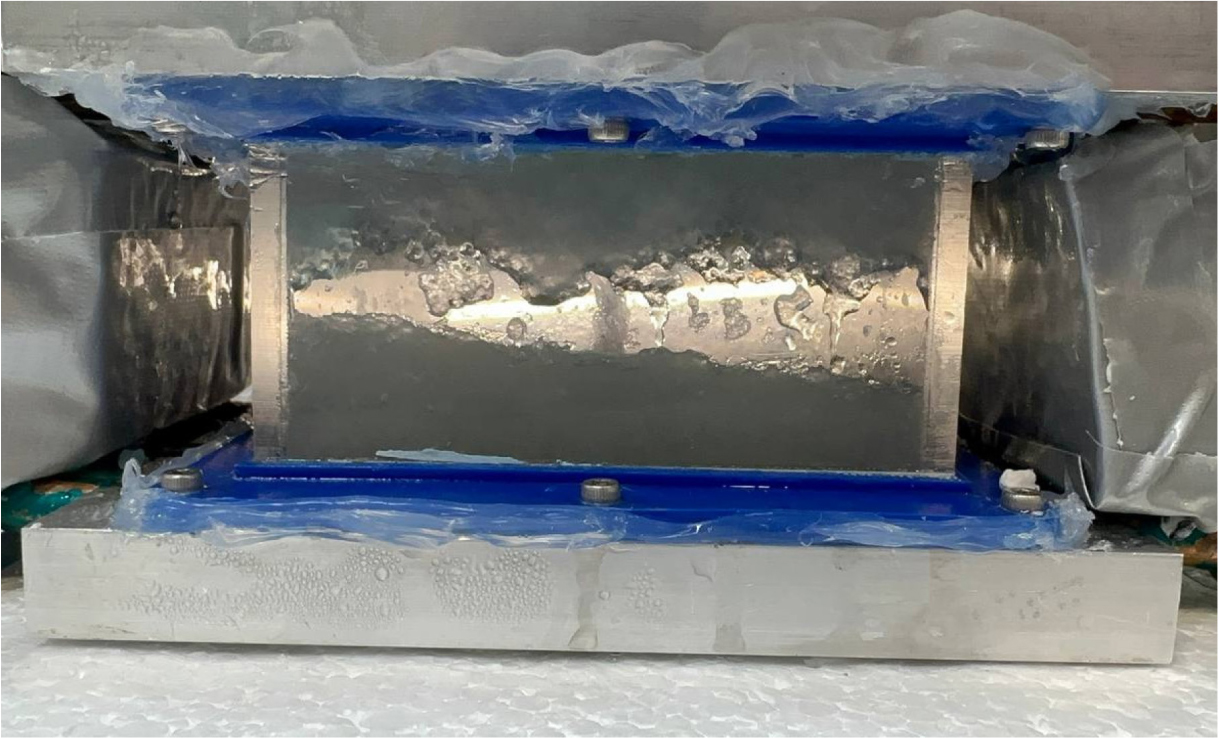

Figure 12.

PCM at t = 3 h

Several factors contributed to this slower charging rate. First, the syringes were made of plastic, a material characterized by low thermal conductivity, which significantly limited the efficiency of heat transfer between the water and the PCM. Furthermore, since the entire enclosure was filled with water, cooling the upper section of the volume demanded additional time, as the system still relied primarily on bottom cooling.

Method 3

Given the limitations observed in the previous methods, a third strategy was tested, involving rotation of the PCM enclosure every 30 minutes. The rationale behind this approach was to promote mixing within the material, reduce temperature stratification, and potentially shorten the overall charging time.

A total of 0.45 kg of SP9 GEL was placed inside the container. Two additional pipes were also integrated into the setup, enabling the use of the upper heat exchanger once the system was rotated. The procedure aimed to create a first solid layer during the initial 30 minutes of operation. Once this layer was formed, the corresponding valves were closed to interrupt the refrigerant flow in that section, ensuring a stable temperature. The container was then rotated so that the remaining liquid fraction of the PCM, initially located in the upper part, moved downward and came into direct contact with the refrigerant through the second heat exchanger.

Figure 13.

Modified experimental setup

This configuration produced excellent results. The solidified fraction adhered to the exchanger surface, while the rotation allowed the entire liquid portion to relocate to the bottom, where active heat exchange occurred. In this way, the portion already solidified was effectively “stored” in a zone no longer directly involved in the cooling process, thus removing the barrier to heat transfer that characterized Method 1 and concentrating thermal exchange on the remaining liquid PCM. As a result, the recharge time was reduced by 72% compared to Method 1, reaching a total of 1.33 hours.

Figure 14.

Results obtained with the third method

To better understand the potential of CTES, this section explores the integration of the SP9 GEL within a fourth-generation district heating and cooling network serving a shopping mall in Giugliano in Campania, Naples.

The study conducted by Calise et al. [9] considers the integration of a 2.3 MW photovoltaic (PV) field to meet part of the mall’s electricity demand, which in the Reference System (RS) is entirely supplied by the grid, along with two thermal energy storage tanks incorporated into the existing DHC network.

When photovoltaic generation exceeds the mall’s electrical demand, the renewable surplus, rather than being injected into the grid, can be harnessed by the system’s heat pumps (HPs). Through this Power-to-Thermal strategy, heating or cooling energy is produced and stored in the phase change material tank, thereby enhancing self-consumption and improving the mall’s overall energy autonomy.

System Description – Reference System (RS)

The case study focuses on a large shopping center located in Giugliano in Campania, Southern Italy, the “Grande Sud”. For the purposes of the analysis, eight commercial buildings (CBs) are considered, as illustrated in Figure 15. Among them, four share identical geometric characteristics and are therefore grouped as Type A commercial buildings (CBs-A). The remaining structures differ in size and configuration and are classified as Type B (CB-B), Type C (CB-C), Type D (CB-D), and Type E (CB-E).

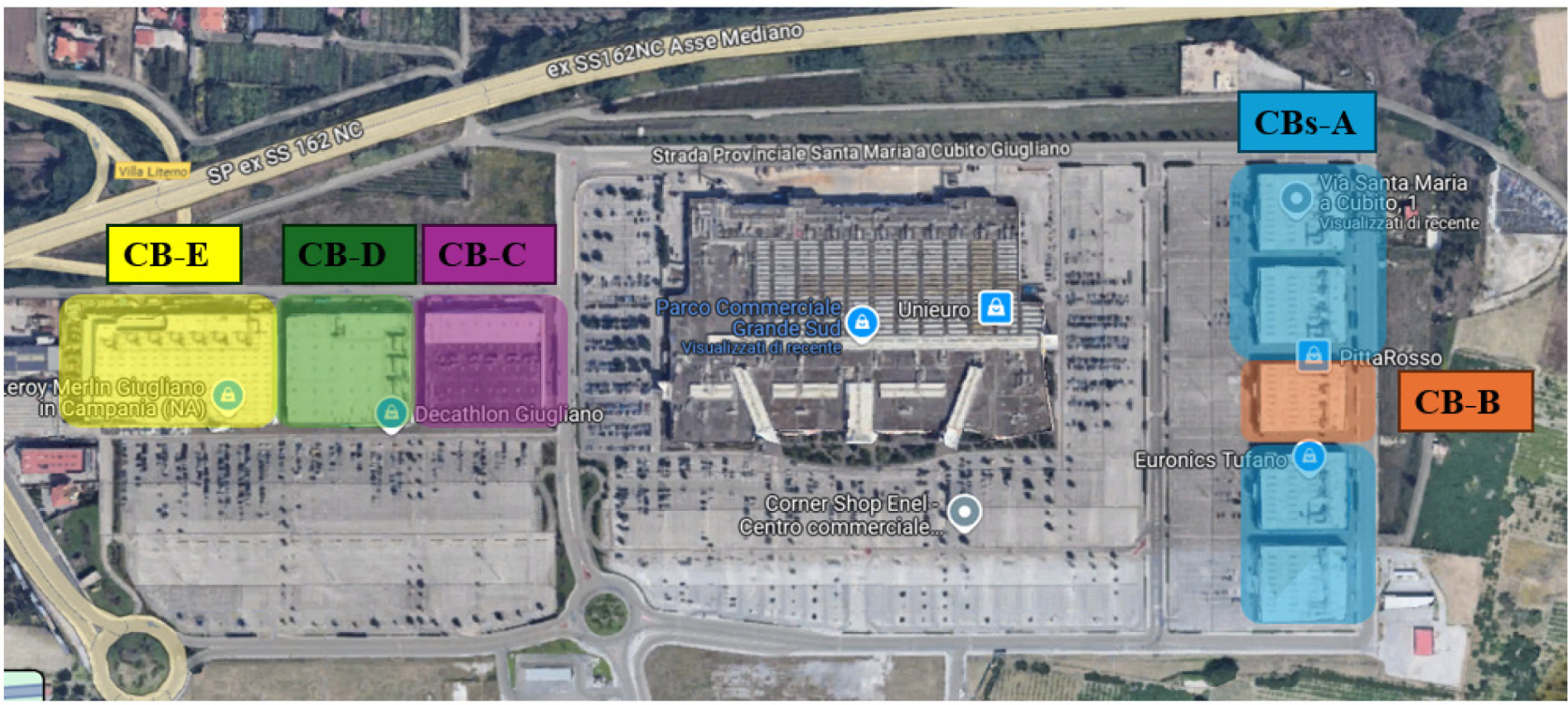

Figure 15.

Satellite picture of the commercial buildings [9]

For the calculation of the baseline electrical demand of the users, the contribution of indoor LED lighting and various electric equipment was considered, including computers, monitors, video surveillance systems, automated checkouts, cash registers, POS terminals, and outdoor parking area lighting.

This baseline demand was then combined with the electrical consumption of the HVAC system to determine the total electric load (E_el,LOAD) for the case study.

It is worth noting that, although the shopping mall opens to the public at 9:00, the HVAC system is switched on at 8:30 to ensure that comfortable indoor conditions are reached before customers arrive. This operating schedule follows the requirements of D.P.R. 412/1993.

In the reference configuration, the entire electricity demand is supplied by the grid, which powers both the building’s electrical systems and the HPs.

The thermal plant is equipped with four Aermec NRG 3200H heat pumps [10], providing a total heating capacity of 3.59 MW and a cooling capacity of 3.44 MW.

These units deliver thermal energy to two thermal rings, each with a volume of 616 m³, the main components of the investigated 4^th generation district heating and cooling network. The layout of the ring system is shown in Figure 16.

Air distribution is managed by eight Air Handling Units (AHUs), each dedicated to conditioning one of the commercial buildings within the complex

Figure 16.

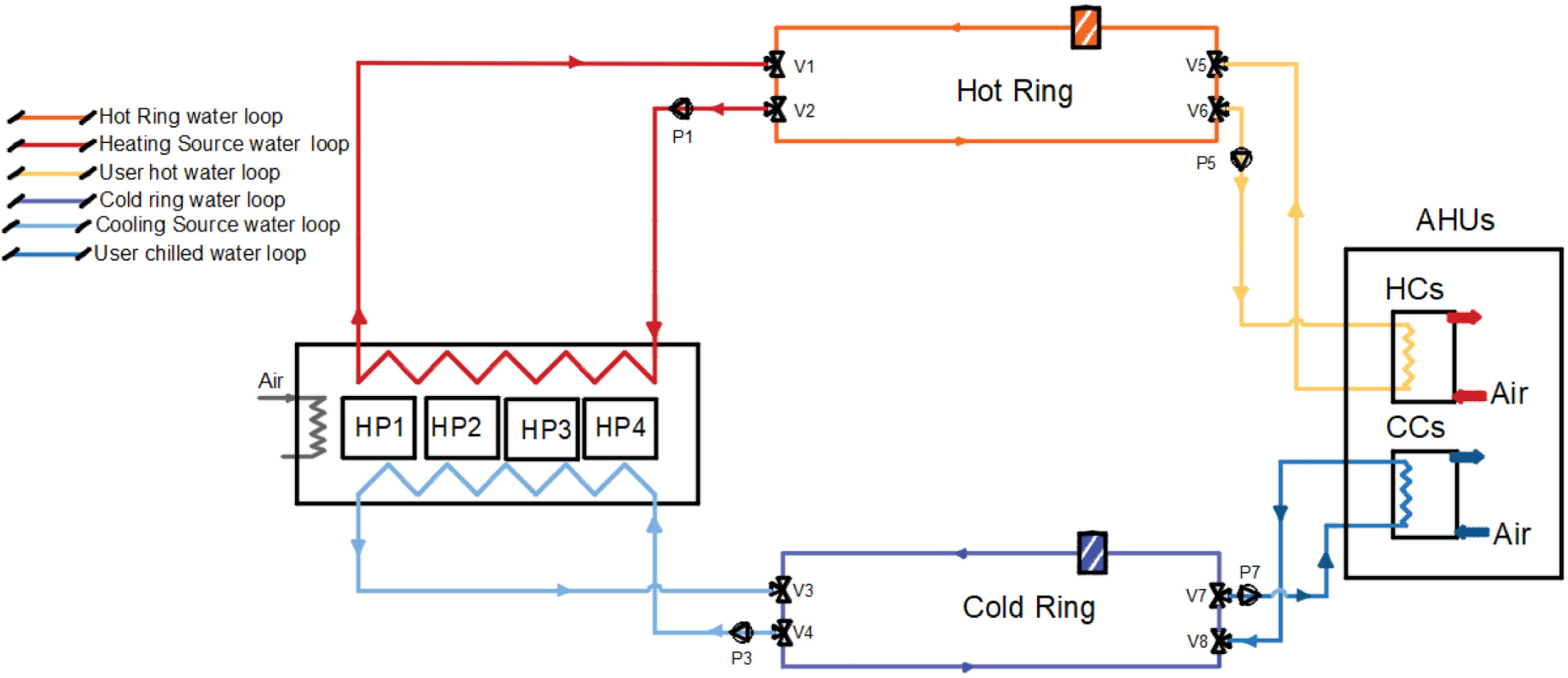

Reference system layout [9]

System Description – Proposed System (PS)

In system proposed by the authors, referred to as PV-P2T, a portion of the mall’s electrical demand is covered by a PV field. To further optimize the use of renewable resources and limit the amount of surplus electricity injected into the grid, thereby reducing issues such as instability, and voltage fluctuations, a P2T strategy is adopted.

Through this approach, excess renewable electricity is converted into thermal energy by means of heat pumps and subsequently stored in dedicated tanks containing both water and phase change materials (PCM-TKs).

Specifically, two units are integrated into the thermal plant: H-PCM-TK, used for heating energy storage, and C-PCM-TK, designed for cooling energy storage, as illustrated in Figure 17.

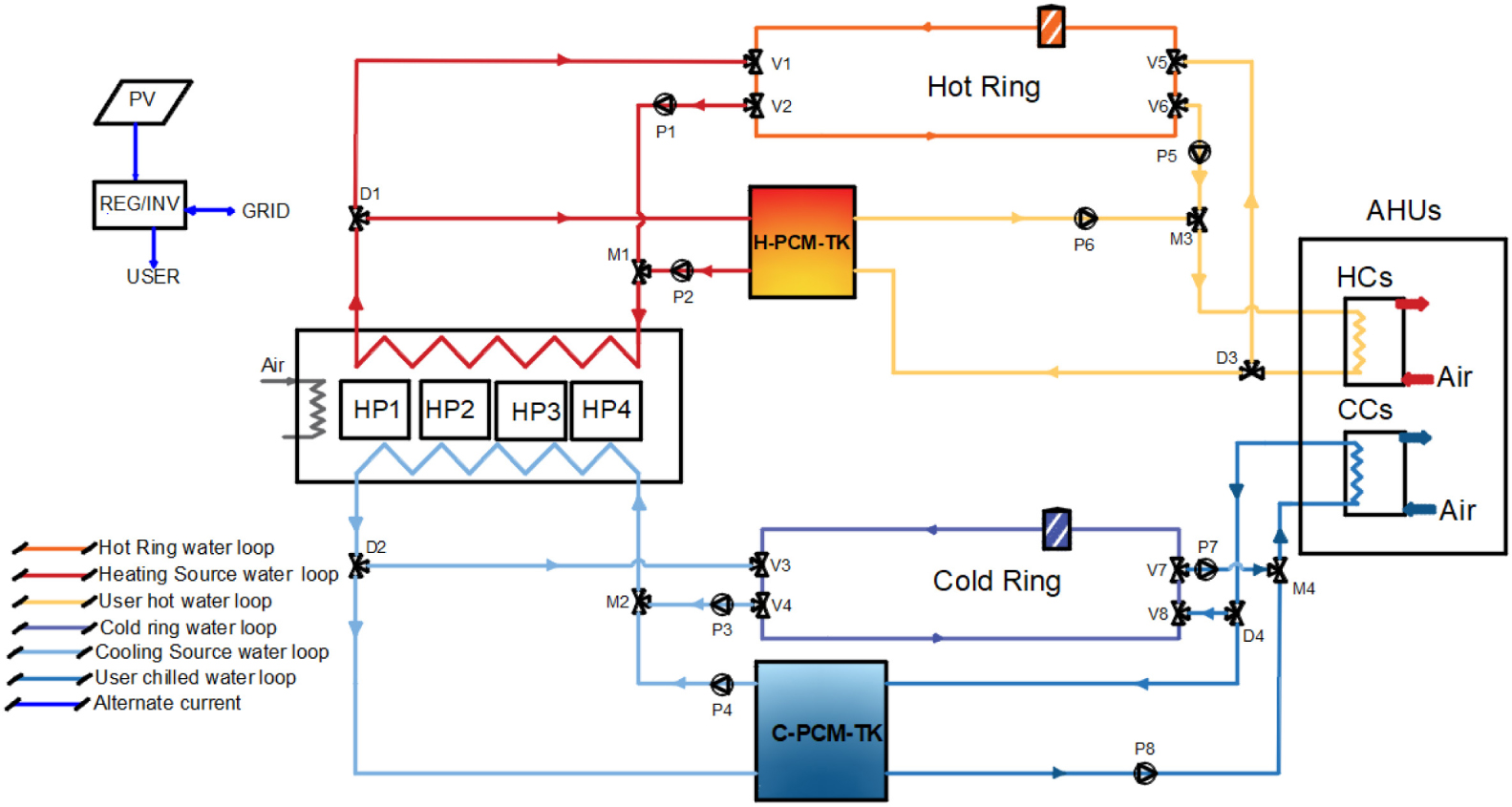

Figure 17.

Proposed system layout [9]

Since SP9 GEL is employed for low-temperature storage, the analysis focuses on the charging and discharging processes of the C-PCM-TK.

Compared to the PCM adopted by the researchers, ATP 12, the operating temperatures of SP9 GEL are slightly lower; consequently, the model and the corresponding temperature settings have been adjusted accordingly.

The charging of the C-PCM-TK occurs under two conditions:

1. The surplus power generated by the photovoltaic panels (P_el,PVexcess) must be sufficient to supply at least one heat pump (P_el,ratedHP);

2. At least one heat pump must be available for charging, meaning that not all units are simultaneously engaged in balancing the thermal ring.

If these two conditions are not simultaneously fulfilled, the surplus electricity is delivered to the grid. Otherwise, the thermal charging of the PCM-TK units is governed by a staged control strategy of the heat pumps.

A temperature sensor installed in the lower section of the tank supervises the charging process: when the measured temperature drops below 12 °C, the first heat pump is activated. Each additional decrease of temperature of 1.25 °C triggers the activation of an additional heat pump. The sequence continues until the temperature reaches 7 °C, at which point the C-PCM-TK is considered fully charge.

Once the storage tank is charged, the discharge control strategy to satisfy the cooling demand must be defined.

It would be inefficient to use the energy stored in the PCM if renewable power is directly available; therefore, the first condition to enable discharging is that the PV production is lower than the demand. In addition, a second control is implemented to verify that the tank is sufficiently charged: if the sensor located in the bottom section records a temperature of 13 °C or lower, the tank is used to remove heat from the cooling coils.

To predict the operating conditions of the shopping mall HVAC system, a dynamic simulation was carried out in TRNSYS 18, which provides detailed models for all system components. In this framework, the behaviour of the PCM tank is modelled through Type 840, according to the model developed at the Institute of Thermal Engineering, as reported in reference [11].

To simulate the phase-change process of the PCM, the enthalpy approach [12], in which enthalpy is defined as a continuous and invertible function of temperature, is adopted. Based on this assumption, an energy balance is applied to the different nodes of the storage system, allowing the temporal evolution of enthalpy and, consequently, of temperature to be determined. This method makes it possible to overcome the issue of the nearly constant temperature observed during the phase transition within the tank.

The tank is discretized into N horizontal segments. Each segment, referred to as node (j), is characterized by three parameters: enthalpy (h_j), temperature (T_j) and mass (m_j). For every node, the energy balance is formulated as follows:

The left side of the equation represents the enthalpy evolution in node (j) from the time step (p) to the time step p+1, where Δt denotes the time step size. The right-side accounts for the heat flows entering and leaving the node, defined as follows:

• Q ˙ dp p is the heat flow associated with the mass flow through a connection, referred to as a double port. The model allows up to five possible connections, each of which can be assigned a direction and a reference node.

• Q ˙ hx p represent heat exchange with an internal heat exchanger, which can itself be discretized into nodes adjacent to those of the tank. A maximum of five internal heat exchangers can be defined.

• Q ˙ aux p denotes heat input from a built-in auxiliary heater.

• Q ˙ cond p is the heat conduction between adjacent storage nodes.

• Q ˙ loss p indicates thermal losses to the surrounding environment.

For the correct operation of Type840, it is necessary to define correctly the material contained in the tank and its thermophysical properties.

The case analysed by the authors concerns an aluminium water tank containing cylindrical PCM modules. The tank geometry was defined in the study and subsequently used unchanged for the dynamic simulation; the corresponding values are reported in Table 4. The table also lists the number of PCM modules installed, together with the masses of water and PCM. Finally, the overall thermal storage capacity of the tank is provided, calculated as follows:

The equation reports the sum of the sensible heat stored by the water and the latent heat associated with the PCM’s phase change. It should be noted that this rated thermal capacity is an ideal upper bound.

The outputs of the dynamic simulation are pivotal to assess the effectiveness of the P2T strategy under varying PV production conditions and across different PCM solidification and melting cycles. In addition, the temperature distribution inside the storage tank is analysed to verify the thermal stratification, a phenomenon previously observed during the laboratory experiments.

The results were obtained by dynamic simulations that accounted for the operation of the photovoltaic plant proposed by the authors and the electricity demand of the shopping mall on a representative summer day, August 29^th. This day was selected to evaluate the behaviour of the PCM under realistic late-summer operating conditions rather than peak extremes. This approach allows the investigation of system operations during periods when photovoltaic generation and cooling demand are both substantial, yet not extreme, thereby avoiding the optimistic bias typically associated with design-day scenarios.

Since the primary objective of this analysis is to assess the performance of the phase change material and the impact of the P2T strategy, no thermo-economic evaluation of the proposed system is carried out in this paper. Details about the results of the thermo-economic analysis were discussed in reference [9].

The simulation was carried out with a time step of 90 seconds, which allows for an accurate representation of the short-term variations in both electrical and thermal loads, as well as the charging and discharging cycle of the PCM tanks.

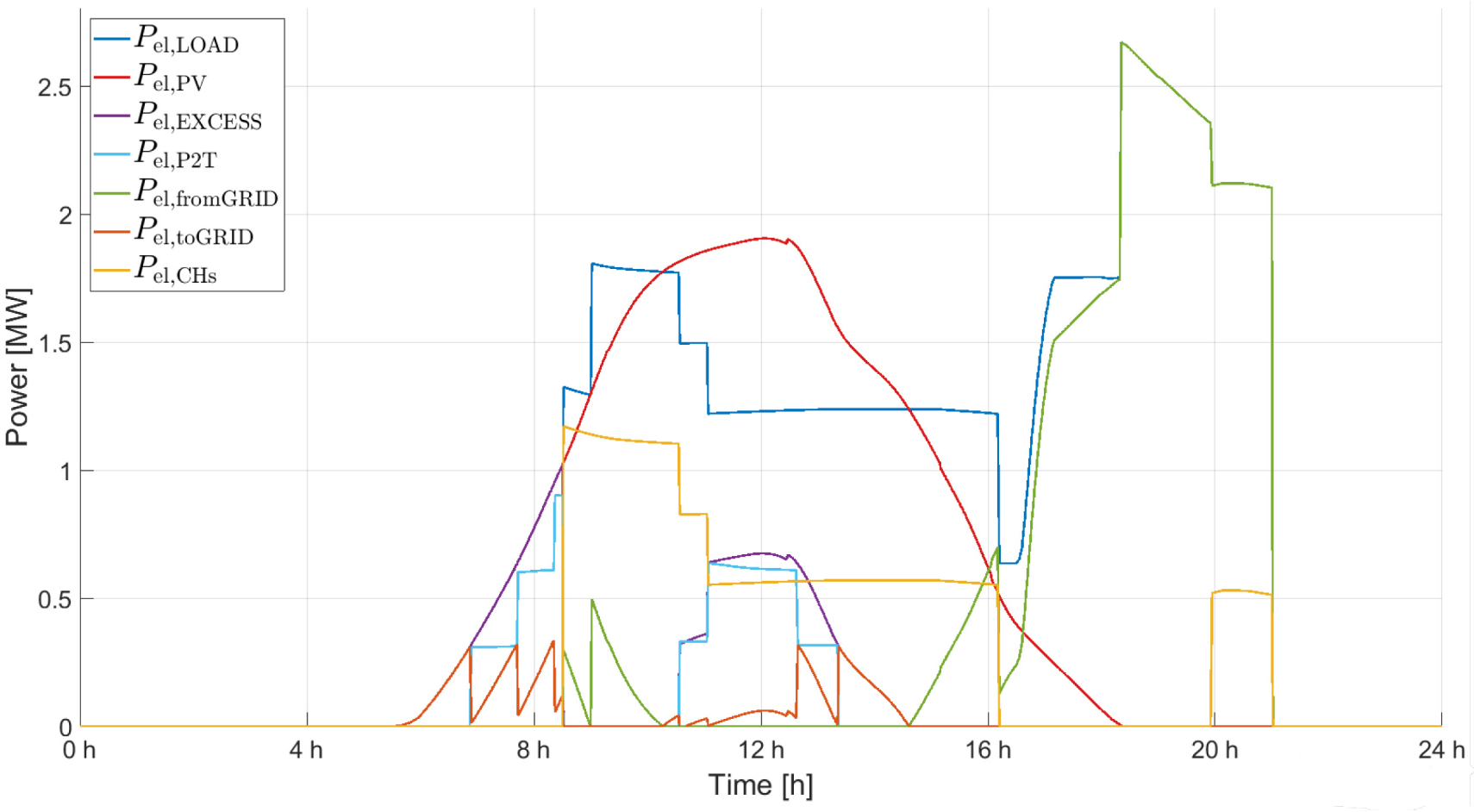

As shown in Figure 18, whenever excess photovoltaic production P_el,EXCESS, is available and at least one HP is not engaged in supplying the cold ring, the C-PCM-TK is charged. This is highlighted by the value of P_el,P2T, which marks the conversion of surplus electricity into thermal flowrate stored in the PCM tank. Such operation reduces the amount of electricity delivered to the grid.

Figure 18.

Dynamic results showing the effectiveness of P2T strategy

Whenever the electrical load exceeds PV power production, electricity is imported from the grid, whereas any surplus that cannot be used for the operation of the heat pump is delivered to the grid. With the integration of SP9 GEL, part of this surplus is instead stored as thermal energy: specifically, 72.39% of the available PV excess was used to charge the PCM rather than being delivered to the grid. As a result, the heat pumps supplying the cold ring can be completely switched off in the afternoon, approximately between 16:00 and 20:00, as indicated by the zero value of P_el,CHs during this time range in Figure 19. This reduces the electricity demand of the shopping mall compared to the case without storage.

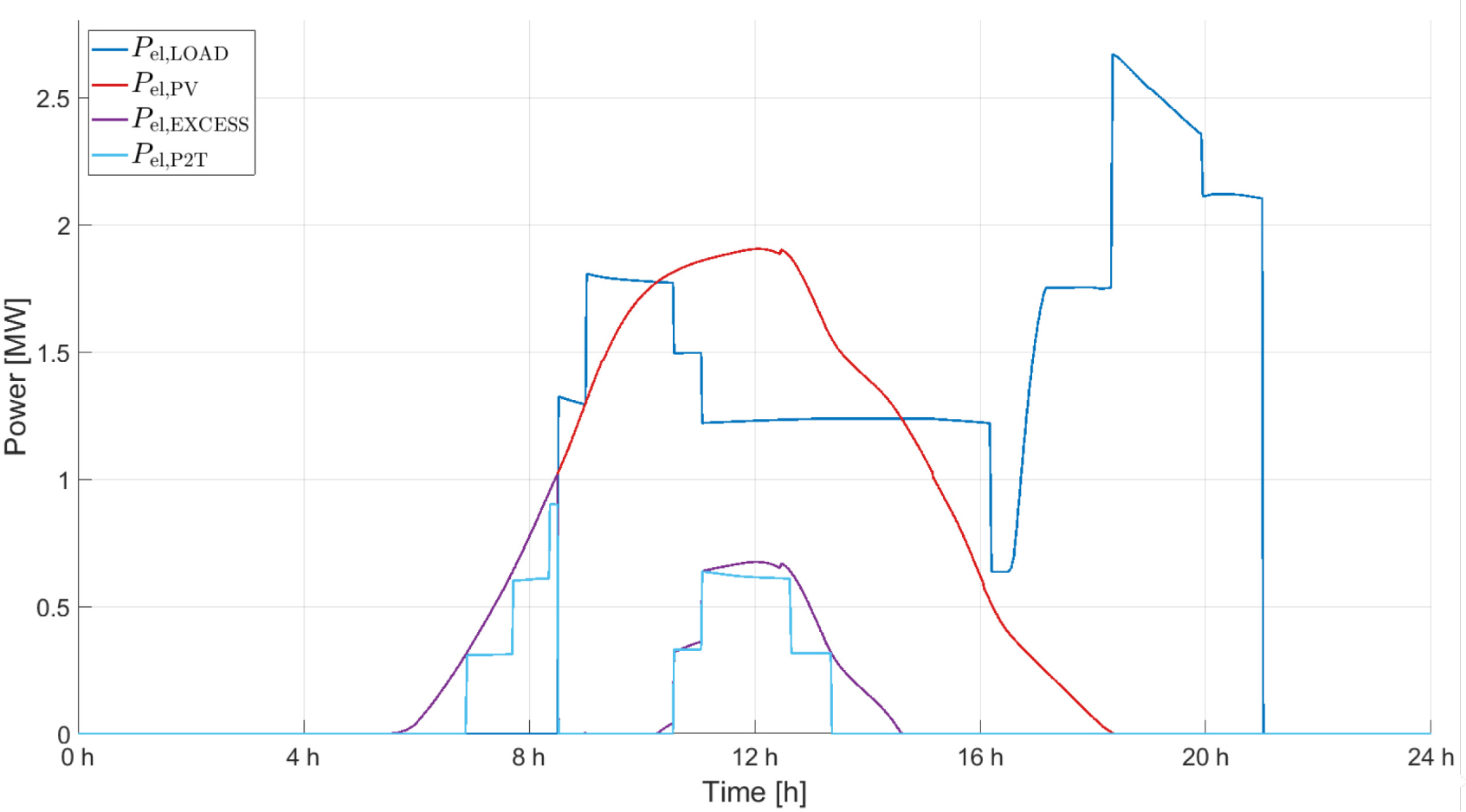

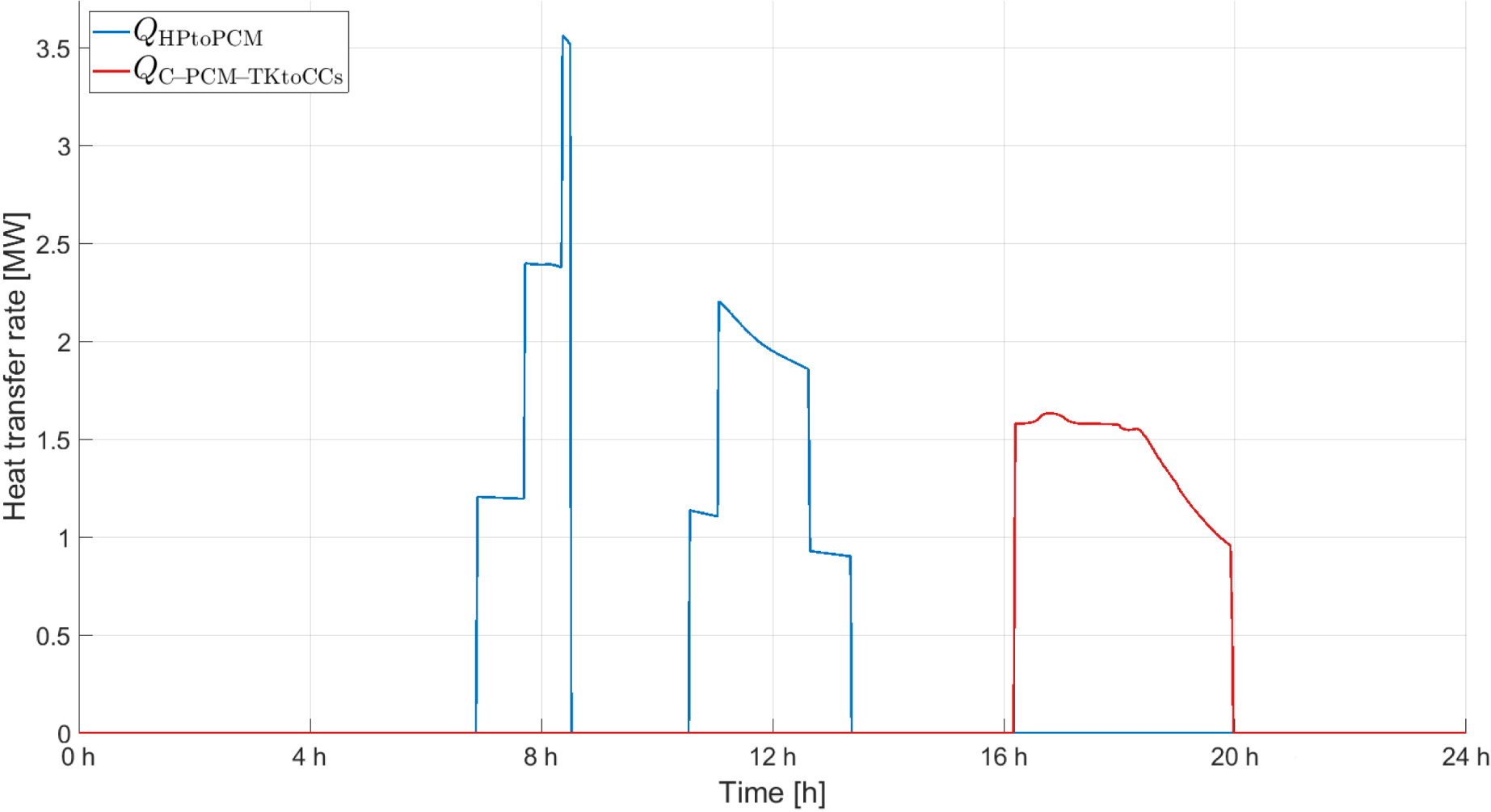

Figure 19.

Power profiles during summer day

To better understand the dynamics of the tank operation, Figure 20 illustrates the cooling process of the C-PCM-TK, whenever excess renewable electricity is available. Once the tank is charged, the PCM is then exploited to completely cover the cooling demand during the afternoon hours.

Figure 20.

Charing and discharging cycle

Finally, Figure 21 and Figure 22 reports the temperatures obtained by five sensors positioned at different heights along the vertical axis of the C-PCM-TK. Each sensor records both the water temperature T_wat, the temperature at the core of the cylindrical PCM modules T_PCM,in, and the temperature at their external surface T_PCM,ext.

No PCM modules are installed at sensor levels 1 and 5; consequently, PCM temperatures are unavailable at these positions and only T_wat is reported.

Figure 21.

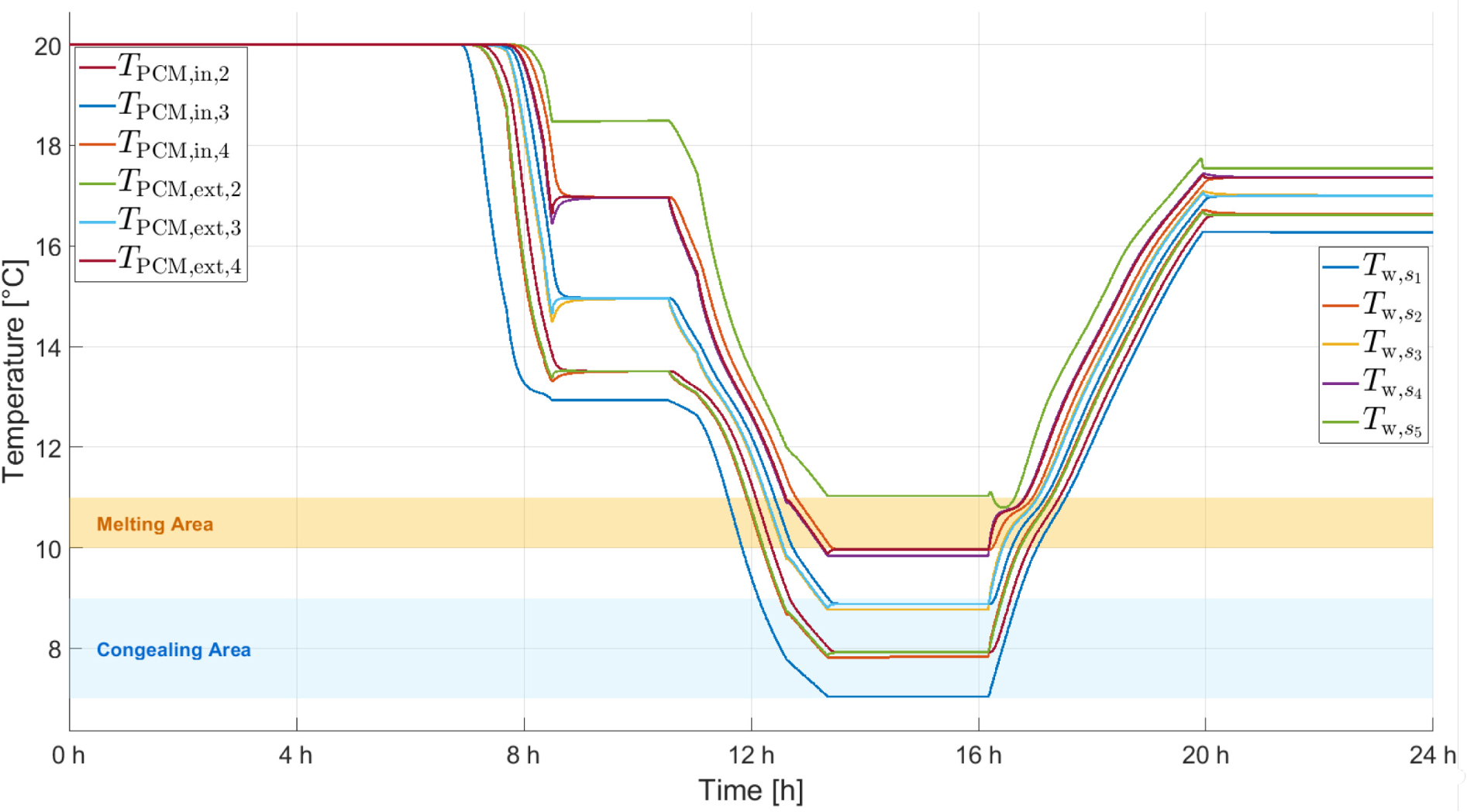

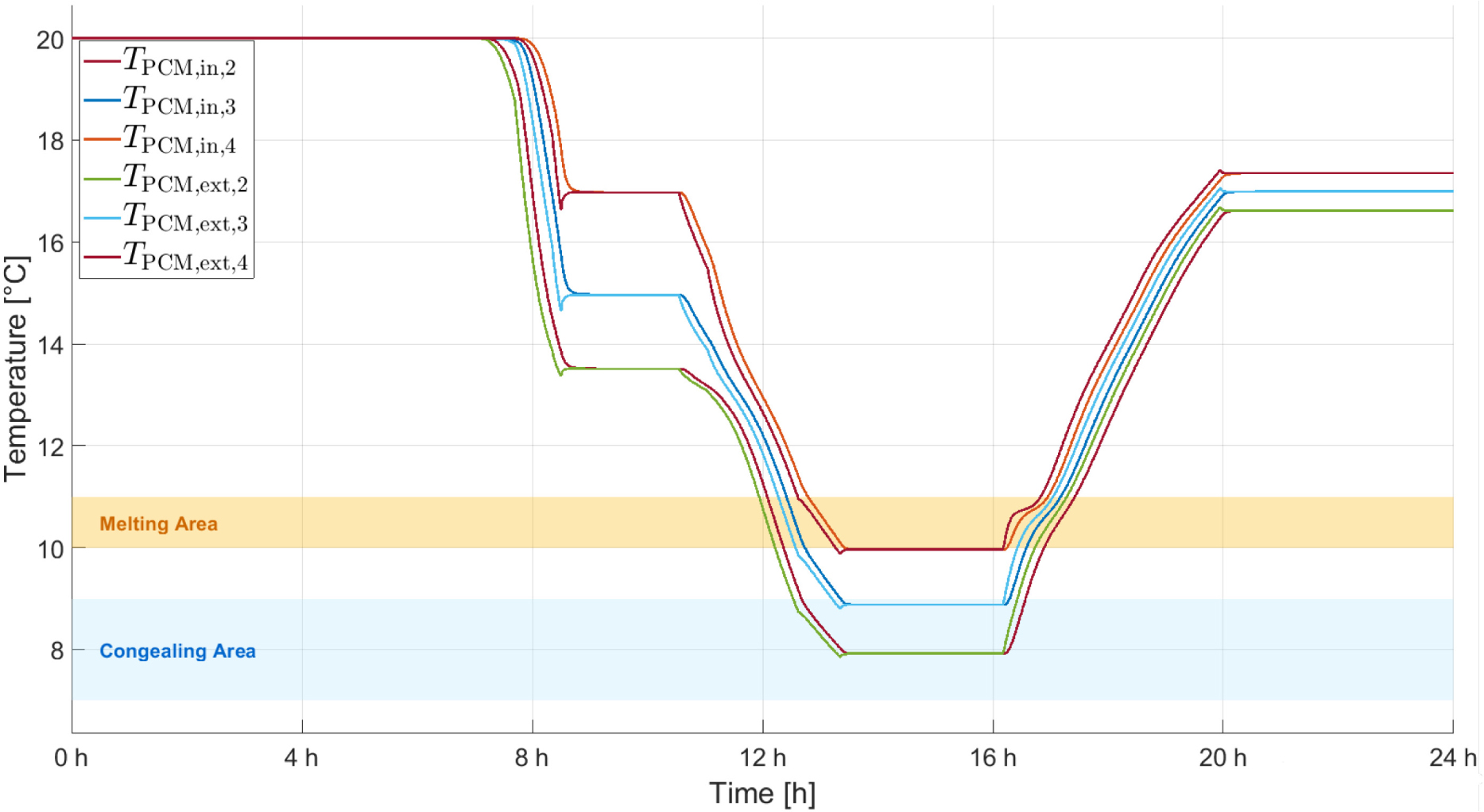

Temperature inside the tank over time: PCM temperature

Figure 22.

Temperature inside the tank over time: PCM and water temperature

During the operation, the tank continues to be used until both the water and the PCM reach 16 °C, in order to maximise utilisation and to harness the sensible heat accumulated during the charging phase.

Consistent with the laboratory tests presented in previous chapter, these profiles again reveal pronounced vertical stratification. The PCM located in the upper section of the tank does not enter the congealing area, thereby not fully utilising the tank’s storage capacity.

This outcome reflects the adopted geometry, with model dimensions representative of multiple tanks arranged in series. Constructing a single 532.68 m³ vessel would be typical of industrial plants rather than a shopping centre. Since the TRNSYS Type 840 employed allows the representation of one tank only, the set of N storage units was idealised as a single equivalent vessel with the same total volume.

The study shows that thermal storage with a phase change material can valorise surplus photovoltaic electricity, providing an alternative pathway to store variable renewable output. The SP9 GEL was evaluated beyond the laboratory set up, in an operationally realistic context, to observe its behaviour under application conditions.

According to the previous analysis [9], the P2T strategy, despite being coupled with high-energy-density thermal storage, does not translate into substantial annual energy savings in shopping centres when both heating and cooling seasons are considered.

This limited impact is primarily due to winter operation. During the colder months, the availability of solar radiation significantly decreases, which in turn limits the amount of excess photovoltaic electricity that can be diverted to charge the thermal storage tanks. Consequently, the potential contribution of the P2T approach remains marginal, since most of the electrical demand must still be met directly by the grid.

The operation is markedly different during summer months, when the high solar radiation increases the amount of surplus renewable energy available for storage and the P2T strategy becomes far more effective. Previous analyses report that, in August, 44.29% of the PV energy excess can be successfully stored as thermal energy [9]. This result is confirmed by the investigated case study, where the performance of the P2T strategy reaches its peak: for a typical summer day (August 29^th), 72.39% of the photovoltaic surplus was converted into thermal energy and stored in the C-PCM-TK rather than delivered to the grid.

Beyond the site-specific quantitative results, the analysis highlights several transferable insights. The findings confirm that PCM solidification constitutes the dominant limiting mechanism for the performance of low-temperature cold thermal energy storage systems. Moreover, the simulations demonstrate the strong influence of tank geometry and heat-exchanger configuration on both charging rate and thermal stratification within the PCM. In the present case, the pronounced stratification is primarily associated with the large height of the storage tank adopted in the TRNSYS model. Since the selected TRNSYS Type represents the storage system as a single equivalent vessel, a single large tank was modelled instead of multiple smaller units. In practical applications, the deployment of several shorter tanks arranged in series or parallel could reduce stratification effects and enhance the effective utilisation of the PCM volume.

Overall, the results indicate that, while PCM-based cold thermal storage can effectively enhance photovoltaic self-consumption during favourable summer conditions, its performance is strongly governed by physical constraints related to phase change dynamics, system geometry, and seasonal solar availability. These findings are broadly applicable beyond the specific case study and provide useful guidance for the design and assessment of PCM-based P2T solutions in future renewable-integrated district energy systems.

From a broader technological perspective, electrical storage systems should not be interpreted as alternatives to the proposed approach. Their integration with PCM-based thermal storage can further increase onsite renewable self-consumption and enhance overall system flexibility.

Another possible option is ice thermal storage, which may appear attractive from a cost perspective. However, this technology presents inherent operational limitations due to the fixed phase change temperature of water at 0 °C. Consequently, ice production requires chillers to operate under sub-freezing conditions, an operating regime that many existing cooling systems are not designed to support [13].

Sensible water storage represents a simpler and generally more cost-effective solution, but it is characterised by a lower energy density and typically requires significantly larger storage volumes to achieve comparable capacity [14]. In this context, PCM-based storage can be regarded as an intermediate solution, combining higher energy density within a narrow temperature range with compatibility with conventional low-temperature cooling systems.

In this work, a combined experimental and dynamic investigation was performed to evaluate the suitability of SP9 GEL as a phase change material for space cooling within the broader context of thermal energy storages. The experimental activity, carried out over five months at the Process and Energy Laboratory of Delft University of Technology, aimed to characterise the material thermal response within the temperature operating range of 8 – 10 °C.

The experimental campaign focused on determining the duration of the charging and discharging phases and on evaluating strategies to accelerate solidification, which represents the main performance bottleneck in low-temperature PCM systems.

Three charging methods were examined:

1. Cooling the material from the bottom through a single heat exchanger;

2. Enhancing the effective heat-transfer surface by modifying the PCM geometry;

3. A dynamic configuration in which the container was periodically rotated during charging.

The results demonstrated that the dynamic rotation method substantially improved solidification. Preventing the formation of insulating layers and maintaining effective contact between the liquid PCM and the cooled surfaces, rotation reduced the charging time by more than 70 % compared to the baseline configuration.

According to the experimental characterisation, SP9 GEL was integrated into a fourth-generation district heating and cooling network serving the “Grande Sud” shopping mall in Naples, Italy.

Dynamic simulations performed in TRNSYS 18 replaced the ATP-12 PCM adopted in earlier studies with the material tested experimentally, allowing the evaluation of the material performance under realistic operating conditions.

The analysis focused on a representative summer day characterised by high solar availability and substantial cooling demand. Despite the large height of the storage tank, which prevented full solidification and led to partial thermal stratification, the combination of water and cylindrical PCM modules enabled the heat pumps supplying the cold ring to be completely switched off for approximately four hours in the afternoon, with the cooling load satisfied entirely by the PCM tank.

On the same day, 72.39% of the photovoltaic surplus was stored as thermal energy rather than delivered to the grid, confirming the effectiveness of the Power-to-Thermal approach under favourable summer conditions. However, these encouraging results show a marked seasonal dependence. During winter, the limited solar irradiance severely reduces the renewable surplus available for charging, significantly constraining the contribution of the P2T strategy.

Furthermore, during summer months, thermal storage offsets only the electricity associated with heat-pump operation, while the demand from lighting, appliances and other services continues to be met by the electric grid. This underscores the value of integrated solutions that can address both thermal and electrical loads.

Building on these findings, several avenues for future development emerge. Improving the thermal conductivity of SP9 GEL, for example through the inclusion of nanoparticles or other high-conductivity additives, could accelerate solidification and enhance storage efficiency.

The use of modular, shorter tanks arranged in series or parallel may help limit stratification and increase the effective utilisation of the PCM volume.

Finally, coupling PCM-based thermal storage with electrical storage systems such as lithium-ion batteries offers a promising pathway to increase onsite renewable self-consumption and further reduce reliance on the grid, particularly during periods of low solar availability.
