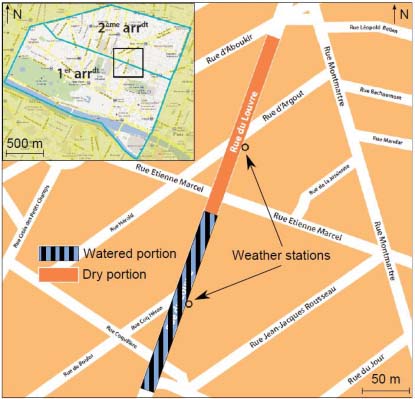

Conductive heat flux and surface temperatures were investigated on Rue du Louvre, near Les Halles in the 1^st and 2^nd Arrondissements. The street has an aspect ratio approximately equal to one (H/W = 1), is about 20 m wide and has a N-NE – S-SW orientation. It is paved with standard asphalt concrete. Weather station positions are illustrated in Figure 1.

Figure 1.

Map of the Rue du Louvre site

These positions were selected as their urban configuration (morphology, orientation, materials, traffic, etc.) was as similar as possible and presented very low vegetation presence. Statistical analyses were conducted using the R software environment, version 3.0.1, retrieved from http://www.r-project.org/ on July 30^th, 2013.

Watering was started if certain weather conditions, based on Météo-France’s three-day forecast, were met. These are summarized in Table 1. Heat-wave warnings are issued if BMI_min and BMI_max exceed 21 °C and 31 °C, respectively.

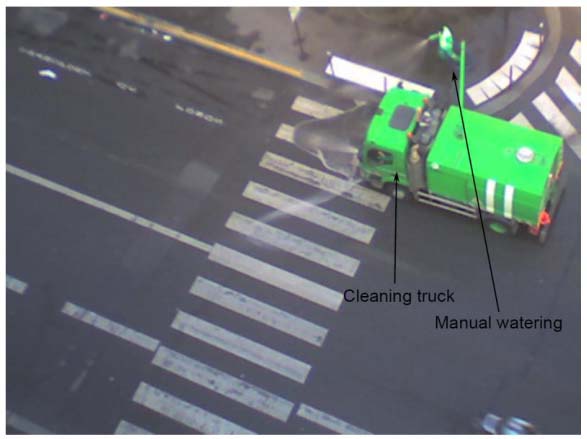

Cleaning trucks were used to sprinkle approximately 1 l/m² (equivalent to 1 mm) every hour from 6:30 AM to 11:30 AM and every 30 minutes from 2 PM until 6:30 PM on the sidewalk and pavement. A photograph of pavement-watering is shown in Figure 2.

Figure 2.

Watering of the pavement and sidewalk on Rue du Louvre

Each watering cycle implies two passes by the cleaning truck. During each pass, the driver waters the two traffic lanes going in his direction, while an operator waters the sidewalk with a high pressure spray. The watering cycle start and end times were reported by the driver. The precision of reporting is estimated to be no better than 5 minutes. The capacity of the cleaning truck is 4 m³, i.e. just 10% more than required for the target area. The cleaning truck therefore refilled between each cycle. The average watering cycle, including watering and refilling, lasted about 20 minutes.

Water used for this experiment was supplied by the city’s 1,600 km non-potable water network, principally sourced from the Ourcq Canal. This water network is currently regarded as having high sustainability potential for urban uses that do not require potable water.

It should be noted that applying this watering method to Paris’ 2,550 ha of roads and sidewalks would require more than 300,000 m³/day and over 6,000 cleaning trucks. Although this method is clearly unfeasible, it is the simplest way of experimentally watering the road surface while saturating its water-retaining capacity and controlling water consumption.

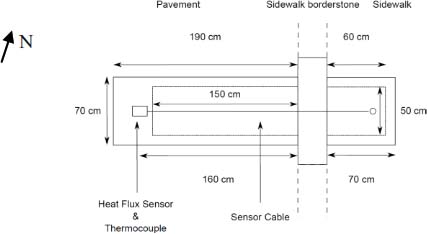

The pavement at each site was equipped with a thermo-flowmeter at a depth of 5 cm, in the centre of the adjoining bus lane. Figure 3 illustrates a top view of sensor installation.

Figure 3.

Top view of pavement sensor

In a masked environment such as ours, heat flux sensor positioning determines the exact aspect of the heat flux curve as it defines the beginning and end of pavement insolation, the main contributing factor to pavement heat flux. All else being equal, different positions are therefore not expected to significantly affect our analysis. This should also hold true for streets with similar orientation or aspect ratio. However, differences in paving materials will significantly affect pavement heat flux due to changes in albedo and emissivity. We therefore consider our analysis to be generalizable to all grossly N-S oriented streets with standard asphalt pavement and an aspect ratio of one.

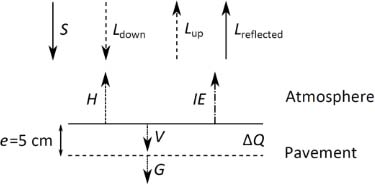

Figure 4, based on Kinouchi and Kanda [6], summarizes the heat transfers involved at the pavement surface. Downward solar irradiance is written as S; L_down is downward longwave radiation; L_up is upward longwave radiation; S_reflected is reflected shortwave radiation; H is the upward sensible heat flux; V is the downward pavement heat flux at the surface; ΔQ is the heat storage flux by the first 5 cm layer of pavement; lE is the latent heat flux, with l the latent heat of vaporization and E the evaporation rate. Our flowmeter measures the downward conductive heat flow 5 cm deep, written as G.

Figure 4.

Pavement surface heat budget

Under normal heat-wave conditions, the surface is dry and no latent heat flux is present. The role of pavement-watering is to add a latent heat flux lE as well as an advective heat flux, not shown in Figure 4. The advective flux is created as the sprinkled water heats up from its distribution temperature to the surface temperature of the pavement under wet conditions before evaporating. These two fluxes are expected to cause pavement surface cooling and cascade into micro-climatic effects.

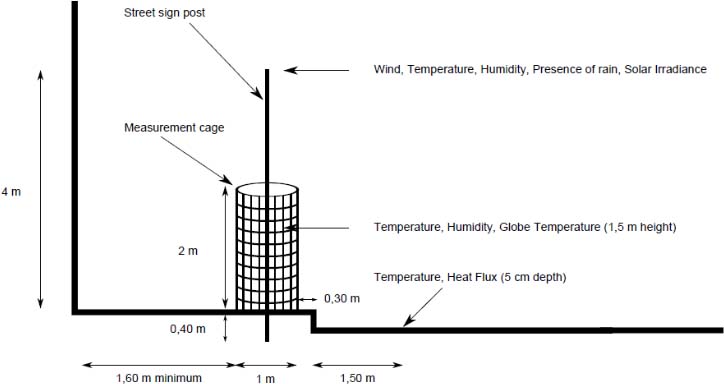

The pavement temperature and heat flux sensor was connected to a weather station used for microclimatic measurements. These included air temperature, relative humidity, black globe temperature, wind (velocity and direction), presence of rain and solar irradiance as indicated on Figure 5. Instruments within pedestrian reach were protected behind a cage.

Figure 5.

Design of urban weather stations installed Rue du Louvre

Table 2 summarizes the instruments and data used for this analysis. Black globe temperature, wind speed and air temperature were used to calculate mean radiant temperature, as described by ASHRAE [10].

A Flir B400 thermal camera was positioned on the roof terrace of 46, Rue du Louvre. The camera recorded false-color IR thermal and visible images simultaneously every hour on non-watered days and every 10 or 15 minutes on watered days. Additional mobile thermal images were taken on site on the evenings of the 16^th and 22^nd of July with a Fluke TiR32 camera lent by the Parisian Urban Planning Agency (APUR).

These images were used to estimate pavement surface temperature. Apparent (measured) surface temperatures were corrected as presented in Table 3.

The emissivity of pavement surfaces was measured in the field using an adhesive of known emissivity.

Mobile IR thermal photography surveys were conducted with the Fluke TiR32 infrared camera on the 16^th and 22^nd of July, 2013, from 6:30 PM until 11 PM. Heat flux and storage will also be discussed for these days and compared to those of two control days: July 14^th and 20^th, respectively.

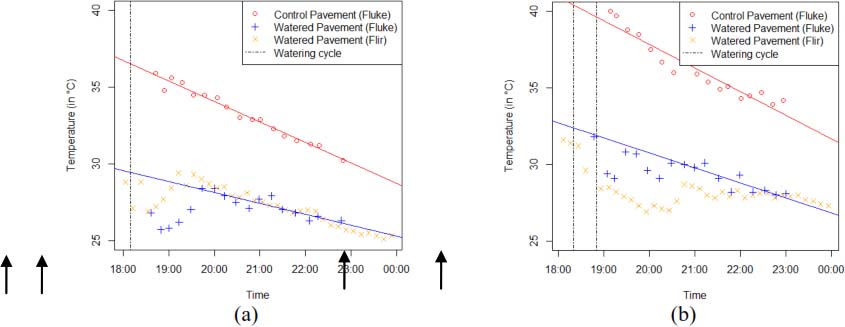

Two equivalent zones of pavement, one watered and one control, were studied. Collected data is presented in Figure 6 a, b, as well as surface temperature measurements of an equivalent watered pavement zone made by the Flir camera on the roof-terrace. Fitted regression models for the Fluke data are plotted as well.

Figure 6.

Evolution of corrected pavement surface temperatures: a) 16/07; b) 22/07 Arrows indicate sudden increases or decreases in the Flir data series

The last watering cycle was completed at 6:10 PM on July 16^th, while it ended at 6:50 PM on July 22^nd. These events are marked with a dash-dotted vertical line. All Fluke thermal images were of shaded areas, while this was not the case for plotted Flir data prior to 6:30 PM.

On both days, Flir measurements are subject to sudden declines and increases between 6 PM and 9 PM. These events are marked in Figure 6 with arrows on the x-axis. The magnitude of these events is about 3 °C on July 16^th and 2 °C on July 22^nd. These coincide with the high variability seen in the Fluke data before 7:30 PM on July 16^th and before 8:30 PM on July 22^nd.

These two shifts are respectively caused by pavement shading and surface drying, possibly caused by shortcomings in the applied correction of apparent temperatures. For these reasons, the regressions of the Fluke watered pavement series were only conducted on data collected after pavement drying, i.e. after 7:30 PM on July 16^th and after 8:30 PM on July 22^nd. The linear model fit was conducted on the whole of the control series.

Table 4 summarizes relevant regression parameters for the control and watered pavements. Given the degrees of freedom, Student tests indicate that the correlations found are at least 99.9% significant on July 16^th and July 22^nd for both watered and control pavements.

It can therefore be said with high confidence that, over the survey period, the surface temperatures in the control area cool nearly twice as fast as those in the watered area, with a difference of about 7.5 °C at 7:30 PM on July 16^th. For July 22^nd, which was significantly warmer than July 16^th, the control cools nearly 60% faster than the watered pavement, with a difference of about 6 °C at 8:30 PM.

The lower cooling rate of the pavement surface translates lower heat release by the pavement in the hours following pavement drying after watering compared to control conditions. This also indicates lower heat storage by the road materials.

Due to difficulties encountered with the control pavement sensor, watered data from July 16^th and 22^nd will be compared respectively to unwatered data from July 14^th and 20^th measured at the experimental station. On July 16^th, the Météo-France forecast indicated daily minimum and maximum temperatures of 20 °C and 29 °C. On July 22^nd, these values were 23 °C and 35 °C, respectively.

Heat flux is highly dependent on solar irradiance. Solar irradiance was 13% lower on July 16^th than on July 14^th, due to intermittent cloud cover throughout the day. The 4% difference between solar irradiance on July 20^th and 22^nd is considered negligible. Sunrise occurred at 5:58 AM and 6 AM for July 14^th and 16^th, while sunset was at 9:52 PM and 9:50 PM, respectively. On July 20^th and 22^nd, these occurred at 6:04 AM, 6:07 AM, 9:46 PM and 9:44 PM, respectively. Solar irradiance was highest between 1:30 PM and 3 PM.

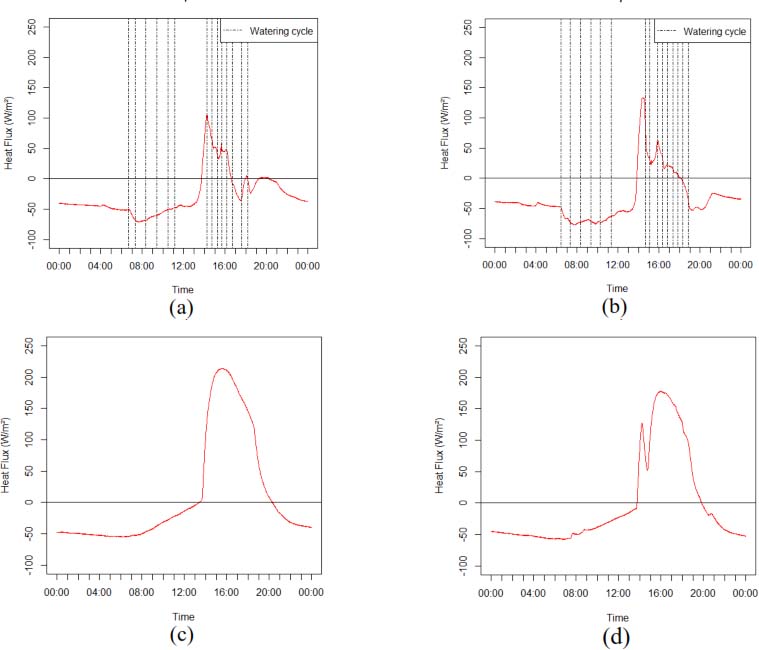

Figure 7 a, b, c and d illustrate measured heat flux on July 16^th, 22^nd, 14^th and 20^th, respectively. Dot-dash vertical lines indicate watering. Control day heat flux ranges between - 50 W/m² and 200 W/m² and follows a skewed-bell-shaped curve. On July 20^th, a parked tour bus is responsible for the 30 minute heat flux gap at 2:15 PM. These values are consistent with findings by Asaeda et al. and Kinouchi and Kanda [6], [9].

Figure 7.

Heat flux measured at 5 cm depth by the 46, Rue du Louvre weather station a) 16/07; b) 22/07; c) 14/07; d) 20/07

On watered days however, this shape is very significantly altered. This is especially the case in the afternoon during pavement insolation. In addition, watering cycles coincide well with local heat flux maxima, although this isn’t always the case because of intermittent cloud cover.

On July 16^th, maximum heat flux is reached when afternoon watering commences, with an approximate value of 110 W/m². On July 22^nd; the maximum value of 134 W/m² is also reached a few minutes before afternoon watering begins.

The delay in watering on July 22^nd compared to July 16^th, due to a delay in the start of pavement-watering, is part of the reason why the observed heat flux maximum is higher, although a passing cloud caused the July 22^nd peak to be reached a few minutes before watering. Had there been no interruption of solar irradiance, it is likely that the maximum would have been higher.

For these two days, heat flux maxima are reached during direct sun exposure, just after long interruptions of watering which allowed the surface to dry. The insolation period is that when pavement surface temperatures are expected to be highest. Therefore, it is also the period when advective and evaporative cooling should be highest. These periods, especially that just before the beginning of pavement insolation, therefore appear to be those with the greatest potential to increase the cooling effect.

This suggests that if cities are to carry out large-scale pavement watering, it is crucial to maintain active watering throughout the full duration of the insolation period in order to keep heat flux at a minimum, especially at midday when solar irradiance is highest. In order to avoid heat flux maxima from occuring during pavement watering, a higher watering frequency may be necessary.

A day-by-day analysis of heat storage will now be conducted. Heat storage was obtained by integration of the measured heat flux by the trapezoidal rule. The analysis will also take a closer look at different periods of the day, defined as follows: morning, the period before pavement insolation, which is divided into two parts: before watering begins, and after watering begins; afternoon is the period of direct sun exposure; evening is the period after direct sun exposure has ended.

Table 5 and Table 6 summarize heat storage on July 14^th and 16^th, and July 20^th and 22^nd, respectively. The difference between the sum of the different periods and the indicated total is due to double counting at interval extrema.

For both periods, daily heat storage is significantly reduced: from 0.90 MJ/m² on July 14^th to -2.33 MJ/m² on July 16^th and from -0.19 MJ/m² on July 20^th to -2.81 MJ/m² on July 22^nd. The pavement was therefore a net releaser of heat on watered days.

Judging by the details in Table 5 and Table 6, it appears that pavement-watering is most effective at mitigating heat storage during the watering phase, when the latent and advective heat fluxes are present. Furthermore, the effect is maximised during direct insolation of the pavement, when advective and evaporative are expected to be highest.

However, because of intermittent cloud cover on July 16^th, the observed effect is probably overestimated. Inversely, due to the heat flux gap caused by a parked tour bus on July 20^th, the effect observed on July 22^nd is probably underestimated.

Overall, if local shading effects are taken into account, it appears that pavement watering is an effective means of reducing heat storage by the pavement below 5 cm. A closer look at the period after pavement drying in the evening would give a better idea of the effects of pavement-watering on nocturnal heat release by road materials.
