Any area having altitude more than 600 m from mean sea level or an average slope of 30° may be classified as hilly in India [5], which includes the Himalayas, the Central Highlands, the Deccan Plateau and the north-eastern hill ranges. Depending upon the altitude and prevailing climatic conditions, hill regions have been classified into three categories as Foot-hill regions (below 1,200 m), Mid-hill regions (1,200-3,500 m) and High-hill regions (above 3,500 m) [6]. Most of the hill regions (especially larger hill towns/stations) are declared as ecologically sensitive zones by the ministry of environment and forest, and any large scale development is prohibited in these environmentally sensitive areas [7]. These different hill regions have varied geo-environmental conditions and resources available for development. Moreover, development in hilly areas is further constrained by difficult terrain, steep gradients, complex geological structure, climate, and flora.

Most of the hill towns/stations like Shimla, Nainital, Dalhousie, Mussoorie, etc. are situated in the mid hill regions [8]. These hill towns have been experiencing great pressure for development (due to high population growth, massive tourist influx, and better living conditions) from last three decades, which has changed the environment and visual appearance of hill towns [9]. Hill towns have grown many a time more than their design and carrying capacity (Figure 1) and are under a lot of pressure for providing residential, educational, health, work, recreational facilities and supporting infrastructure. These are furthermore pronounced due to the scarcity of buildable land, as well as high property prices [10]. Due to rapid and irregular development, the risk of various natural disasters like earthquake, landslides, slope failure, flash floods, etc. and manmade disaster like accidents, fire, etc. has been increased tremendously in hill towns [11]. Furthermore, deforestation, an increase in the number of vehicles, non-scientific waste disposal has resulted in air and water contamination, which severely affecting the health of the residents [8].

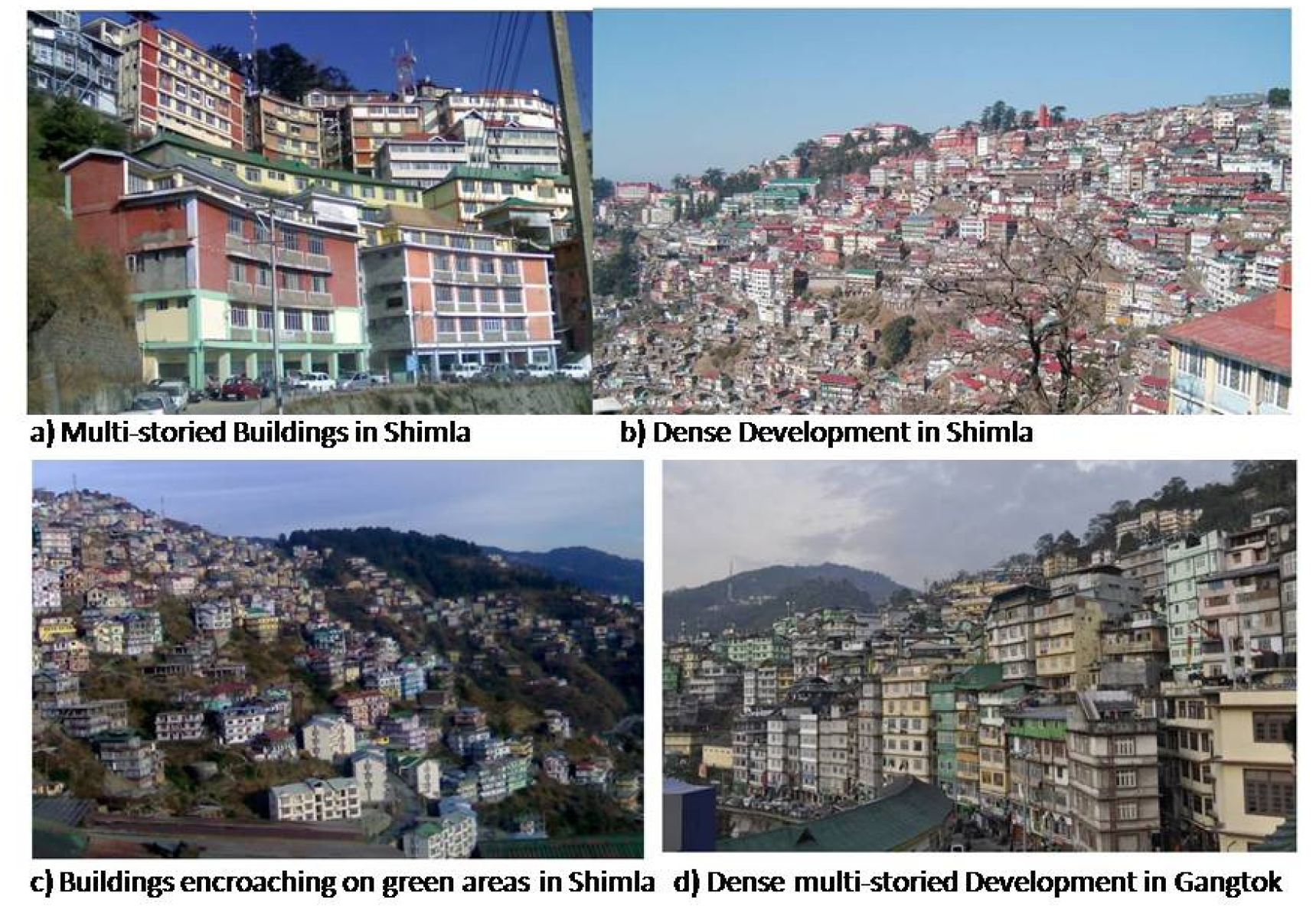

Figure 1.

Dense multi-storied development in hill towns

Unlike most of the ecologically sensitive zones/areas of the world, Indian hill towns are the specific examples of massive urban development in environmentally sensitive areas (Figure 1), which are growing exponentially over and above of their carrying capacities and hampering/affecting the environment [4]. In most of the countries for development in hill regions and ecologically sensitive areas, separate regulations that focus on minimal and contextually appropriate development, without harming the environment and ecology of the area are formulated and legislated.

Regulations enforced in major hill towns like Shimla, Manali, Dalhousie, Mussoorie, Nainital, Shillong, Srinagar and Gangtok are studied to understand various problems and issues of existing regulations related to energy and water, and attempts are made to have an in-depth understanding of these issues.

Regulations related to, passive solar design, use of solar devices, protection of solar exposure/solar rights of buildings, formulation of setbacks as per solar exposure requirement, rainwater harvesting, drainage of the site, maintenance of drainage pattern, ground water recharge and reuse of water are studied in different hill towns. The prevailing building regulations related to these essential aspects enforced in various hill towns are considered and compared to highlight various problems and shortcomings in existing building regulations, as shown in Table 1.

Presently, energy being one of the most important issues for development, as there are concerns at the international, national and regional level related to its conservation and optimal use. Shimla is the only Indian hill town that has incorporated regulations related to passive solar design and energy efficient fixture, to minimize energy consumption for maintaining comfort conditions in public, government, and semi-government buildings. No other Indian hill town has such regulations related to passive solar design in buildings. But, in spite of rules enforced in Shimla, these regulations related to the use of passive solar features are not followed in most of the buildings, as there are no provisions to check and ensure their compliance and also, no incentive is given to the owner’s to incorporate energy efficient design and features (Figure 2).

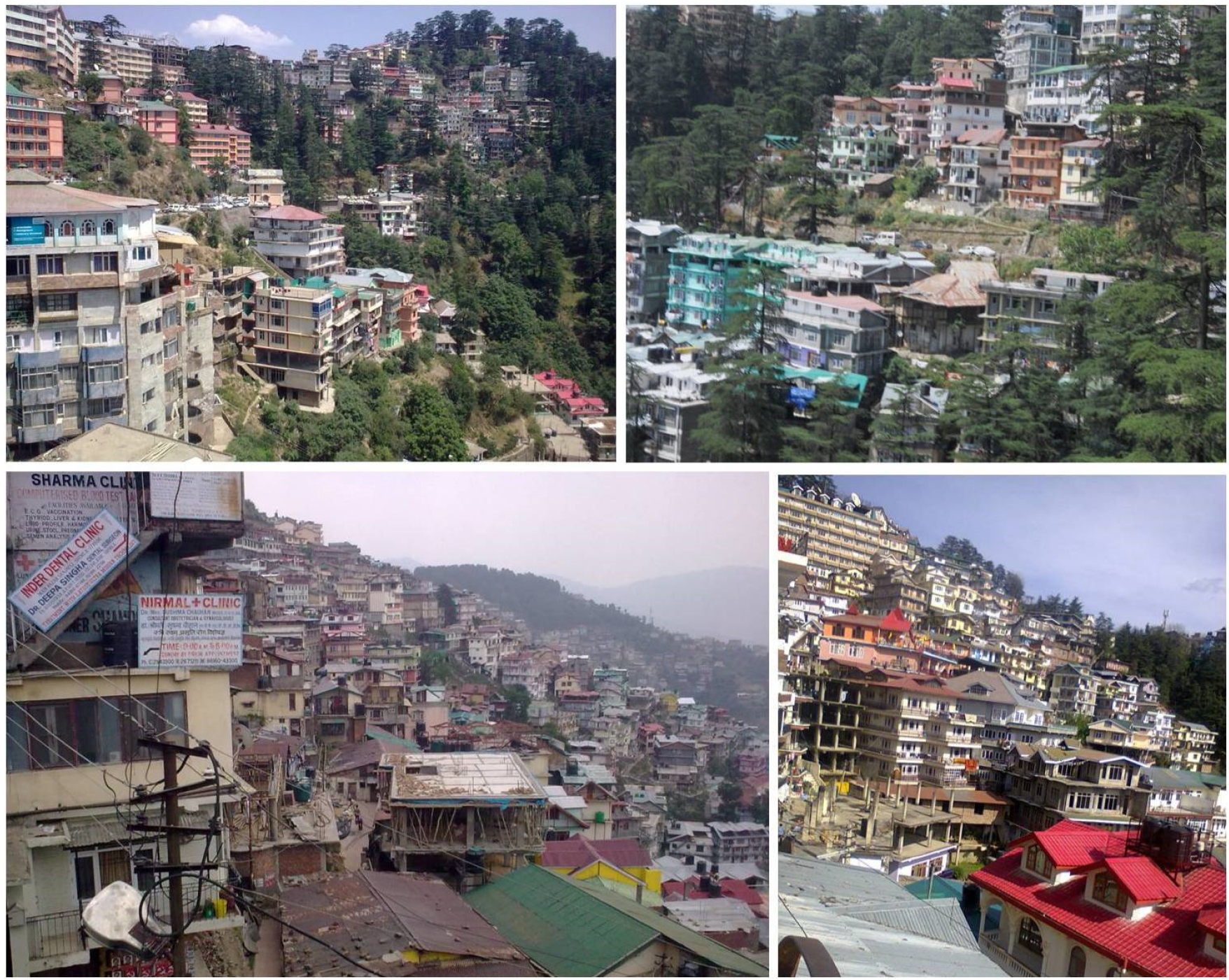

Figure 2.

Excessive development in Shimla, much more than their carrying capacities

Regulations to protect the solar exposure of one building from the shadow of other building that leads to mutual shading of building in cold climatic zones and result in the increase in consumption of energy for maintaining comfort conditions inside the buildings are not found in any hill town. Similar, the different setback regulations in-forced in various hill towns of India are formulated without considering the need/necessity of solar exposure to buildings for a particular period throughout the year [12]. These inappropriate setbacks lead to poor natural light in buildings which results in increased use of artificial lighting for general lighting purposes even during the day time. Lack of natural light and ventilation in buildings will lead to dampness and the unhealthy living environment in buildings (Figure 3). These regulations are borrowed from Delhi Master Plan or National Building Code and are applied on development in hill towns without any or minimal modification, which leads to inappropriate development in hill towns.

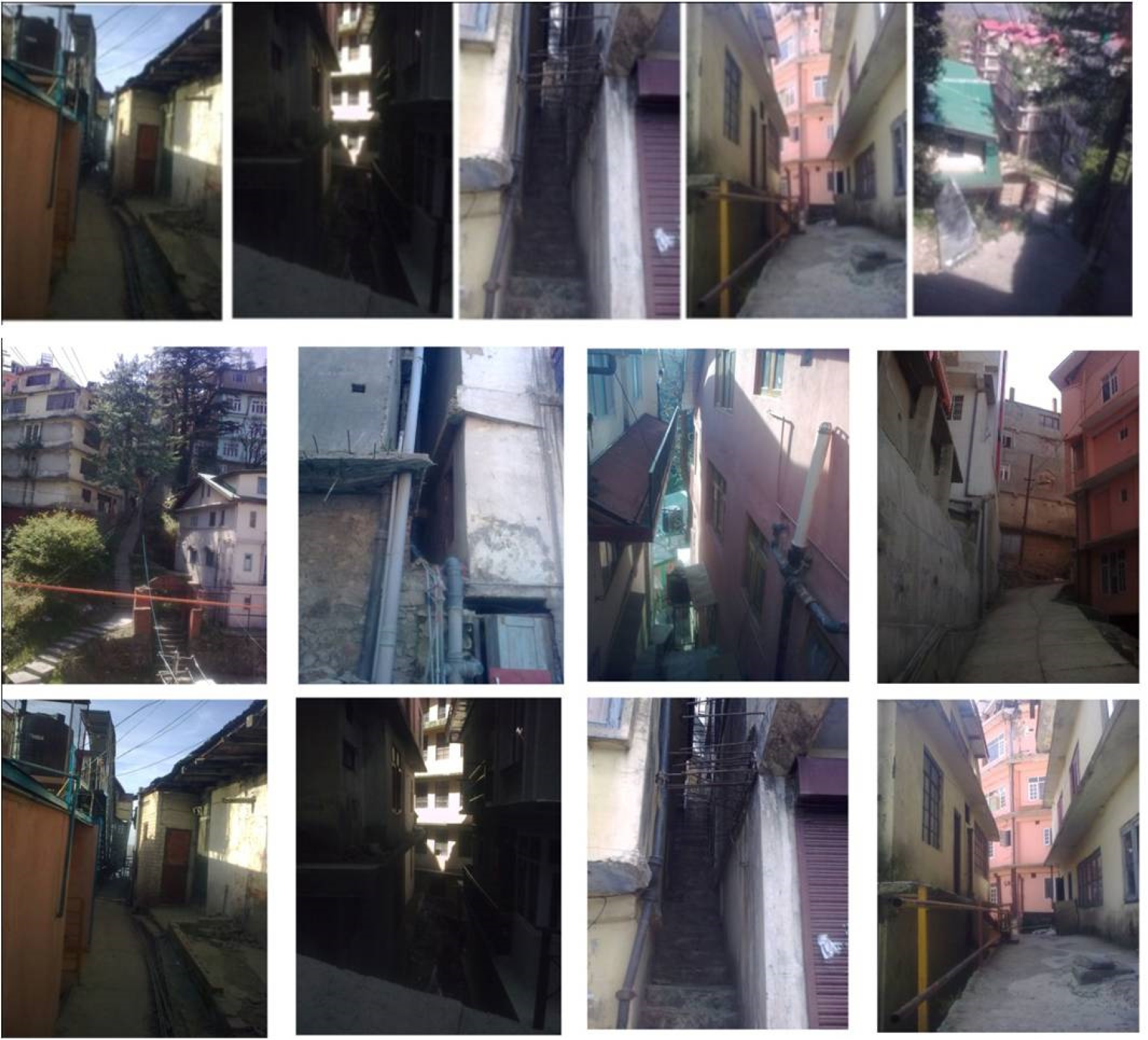

Figure 3.

Inadequate solar exposure to buildings in Shimla

Every hill town has regulations enforced related to rainwater harvesting, drainage of site and maintenance of existing drainage pattern, signifies the importance of these essential regulations for environmental protection in hill towns. Regulations related to rainwater harvesting exist in most of the hill towns, but Rainwater Harvesting Systems (RWHS) are not implemented in the majority of buildings constructed [13]. There are issues related to the detailing of the RWHS regulations, as in many hill towns these are specified as a single sentence irrespective of the type of the building/use, the size, shape, and topography of the plot. These regulations do not provide information about the appropriate type of RWHS for a particular plot and the utilization of rainwater collected.

Hill towns like Mussoorie, Nainital, and Manali have regulations enforced related to preservation of natural water sources. In spite of that, natural water sources like streams, waterfalls, rivers, lakes, etc. present in or around hill towns are facing serious problems related to pollution and siltation due to improper waste management, encroachment, and prevalent inappropriate site development and construction practices [4].

Every hill town studied has regulations related to maintenance of upstream drainage pattern, ground water recharge and site drainage reflecting the importance of maintaining drainage pattern. But, in spite of these regulations natural drainage pattern has changed in hill towns due to human interventions like encroachments, buildings built across drainage course.

There are no incentives regarding deduction in developmental charges, subsidy to purchase energy and water efficient equipment and provision of extra Floor Area Ratio (FAR) given to building owners for implementing regulations for environmental protection in hill towns, except in the case of Shillong. The incentive in terms of 10% reduction in developmental approval fee is given for providing setback as 1.5 times the prescribed setback in Shillong. Also, there is a decrease in development fee by 10% for providing provisions for rainwater harvesting system and reuse of waste water.

Various issues of building regulations are absence/unavailability of regulations related to some crucial aspects, the inappropriateness of existing building regulations and insufficient or inadequate enforcement of building regulations. As a consequence of these issues, there is pressure on energy and water sources to fulfill the ever-increasing demand. Problems like high consumption of energy for maintaining comfort conditions, depleting water sources, enormous pollution of surface and ground water source, high encroachment and deforestation in catchment areas, conversion of permeable grounds into hard impermeable surface result in deterioration of the environmental quality, which adversity affect the health and well-being of residents.

Regulations enforced in the United States (for hillside development) and Bhutan is studied to understand prevalent practices for water and energy regulations in different hill regions. Bhutan is a country located in the Himalayas and has similar geo-environmental characteristics as most of the hill towns of India located in the Himalayan region. Moreover, Bhutan has not compromised the environmental quality and biological diversity for development and economic progress [14]. Bhutan has sound environmental regulatory framework consists of many policies and acts, associated regulations, guidelines, codes of practice and environmental standards and has been institutionalized within Government agencies [15]. The United States, being a developed country has state of the art regulations and enforcement mechanism for protection of the sensitive environment in Hillside areas from adverse impacts of new development and to regulate the construction of new buildings.

As per Hillside Development Regulations in the United States, criteria adopted for site selection and placement of buildings are accessibility, geological stability, maintenance of natural appearance for hillsides and ridgelines, minimal grading, view protection and minimizes visual and environmental impact [16]. Moreover, in some hill towns, part of plots is required to be kept undisturbed and this undisturbed part of site increases with the increase in slope gradient. E.g. in the case of White County, Georgia, the percentage of plot area which should remain undisturbed is specified according to the average slope of the plot under consideration for development. This area to be remain undisturbed varies from 40% for plots having the slope gradient 24% or less to 90% for the plots having slope gradient 40% or more. Likewise, the maximum percentage of impervious surface on a lot is also specified and with the increase in the average slope in a plot, the percentage of impervious surface is decreasing. For example, the maximum percentage of lot that may be impervious surface is 30% for plots having the slope less than 24%. However, the maximum percentage of lot that may be impervious surface is reduced to 10% for sites/plots having the slope between 35 to 39%, as shown in Table 2 [17].

In Thimphu city – the capital of Bhutan, no development or building construction shall be permitted within 30 meters of the edge of the watercourse/side of the gullies or banks of the rivers or streams. No development or building construction shall be permitted within 15 meters of the edge of all natural rivulets or gulleys and natural drainage channels [18]. Every site development should include channels at the lower elevation/level of the site which discharges rainwater runoff into public storm water drains. Moreover, rainwater harvesting regulations are implemented having an underground water collection cistern at the lower portion of the site to collect rainwater [19]. This collected rainwater water can be used for landscaping, car washing, and other non-potable uses.

Also, the setbacks are required for ensuring adequate solar exposure to buildings during winters and these needs to be formulated following the spacing required between two buildings to have solar exposure of specific hours on the shortest day of year, i.e. 22^nd December. This provision for the formulation of setbacks to have an adequate solar exposure is included in existing regulations (as an appendix) for the purpose of reference and revision in future. Also, it is specified that due to the inability of implementing authority to enforce these regulations related to solar exposure, existing setback rules are formulated without considering the space requirement to ensure sufficient solar exposure in winters.

As per San Francisco Planning Code, upper parts of a building adjoining a public sidewalk need to have vertical setback(s) to preserve the openness of the street to the sky and to avoid the perception of overwhelming mass, these upper setbacks depends on the height of the street wall. Moreover, it is essential to achieving as much sun as possible on public sidewalks having a high volume of pedestrian use [20].

A light plane of 45° is drawn from the building to protect the solar exposure of the building constructed on opposite side of the road. The height of building and setbacks are decided accordingly so that a building does not cast its shadow on buildings present on the opposite side of the road.

Existing building regulations are not appropriate to cater all the prevalent challenges of the development in hill towns. Therefore, different interventions are required to formulate and implement regulations related to energy and water in hill towns of India. These interventions can be divided into various categories as interventions for:

• Formulation of regulations related to energy and water for new buildings;

• Formulation of regulations related to energy and water for existing buildings;

• Ensuring effective enforcement and compliance;

• Upgradation of technical expertise of professionals and authorities.

Interventions required for formulation of regulations related to energy and water for new buildings. The formulation of new and efficient regulation related to energy and water for new buildings in hill towns require the following types of interventions:

• Setting of performance standards for the different use: There is a need to set the desired performance standard for different use of buildings in hill towns. Various regulations related to energy and water for various use need to be focused on these desired standards;

• Formulations of regulations related to energy and water at area level: Different regulations need to be formulated and implemented at area/zone level depending upon the peculiar characteristics of vegetation, slope gradient, and direction, soil type, water table, proximity to different natural features, which can vary in different areas/zones of hill town. For this purpose, the city or town area is required to be classified into different zones based on the various intrinsic characteristics like topography slope direction, vegetation, soil type, water table, etc.;

• Regular monitoring and improvement in safety regulations: There is a need to have continuous studies and monitoring of existing development. Appropriate modifications/improvements to the current rules related to energy and water should be made based on the outcome of these studies. Moreover, impact assessments of these regulations need to be undertaken, and regulations need to be suitably modified depending on the results of these studies.

Interventions required for formulating regulations related to energy and water for existing buildings. Interventions required for formulation of regulations related to energy and water includes the following steps:

• Setting of performance standards for existing buildings: There is a need to set the desired performance level or standard for existing buildings. Based on the desired performance standard of regulations related to energy and water, existing building premises need to be retrofitted with features for energy and water conservation. Also, a suitable method of feasible retrofitting needs to be identified or suggested;

• Regular monitoring and condition assessment of retrofitted structure: There is a need to have continuous monitoring and condition assessment of retrofitted buildings with energy and water conservation measures to ensure the efficient functioning.

Interventions for ensuring effective enforcement and compliance. To ensure adequate compliance with different regulations related to energy and water, the proposal submission process, developmental approval, site visits and completion certificate stages need to be modified to have various provisions to ensure effective adoption and compliance of regulations related to energy and water.

Interventions for upgradation of technical expertise of professionals and authorities. Short-term courses focused on explaining various aspects of building regulations, the appropriate mechanism for enforcement and compliance, and the likely impacts of non-compliance of building regulations need to be conducted to impart sufficient skills and technical knowledge to professional working. Similarly, knowledge needs to be given to professional of local development authorities, so the checking of the development proposal and construction at the site need to be inspected accurately and efficiently.

Existing environmental regulations of hill towns are mostly need-based that are enforced to mitigate the harsh impacts of development and urbanizations on various components of the environment so that ecological balance should not be triggered off. For example, to control the depleting ground water table, regulations related to rainwater harvesting and ground water recharge are enforced. Along with these need-based or mandatory building regulations that should be compulsory to all development, there is a need to formulate ‘impact based regulations’ i.e., regulations based on the effects of a building on the environment and the surrounding areas.

The relevant quality standards need to be established to formulate different rules, which should also consider the resurgence of deteriorated environment quality in hill regions. From these environmental quality standards, different necessary and impact based regulations related to energy and water are required to be formulated. To ensure compliance with enforced regulations in an efficient and effective manner, these regulations need to be formulated as necessary regulations and impact based regulations, in the next sub-section.

Formulation of necessary regulations related to energy and water. For the formulation of necessary building regulations like energy efficient design, rainwater harvesting, site drainage, etc. various factors such as plot area, use, and building bulk need to be considered. Different provisions under every regulation need to be specified depending upon these factors (plot size, use and building bulk) so that the proposed necessary provisions for energy and water can be implemented:

• Regulations related to rainwater harvesting: Rainwater harvesting is necessary to maintain the water table and minimize loads/pressure on municipal water supply. It is mandatory to provide rainwater harvesting system for all new buildings designed and constructed in hill towns except row housing. The capacity of storage tank needs to be decided based on the rainfall data and roof/collector area. For detached houses and all other buildings (except plotted development) rainwater harvesting system to reuse collected rainwater for different purposes like gardening, floor washing, in water closets, etc. should be mandatory, and rainwater harvesting system to recharge groundwater is proposed to be constructed for row and semi-detached buildings (Table 3). Construction of rainwater harvesting tank should be allowed in building setbacks and should not be included in FAR. The completion certificate to the owner shall only be issued after the proper inspecting the installation and functioning of rainwater harvesting system in the plot/site;

• Regulations for the Protection of Natural Drainage Pattern: The natural drainage pattern is required to be maintained or kept unchanged while developing the site. It is the responsibility of the owner to collect upstream water, channelized it through the site and carefully dispose of the site under consideration. Moreover, it is the responsibility of the owner to maintain the drainage profile within site intact. While inspecting the building for the completion certificate, the maintenance of natural drainage pattern should also be checked, and if it is changed then, completion certificate should not be issued to the owner;

• Preservation of natural features and elements: No development should be allowed on sites having prominent natural features like ridges, lakes, springs, rivers, rivulet, and seasonal streams. A minimum distance of 5 m should be maintained from springs, rivulets, and seasonal streams, and a minimum distance of 10 m should be maintained from lakes, rivers to preserve different natural features present in hill towns;

• Regulations for incorporation of energy efficient design and feature: It should be mandatory for all group housing, office, government and semi-government buildings to incorporate various energy efficient features in different stages of selection, planning, design and operation/functioning.

Formulation of impact based regulations. Impact based regulations that are essential to improve the environmental quality in hill towns and to mitigate the adverse impacts of development on hill regions should be made. These should include regulations for plantation of trees, preservation of fertile top soil and its reuse, terrace gardens in place of lost green vegetation cover. These regulations should be formulated and implemented based on the impact of new development on the environment so that impacts of new development should be minimized in the environment of hill towns:

• Topsoil protection and erosion control: Top fertile soil needs to be conserved and reuse at other places for plantation purposes. It should not be dumped/filled with other soil lying below the top soil or non-fertile soil. Appropriate measures like vegetation plantation, soil stabilization, drainage channels and drainage correction are required to be taken so that the erosion of soil from the site should be prevented;

• Reuse of waste water after purification: In all buildings (except plotted residential development) the waste water obtained from basins, kitchen sinks, etc. should be treated, purified and reused for different purposes.

Along with formulation of building regulations for environmental protection in hill towns, there is a need to devise a new and efficient mechanism for the implementation of both mandatory and impact based regulations for environmental protection, so that these regulations should be implemented and followed effectively for environmental protection in hill towns.

The following recommendations are also suggested to ensure the effective formulation and necessary compliance of different regulations related to energy and water in hill towns:

• It is recommended that the performance criteria for the purpose of formulating regulations related to energy and water need to be developed judicially at areas level after conducting field studies. These regulations related to energy and water should have sufficient details to cover all aspects of their adoption and implementation for all types of use and plots;

• It is recommended that setback regulations are required to be formulated to have direct solar exposure for a specific duration for all buildings throughout the year. Topography and slope direction of the plot, the height of proposed building and width of access road need to be considered for deciding front setback in hill towns. Different setbacks (front, side and rear) need to be calculated separately for every hill town, as different hill towns have varied geographical locations, which leads to variation in incident solar radiations;

• It is recommended that local governing authorities should involve at various stages of development projects in an active/responsive manner to regulate and monitor developmental activity;

• Adoption of various provisions for energy and water conservation need to be ensured by local governing authorities while conducting site visits and issuing completion certificate in hill towns. As all hill towns have a fragile environment, the implementation of different provisions for environmental protection in hill towns is most crucial;

• There is a need for dissemination of information/knowledge related to building regulations to the residents. So that residents should know the building regulations and understand different provisions, which need to be fulfilled for effective compliance with building regulations for a particular use;

• Various incentives such as rebate in development fees, municipal taxes, infrastructural services charges as well as the subsidy for energy efficient fixtures and passive solar devices need to be made for buildings, which follow building regulations for environmental protection and aesthetics;

• There is a need to have regular monitoring of various building regulations for new and existing development to assess their current working condition so that these provisions should work efficiently. It is also recommended that reviews of existing provisions should be made on the regular basis so that improvements in various building regulations should be done.
