If one appreciates wind energy, why not have it in the backyard? Well, “In theory there is no difference between theory and practice. In practice there is” [17]. There is a difference between general support for wind power, and support for a particular project, which requires understanding, participation, consideration of costs and benefits, and sometimes addressing questions about larger social benefit. Once a project is to be constructed in close proximity of a settlement, it is relatively easy to communicate potential negative results of such project construction – which tend to be also more attractive for the press. It is also relatively easy to awaken local population’s emotions of being marginalised and victimised by larger and potent forces, standing behind the project’s construction. It is more complicated to address the possible positive impacts, which requires more sophisticated tools and communication, addressing economics, population self-esteem, as well as providing realistic visualisations of future impacts. The last point can also act as a materialisation of the future development within the imaginations of inhabitants, which can lower fears towards real future developments. The protests against wind energy gather more media interest, leading to the higher visibility of negative opinions. This phenomenon can be partially addressed by well-prepared communication material. Interesting content can be based on ambient advertisement and small architecture experiences. Such an approach can also capture the public’s interest, leading to higher participation of people with neutral and positive approaches towards wind energy. This can assure more equality in the points of view represented and a wider range of participants in the decision making process [18]. Improved community participation is beneficial for the decision legitimization [19]. To fully address the community perception issue, the notion of fairness needs to be achieved. It is linked to the concept of justice, in particular procedural and distributive justice. Procedural justice, which is addressed by the Visualisation Dome, refers to a fair decision making process that gives all relevant stakeholders an opportunity to participate [20], and be provided with trustworthy information from trusted sources. In contrast, distributive justice refers to fair distribution of costs and benefits amongst project stakeholders.

Analyses of potential RES projects are conducted with EnerPol. EnerPol is a system-wide, bottom-to-top framework for the assessment of power generation mix, electricity transmission infrastructure, market performance and the impact of policy. The EnerPol framework includes a high-resolution database, with more than 200 anthropological, geographical, climatic, regulatory and financial variables; this framework therefore allows for physical modelling of power generation and electricity transmission [24]. Due to the scientific approach the choice of locations with high wind energy potential development has a neutrality characteristic, which is an important aspect in the acceptance process.

To define the eligible areas for the installation of the wind parks a series of optimization steps in terms of economic impact is performed.

The integration of the Visualisation Dome into the EnerPol framework is novel, as the state of the art GIS mapping in the prior EnerPol framework mainly takes into account technological, weather and geographic information, whereas the Dome brings in social and psychological aspects, apart from outcomes from participatory GIS initiatives [25].

Chosen development areas are visualised and auralised in order to allow for the first-person experience. A Visualisation Dome with a diameter of 9.5 m has already been developed at ETH Zürich (Figure 1). It is easy to transport and quick to mount with little manpower and low maintenance costs. The main feature of the Dome is its provision of an immersive experience. Participants can select the point of view they want to see from a 360° photorealistic projection of the required facilities and their impact on the current landscape. The spectators will be free to move inside, observing the surroundings and experiencing the energy production of the future. The experience will be enhanced by realistic audio reproduction of the facility sounds, calculated to accurately represent the specific area, superimposing real-time ambient sounds.

To achieve such an immersive experience that is easy to transport, the Visualization Dome is equipped with 8 projectors connected to a single high power video server, capable of full Dome projection. The surround audio system is composed of a 5.1 audio system hidden behind the projection membrane. Real time visualization capabilities are obtained through rendering form software supported by a game-engine framework. To allow mobility, the structure of the tent is composed of a light geodesic steel frame covered by a pitch-black membrane. A seamless internal projection surface is obtained by the depressurization of an internally placed second membrane.

The purpose of the Dome is to allow the audience to express their opinions about the proposed wind turbine locations, allowing the local authorities as well as developers to take public opinion into account. The solution utilises digital spatial technologies, in particular Geographic Information Systems (GIS), which are often used for problem solving and information dissemination, especially by community organisations during the wind projects public consultation process [26]-[29]. In the Visualisation Dome, experience is enriched through:

• Directional sound projection is obtained by speakers located behind the projection membrane and controlled by the game-engine. It calculates the amount and type of sound that would be heard from the visualised point of view;

• Ability of interaction is allowed through a large touch screen showing an interactive interface. The user can freely chose the point of view from a situation map and decide what wind turbines layout to view, by choosing between different number of turbines, model and size. In addition to the layout options, the user is able to select the day of the year and time of the day, visualizing the landscape with appropriate light and weather conditions obtained from high resolution weather simulations;

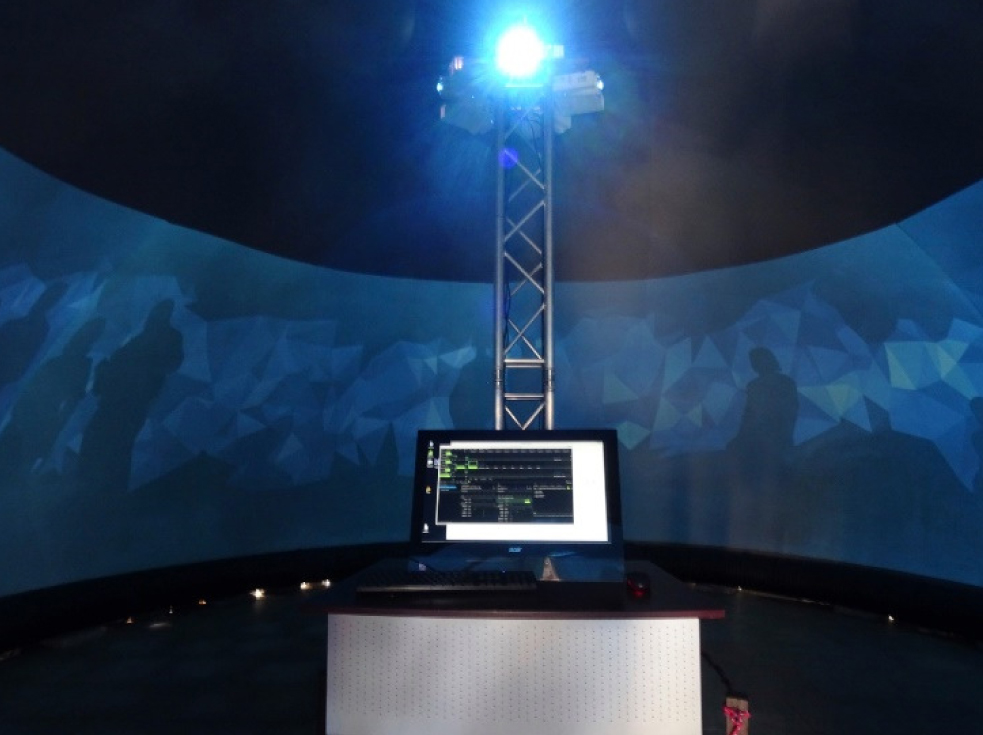

• Surrounding visualization is provided by 8 projectors placed in the centre of the Dome and connected to a video server specifically designed for the structure (Figure 2); Figure 2.

  Visualisation Dome interior



• Real-time supportive information, such as produced power, electricity generated and economic indicators such as IRR and Tax reductions are calculated by the system following the user interaction with chosen visualized layouts and locations. Such information is shown on the Dome entrance door and on the interactive touch screen;

• The spectators are given a specific questionnaire to be filled out at the end of the 15 minute presentation in order for the researchers to understand the participants’ reactions. The questions are related to both general experience of the surveyed person and relative acceptance, and to the interactive experience inside the Dome. The questionnaire is focused on positive and negative influences of the Visualization Dome experience in relation to wind turbines acceptance.

Research on community acceptance provides evidence [30] that even a single persuasive information leaflet addressing particular fears of citizens, identified through surveys, could increase community acceptance, significantly, by about 13%. One crucial challenge is to promote the local residents’ involvement. This can be achieved, for example, by informing residents about experiences of comparable communities and statements of other citizens. The Visualisation Dome offers an outstanding possibility to encourage involvement, provide information and allow for participation.

Community participation “improves the chances of reaching consensus, makes the decision making process more transparent, the outcome more valuable and the leading actors involved more accountable” [31]. Consequently it has been recognised as one of the major aspects of local acceptance [32]-[34], and therefore a special focus is put on community participation within the Visualisation Dome project. The Dome’s physical test-bed, utilizing a virtual full immersion environment, has been set up to allow individuals in a community to interact and possibly adjust the layout of renewable energy projects and provide feedback. Most importantly, through such a setup, local residents will be offered the opportunity to participate in the actual planning of the energy project. More specifically, they will be invited to participate in the final design and location of the project and will be provided options based on the economic and system optimization analyses of EnerPol. This setup will assure a democratic process, and meet recommendations for community participation [35]. Furthermore, people’s participation in the decision making process tends to mean that they are more likely to accept the results, as it legitimizes the program and actors involved [36]. It is a part of procedural fairness, which should assure dignity and self-sufficiency to the individual [37].

Any renewable energy project, planned in a certain neighbourhood, has an effect on local identity, and therefore personal identity of individuals [3]. As identity is connected with strong emotions, it should be carefully addressed. This includes understanding characteristics and meanings associated with certain places by individuals and social groups as they affect expectations, priorities and solutions chosen by the community. It should also mean addressing these issues in the planning process [38]. Assigning meaning to the neighbourhood “can serve as a powerful way for community organizations to enhance the legitimacy” [38], it should therefore be addressed in the wind project acceptance process. According to the place attachment research (e.g. [39], [40]) this procedure seems to be crucial in creating local acceptance for projects that influence the landscape. Moreover, being able to address the issue of spatial identity impacts the agency and authority of institutions involved in the decision making process [41]-[44]. Therefore, the design of the Visualization Dome is based on the hypothesis that through an interactive tool for local institutions, perceptions regarding proposed renewable energy production technology can be altered and the targeted population can assess the real advantages and impacts of the proposed project. As the visualizations are provided within the photorealistic context, people are able to recognize details of the space they are identified with. The realism of visualization and participation will help people to feel more considered within the planning process, potentially leading to higher acceptance levels.

Participation in community decision-making is a form of civil society activity, which is often country specific. In the European Union, the Netherlands, with a well-developed civil society, represents one side of the spectrum, and Poland, with a much less developed civil society, the other end [45]. In the Netherlands, 55% of citizens belonged to a civil society organization in 2007, about 44% have volunteered in the last 10 years, and 72% participated in mayoral elections [46]. On the other hand, Poland occupies the last position in the EU in terms of social trust in the political establishment [47], which translates into community participation levels. In 2011 only 14.8% of Poles belonged to social organization [48], 5.5% of adults had volunteered in a twelve-month period measured across 2008/2009 [48], and as little as 47.4% participated in the 2014 local elections [49].

That status of Polish civil society does not positively influence social support for the country’s transition to a post-carbon economy. Even though renewable energies enjoy medium to high acceptance levels (Figure 3), currently the sector is in decline. 84% of the population stated that their acceptance of wind energy would be positively influenced through information regarding real impacts of the technology, and 71% see a need for social consultation [50]. At the same time, the major concerns relate to the possible negative impact on the surroundings (33.1%) and noise levels (72%) [51].

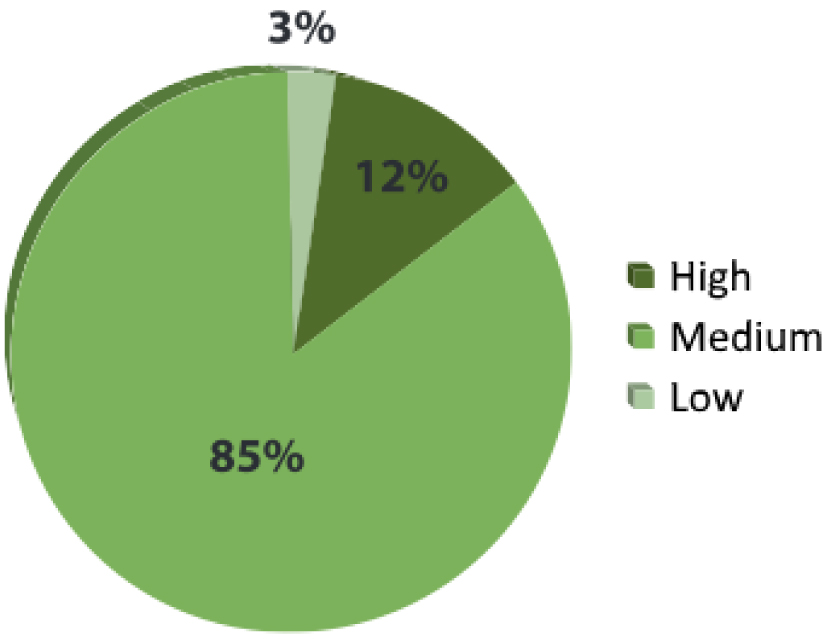

Figure 3.

Acceptance level of RES in Poland

To address acceptance and participation issues, the Visualization Dome prototype was built and further tested in Poland [51]. The prototype was built mostly integrating the market standard equipment. Calibration and testing inside the Dome have been conducted at the ETH.

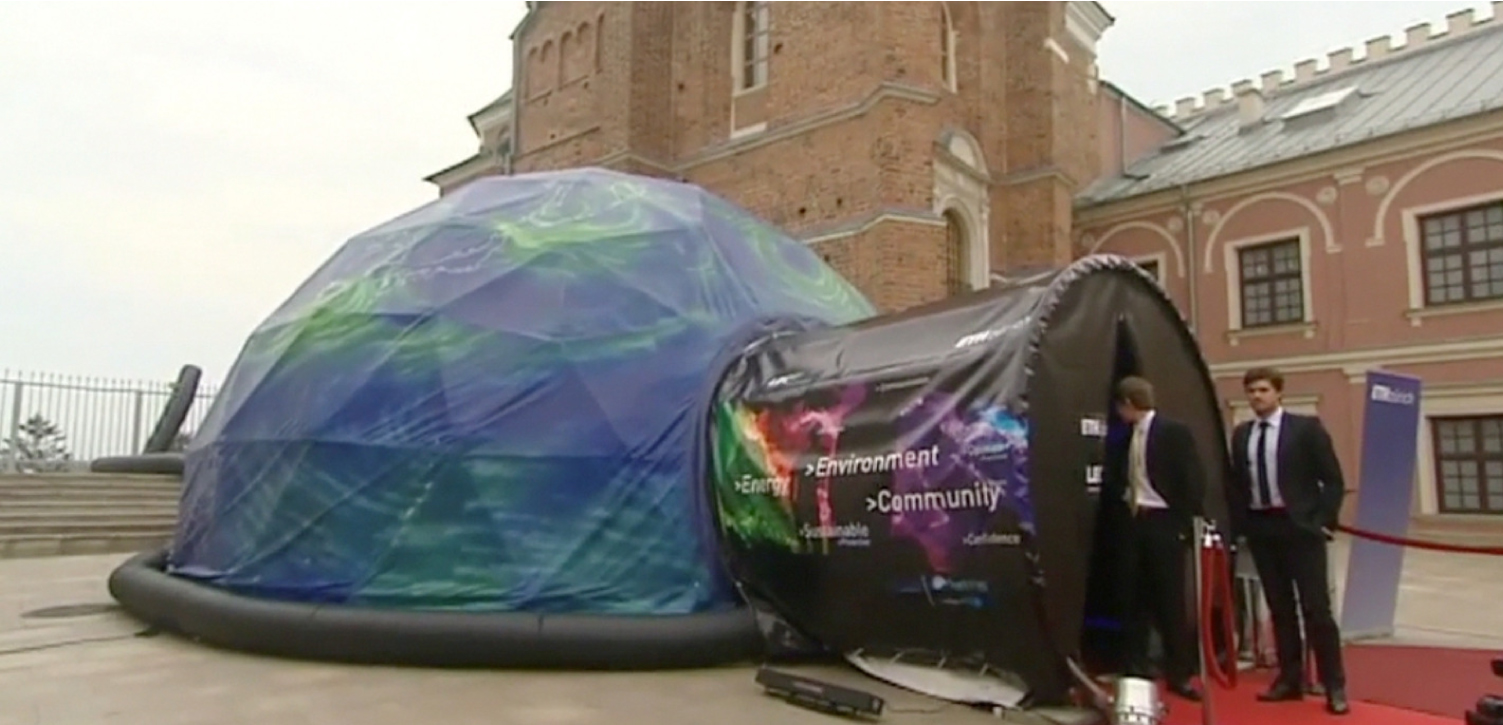

The structure was presented for the first time in Lublin (Poland), during the final conference for the project “NEO: New Energy for Lubelskie” [17], to present renewable energy options for the region. The Dome was installed for one week inside the Castle of Lublin, an important tourist point for the city, which allowed a large number of people to participate.

During its one-week presentation time, the Dome was presented to up to 100 people from different age groups. Being a sample of local tourists, their distribution generally matched the local population demographics.

In terms of appreciation, the audience reacted very positively to the Visualization Dome. 57% stated that their opinion about Wind Energy positively changed after the presentation, even if they considered the show to have been too long. The Visualization Dome can be considered a very attractive possibility to capture the attention of the local population of the areas selected for wind energy development, opening new possibilities of dialogue and information to increase acceptance of this technology. In addition, the survey revealed that up to 92% of the investigated population would like to show the Visualization Dome in their community.

The Visualization Dome also allowed for the collection of interesting data about the population of the Lubelskie Region’s appreciation of and relationship with wind energy. This data enables the continued evaluation of the impact of wind energy on the population.
