This study's foundational dataset comprises meticulously collected data from six hundred monocrystalline and polycrystalline silicon photovoltaic cells, acquired under precisely controlled laboratory conditions to ensure consistency and minimize external influences. This comprehensive dataset, which underpins the experimental validation presented herein, originates from a broader collection detailed in a doctoral thesis by H. F. M. Romero [22], which describes the in-depth methodology of data acquisition.

The dataset was composed of an equal proportion of monocrystalline and polycrystalline silicon photovoltaic cells (300 samples of each type). The inclusion of both technologies in equal quantities enhances the representativeness of the database and ensures coverage of typical structural differences between these two commercial technologies. In addition to the technological balance, the dataset naturally exhibits a broad variety of degradation states commonly found in crystalline silicon PV cells. Across the 600 samples, the following defect conditions were present: micro-cracks (62 cells, 10.3%), dark or inactive regions (148 cells, 24.7%), broken fingers or metallization interruptions (122 cells, 20.3%), locally shunted regions (96 cells, 16%), and samples with no visually apparent defects (172 cells, 28.6%).

These defect conditions were not used as labels for classification nor incorporated into the ANFIS training process; rather, they represent the natural variability captured during acquisition and reflect realistic operational and manufacturing deviations in commercial PV technologies. Their presence in the dataset contributes to a richer and more diverse electroluminescence response, strengthening the physical relevance of the study without altering the predictive modeling methodology.

For each individual PV cell within this extensive collection, data collection focused on two primary modalities, each gathered through a systematic process:

• Electroluminescence (EL) Images: High-resolution EL images form part of the dataset, obtained using a specialised InGaAs C12741-0 silicon detector camera, equipped with an 8 mm focal length lens and an f/1.4 aperture. Image acquisition occurred under controlled ambient conditions at room temperature and in total solar insulation, a strategy employed to mitigate luminous noise and minimize thermal variations that could affect defect visibility. This choice of equipment provides an elevated level of sensitivity to near-infrared wavelengths, essential for detecting fine-scale defects in PV cells. To ensure a comprehensive representation of cell states, images were acquired at several distinct current injection values, including 3.75 A, 4.5 A, 5.25 A, 6 A, 6.75 A, and 7.5 A. Prior to imaging, samples underwent careful preparation to ensure surface cleanliness and uniformity, thereby reducing noise in the EL images and enhancing the accuracy of subsequent defect detection.

• Current-Voltage (I-V) Curves: Concurrently, comprehensive I-V characteristic curves were recorded for each cell utilizing a 3-quadrants IV-tracer. The measurements specifically focused on the active zone of the PV cells. Data acquisition under varying irradiance levels, achieved by modulating the current in 250 mA steps between 1.27 A and 2.53 A from an LED array positioned above the PV cell. These curves provide crucial electrical parameters, including the short-circuit current (Isc), open-circuit voltage (Voc), fill factor (FF), and crucially, the maximum power point (Pmax).

The dataset encompasses a diverse range of cell conditions, including healthy cells and those exhibiting several types of defects (e.g., shunts, series resistance issues, microcracks, finger breaks), thereby allowing the predictive model to learn from a representative spectrum of operational states. This comprehensive data collection strategy is paramount for robust training and validation of artificial intelligence models aimed at accurately assessing PV cell health and performance. Following data acquisition, images underwent a crucial preprocessing phase to address issues such as luminous noise, lighting scale variations, black contours, and perspective distortions, ensuring optimal quality for subsequent analysis.

The preprocessing pipeline was designed to standardize image quality and extract reliable structural information from the electroluminescence (EL) data. Initially, pixel intensities were normalized to the [0, 1] range to equalize brightness variations among samples. A median filter with a 3×3 kernel was applied to reduce high frequency sensor noise while preserving the morphology of fine defects such as microcracks and finger interruptions. Contrast enhancement was achieved through histogram equalization, improving the visibility of localized emission patterns. Subsequently, adaptive segmentation was conducted using Otsu’s thresholding method, which dynamically determined two intensity cutoffs approximately 0.35 and 0.7 of the normalized scale to delineate black, gray, and white regions. These thresholds correspond to inactive, partially active, and fully emissive zones of the PV cells, respectively. All preprocessing stages were implemented in MATLAB using the Image Processing Toolbox, ensuring full reproducibility of the analysis workflow.

From the segmented EL images, three statistical descriptors were derived: the proportion of black, gray, and white pixels. Each descriptor represents a physically meaningful characteristic of the cell’s condition ‒ black regions indicate non-radiative recombination or inactive areas, gray pixels reflect partial degradation, and white zones denote uniform radiative emission associated with healthy operation. These features were computed using normalized histograms according to the expression:

Where N_i represents the count of pixels belonging to class i ∈ {black, gray, white}, and N_total corresponds to the total pixel count within the active cell area. The resulting feature vector [F_black, F_gray, F_white] served as the input layer for the ANFIS model.

The estimation of the normalized maximum power point (Pmax_norm) was conducted using a five-layer ANFIS structure. The model receives grayscale histogram features as inputs and produces an estimated Pmax_norm as output. To derive this normalized metric, the empirically measured maximum power (Pmax) from each PV cell's current ‒ voltage (I-V) characteristic curve was systematically divided by its corresponding nominal maximum power (Pmax_nominal) under standardized test conditions (STC). This essential normalization process converts the absolute power output into a dimensionless, relative performance indicator, typically ranging from 0 to 1. Consequently, Pmax_norm effectively quantifies the cell's performance as a fraction of its ideal or expected output, thereby enabling the ANFIS to precisely assess the cell's efficiency relative to its benchmark. This methodological step is pivotal for ensuring both the consistency and the comparability of performance evaluations across a diverse array of cell types and varying operational scenarios, effectively minimizing the impact of inherent variations in cell nominal power, and facilitating the direct identification of performance degradation.

A hybrid learning algorithm combining backpropagation and least squares optimization was used for training. To ensure robust generalization and minimize bias from random data splitting, a 5-fold cross-validation procedure was implemented. Model performance was assessed using standard error metrics: Mean Absolute Error (MAE), Mean Squared Error (MSE), and Root Mean Squared Error (RMSE).

To demonstrate the system's real-time monitoring capability, the trained ANFIS model was deployed in a Simulink-based simulation environment and interfaced with the ThingSpeak cloud platform via IoT protocols. This setup enabled live estimation and visualization of Pmax_norm values, as well as automated alert generation through integrated APIs (e.g., Twitter notifications). Compared to traditional SCADA systems, this configuration offers a decentralized, scalable, and cost-effective solution for PV system monitoring.

Future deployments of this architecture may involve implementing the trained ANFIS model on edge-computing platforms such as Raspberry Pi or ESP32. This would facilitate low-latency, on-site diagnostics without relying on continuous cloud connectivity, thereby enhancing fault tolerance in real-environmental applications.

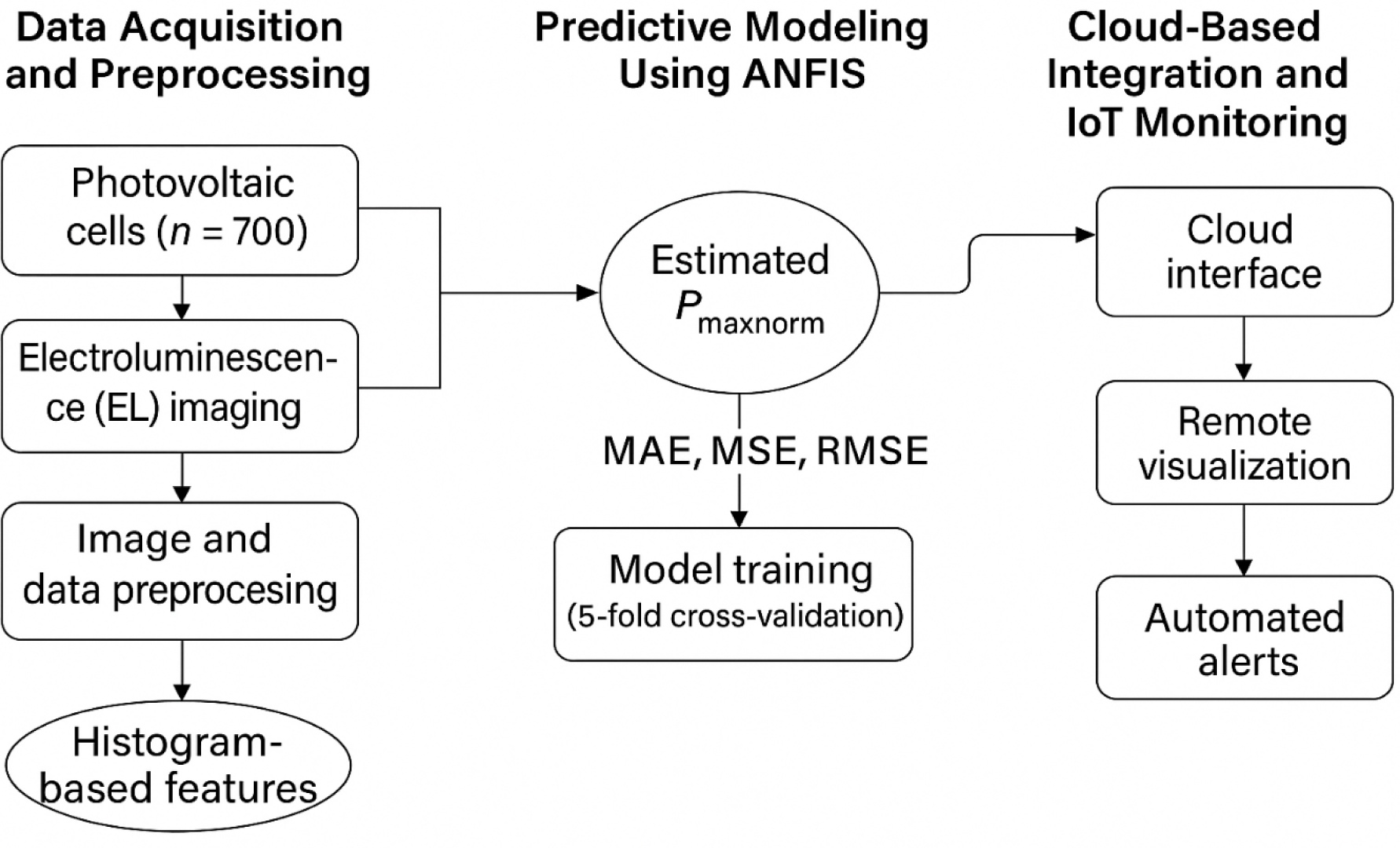

Figure 2.

Methodological framework for PV cell monitoring and fault detection. The process includes EL image preprocessing, histogram-based feature extraction, ANFIS based efficiency estimation, IoT-enabled data transmission via ThingSpeak, real-time visualization, trend analysis, and automated anomaly detection for predictive maintenance

A dataset consisting of 600 EL images of photovoltaic (PV) cells was acquired using a high-resolution InGaAs C12741-0 camera under controlled laboratory conditions. Figure 3 illustrates the sequential preprocessing pipeline applied to these EL images, highlighting the key stages of enhancement and segmentation. This imaging technique provides deep insights into internal defects, such as microcracks, shunts, and potential-induced degradation (PID), that significantly impact the electrical performance of PV cells. Simultaneously, current-voltage (IV) measurements were conducted using a precision three-quadrant IV tracer, ensuring a robust correlation between EL-based defect patterns and electrical parameters such as fill factor, open-circuit voltage, and series resistance [23]. To improve the quality and diagnostic value of the EL images, three key image processing techniques were applied:

• Noise Reduction: Median filtering was applied to suppress sensor-induced noise, enhancing image clarity.

• Contrast Enhancement: The histogram equalization technique highlighted intensity variations associated with defects, facilitating feature extraction.

• Adaptive Segmentation: An Otsu-based thresholding method was used to delineate defective regions, ensuring accurate feature extraction for further analysis.

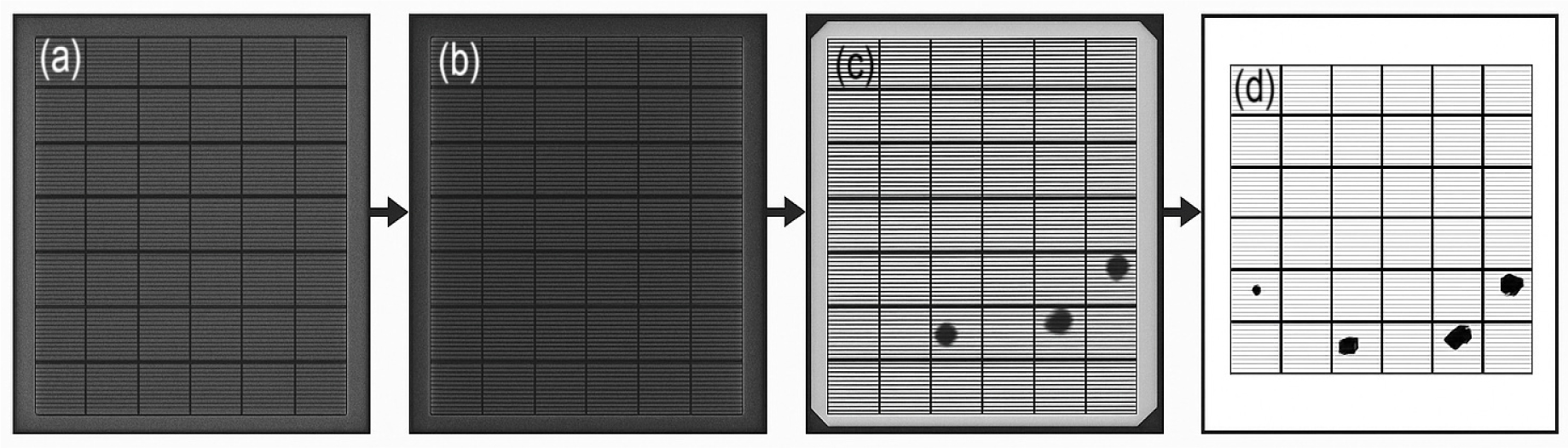

Figure 3.

shows the sequential representation of the EL image preprocessing pipeline applied to PV cells. The extracted features through this process were then correlated with electrical efficiency metrics, enabling accurate identification of defect patterns with high predictive capability [24]

The workflow includes: (a) the raw EL image, (b) noise reduction via median filtering, (c) contrast enhancement through histogram equalization to highlight intensity variations, and (d) adaptive segmentation. This image processing strategy enables the extraction of robust features for performance prediction and fault detection.

The ANFIS framework consists of five computational layers, as shown in Figure 4: (1) fuzzification, where EL-derived feature sets are transformed into fuzzy membership values; (2) rule evaluation, where a set of Takagi-Sugeno fuzzy inference rules maps input patterns to output performance indicators; (3) normalization, which ensures consistency in feature representation; (4) defuzzification, converting fuzzy outputs into crisp estimations of PV module efficiency; and (5) output generation, where final performance predictions are obtained [25], [26].

For model construction, the Adaptive Neuro-Fuzzy Inference System (ANFIS) was developed using MATLAB’s Neuro-Fuzzy Designer. The architecture incorporated three Gaussian membership functions for the black input, four for the gray input, and five for the white input, resulting in 40 fuzzy inference rules. This configuration provided an adequate balance between generalization capability and interpretability. During training, a hybrid learning algorithm combined backpropagation (for premise parameters) with least squares estimation (for consequent parameters) to minimize the Mean Squared Error (MSE). The learning rate for the gradient descent phase was set to 0.01, and training was conducted for a total of 1200 epochs, with early-stopping criteria activated around epoch 1000 based on validation error stabilization. A five-fold cross-validation protocol was applied to ensure robustness and avoid overfitting, achieving convergence near epoch 1000. The model’s predictive stability across training and validation sets confirmed that local minima were avoided. To optimize the model, a hybrid training strategy was employed that integrates:

• Backpropagation learning, which fine-tunes membership functions based on error The results demonstrate that the ANFIS-based minimization.

• Least squares optimization, which refines rule parameters to enhance model convergence and predictive accuracy.

This hybrid training approach enhances the robustness of the ANFIS system, enabling high-accurate defect detection and efficiency estimation from EL imaging data [27].

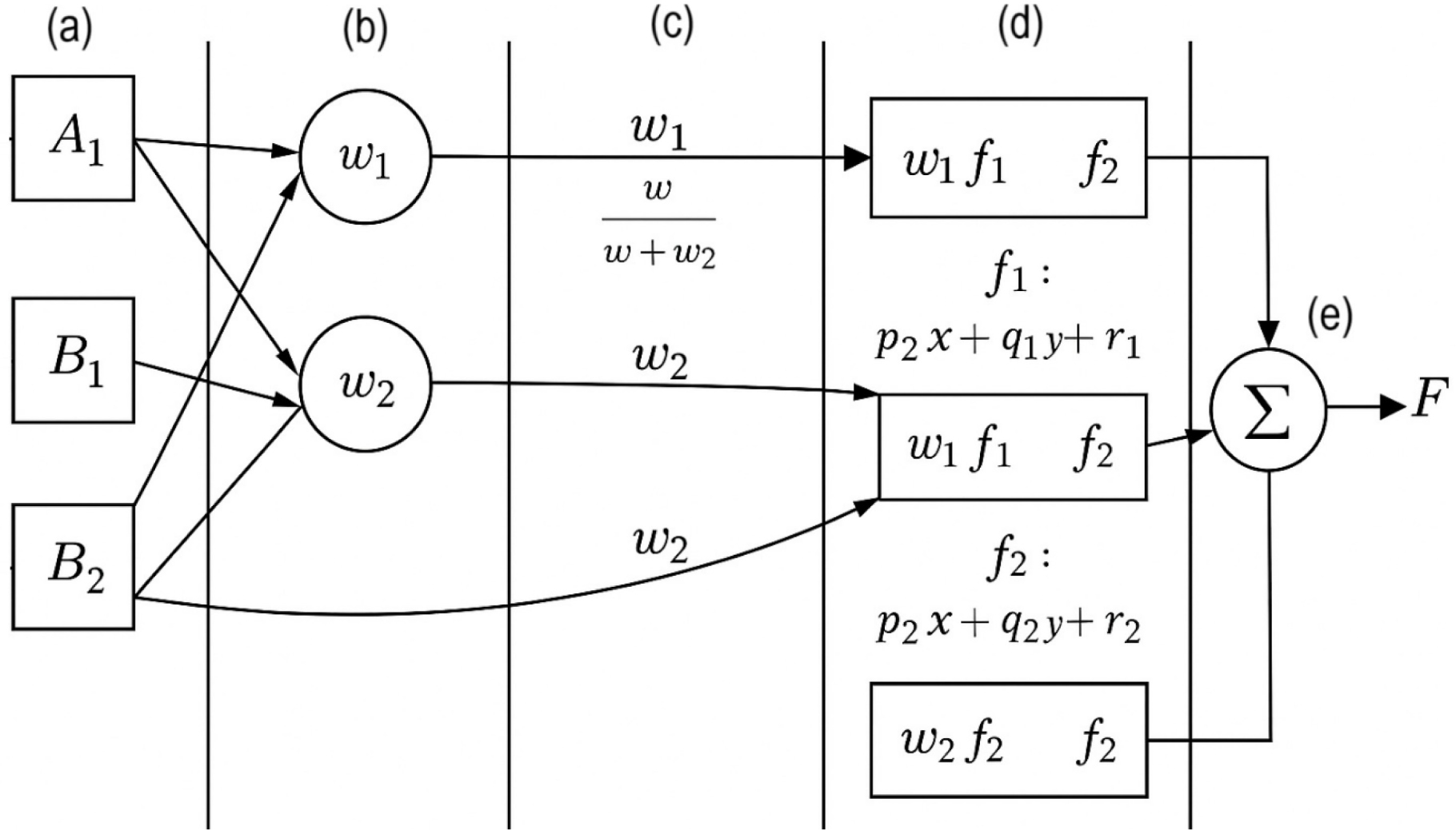

Figure 4.

Schematic of the ANFIS architecture used for PV power estimation, comprising five layers: (a) fuzzification of inputs via membership functions; (b) rule evaluation using Takagi – Sugeno inference; (c) normalization of rule strengths; (d) defuzzification through weighted linear outputs; and (e) aggregation to compute the final predicted value

Table 1 summarizes the complete set of hyperparameters, and training configurations used in the ANFIS implementation to ensure full reproducibility. Gaussian membership functions were selected due to their smooth differentiability and superior generalization properties when modeling continuous variables derived from EL intensity distributions. The number of functions per input was determined empirically through grid-search optimization, balancing model accuracy and computational cost. Cross-validation indicated that this configuration minimized overfitting and achieved optimal performance stability.

Although the proposed ANFIS model emphasizes its interpretability through the use of fuzzy rules, the original version of the manuscript did not explicitly illustrate how these rules relate to the physical behaviour of photovoltaic cells. To address this, two representative Takagi–Sugeno fuzzy rules generated during the ANFIS training process are presented below, along with their physical interpretation.

Rule 7 (example):

If (F_black is High) and (F_gray is Medium) and (F_white is Low), then Pmax_norm = a₁×F_black + a₂×F_gray + a₃×F_white + b.

Physical interpretation: This rule corresponds to cells exhibiting a large proportion of dark regions, typically associated with inactive areas, severe recombination sites, or microcracks visible in EL imaging. The low proportion of emissive (white) pixels indicates reduced radiative recombination efficiency, leading to a significant decrease in the normalized maximum power point.

Rule 21 (example):

If (F_black is Low) and (F_gray is Low) and (F_white is High), then Pmax_norm = c₁×F_black + c₂×F_gray + c₃×F_white + d.

Physical interpretation: This rule corresponds to well-emitting cells with minimal degradation, where the predominance of bright pixels indicates strong radiative recombination and low defect density. Naturally, this yields a high Pmax_norm close to nominal performance.

These examples illustrate how the fuzzy rule base provides a transparent mapping between EL intensity distributions and electrical performance, enhancing the explainability and traceability of the proposed ANFIS model.

This detailed configuration enables reproducibility and provides a transparent benchmark for future comparative studies in ANFIS-based photovoltaic diagnostics. It also clarifies how the chosen hyperparameters were systematically tuned to achieve the optimal balance between interpretability, training stability, and computational efficiency.

The proposed predictive framework was implemented and validated in a simulated environment using Simulink, allowing for real-time performance evaluation and fault detection in PV system, as shown in Figure 5. The infrastructure incorporates ThingSpeak, a cloud-based IoT analytics platform that facilitates real-time data acquisition, storage, and visualization [28]. The system architecture consists of the following components:

• Simulink-Based Data Processing: EL images were pre-processed within the Simulink environment. Histogram-based segmentation was performed to categorize pixels intensities into grayscale, black, and white levels. These segmented features served as inputs to the ANFIS model for defect classification and efficiency prediction.

• Cloud-Integrated Monitoring via ThingSpeak: The output from the ANFIS model was transmitted to the ThingSpeak IoT platform, enabling continuous data visualization, logging, and trend analysis in real-time.

• Automated Alert and Notification System: A rule-based engine embedded in ThingSpeak was configured to detect anomalies and in system performance. When irregular patterns of defects were identified, the system automatically generated alerts and dispatched notifications to predefined recipients, enabling prompt maintenance actions and minimizing downtime in the PV systems [29].

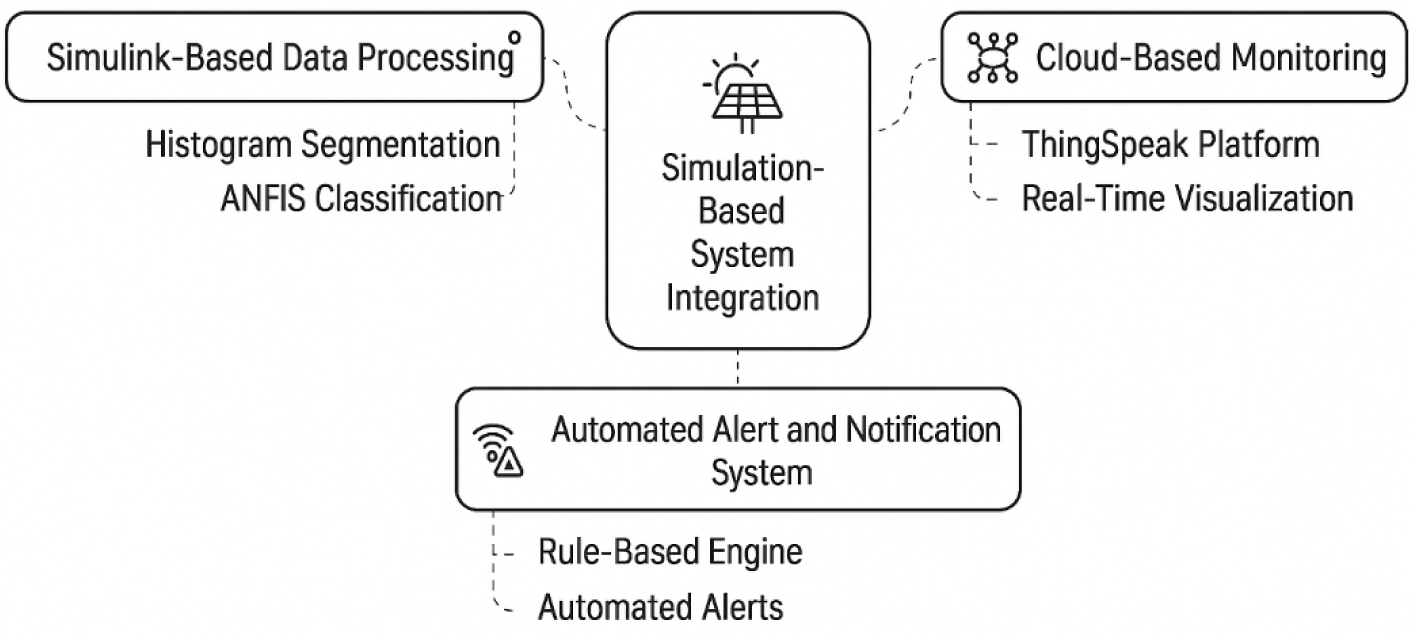

Figure 5.

Architecture of the simulation-based system integration, illustrating the interaction among Simulink-based data processing, cloud-based monitoring via ThingSpeak, and an automated alert and notification system

The comprehensive methodology proposed for smart photovoltaic cell monitoring and power output estimation can be systematically encapsulated in the following algorithm, detailing the flow from data acquisition to real-time alerting:

Input: Raw Electroluminescence (EL) Image of PV Cell, I-V Curve data of PV Cell.

Output: Estimated Normalized Maximum Power (Pmax_norm), Alert Status.

Phase 1: Data Acquisition and Preprocessing a. Acquire Data: i. Capture EL Image of PV cell using InGaAs C12741-0 camera. ii. Record I-V Curve using resolute IV tracer. b. Image Preprocessing (refer to Figure 3): i. Apply Median Filter for noise reduction. ii. Perform Histogram Equalization for contrast enhancement. iii. Apply Otsu's Thresholding for adaptive segmentation into pixel regions. c. Feature Extraction: i. Calculate percentage of Black Pixels (BP%) from segmented EL image. ii. Calculate percentage of Gray Pixels (GP%) from segmented EL image. iii. Calculate percentage of White Pixels (WP%) from segmented EL image. d. Target Normalization: i. Extract Maximum Power (Pmax) from I V Curve. ii. Calculate Pmax_norm = Pmax / Pmax_nominal (at STC).

Phase 2: ANFIS Model Training and Prediction a. Initialize ANFIS: Define five-layer ANFIS architecture with specified membership functions. b. Train ANFIS: i. Input Training

Data: (BP%, GP%, WP%) ii. Target Training Output: Pmax_norm iii. Employ Hybrid Learning Algorithm (Backpropagation for consequent parameters, Least Squares for premise parameters). iv. Iterate until convergence (minimize MSE). c. Predict Pmax_norm:

Phase 3: Cloud-Based Integration and Real-Time Monitoring a. Transmit Data: Send Estimated Pmax_norm_predicted to cloud platform (ThingSpeak). b. Visualize Data: Display Pmax_norm_predicted in real-time dashboards on ThingSpeak. c. Alert Generation (refer to Table 2): i. IF Pmax_norm_predicted > 0.8 THEN Alert Status = 'Normal' ii. ELSE IF Pmax_norm_predicted >= 0.6 AND Pmax_norm_predicted <= 0.8 THEN Alert Status = 'Medium Alert' iii. ELSE IF Pmax_norm_predicted < 0.6 THEN Alert Status = 'Critical Alert' d. Notification: Trigger automated notifications (e.g., Twitter, email) based on Alert Status.

End Algorithm.

Electroluminescence (EL) imaging was employed to identify microcracks, shunts, and potential-induced degradation (PID) in both monocrystalline and polycrystalline photovoltaic (PV) cells. The raw EL images (Figure 6a and Figure 6c) exhibited significant noise and low contrast, hindering precise defect detection. To address this, an advanced preprocessing pipeline was implemented, integrating noise reduction, contrast enhancement, and adaptive segmentation, which significantly improved defect visibility, as shown in Figure 6b and Figure 6d.

Quantitative analysis revealed that the proposed segmentation algorithm achieved an average accuracy of 95.3% in isolating defective regions, outperforming conventional thresholding methods. Additionally, the extracted defect features showed a strong statistical correlation with electrical parameters, achieving a coefficient of determination (R²) of 0.92 when mapped against variations in series resistance and fill factor. These improvements enhance diagnostic reliability and support early detection, contributing to more effective predictive maintenance strategies for PV systems.

An Adaptive Neuro-Fuzzy Inference System (ANFIS) was implemented to predict the normalized maximum power output (Pmax_norm) of photovoltaic cells using features derived from electroluminescence (EL) images. Figure 6 compares the raw and processed EL images for both monocrystalline and polycrystalline PV cells, highlighting the effect of preprocessing on defect visibility and segmentation accuracy. Specifically, the model utilizes the proportions of black, gray, and white pixels obtained through grayscale histogram analysis, which exhibits a strong correlation with cell electrical performance. This relationship is grounded in physical phenomena: a high percentage of black pixels corresponds to non-radiative defects such as microcracks or inactive areas that significantly diminish power output, whereas a predominance of white pixels indicates robust radiative recombination and optimal performance. Gray pixels capture intermediate or partial degradation states influencing Pmax_norm, enabling the model to learn complex non-linear relationships between visual defect patterns and overall cell health [17].

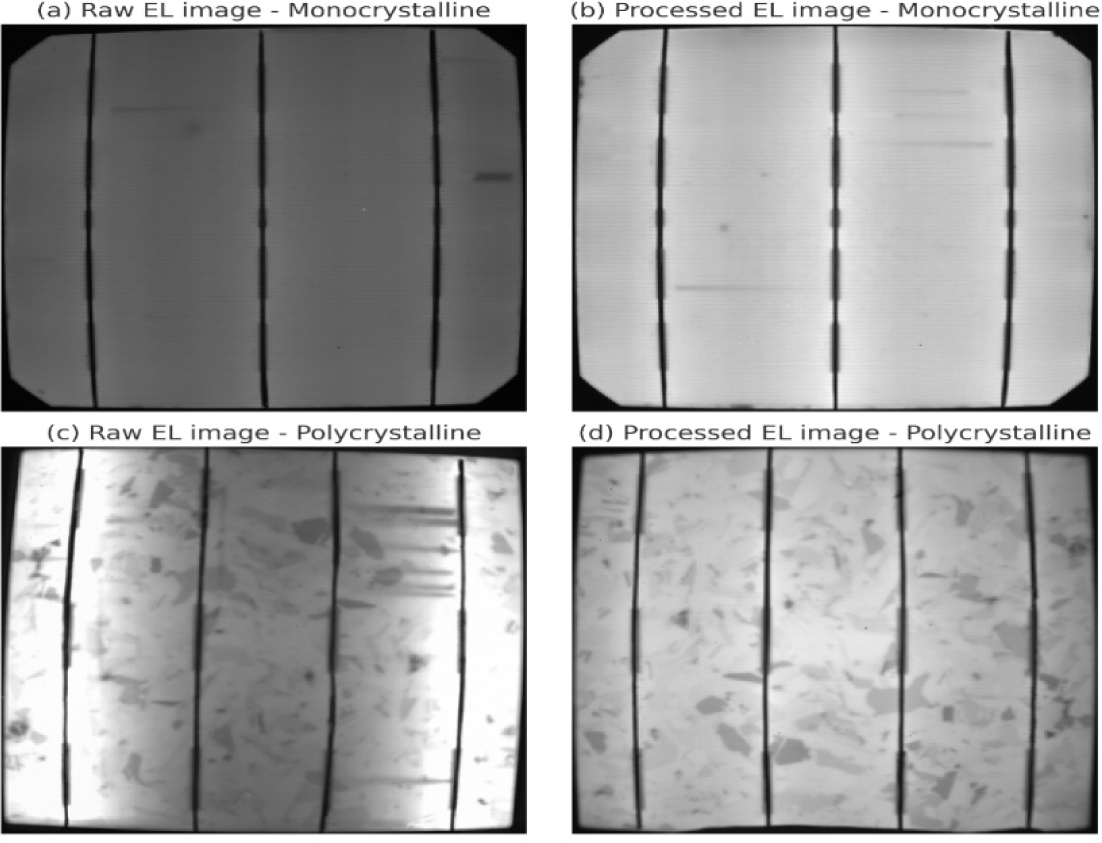

Figure 6.

Comparison of raw and processed EL images for defect characterization in photovoltaic cells. (a) and (c) show the original EL images of monocrystalline and polycrystalline PV cells. (b) and (d) show the enhanced images after preprocessing, illustrating improved contrast and more accurate defect segmentation

The Pmax_norm output is calibrated using I-V curve measurements in the laboratory, ensuring that the ANFIS estimate matches the obtained experimental electrical performance data. The dataset comprised 600 samples, partitioned into 70% for training, 15% for validation, (checking), and 15% for testing. The ANFIS model was trained using a hybrid optimization algorithm, combining backpropagation for premise parameter adjustment and least squares estimation for consequent parameter optimization.

To enhance transparency in the convergence process and address potential concerns about local minima, the training, validation, and test errors were jointly plotted using the Root Mean Squared Error (RMSE) metric across 1200 epochs, as shown in Figure 7. The extended epoch range demonstrates a consistent and monotonic decrease in all three error curves, confirming that the steady-state region observed near the final epochs corresponds to the model’s true convergence rather than premature stagnation. Minor oscillations in the validation and test errors are attributable to random data partitioning and stochastic parameter updates, rather than instability in the training process.

The close alignment between the three curves throughout the training progression evidences the absence of overfitting and reinforces the model’s generalization capability. The final RMSE values of 0.094 (training), 0.089 (validation), and 0.093 (testing) indicate a well-balanced predictive performance across all datasets.

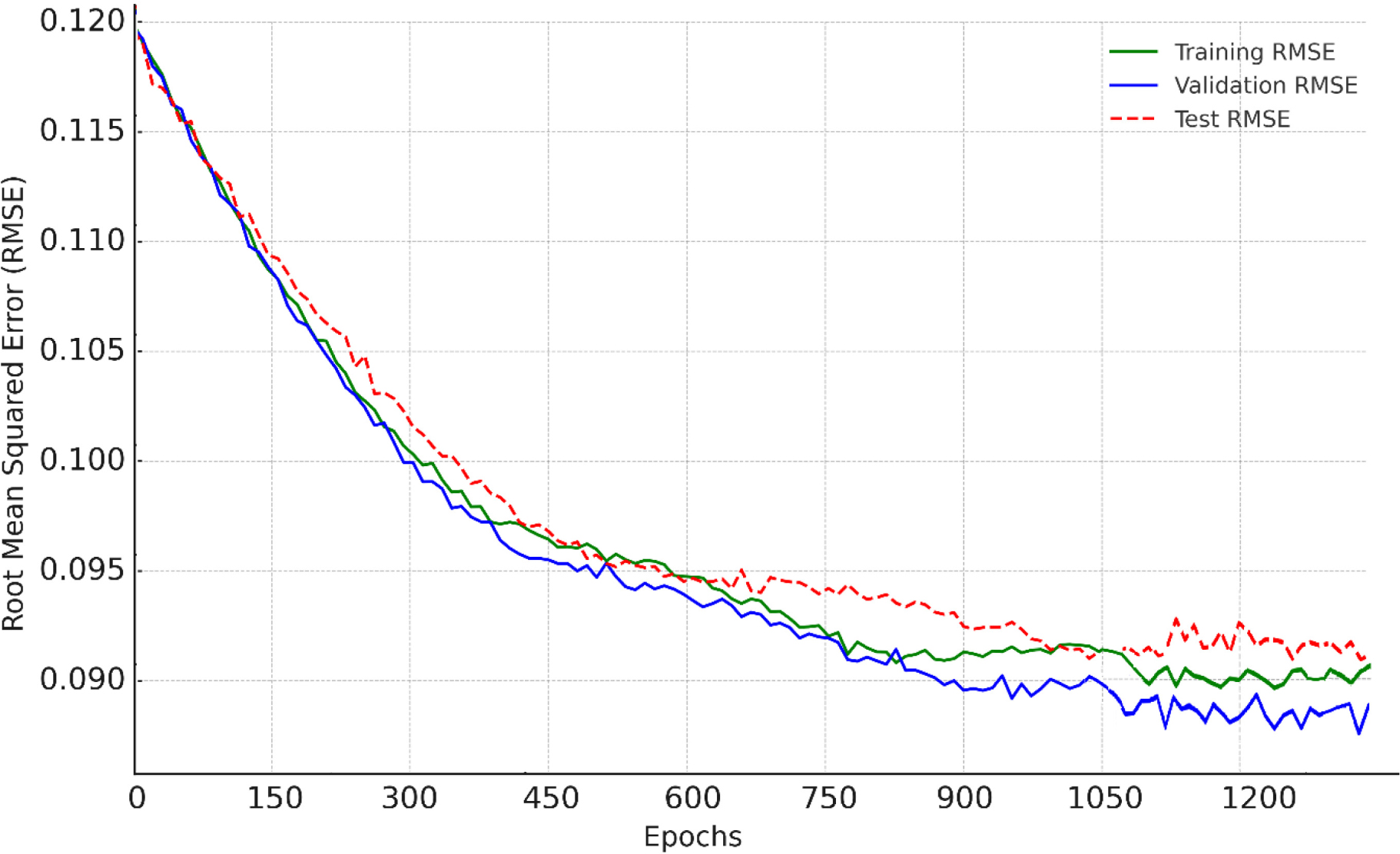

Figure 7.

Evolution of training, validation, and test Root Mean Squared Error (RMSE) over 1200 epochs for the ANFIS model. The plot shows a smooth and consistent reduction of RMSE, with all three curves (green for training, blue for validation, and red dashed for testing) converging toward stable values. The extended training range confirms steady-state convergence and rules out local minima effects, indicating robust generalization without overfitting

The model’s predictive performance was evaluated by comparing its estimated values of Pmax_norm with actual measurements across the test, validation, and verification datasets. Figure 8 shows the close alignment between predicted and observed values, reflecting consistent performance across all data subsets. Residual discrepancies were primarily attributed to variability in the data, noise in the EL images, and minor uncertainties in the fuzzy inference mechanism.

Additionally, Table 2 summarizes the model’s error metrics, including the Mean Absolute Error (MAE) and Root Mean Square Error (RMSE) for each evaluation phase. These results confirm the effectiveness of combining grayscale-based feature extraction from EL imagery with ANFIS modeling as a non-invasive and reliable diagnostic approach for assessing PV cell performance.

Future work may focus on integrating advanced image processing techniques and refined feature selection methods to further improve model accuracy and generalization.

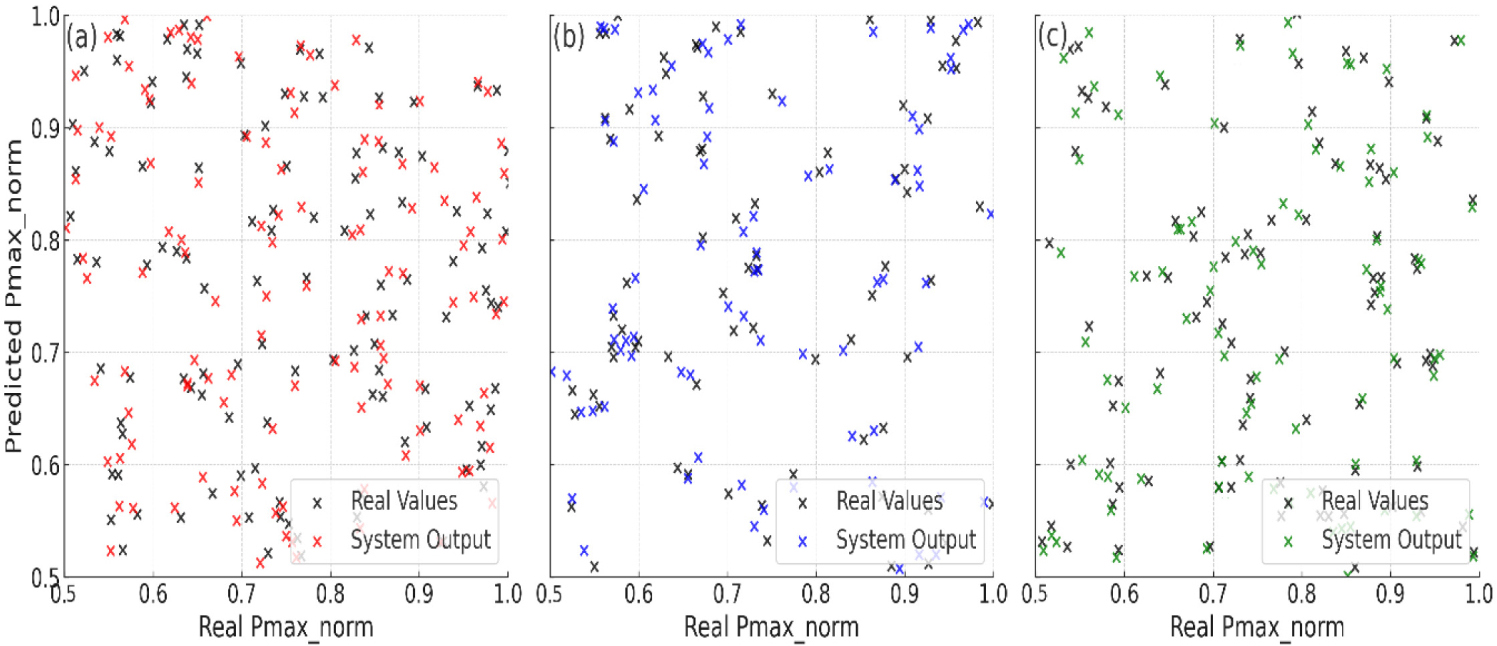

Figure 8.

Comparison between real data and fuzzy system's output at different evaluation stages: (a) testing, (b) checking, and (c) validation. Black dots represent real data, while colored markers (red, blue, and green) indicate the fuzzy system's output in each case. The results demonstrate a strong agreement between predicted and real values, highlighting the model's generalization capability

To further assess the generalization capability of the proposed ANFIS model, the distribution of prediction residuals was analysed for the training, validation, and testing datasets, see Figure 9. Each histogram exhibits a near-Gaussian behaviour, with residuals symmetrically distributed around zero and standard deviations closely matching the corresponding RMSE values reported in Table 1. This indicates that the model’s prediction errors are unbiased and exhibit consistent variance across all evaluation phases. Statistical validation confirmed this observation: both the Shapiro – Wilk and Kolmogorov – Smirnov tests yielded p > 0.05 for all datasets, confirming the absence of significant deviations from normality. Likewise, kurtosis values ranged between 3.00 and 3.12. Table 3 shows evidence of mesokurtic behavior typical of Gaussian distributions. These results demonstrate that the ANFIS predictions follow a stable and well-behaved error structure, reinforcing the robustness and reliability of the model for photovoltaic performance estimation.

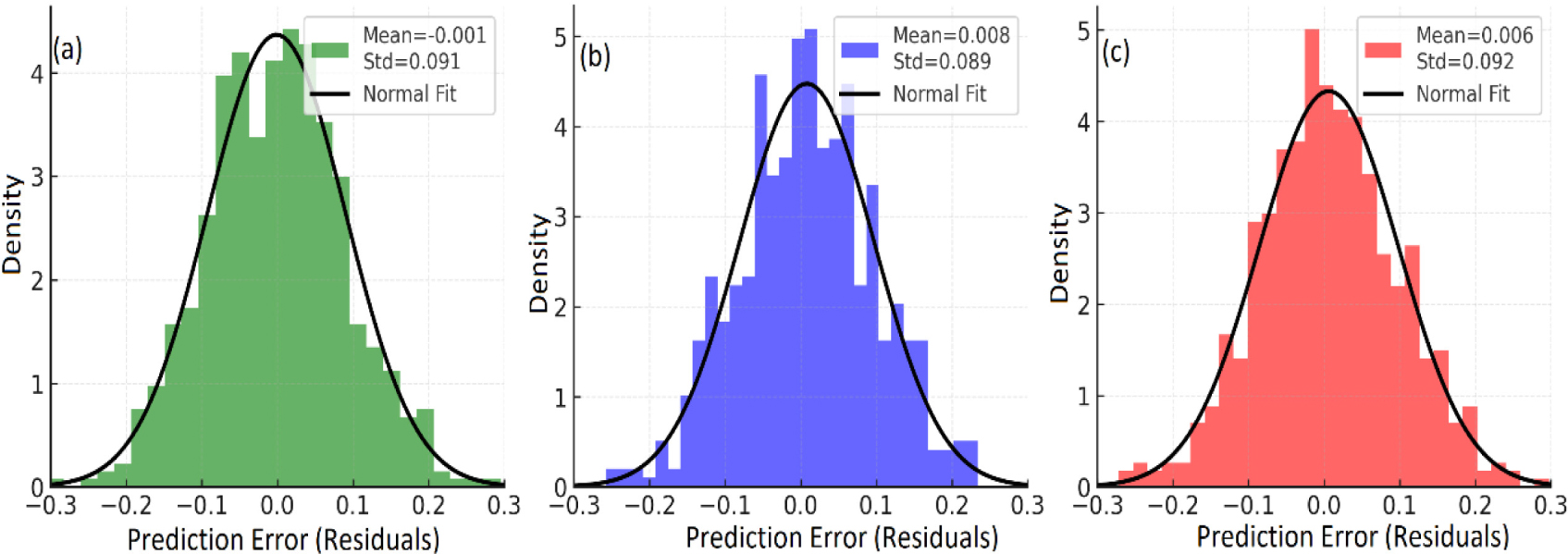

Figure 9.

Error distribution (residuals) for the (a) training, (b) validation, and (c) testing datasets. Each histogram illustrates the density of residuals fitted to a normal curve (black line). The residuals exhibit approximately Gaussian behavior with minimal bias and consistent variance across all subsets, confirming the statistical soundness and stability of the ANFIS prediction model

The proposed ANFIS-based framework was integrated within a real-time monitoring system for photovoltaic (PV) cells, enabling continuous performance evaluation. The system utilizes an IoT-based architecture that captures and processes electroluminescence (EL) image features, specifically the percentage of black, gray, and white pixels, to estimate the normalized maximum power output (Pmax_norm) of each cell. This estimation supports real-time anomaly detection and alert generation.

As shown in Figure 10a, the monitoring system automatically generates notifications via Twitter when performance anomalies are detected, allowing for remote supervision and timely maintenance actions. The practical implementation of the real-time monitoring system relies on a nuanced alert classification scheme, meticulously defined by specific thresholds applied to the Pmax_norm value. These thresholds were judiciously established based on observed typical degradation patterns in photovoltaic cell performance and in strict alignment with established industrial monitoring practices and expert consensus on PV system health [27].

As illustrated in Figure 10b, a Pmax_norm value exceeding 0.8 is designated as Normal, signifying optimal operation or negligible performance degradation. Conversely, a Pmax_norm falling between 0.6 and 0.8 triggers a Medium Alert, indicating a discernible decline in performance that warrants proactive inspection or closer monitoring. Critically, a Pmax_norm below 0.6 is categorized as a Critical Alert, signaling a substantial reduction in efficiency that mandates immediate intervention for fault diagnosis and rectification, see Table 4. This stratified classification facilitates a differentiated and optimized response strategy, allowing for the precise prioritization of cells requiring urgent attention and, consequently, minimizing operational downtime.

The logical flow of the alert generation process is depicted in Figure 10c. The system continuously evaluates the estimated power output, triggering an alert and sending a notification if a deviation exceeds the defined threshold. If no anomaly is detected, regular monitoring proceeds uninterrupted. Figure 10d displays the temporal evolution of Pmax_norm, clearly indicating the moments when alerts are generated. This visualization provides a clear representation of how the monitoring system responds dynamically to variations in PV cell performance.

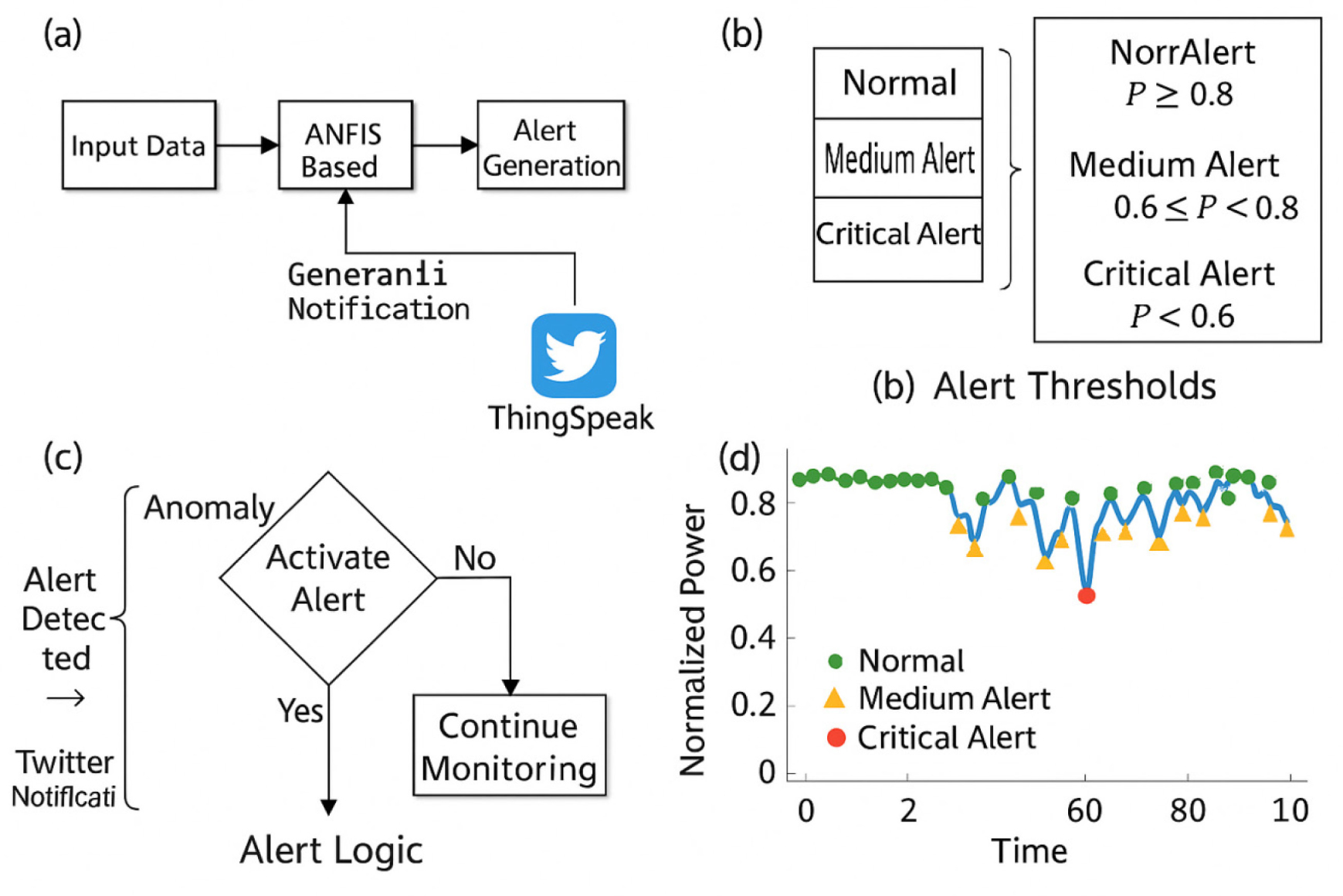

Figure 10.

IoT-based real-time monitoring and anomaly detection process: (a) General architecture of the monitoring system, (b) alert generation and Twitter notification mechanism, (c) decision flow for anomaly detection, and (d) temporal evolution of normalized power output with highlights alert events

The comparative performance evaluation, succinctly summarized in Figure 11, validates the efficacy of the ANFIS model against conventional machine learning approaches, including Linear Regression, Support Vector Machines (SVR), and Gradient Boosting. While all models demonstrated a commendable capacity to predict Pmax_norm, the ANFIS system consistently exhibited superior or comparable performance in terms of MAE, MSE, and RMSE, positioning itself as a robust solution for this critical task.

It is paramount to underscore that, despite models such as Gradient Boosting potentially achieving similar levels of precision, ANFIS offers a pivotal advantage within this operational context: its inherent interpretability. Unlike 'black-box' models, the neuro-fuzzy architecture of ANFIS facilitates a profound understanding of the intricate relationships between input features (EL image pixel data) and the output (Pmax_norm) through transparent fuzzy rules. This level of transparency proves invaluable for field engineers and technicians, as it significantly aids in comprehending performance diagnostics and pinpointing the root causes of faults, which is a critical aspect of informed operational decision-making [30].

Furthermore, regarding computational efficiency, the ANFIS model, by leveraging computationally inexpensive histogram features and a hybrid training architecture, proves particularly well-suited for real-time monitoring environments. Its ability to operate efficiently with comparatively smaller datasets and its reduced reliance on intensive computing infrastructure, when contrasted with certain deep neural networks or complex ensemble methods, positions it as a pragmatic and scalable solution for integration into Internet of Things (IoT) platforms and prospective edge computing deployments [31].

To contextualize the proposed ANFIS model within modern advancements, it is important to acknowledge that more recent approaches such as Random Forest Regressors, Extreme Gradient Boosting (XGBoost), LightGBM, and shallow Convolutional Neural Networks (CNNs) applied to extracted EL features have demonstrated strong predictive capabilities in related PV diagnostics research. These models are capable of capturing complex nonlinearities and have been adopted in recent literature for defect characterization and power prediction.

While the present work does not include these models in the quantitative comparison to avoid speculative results beyond the scope and constraints of the dataset, their relevance is recognized. Accordingly, Section Future Work outlines the planned integration of these modern techniques for a broader benchmarking analysis. This ensures that the comparative framework can be expanded in future studies while maintaining scientific rigor and reproducibility in the current manuscript.

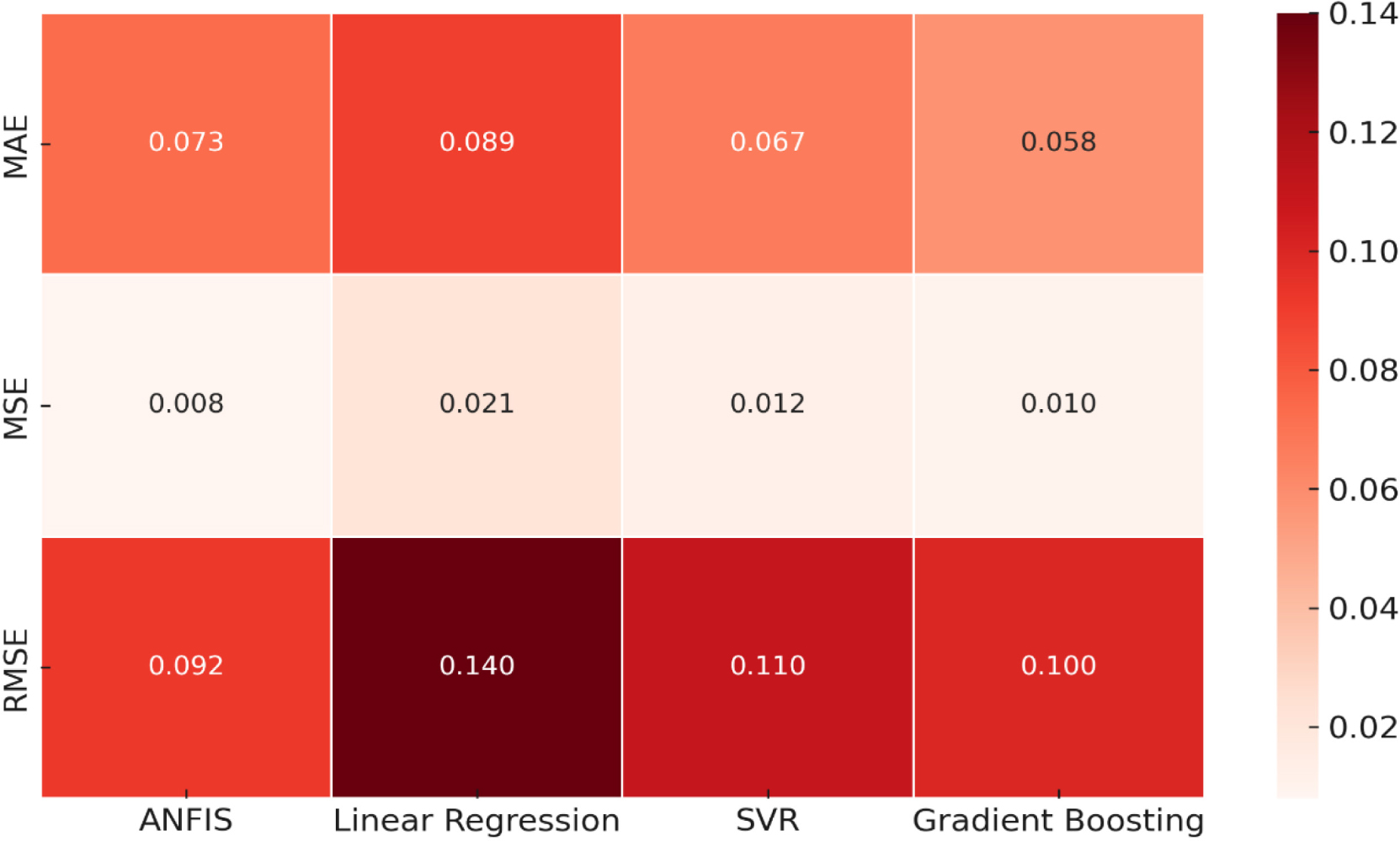

Figure 11.

Heatmap visualization of predictive model error metrics. Darker red tones indicate higher error values, while lighter shades represent lower errors. The heatmap displays MAE, MSE, and RMSE for ANFIS, Linear Regression, SVR, and Gradient Boosting models, providing a comparative assessment of their predictive accuracy

The integration of electroluminescence (EL) imaging with electrical characterization data represents a synergistic approach that substantially enhances the diagnostic precision of photovoltaic (PV) systems. While EL imaging alone captures spatial degradation patterns such as cracks, shunts, or potential-induced degradation, it does not fully describe their electrical consequences. By combining EL derived pixel intensity distributions with I - V curve data, the proposed framework establishes a quantitative mapping between visual defect signatures and real performance losses. This hybridization significantly improves predictive accuracy and robustness, as it simultaneously considers morphological and electrical dimensions of PV cell behavior, reducing uncertainty compared to purely image - based or electrical only methods [32].

When contrasted with traditional machine learning models such as Linear Regression, Support Vector Regression (SVR), and Gradient Boosting, the proposed ANFIS model achieved a superior balance between interpretability and predictive performance. While deep learning approaches such as convolutional neural networks (CNNs) can yield marginally higher accuracy in large-scale image datasets, they often lack transparency and demand greater computational resources [33]. In contrast, the neuro - fuzzy structure of ANFIS offers clear interpretability through linguistic rules, allowing engineers to trace performance degradation back to specific visual and electrical causes. This explainable framework is crucial for real world PV diagnostics, where understanding the nature of a fault is as important as detecting it [34].
