Swine Wastewater (SW) management system includes a storage tank, solid-liquid separation followed by a lagoon system: 3 anaerobic lagoons (total volume 6,039 m³) and 1 facultative lagoon (5,474 m³) after which SW is applied to 213 ha of land belonging to the farm owner. Composite SW samples were collected from the storage tank, under stirring. Samples were pre-treated by sieving to remove coarse materials (PSW) and kept at 4 °C until they were analysed. Samples were characterised by various water quality parameters (Table 1), including Total Solids (TS), Total Volatile Solids (VS), Total Suspended Solids (TSS), Total Phosphorus (TP), Total Kjeldahl Nitrogen (TKN), Nitrate (NO3^-), Ammonium (NH4⁺-N), Chemical Oxygen Demand (COD), according to Standard Methods [20]. The Electric Conductivity (EC), temperature and pH were measured with pH 340i (WTW, Germany).

L. minor was obtained from ponds located in Oeiras, Lisbon area. Following collection, the duckweed was rinsed gently with water and the healthy fronds were acclimatised in laboratory environment with constant temperature (23 °C) under a photoperiod of 12:12 h light/dark (7,500 lux) in plastic aquaria either in Hoagland solution [21] and in 4% pre-treated swine wastewater (43.6 mg NH4⁺-N L⁻¹ and 8.49 mg P L⁻¹), whose concentration of nitrogen and phosphorus is similar to the facultative lagoon installed at full scale.

Duckweed was cultured in 5 L plastic container (28 × 20 × 14 cm) at 24 ± 1 °C, for 10 days, with a photoperiod of 12:12 h light/dark, with light intensity of 7,500 lux. Three batch tests were conducted to evaluate duckweed nutrients uptake, using a 4% dilution of pre-treated swine wastewater (DWS1, DWS2 and DWS3). Three positive controls using Hoagland solution (DWH1, DWH2, DWH3) and three negatives controls using 4% diluted swine wastewater without duckweed (S1, S2, S3) were provided. A total of 12 g of fresh material were inoculated, in the DWS and DWH systems, to cover 80% of the entire water surface with a single layer of fronds. During the assays, temperature, pH, conductivity, COD and the nutrient concentration were monitored every day. Any water lost due to evaporation was replaced every day throughout the experiments with distilled water.

Duckweed growth was evaluated during the assays. To measure duckweed Fresh Weight (FW), the surplus water was removed and subsequently the biomass was weighted. To measure the Dry Weight (DW), the samples were dried at 60 °C until the weight was constant. The content of the organic Carbon (C) in the dry duckweed was measured in Skalar Primacs^sc TOC analyser equipment. The Nitrogen (N) and phosphorus content were measured according to reference methods [22]. The growth rate and nutrient uptake rate were determined as follows:

All treatments were performed in triplicate. Analysis Of Variance (ANOVA) was used to determine the effect of culture medium on duckweed growth and nutrients uptake. Means were compared by the Tuckey’s test at a 5% significance level.

First-order kinetic equations were used to describe COD, TP and NH4⁺-N removal from assays. The kinetic parameters were determined from linear regression of the integrated rate equation:

where C_A is the concentration (mg L⁻¹) at any time t (days), C_A0 is the initial concentration (mg L⁻¹) and k is the first-order rate constant.

Co-digestion trials were performed in a 6 L Continuously Stirred Tank Reactor (CSTR) (working volume of 4 L) at 37 ± 2 °C. Figure 1 presents a scheme of the benchscale reactor.

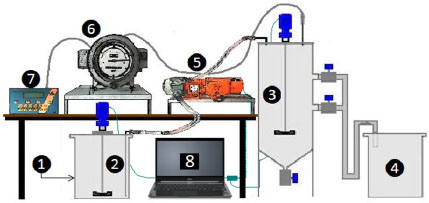

Figure 1.

Simplified scheme of the anaerobic bench-scale reactor: Feed tank (1); Stirrer (2); CSTR (3); Digestate tank (4); Feed pump (5); Gas flow meter (6); Gas analyzer (7); PLC (8)

The reactor was continuously operated with PSW until steady state conditions were achieved (data not shown), with a Hydraulic Retention Time (HRT) of 10 days. After this period a mono-digestion trial using only PSW (Phase I) was conducted during 20 days (2 HRT), after which fresh Duckweed Biomass (DB) was included (Phase II) as cosubstrate, using a mixture of 100 g of DB in 1 L of PSW. Phase II lasted 40 days (4 HRT).

The most important physico-chemical parameters, such as: pH, EC, TS, VS, COD, TKN and NH4⁺-N were monitored in feedstock. Process performance was controlled by monitoring the Organic Loading Rate (OLR), Gas Production Rate (GPR), biogas quality and Specific Methane Production (SMP). GPR was measured daily (Contigea Schlumberger instruments gas meter) and biogas quality [composition in Methane (CH4), Carbon dioxide (CO2) and Hydrogen sulphide (H2S) was determined weekly by a portable equipment (GAS DATA Multifunction analyser)].

Physic-chemical characterisation of PSW is presented in Table 1. Comparing the results obtained with those mentioned in the literature, it can be seen that for most parameters the average values are within the range of values mentioned by other authors pH 7.3–8.3; EC 7.98–19.1 mScm⁻¹; TS 12.2–28.9 g L⁻¹; COD 7.1–28 g L⁻¹; TKN 0.9–2.5 g L⁻¹; NH4⁺-N 0.7–1.9 g L⁻¹ [23], [24]. Regarding total solids, it should be mentioned that the characterised slurry has a content 2–3 times lower than that found by other authors [23], [25] probably due to an inefficient use of water.

The temperature and pH of the culture solution was 25.0 ± 0.7 °C and 7.37 ± 0.42, respectively. The biomass production revealed a lag phase of two days followed by an exponential growth until tenth day, beyond which no growth was observed (Figure 2). Similar results were found by Yin et al. [19], obtaining the maximum biomass production at day 12, with a photoperiod of 12:12. Also, they reported a 7,500 lux as the optimum light intensity for duckweed growth. Although, the biomass yields of small-leaf floating macrophytes are quite lower than for large-leaf floating aquatic macrophyte such as Eichhornia crassipes or Piscia stratiotes [26], the ability of duckweeds to assimilate nutrients from culture medium has been reported by different authors as comparable [4], [27].

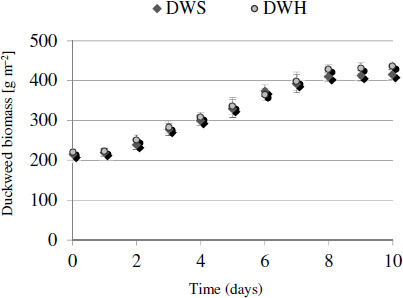

Figure 2.

Comparison of duckweed Density in Swine Slurry (DWS) and Hoagland solution (DWH), during assays

The change of nutrient in the swine wastewater container covered with L. minor indicated that there was organic matter, N and P reduction in the culture medium (Figure 3) during the lag phase of growth, which may be related to the accumulation of nutrients in the cells, as reported by Cheng et al. [7].

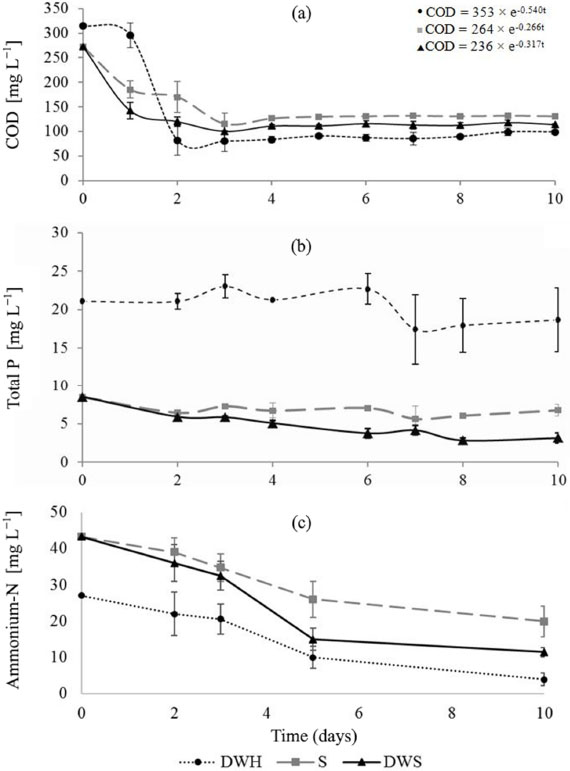

Figure 3.

Removal of COD (a); Total P (b); Ammonium-N (c) from 4% Swine Slurry without Duckweed (S), 4% Swine Slurry with Duckweed (DWS) and Hoagland Solution with Duckweed (DWH)

The behaviour of organic matter, determined as COD concentration, in the growth assays containing duckweed and control followed first-order kinetics, with a reaction rate constant k of 0.267 and 0.317 day⁻¹ (Figure 3a). Initially, there was a sharp decrease in organic matter content, which remained roughly constant after 3 days of growth. These results indicate the existence of readily biodegradable organic matter, since the slope d(COD)/dt of the consumption of organic matter is rather sharp curve. In swine wastewater, about 58.9% of COD was removed by duckweed system over 52.8% by control system. Typically, part of the organic matter is degraded due to the activity of microorganisms and algae, which proliferate in the culture medium. The introduction of duckweed in the system may have created synergies, contributing to the improvement of the treatment process.

The reduction of phosphorus concentration throughout the growing DWS (Figure 3b), was about 66% compared to 20% of the S assay. The removal of phosphorus in the control assay may be due to the growth of microorganisms and algae that utilize phosphorus in their growths, although in small quantities. Vermaat and Hanif [28] conducted several batch growths of macrophytes plants, during 12 days, in domestic wastewater and found that Azolla and Lemna were responsible for about 18% and 56% removal of total phosphorus, respectively. The phosphorus removal rate due to plant uptake was 3.47 mg P m⁻² day⁻¹. These results show that under test conditions, Lemna has a great capacity to remove this nutrient.

Regarding nitrogen removal (Figure 3c) during the first 3 days, no major differences between DWS and control S were observed. Conversely, after 10 days of culture, 74% of NH4⁺-N was removed from the DWS assay compared to 45% in control. These results are in accordance to Monselise and Kost [29], who reported that L. minor removed nitrogen mainly in the form of ammonia.

Although Debusk et al. [30] reports a 54% removal of nitrogen containing hyacinth lagoon, Oron [31] found an efficiency of removal of ammonia in the range of 40 to 90% depending on the hydraulic retention time in the tank containing Lemna. Zimmo [32] also evaluated the duckweed performance to remove nutrients and obtained an ammonia removal efficiency of 26–41%, depending on the pH, which reveals somewhat lower than that obtained in this study. Nitrification was the other pathway for NH4⁺-N removal, which resulted in the increase of NO3^--N concentration to 1.21 mg m⁻² day⁻¹, like reported by [4].

Plant tissue N and P contents by the end of the experiments showed 44.8 g N kg⁻¹ of dry wt and 11.2 g P kg⁻¹ dry wt, which are among the expected results for the [27]. The highest observed growth rate achieved by L. minor was 140 ± 14 mg N m⁻² day⁻¹ in DWS (Table 2) was slightly lower than in DWH but no significant differences were attained. Although the authors assert that the productivity of biomass can be influenced by the composition of culture medium [33] or wastewater characteristics [34], results have shown that PSW, at 4% of dilution, are suitable for growing duckweed.

The study was conducted in lab scale but the scale-up seems to be promising. Based on a facultative pond with 10,000 m², and considering productivity obtained as the annual average, it is possible to obtain an excess of fresh biomass of 105 ton ha⁻¹ year⁻¹.

Many studies have focused on the application of Lemna minor in the treatment of wastewater, recovery of nutrients, and use as a food ingredient for animals, but none addressed these aspects simultaneously. In this study, an integrated approach of biomass production and valorisation, nutrient recovery from wastewater and production of a renewable energy is assessed. Table 3 presents the feed used in Phase I (mono-substrate) and Phase II (co-digestion). Table 4 summarizes the behaviour of performance parameters along the two AD phases.

As it can be seen from Table 3, the feed mixture leads to 46% increase in VS and 20% in COD, resulting in a 27% increase in C/N ratio what may enhance methane yield production in the co-digestion phase due to a slightly more favorable medium for efficient microbial growth.

Results presented in Table 4 show that the introduction of duckweed leads to a 20% increase in OLR, followed by a 40% increase in GPR. Regarding SMP, the same trend was observed, with a 41% increase with co-digestion. This fact is in accordance with the slight increase in C/N ratio favouring conversion of organic matter to biogas.

The results obtained for SMP, 93.0 mL CH4 g⁻¹ COD (168 mL CH4 g⁻¹ VS) and 131 mL CH4 g⁻¹ COD (193 mL CH4 g⁻¹ VS), respectively for Phase I and II, are lower than the ones reported by other authors. For example Riano et al. [35] reported a SMP of 256 mL CH4 g⁻¹ COD for AD of swine wastewater with a HRT of 12 days. Panichnumsin et al. [36] obtained 217 mL CH4 g⁻¹ VS by co-digesting cassava pulp with swine wastewater with a HRT of 15 days. Molinuevo-Salces et al. [37] studied the effect of adding vegetable processing wastes as a co-substrate in AD of swine wastewater, also assessing the impact of two different HRT (25 and 15 days) on SMP. They were able to conclude that the reduction of HRT from 25 to 15 days led to an increase of SMP from 90 to 201 mL CH4 g⁻¹ VS, for swine wastewater alone, and from 277 to 285 CH4 g⁻¹ VS for swine wastewater and vegetable processing waste. This fact indicates that the reduction of HRT lead to an increase of OLR and consequently a higher amount of substrate available for microorganisms. Nevertheless, results achieved are in accordance with those found in literature that indicated that anaerobic co-digestion could increase CH4 production of manure digestion [38] depending on the operating conditions and the co-substrates used [39], [40]. Although further studies are required to better understand the synergetic effect of duckweed as co-substrate, it was shown that it is a potential bioenergy source having excellent growth behaviour in swine wastewater and nutrient removal efficiency. Furthermore, the optimization between depuration efficiency, mainly nitrogen removal, and the C/N ratio suitable for AD should be addressed in future studies in order to establish the best strategy for the integrated approach at farm scale.

As the experimental design took into consideration the swine wastewater management practices carried out in a swine production farm and also the characteristics of the lagooning system implemented, it can be expected that the lab-scale study described will be applicable at a full-scale. Furthermore, some of the practical constraints of growing duckweed in a batch container will be avoided at full-scale continuous mode.

The holistic conceptual approach would include depuration of swine wastewater by growing duckweed, enhancing energy production from co-digestion of duckweed biomass and swine wastewater and using the surplus of duckweed biomass to replace other protein sources for animal feed. This last aspect is also worth exploring as feed is one of the main costs of swine production and highly contributes to the economic crisis presently affecting the sector.
