For energy planning, energy system models are typically used to provide insights into energy technology implementation as well as socio-economic and environmental implications. Similar to other sectors, agricultural production and land use systems can be modelled as a collection of discrete physical processes [11]. On the other hand, several agricultural system models have been developed, with high multidisciplinary and impacts in policy-making [12]. Currently, there is a wide range of open source and commercially available agricultural and land use models (IMAGE [13], GLOBIOM [14], MAgPie [15]). Nevertheless, Integrated Assessment Models (IAM) and studies considering the synergy between agricultural productivity and land use dynamics combined with energy systems studies have been limited. These models have to be soft-linked to external energy systems models adding complexity and a fragile internal model coherence due to different technical and economic approaches between sectors. On the other hand, the Global Change Assessment Model (GCAM) [16], which provides an integration between energy and terrestrial systems, the agriculture sector lacks a representation of agricultural energy technologies.

Other models have been presented with limited development or just to answer specific questions. Elobeid et al. [17] presented a modelling framework based on CARD U.S. and MARKAL models to capture the links between agricultural and energy markets. They focused on bioenergy expansion and related environmental impacts and illustrated the importance of integrating agricultural systems into Energy System Model (ESM) to avoid an underestimation or overestimation of the impacts either from the energy or the agricultural sector. Rochedo [18] proposed an approach to integrate a land system model into the MESSAGE model aiming to assess the role of land use in a long-term carbon constrained world. Miljkovic et al. [19] developed a simplified two-input two-output model to study the effects of bioenergy policies on energy and land use. The authors reported an increase of energy consumption (gas and fertilizers) in the agriculture sector, especially for corn production, contrasting with the objectives of bioenergy policies to decarbonise the energy system. Al-Mansour and Jejcic [20] presented the AgrFootprint model, capable of calculating the carbon footprint of different agricultural commodities (such as fruits, grains, meats), by defining average of fuel consumption for the different processes found in the production of these commodities. Chiodi et al. [21] used TIMES to understand the role of bioenergy in meeting future demands for a low carbon Ireland economy. Although the authors envisioned that bioenergy could cover up to 40% of domestic energy demand, land use would have to increase 142-fold, posing severe risk to the country’s ecosystem. Gonzalez-Salazar et al. [22] presented an integrated model considering energy systems, land use, and climate modelling aiming at exploring the impacts of bioenergy production growth. The model, based on LEAP and Microsoft Excel, provided a robust framework to forecast the implications of bioenergy growth with the limitation of not being able to model explicit technological uptake as well as providing a full life cycle emissions assessment of the analysed scenarios.

Typically, the limited number of ESMs that model the agriculture sector, select energy services similar to those found in the building sector (e.g. heating, refrigeration, drying, lighting, etc.). In this way, although it is straightforward to establish processes that cover those service demands, this approach is incapable to properly establish a relationship between productivity and land use requirements as a function of the performance of the technologies. As novel technologies could easily impact the sectors land and energy dynamics [23], innovative modelling frameworks are needed to gain an understanding into the future role of the sector in the economy, the energy system and, more importantly, in the environment. Generally, agricultural models suffer from two main limitations: lack of robust data and ineffective communication of outputs to society [12]. Additionally, other issues remain in the field. The main one is the lack of formal procedure to establish a strong relationship between agricultural technologies and their impacts on agricultural service demands (mainly food demand) and land use.

To the best of the authors’ knowledge there is still a lack of appropriate, transparent and robust energy systems models that deliver more realistic interactions of agricultural energy technologies and their implications in the wider energy system. The objective of the paper is to apply a novel agricultural energy systems modelling framework (MUSE-Ag&LU) using Brazil as a case study. The model uses intensification/extensification processes, based on mechanisation levels, to calculate agricultural technology productivity. With special attention to study the dynamics between agriculture, land and energy, the study intends to identify the best uses of Brazilian gas reserves and sugarcane in a systems context as well as evaluate the effects of energy use and agricultural emissions under carbon constraint scenarios.

The paper is organized as follows. First, an overview of the materials and methods as well as the development of the MUSE-Ag&LU model will be presented. Secondly, to present the case study, Brazil’s energy, agriculture and land use context will be discussed alongside the proposed modelling scenarios. Then, the paper will show the results obtained for the selected case study, followed by discussions and conclusions.

The MUSE-Ag&LU (agriculture and land use) [25] is a technology-rich bottom-up demand and supply model that spatially and timely simulates energy and land use demand in the medium and long-term (up to 2050 or 2100). Additionally, it endogenously simulates the supply of bioenergy determined by the requirements from the rest of the energy sectors (power, industry, transport, etc.). The model aims to produce a time series of fuel, agrochemicals and land demand to meet four general agricultural services: crops, animal food, forestry products and bioenergy. This first categorisation can be considered broad, as for example, meat-based products could be further separated into pasture based livestock vs. grain fed livestock, or crop production could be differentiated as rain-fed vs. irrigated production, however, this was done to reduce model complexities and computing times.

Similar to other demand modules, MUSE-Ag&LU dynamically exchanges a set of variables (Figure 1) with the MCA by sending information regarding fuel demand and emissions per region, time period and timeslice.

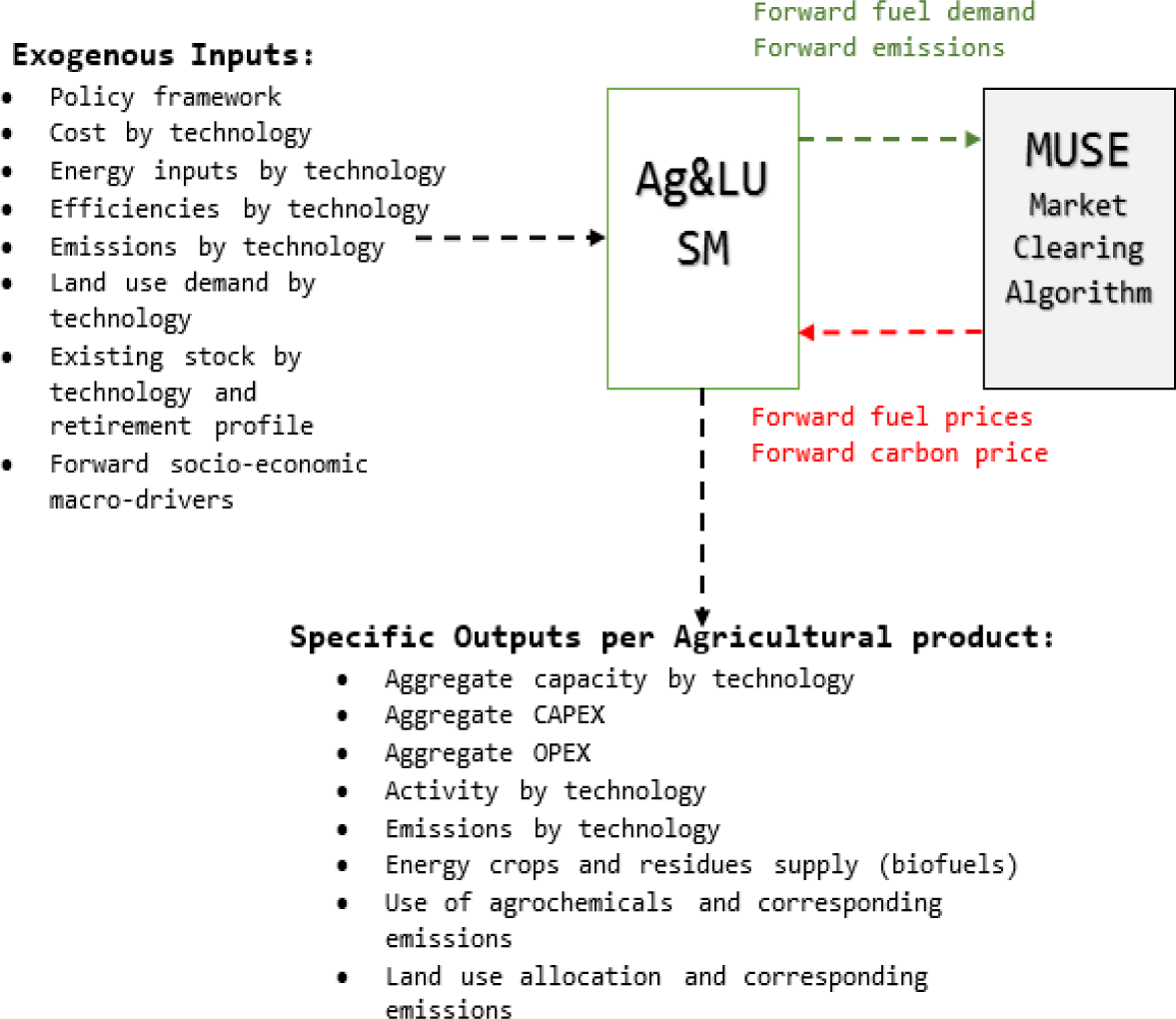

Figure 1.

Integration of the Ag&LU module into MUSE and data flow with MCA [25]

The model is based on a two-step simulation approach:

• First, the demand for energy services demand is dynamically calculated using selected macrodrivers, such as GDP per capita and population. Then, exogenous parameters for the techno-economic and environmental characterisation of technologies are uploaded;

• Secondly, to model technological diffusion, a merit order approach based on Net Present Value (NPV) is used to model investment decisions, thus defining the technological market share and the fuel mix. The model ranks technologies based on its capital and operational costs, efficiency and environmental impact. Based on the market share, MUSE-Ag&LU would calculate per region, time period and timeslice the following metrics: fuel demand, agrochemicals demand, running operating costs (OPEX), land use demand, GHG emissions, and bioenergy and residual crop supply. At the next iteration, updated fuel and carbon prices information from the MCA will be receive by the module, thus repeating the simulation.

The model projects the demand by energy content of crops, animal products, forestry products and bioenergy products in agreement with similar studies [6], [26], [27]. As mentioned, the sector’s regional service demands are projected using regression models using GDP and population as macrodrivers [28]. For crops, meat and forestry products, the demands are projected based on historical regional diets and consumption trends [2]. From FAOSTAT [2], data for the period 1970-2010 for diets (kJ person^-1 from crops and animal-based products), forestry products and bioenergy crops (tonnes of production) has been collected. After comparing a set of suggested models from the literature, the Engel’s function (log-log function) has been identified as the most convenient to estimate the agricultural services demand:

$\ln \left[d\left(T\right)\right]= a+b\times \text{ln}\left({\text{GDP}}_{\text{cap}}\right)$ (1)

The function shows that as income increases, demand for agricultural products would increase, nevertheless, the increase is under-proportional with income. Data from economies with high levels of income per capita show saturation level in demand, and in some extreme cases, a demand decrease, especially for meat-based products. For validation purposes, future projections have been cross-checked and validated against long-term projections reported from the FAO [29].

In MUSE-Ag&LU, the energy consumption in agriculture is associated to a specific level of mechanisation of the technologies used to supply a specific service. The energy use share for each process (i.e. a combination of a technology and each mechanisation level) has been modelled, extending the qualitative method proposed by Opio et al. [30] and integrating it with data analysis techniques. First, data on yields were collected for every agricultural service (crops, animal, and forestry products) as well as on energy requirements and land use have been obtained for each region [2]. By relating service production to land demand, a region mechanisation level over different yields can be categorised. Appendix A (Figure A.1) shows the yield distribution per agricultural commodity on a global scale.

Based on these distributions, three mechanisation levels have been defined using the quartiles, as detailed in Table 1.

Although the FAO [2] and IEA [31] energy balances provide energy demand and fuel share for the sector, there is no information separated by agricultural service (crops, animal, forestry and bioenergy). To provide a share of fuel per mechanisation level, the non-hierarchical method approach has been used [32]. The aim is to classify a country or region within a set of groups looking for high within-class homogeneity and as much variability as possible between groups. Therefore, country-level data by input/output ratio and yield have been grouped, and based on cluster segregation at different levels of distance between measurements, heterogeneous technological groups have been defined. For each mechanisation level, variation in energy use, agrochemicals demand, yields and investment parameters have been characterised. Based on the studied yields and the level of economic development, a different percentage of mechanisation level is allocated to every region. This means every country and region would have some level of mechanisation level to greater or lesser extent.

As previously mentioned, for the selection of future mechanisation adoption the model uses NPV as the main indicator for ranking technologies, therefore, cost values for each mechanisation level must be defined. For the definition of economic costs, Baruah and Bora [10] provided capital and operational costs (USD ha^-1) for three strategic mechanisation scenarios. In the low-mechanisation scenario (traditional), more than 90% of the total cost is spent on muscle power, whereas in the partial mechanised scenario (transitional) this is about 59%. Machinery ownership and machinery operation including diesel are the major costs for the ‘transitional’ and ‘modern’ mechanisation scenarios (87% and 90% of the total operational cost) considered in the present study. Additionally, cost estimates data from the USDA [33] has been collected. This data details the cost per hectare for each agricultural product according to its yields. Based on the yields illustrated in Figure A.1, cost per mechanisation level for each agricultural product can be defined. The values used in this study are shown in Appendix B (Table B.1).

To obtain installed capacities for each mechanisation level per region and solve the calibration problem, an optimisation model has been implemented in GAMS [34]. The model aims to minimise the gap between estimated emissions and the historical values for 2010. The problem has been formulated as follows:

$\min Z= {\displaystyle \sum }_{\text{r}}\left|{\text{Data}}_{\text{emi}}{}_{\text{r}}-\left({\displaystyle \sum }_{\text{f},\text{t}}{\text{Consumption}}_{\text{r},\text{f},\text{t}}\times {\text{Fuel emissions}}_{\text{f}} \right)\right|+{\displaystyle \sum }_{\text{r},\text{f}}\left|{\text{Slack}}_{\text{r},\text{f}}\right|$ (2)

subject to:

$\begin{array}{l}{\displaystyle \sum }_{\text{t}\in {\text{TS}}_{\text{s}}}{\text{Capacity}}_{\text{r},\text{t}}>{\text{Demand}}_{\text{r},\text{s}}\\ {\displaystyle \sum }_{\text{t}}{\text{Consumption}}_{\text{r},\text{f},\text{t}}< \left({\text{Fuel demand}}_{\text{r},\text{f}}+{\text{Slack}}_{\text{r},\text{f}}\right)\end{array}$ (3)

where r refers to region, f refers to fuel type, t to technology, s to service and TS_s are the technologies available for service s. A slack variable has been added to fulfil fuel constraints. By solving the optimisation problem, all structural alternatives are evaluated and the capacities for each technology corresponding to the optimal solution are used as an estimate of the base year stock. In the periods after the base year, the MUSE-Ag&LU applies the simulation algorithm previously described to model capital and investment decisions in order to meet the demand and balance the decommissioned stock.

The integration of mechanisation levels into the agricultural production system provides a straightforward element to link installed capacity, commodity productivity and land demand per service (Figure 2). Depending on the demand and production levels per mechanisation level technology, MUSE will calculate the land requirement specifically for that process. Processes with a selected output service will require same type of land. This means that, for example, the cropping processes will be allocated to cropland only. Then, land values are aggregated per land type, region, and period to obtain a final agricultural land requirement.

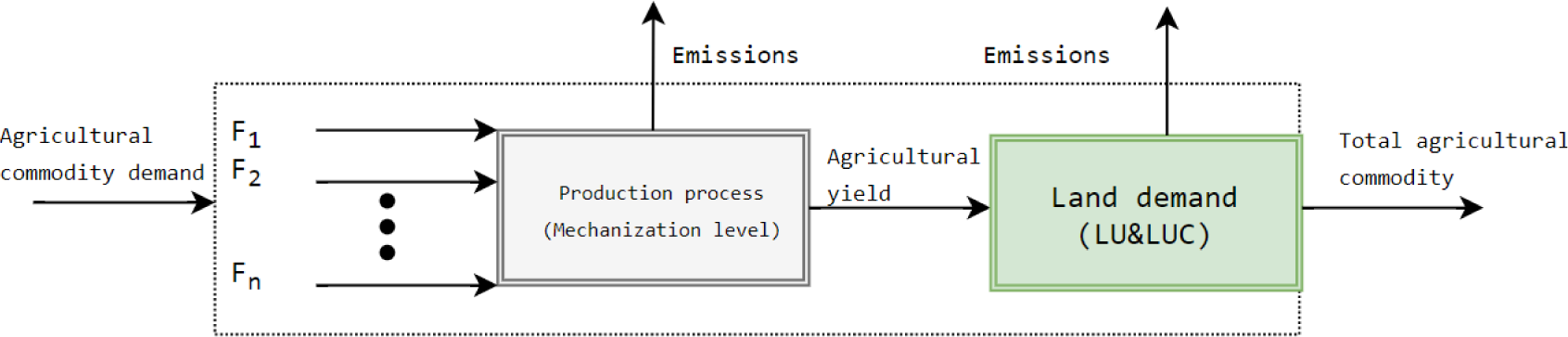

Figure 2.

Basic representation of agricultural mechanization technology considering fuel input, production and land use demand

In MUSE-Ag&LU, seven different land types have been modelled:

• Cropland: land for crop cultivation;

• Pasture land: land for grazing livestock;

• Forestry products: land for silviculture;

• Energy crops: land for bioenergy crops;

• Natural forest: primary and secondary forest land;

• Non-arable land: unsuitable farming land (desert, ice, tundra, rock);

• Urban/Infrastructure: land for human settlements.

The model calculates land use change when the actual land to meet certain agricultural demand is not sufficient. Land becomes available either via deforestation or via a change in the destination of other land types in case of demand reduction or technology improvements (e.g. pasture land converted to energy crops).

To calculate land use emissions, the method is based on the non-spatially IPCC Tier 1 approach [35]. The approach calculates net land use changes over a period in time considering CO₂ emissions based on disruptions from each pool for each land use category^†. The four carbon pools considered are: above ground biomass, below ground biomass, Dead Organic Matter (DOM), and Soil Organic Carbon (SOC).

First, the stock-difference method is used to calculate carbon stocks differences for each carbon pool for a given land at two points of time:

$$\Delta C_l=\frac{\left(C_{l,\text{t}2 }- C_{l,\text{ t}1}\right)}{\left(t_2- t_1\right)}$$ (4)

where ΔC_l is the carbon change between periods for pool l, C_l,t1 is the carbon stock at period l and C_l,t2 is the carbon stock at the following period.

To account for carbon stock changes in each period:

$$\text{Δ}{C}_{{\text{LU}}_i}=\text{ Δ}{C}_{\text{AB}}+\text{ Δ}{C}_{\text{BB}}+{}_{}\text{Δ}{C}_{\text{DOM}}+\text{ Δ}{C}_{\text{SOC}}{{}_{}}_{}{}_{}$$ (5)

where ΔC_LUi is the carbon stock change for land type i, and subscripts AB, BB, DOM to SOC refer to above ground biomass, below ground biomass, dead organic matter and soil organic carbon, respectively.

Finally, to account for AFOLU emissions, aggregated carbon stock changes is calculated as follows:

$\Delta C_{\text{tot}}= {\displaystyle \sum }_i\text{Δ}{C}_{{\text{LU}}_i }$ (6)

where ΔC_tot is the aggregated carbon stock change and ΔC_i is carbon stock difference land type i.

Brazil, the world’s seventh largest economy and the eighth largest energy consumer (10.9 EJ year^-1 in 2016 [36]) has been used as a case study. By 2026, energy use is expected to rise by 18.6% (12.9 EJ year^-1) [37]. In the last years, the energy system has experience high dynamism. For example, on the demand side, the government has implemented large-scale programs improving electricity access to marginal groups, especially in regions such as the Amazons [38]. However, other sectors has experienced negative effects due to climate effects. For example, the power system, which mainly relies on hydroelectricity (> 60%), has become more vulnerable to blackouts due to water shortages [39], [40]. To minimise the blackout risks, other power sources, such as wind, have been extensively installed. For instance, wind installed capacity has grown from 1.4 GW in 2011 to 8.1 GW in 2016, with important technical and socio-economic benefits [41].

Brazil: agriculture energy use and land use demand

Specifically, the Brazilian agriculture sector represents about 4% of the national energy consumption (481 PJ year^-1 and 31.1 Mt CO₂ year^-1), with diesel, firewood, and electricity responsible of 99.7% of the total sector energy share. In the last decades, due to a steady increase in per capita income, Brazil’s population has experienced major diet changes. According to data from the United Nations Food and Agriculture Organization (FAO) [2], between 1990 and 2015, per capita food energy consumption in Brazil grew from 9.5 MJ day^-1 and 1.9 MJ day^-1 from crop and animal-based products, to 10.3 MJ day^-1 and 3.2 MJ day^-1, respectively. Combined with an increase in population of about 25%, this represented an increase from 622 to 1,016 PJ year^-1 in total food energy content (an increase of 63.3%). In the same period, cropland has increased 50.8%, from 57.4 to 86.6 Mha (including 9.0 Mha for dedicated energy crops), while pasture land and secondary forest have increased by 6.4% (from 184 to 196 Mha) and 52.2% (from 4.9 to 7.6 Mha), respectively. Both food-related land use types (cropland and pasture) have lower percentage increase than total food demand due to intensification in agricultural systems. Nowadays, cropland and pasture land combined are accountable for 265 Mha or 31% of the country land (Figure 3a).

Conversely, Brazil is one of the biggest promoters of bioenergy production and utilisation in the world. In 2016, bioenergy (mainly ethanol and bagasse from sugarcane) represented 16.9% of the domestic energy supply (2,121 PJ) [36]. Although the South-East region is the area with the largest production, the Centre-West region has become the main place for sugarcane expansion where land use patterns have changed since the introduction of dedicated energy crops [5]. For example, between 2003 and 2013, only in Goias and the Federal District, sugarcane area expanded six-fold (from 0.14 to 0.85 Mha) [42], pushing food crops to new lands. However, outside the most developed regions in Brazil, information is still scarce about land use change dynamics of new sugarcane and other bioenergy cultivations [42].

Both, food and energy crops are the main drivers of deforestation in Brazil which has become critical to any decarbonisation scenario. High rates of deforestation can drastically alter the storage and cycles of carbon and nitrogen pools [43]. On a global scale, tropical deforestation alone is responsible between 7-14% of global GHG emissions [44]. Currently, 20% of the global tropical deforestation is located in Brazil and is responsible for 0.43 Gt CO₂ year^-1 [45]. Between 1990 and 2014, the forest area in Brazil went from 541.7 Mha to 486.9 Mha [2]. The loss of 54.8 Mha (including 37 Mha of the Amazon forest) represented 6.6% of total land, a size similar to France. On the positive side, in the last decade programmes and regulatory policies have been put in place to reduce deforestation rates, declining from an average rate of 2.7 Mha year^-1 (1990-2004) to 1.6 Mha year^-1 (2005-2014) [2]. If pre-2005 deforestation rates would not have been improved (combined with low agriculture intensification), by 2056, about 62 Mha of forest would have been lost (Figure 3b).

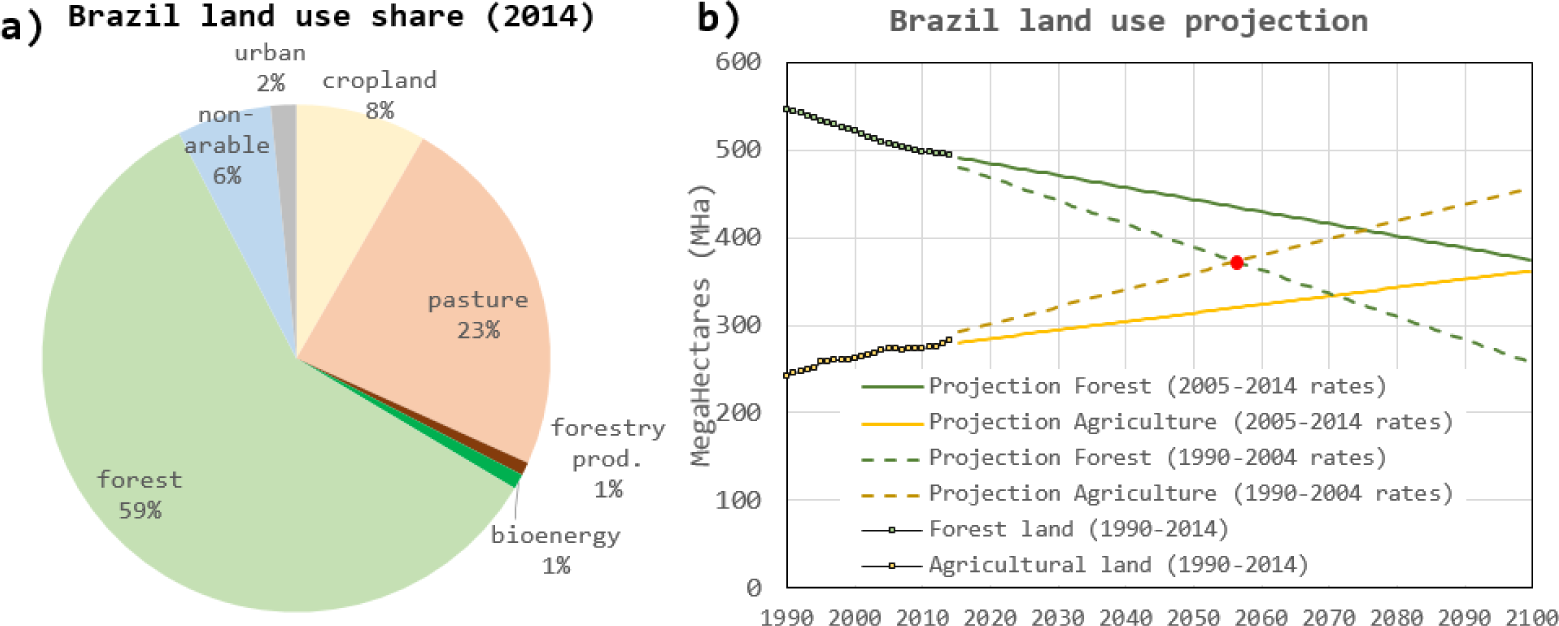

Figure 3.

Current land share in Brazil (total: 836 Mha) (a) and Brazil land projection (b) for agricultural and forest land based on 1990-2004 and 2005-2014 deforestation rates [2]

In this study, the model has been applied to simulate transitions in the Brazilian agricultural energy system and land use between 2010 and 2050 under two different two-degree scenarios (2DS). Based on the research from Rochedo et al. [52], a carbon budget of 40 Gt CO₂ has been considered accounting only for the energy and land systems. The selected value is located on the higher end of the range proposed by the authors (16.0-41.4 Gt CO₂), as in this study, carbon negative technologies such as carbon capture and storage, direct air capture, and/or reforestation have not been considered. The proposed two scenarios differ in terms of the assumptions made for the bioenergy production growth (Figure 4):

• Two degree scenario with sugarcane expansion (2DS + SugC): Explores a two-degree scenario that incentivises larger production of sugarcane and soybean assuming a blending mandate according to which the biofuels production grows steadily from a 2010 production rate of 0.59 EJ year^-1 (0.54 PJ year^-1 ethanol and 0.05 EJ year^-1 biodiesel [53]) to 5.0 EJ year^-1 in 2050 and the production of local natural gas is limited to current levels (around 100 mcm day^-1). It is assumed that the same share ethanol-biodiesel is maintained through to the time analysed. The assumed biofuels growth occurs by about 6% per year and in line with the “New Policies Scenario” from the 2010 IEA World Energy Outlook [53];

• Two degree scenario with natural gas expansion (2DS + NG): Explores a two-degree scenario that incentivises natural gas production and infrastructure expansion as well as limits bioenergy expansion by taxing land use emissions from bioenergy crops growth. It contemplates that biofuels would grow by about 3% per year. This means that bioenergy production will only increase from the current rate of 0.59 EJ year^-1 in 2010 to 2.50 EJ year^-1 in 2050.

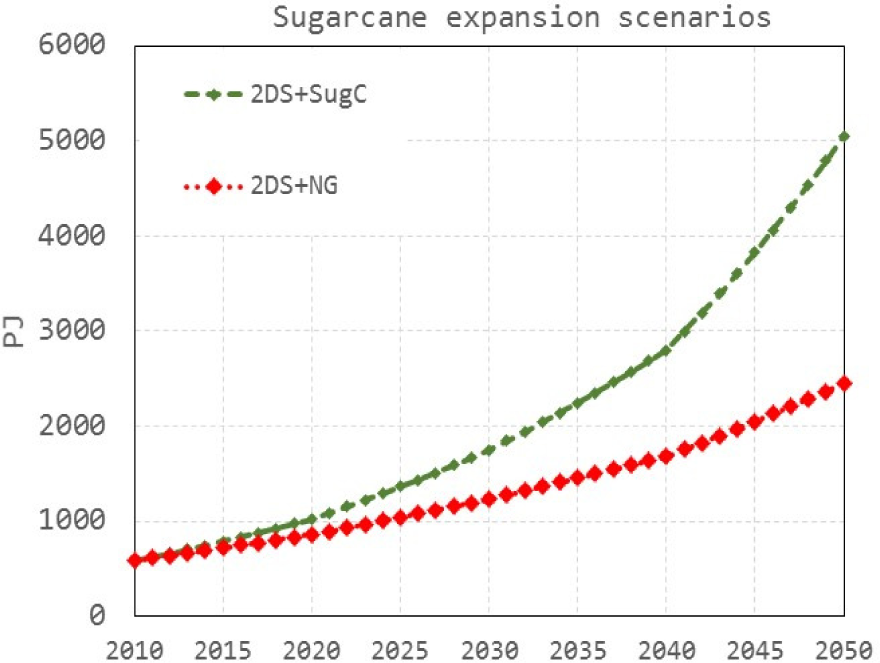

Figure 4.

Projections of bioenergy production for both simulated scenarios

IIASA SSP2^‡ scenario on GDP and population has been used for food demand projections [54]. The data suggest that by 2050, Brazil will have a per capita income of about USD 22,617 (2005 USD) and a population of 232 million inhabitants. Using eq. (1), Figure 5 illustrates actual data for average daily food intake (both crop and meat based)^§. The Engel’s curves shows that by 2050, each person in Brazil will consume about 10.5 MJ day^-1 of crop-based diet and 3.6 MJ day^-1 of meat-based diet. In aggregated values, this means that the total energy in food demand will grow from of 732 PJ year^-1 and 229 PJ year^-1 of crop and animal-based food respectively in 2010 to about 889 PJ year^-1 and 308 PJ year^-1 by 2050: a 25% increase in total food demand compared to 2010.

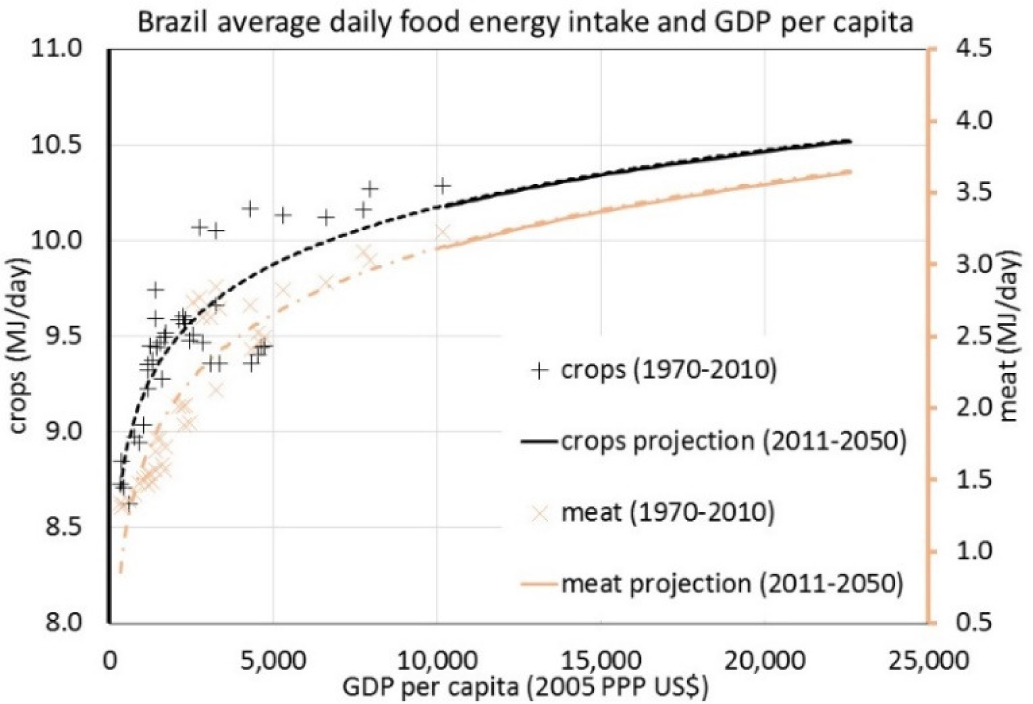

Figure 5.

Projections between food intake and average GDP per capita in Brazil (source data: FAO [2])

For sugarcane, the model endogenously calculates its production based on the demand for sugarcane by products (ethanol, bagasse) from the transport, power and industry sectors. Finally, to account for agricultural commodities imports/exports, we have assumed that future trade is in a constant share with base year values.

Based on analysed global yields and mechanisation definitions, Brazil can be regarded as having mainly transitional mechanisation as it was found that crops have an average yield of 10.49 PJ Mha^-1, while meat production of 1.16 PJ Mha^-1 and silviculture of 7.66 PJ Mha^-1 [2]. This could also be explained by the share of agricultural production to the national GDP, which stands at 4.3% [2]. By using the optimisation process [eq. (2) and eq. (3)], base-year installed capacities for each agricultural service have been obtained. The outputs are shown in Appendix C (Table C.1).

Conversely, regional land demand characterisation has been one of the most challenging task due to the lack of public available data at the desired granularity. Main data on land use demand from agricultural, pasture and urban land has been obtained from the Brazilian Institute of Geography and Statistics (IBGE) [55] and FAOSTAT [2]. Land demand for different Land data on Brazilian forest and forestry production by biome has been gathered from the Ministry of Environment (MME) [56]. Finally from the Sugar Cane Industry Union (UNICA) [57], regional land demand from sugarcane production has been collected. As shown in Figure 6, for the characterisation of the Brazilian forest land, all six biomes have been considered (Amazonia, Caatinga, Cerrado, Mata Atlántica, Pampa and Pantanal).

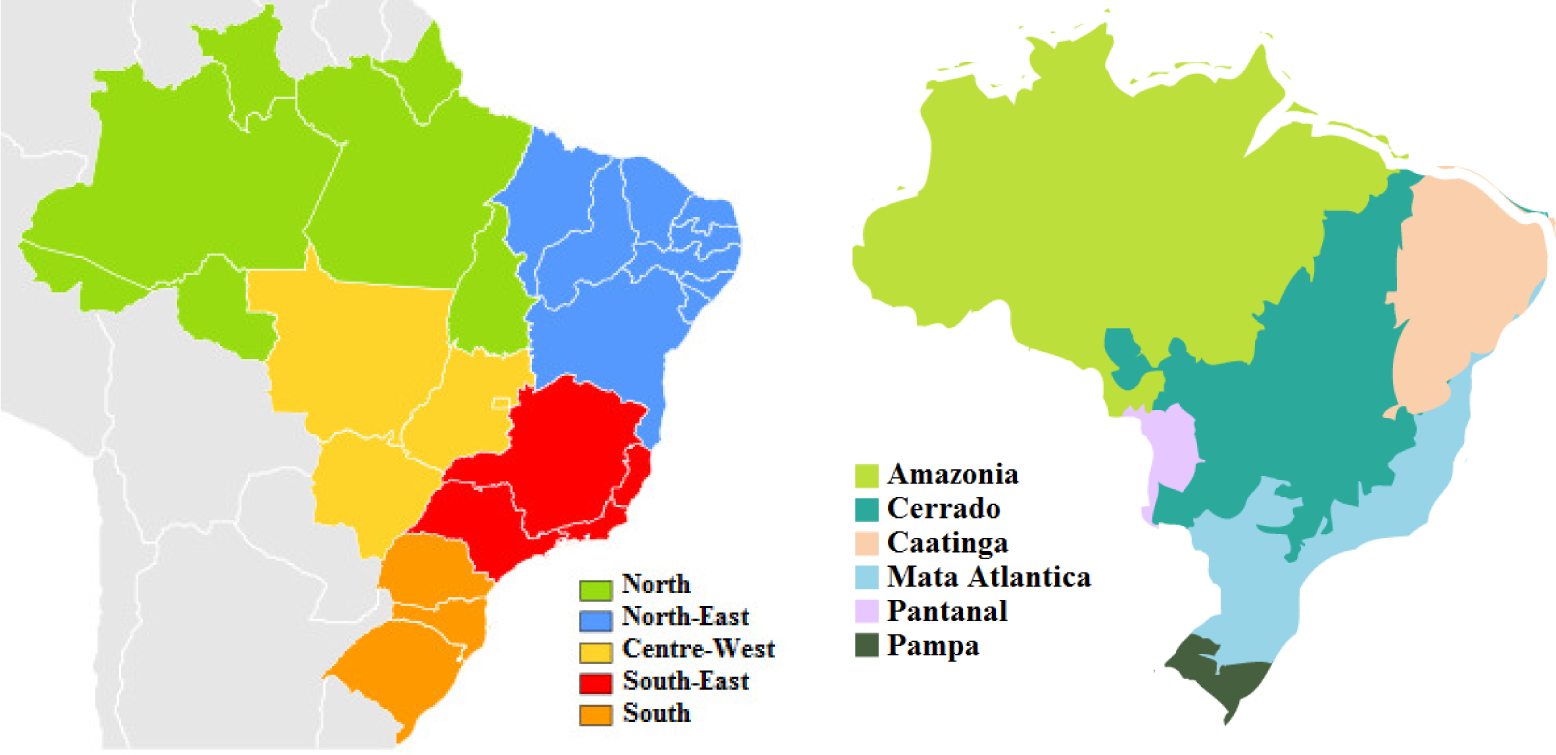

Figure 6.

Brazil’s main geopolitical regions (left) and biomes (right)

Some biomes can be found in two or more regions. For instance, the Amazonas is located in the North (305.4 Mha), North-East (2.7 Mha) and Centre-West (33.4 Mha) regions. This data has been considered and separated between the different regions as necessary. This has implications in the assumed carbon pools of the different geopolitical regions, therefore, biome shares for each region and related C stocks per unit area have been considered to calculate regional C stocks. To account for carbon emissions or sequestration from land use, Brazil’s carbon densities have been taken from the IPCC [35] and other studies [30], [58], [59] (Table 2).

Figure 7 shows a projection for both scenarios of the aggregated agricultural service demand (crops, meat, forestry products and bioenergy) in energy units (PJ) highlighting the share of production in terms of mechanisation levels.

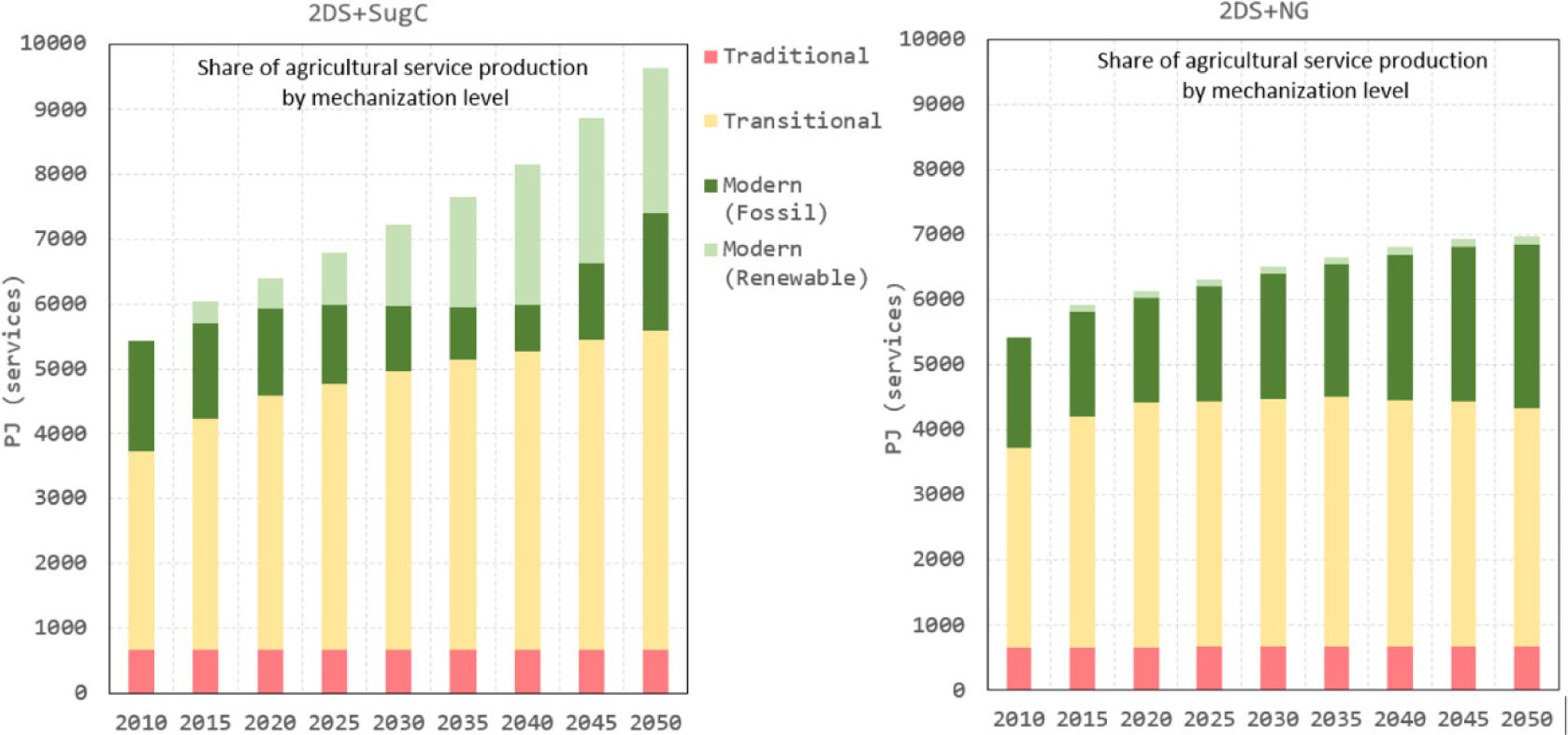

Figure 7.

Share of different agriultural mechanisation levels for both scenarios

By 2050, service demand in 2DS + SugC is higher than 2DS + NG as sugarcane production increases to satisfy the higher assumed demand for biofuels in the transport sector. 2DS + SugC is expected to reach a total agricultural service demand of 9,634 PJ year^-1 (891 PJ year^-1 for crops, 307 PJ year^-1 for meat-based, 3,423 PJ year^-1 for forestry products and 5,013 PJ year^-1 for bioenergy), representing an increase of 78% compared to 2010 (5,425 PJ year^-1). Results show that modern mechanisation is expected to increase its share from 31% in 2010 to 42% in 2050, with a high share of renewable-based modern mechanisation. A change in the technological preference can be noted as the model installs up till 2025 fossil-based modern technology. As soon as modern renewable technologies becomes more accessible after 2025 due to more competitive energy renewable prices, these technologies become the preferred choice over fossil-based modern mechanisation. If only the food production is considered, the food energy content (output) per energy input decreases due to a more mechanised and energy intensive sector, meaning than more energy is required to produce one unit of food. In the base year, this index is around 2.64 kJ/kJ, and by 2050 it reaches 2.11 kJ/kJ, approximating current energy output/input ratios of developed economies [32].

In 2DS + NG, the total service demand is expected to reach 6,974 PJ year^-1, an increase of 29% compared to 2010. As mentioned, the service demand difference compared to 2DS + SugC mainly comes from the lower bioenergy production. In this scenario, modern mechanisation represents 38% of the total share by 2050, where renewable-based modern mechanisation is only responsible for 2%, due to the limit availability of bioenergy for renewable-based on-farm processes. By the end of the time horizon, the food energy output/input indicator reaches 2.26 kJ/kJ, which represents a 7.1% less mechanised sector compared to 2DS + SugC.

Figure 8 shows the energy demand by fuel projections as well as fuel-related emissions exclusively from the Brazilian agriculture sector.

By 2050, in 2DS + SugC, the agriculture sector is expected to consume 725 PJ year^-1 (73% increase compared to 2010). Results show that diesel (282 PJ year^-1), biodiesel (195 PJ year^-1) and biomass (147 PJ year^-1) are responsible of 86% of the total fuel share. On the other hand, the use of electricity grows from 64 to 85 PJ year^-1, but its total share decreases from 15% to 12%. Direct energy-related emissions reach 37.8 Mt CO₂ year^-1 and the emissions intensity (emissions per unit service) decreases from 5.54 Mt CO₂ PJ_agr^-1 in 2010 to 3.92 Mt CO₂ PJ_agr^-1 in 2050.

In 2DS + NG, the total energy demand is expected to reach 599 PJ year^-1 by 2050. This is lower than 2DS + SugC (125 PJ year^-1 lower) due to a smaller bioenergy industry. In this case, diesel (205 PJ year^-1), and biomass (137 PJ year^-1) are responsible for 57% of the total share. Biodiesel uptake occurs at a much slower rate compared to 2DS + SugC, only representing 96 PJ year^-1 by 2050. Additionally, electricity grows from 64 PJ year^-1 to 111 PJ year^-1 representing 19% of the total share, while demand for natural gas grows from 0.09 PJ year^-1 to 42.3 PJ year^-1 (supposedly to cover processes such as drying and machinery). In 2050, the direct energy-related emissions is lower than 2DS + SugC, reaching 33.2 Mt CO_2, but the emission intensity is higher (4.77 Mt CO₂ PJ_agr^-1) due to higher demand of fossil fuels per unit of agricultural service.

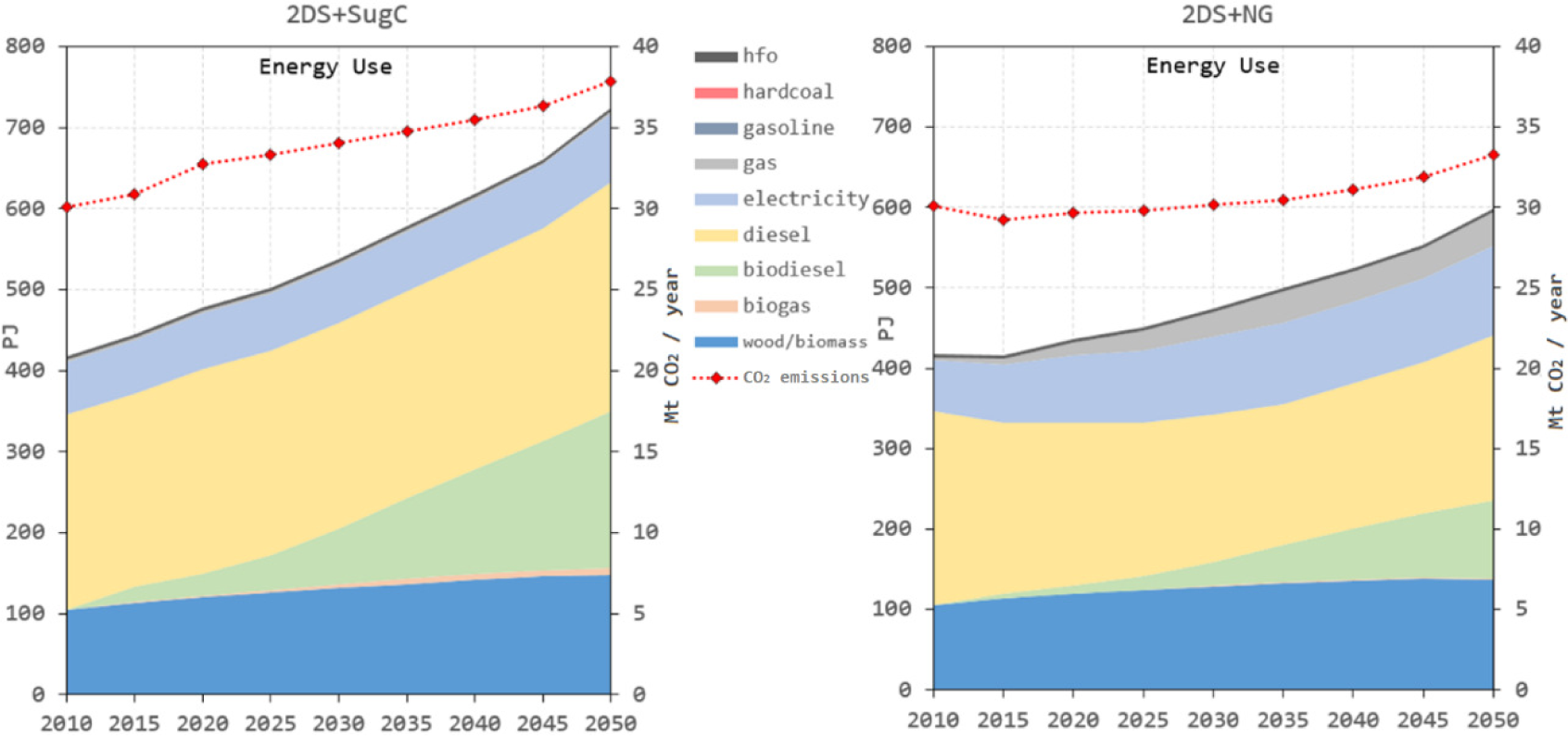

Figure 8.

Fuel demand projections and aggregated energy-related emissions for both scenarios

Figure 9 illustrates land use requirements for both analysed scenarios. As seen, the amount of land devoted to growing all agricultural services increases by a simultaneous decrease in other lands such as forest.

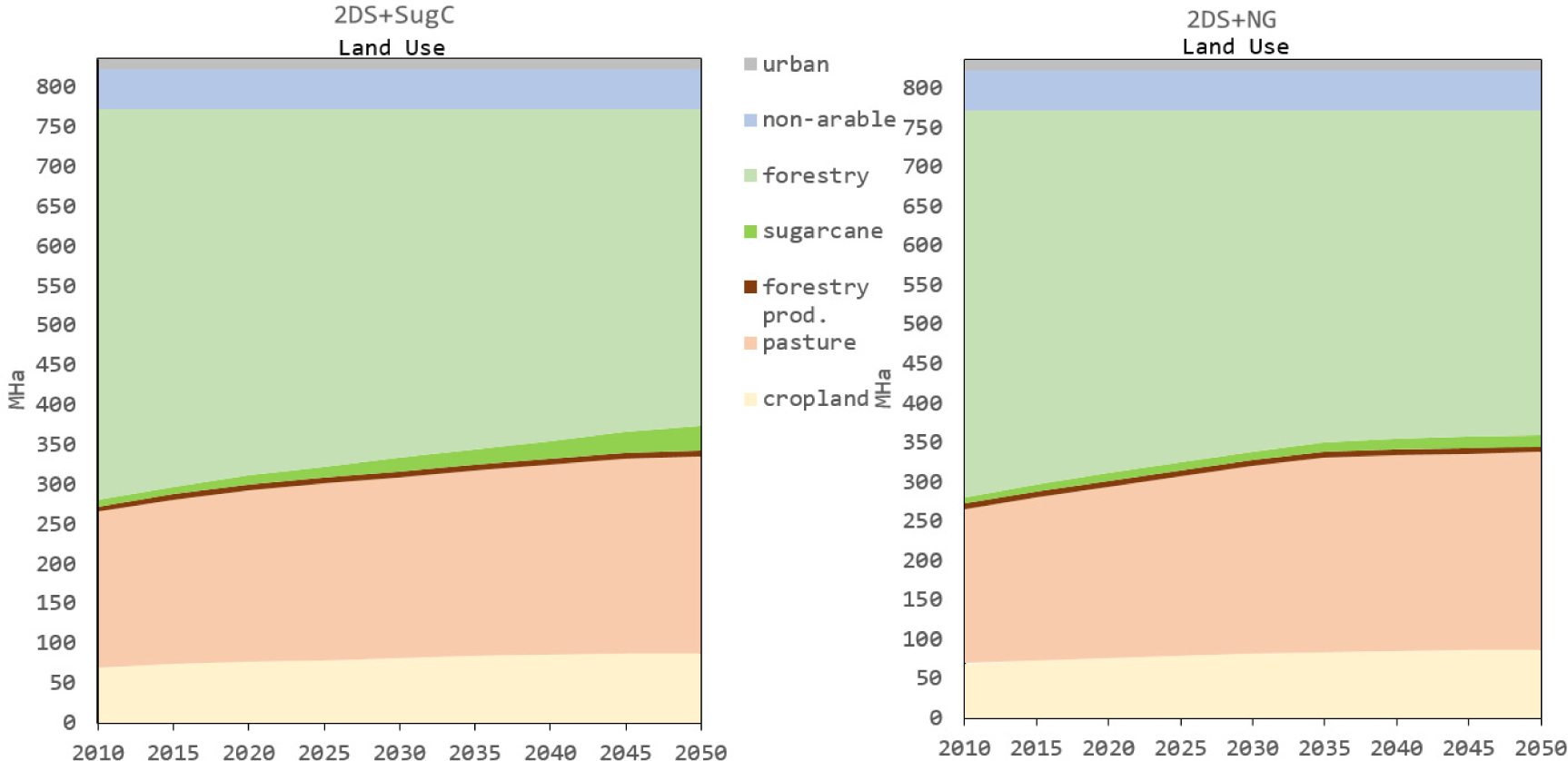

Figure 9.

Land use demand projections for both scenarios

For both cases, a demand increase in meat-based products, causes a constant increase in pasture land until 2030, reaching around 228 Mha (+32 Mha) to later stabilise due to intensification of animal farming. On the other hand, crop land constantly increases until 2050. This takes place at an annual rate of 0.9% between 2010 and 2030, and reducing to 0.3% year^-1 between 2030 and 2050. Crop land demand reaches around 87 Mha (+18 Mha) by 2050. The largest differences are in land dedicated to bioenergy. While for 2DS + SugC, growth rates were found at 5.3% between 2010 and 2030 and 4.5% between 2030 and 2050, reaching 31.0 Mha of land, for 2DS + NG, growth rates were at 2.1% between 2010 and 2030 and 1.4% between 2030 and 2050, reaching 14.5 Mha. In general, for 2DS + SugC, land demand to cover all four agricultural services grows from 280.4 to 351.7 Mha. Results suggest that future service demands will be met 66.6% by intensification implying improved mechanisation and 33.4% by land use increase. In 2DS + NG, land demand for agricultural services increases to 339.1 Mha, where the new future service demand will be covered 71.7% by intensification and 28.3% by land use increase. The results on land demand indicate that compared to 2DS + SugC (6% annual growth of bioenergy), 2DS + NG (developing gas infrastructure combined with 3% annual growth rate of bioenergy) could save around 12.6 Mha of forest by 2050 by limiting energy crops production that normally has an indirect land use change impact due to crop and pasture expansion in other land types.

Finally, by using eqs. (4-6) in the model, Figure 10 illustrates the projected Ag&LU sector CO₂ flux estimations for both scenarios. Besides emissions from direct energy use, releases and uptake of C from land use and land use change have been calculated for all four carbon pools.

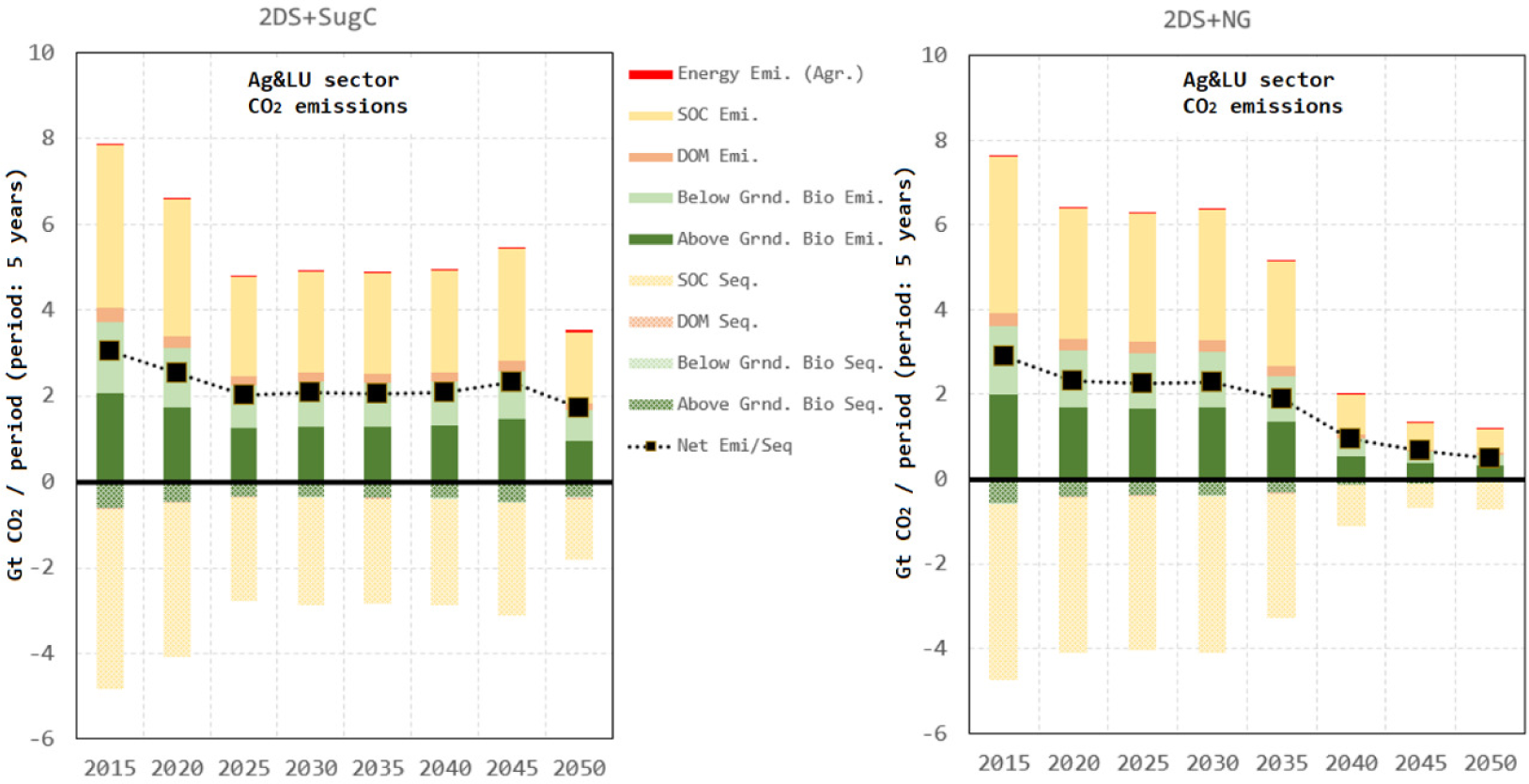

Figure 10.

CO₂ emissions/sequestration rates from energy consumption in agriculture and land use dynamics

If compared, emissions due to agricultural energy use are insignificant compared to emissions due to land use change. The largest emissions arise from above ground biomass and SOC pools removal due to deforestation, while the largest sequestration rates come from SOC pools turning land into pasture land. Results also demonstrate that by 2050, the carbon pool from forest could be reduced by almost 20%, mainly due to deforestation, but with high increases in the biomass carbon pools due to large bioenergy developments.

For 2DS + SugC, modelling results project a net release rate of about 608 Mt CO₂ year^-1 in 2015 slowing to 344 Mt CO₂ year^-1 in 2050. By the end of the modelling period, 2DS + SugC would have released to the atmosphere 5.1% of the actual Brazilian land carbon stock (16.0 Gt CO₂).

For 2DS + NG emissions rates have been found at 580 Mt CO₂ year^-1 in 2015 and reduced to 96 Mt CO₂ year^-1 in 2050. By 2050, 2DS + NG would have released 4.1% of the current Brazilian land carbon stock (12.8 Gt CO₂). At the end of the modelling period, emissions’ rates are lower for the natural gas expansion scenario due to lower forest land conversion rates. Consequently, there is a more evident declining rate in carbon emissions, as less sugarcane lands are necessary and natural gas has a more important share in the energy system. It is important to mention that by having a much smaller bioenergy industry in 2DS + NG, the lower sectoral emissions compared to 2DS + SugC can be explained. If emissions from natural gas production, transportation and utilisation were to be considered, 2DS + NG would present higher values, however, this is out of the scope of this study as it is modelled in other modules in the MUSE framework.

Figure 11 illustrates the projected primary energy supply for both scenarios. The main differences are defined by the contrasting share of bioenergy, natural gas and renewable energy sources. For instance, in the 2DS + SugC, bioenergy (considering both sugarcane and firewood/charcoal) would grow from 4,910 PJ year^-1 in 2015 to 9,843 PJ year^-1 by 2050. This would results in a share increase of bioenergy in the energy matrix from current 25% to about 49%. On the other hand, in this scenario natural gas is expected to decrease its share from 12% in 2015 to 8% in 2050, with an annual demand of 1,586 PJ year^-1. For the 2DS + NG scenario, bioenergy would increase at a lower rate, reaching 7,242 PJ year^-1 in 2050, representing 36% of the country’s primary energy supply. However, natural gas demand would experience almost a four-fold increase, from 1,380 PJ year^-1 in 2015 to 4,187 PJ year^-1 in 2050, increasing its share in the energy matrix from 12% to 21%. One important difference between scenarios is the share of “other renewable” energy, mainly represented by solar and wind. As it is expected that the 2DS + SugC would have larger emissions from land use, this scenario would require a larger share of clean energy sources to lower its energy-related emissions. As illustrated (Figure 11), by 2050 energy-related emission from the 2DS + SugC (0.47 Gt CO₂ year^-1) would be 32% lower compared to those from the 2DS + NG (0.62 Gt CO₂ year^-1). In both scenarios, the combined share of coal and oil would be reduced from 55% in 2015 to 25% by 2050, with almost a complete retirement of coal from the energy matrix.

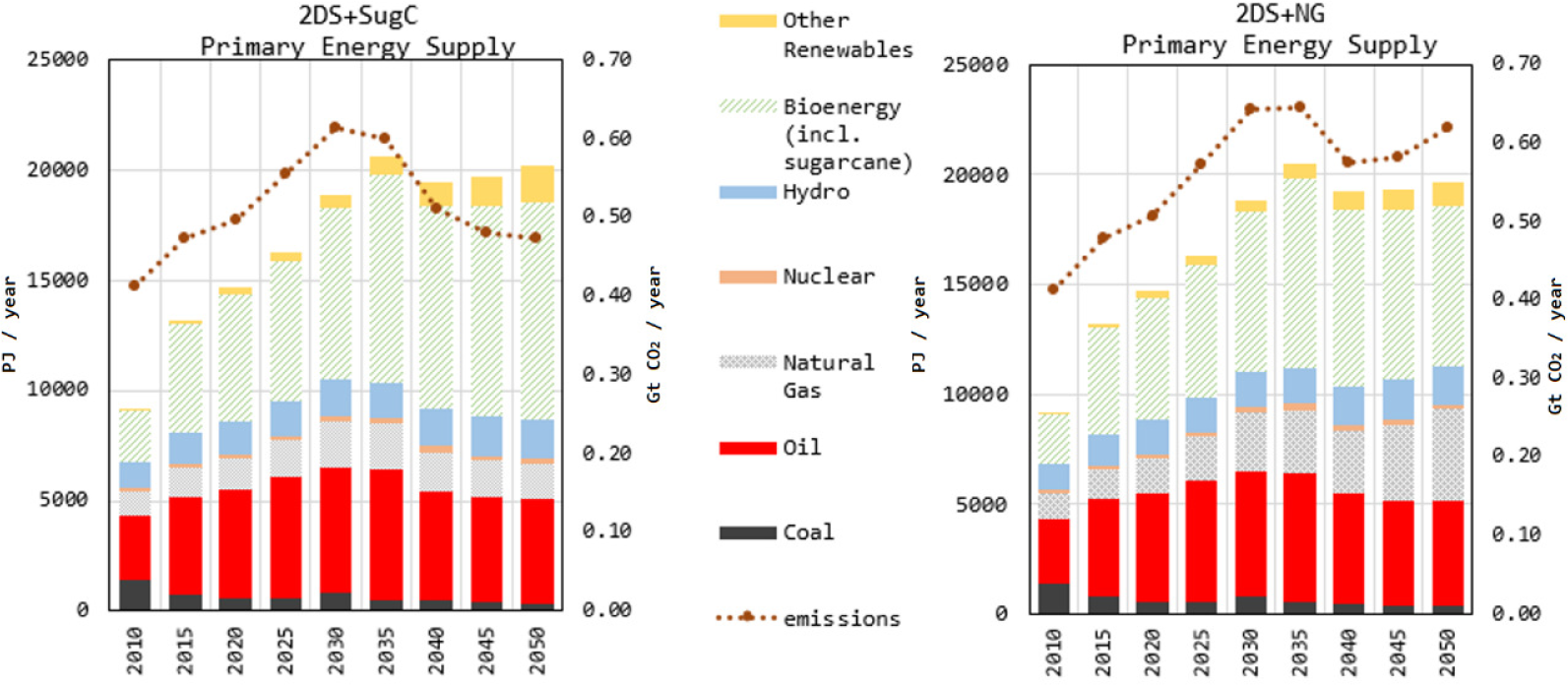

Figure 11.

Brazil’s primary energy supply for both analysed scenarios

Finally, Figure 12 illustrates the aggregated GHG emmissions separated by source [energy, agriculture (non-CO₂) and land use]. As aforementioned, the higher agricultural activity in the 2DS + SugC causes higher emissions from land use and agriculture. Only considering energy and land use emmisions, the 2DS + SugC depletes 38.8 Gt CO₂ between 2015 and 2050, while for the 2DS + NG this value is around at 36.8 Gt CO₂. By reducing land use emissions in the 2DS + NG by 2050, the total country’s emissions rate are found to be 6% lower compared to the 2DS + SugC (1.36 vs. 1.45 Gt CO₂ year^-1).

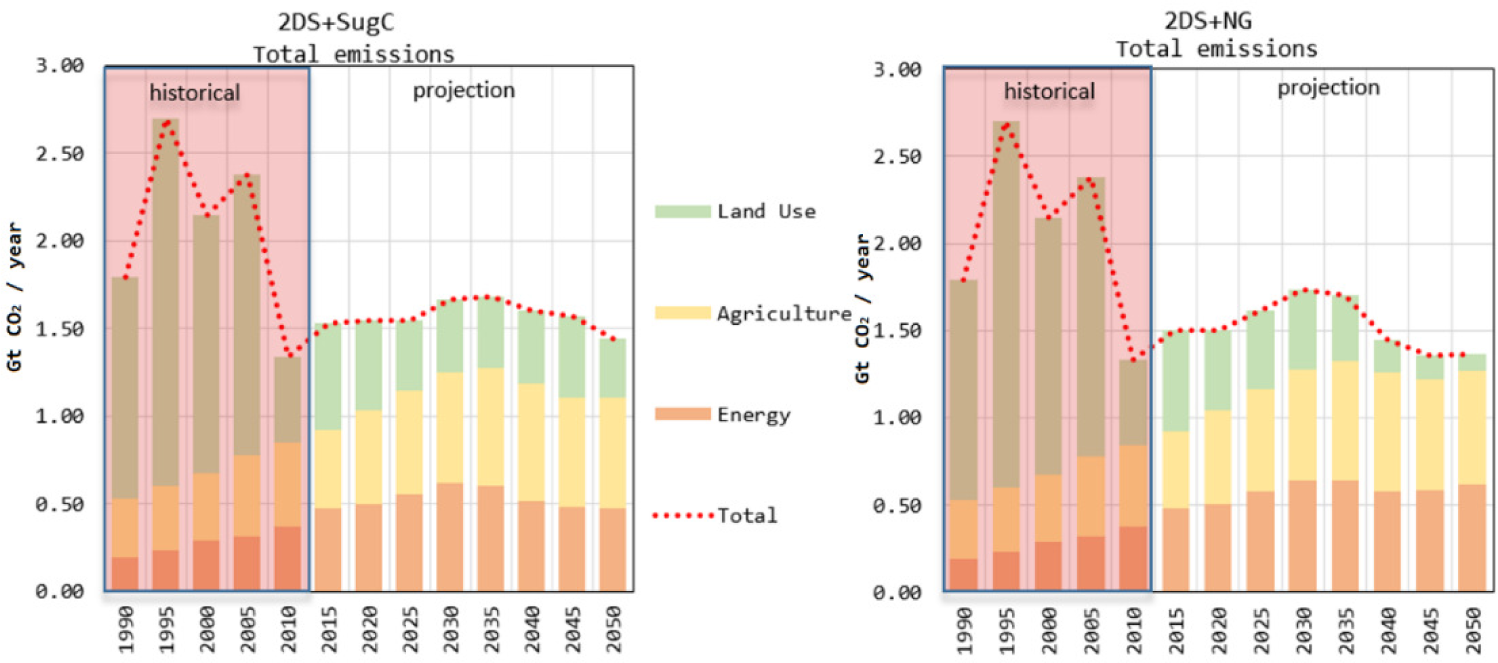

Figure 12.

Brazil’s total GHG emissions projections for both analysed scenarios considering energy, agriculture and land use
