The feasibility of the AC production facility is investigated by building a cost-benefit model (in EUR 2009) and a process design for estimating the total capital investment, the production costs, the possible revenues and the NPV based on various literature sources. This model is extensively detailed in ref.[13]. An overview of the economical strategy is presented in Fig. 1.

Figure 1.

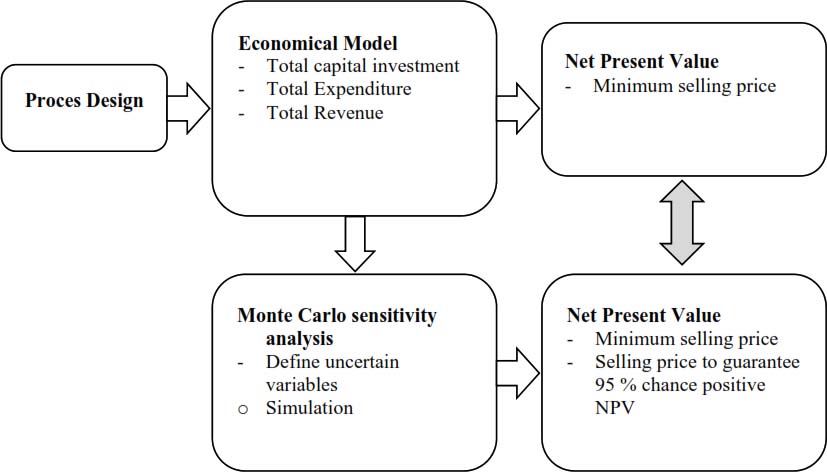

Economical strategy

Investors use various investment criteria to evaluate the profitability of an investment before they want to invest. According to [14] the NPV is the best criterion for selecting or rejecting an investment, either industrial or financial. By using the NPV the expected profit is estimated using today’s value of current and future cash flows generated by the AC production plant during a certain time period using a predetermined discount rate [15]. The NPV formula is given in Eq. 1:

With: T - life span of the reactor (20years[15]-[17]), Io - initial total capital investment in year zero, CF_n - Cash Flows generated in year n, i - discount rate is set at 9% incorporating the market interest rate and some risk premium[18].

The cash flow in a given year can be calculated by using Eq. 2[15],[17]. It is the difference between revenues (R) and expenditure (E) after tax (t) generated by the investment taking depreciation into account because it lowers tax payments. To calculate the cash flow, depreciation (D) also needs to be taken into account because it lowers tax payments[15],[17].

All the results of the base case are based on an average operation time of the reactor of 7000 hours per year without shutdown due to maintenance; etc. (80% operating + 20% maintenance, etc.). In general, when the NPV is positive, the investment is a good decision.

The NPVs are only valid if the calculated revenues and expenses are 100% certain. Because all the different variables are the most likely values obtained from literature, these are prone to uncertainty. Monte Carlo sensitivity analysis is performed to have an idea about the impact of these uncertainties on the NPV. For each run of the simulation, a random value of all the uncertain variables is drawn following a presupposeddistribution resulting in a NPV. In this study 10000 runs are carried out using the @Risk software from Palisade Decision Tools. The total uncertainty of the NPV than can be explained by the corresponding range of values and the obtained distribution.

Finally, taking into account all these uncertainties the minimum selling price at which the AC should be sold in order to guarantee a 95% chance on a positive NPV is calculated.

The PB samples are prepared from industrial water-resistant PB panels (glued with MUF) which have been sawn to strips of 1 cm and then cut (< 2.0 mm) with a high-speed rotary cutting mill (Retsch SM 100). The provided waste samples of MF have particle size < 2.0 mm. For characterisation of the input materials they are further reduced in size by milling to < 0.5 mm with a IKA Werke Yellow Line A10 mill. Prior to pyrolysis and characterisation the samples are oven dried (110 °C) and mixed.

The PB and MF ratios are analysed by a DuPont Instruments 951 thermal analyser (TGA). The input materials are heated in inert atmosphere (with a N2-gasflow of 30 ml/min) from room temperature to 800 °C at a ramp of 20 °C/min followed by an isothermal period of 10 min, then heated to 900 °C at a ramp of 20 °C/min. The ash residue of the pure PB and MF are analysed by the TGA with the following temperature program: heating from room temperature to 800 °C at a ramp of 20 °C/min in N₂-flow (30 ml/min), then 10 min isothermal in O₂-flow (30 ml/min), heating to 900 °C at a ramp of 20 °C/min in O₂-flow (30 ml/min).The elemental composition (C, H, N, S) of the samples is analysed by a Thermo ElectronFlashEA1112 elemental analyzer. BBOT (2,5-bis (5-tert-butyl-benzoxazol-2-yl) thiophene) is used to calibrate the instrument. Oxygen is determined by difference.

The waste blends (2 g - 5 g) are pyrolysedin triplicatein a horizontal quartz tube reactor (Nabertherm), with a heating rate of 20 °C/min from room temperature to 800 °C under nitrogen atmosphere (30 ml/min) followed by a 30 min isothermal activation under steam atmosphere (water flow of 2 ml/h direct injected in the reactor). The produced gases are combusted.

The phenol adsorption of the different ACs against a commercial AC (Norit GAC 1240) were evaluated by introducing 50 ml of a 100 ppm unbuffered phenol solution with different quantities of AC in a hermetically closed flask. The phenol was of analytical grade and Milli-Q Millipore water (18.2 MQ/cm conductivity) was used. The flasks where placed in a thermostatic water bath (25°C) and stirred for 24 h. It is assumed that equilibrium is reached in this time period. The solution was filtered and the residual phenol concentration was analysed using a Pharmacia Biotech Ultraspec 2000 UV-VIS spectrophotometer at 270 nm. Calibration is carried out using a number of phenol standard solutions(concentration range: blank, 1 ppm, 5 ppm, 10 ppm, 30 ppm, 50 ppm, 80 ppm and 100 ppm). Each experiment was done in quadruplicate, with an average scatter in the results of 5%.

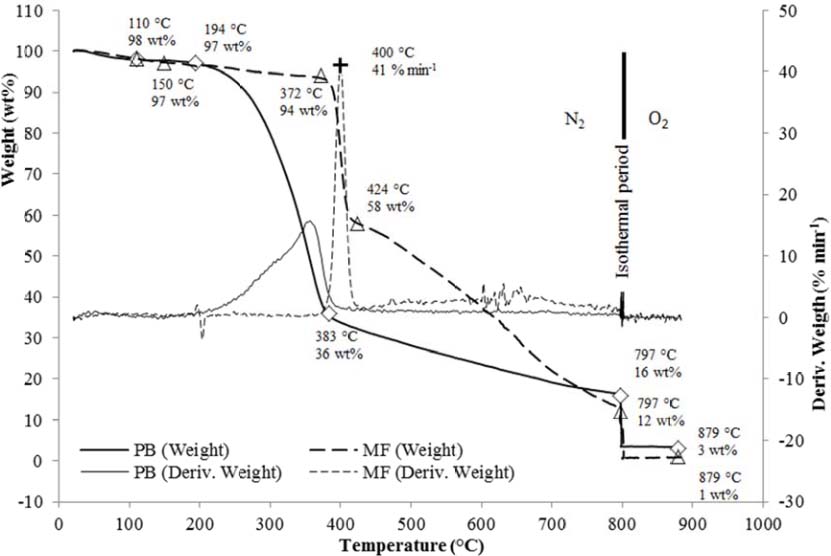

The thermal behaviour of PB and MF is investigated by TGA-analysis in N2-atmosphere. In the literature, limited information is provided concerning the thermal degradation of the MF. The TG and DTA curves of PB and MF (Fig. 2) show respectively a small weight loss of 2 wt% and 3 wt% because of fixed moisture (25 - 150 °C) followed by a major weight loss step. For PB this corresponds to the degradation of hemicellulose, cellulose and lignin and can be observed from 194 °C - 385 °C (weight loss of 62 wt%), followed by a further slow degradation until a fixed carbon content of 13wt% (at 800 °C). For MF a small loss (5 wt%) is observed from 125 °C till 372 °C. Girods et al. [12] found mainly N-compounds such as isocyanic acid and ammonia as degradation products below 350 °C. Additionally a loss of 35 wt% (between 372 °C -424 °C and) is observed with a maximum degradation rate at 400 °C. In this temperature range the detected degradation products are formaldehyde, methanol, amine, ammonia and sublimated melamine[12]. In the temperature range starting at 424 °C the resin undergoes extensive degradation. Devallencourt et al. [19] assumed that the resin progressively deaminates forming cyameluric structures in the range of 410 °C - 525 °C with evaporation of HCN and CH₃CN. Above 660 °C the MF resin undergoes extensive degradation with production of HCN, CO, CO₂ [19]. Fixed carbon content at 800°C of 11wt% is obtained.

Figure 2.

TGA of PB (full line) and MF (dashed line)

Ultimate analysis is carried out on the pure products and is presented in Table 1. The chemical properties i.e. the high nitrogen content of PB (5.9 wt%) and MF (54.1 wt%) waste materials indicate that pyrolysis and subsequent activation will result in in-situ production of nitrogenised ACs.

Pyrolysis and steam activation is performed on different blends of PB and MF resin. The effect on the product distribution is shown in Table 2. An average char yield of 27 wt% is obtained after pyrolysis. The mix ratio PB - MF has no effect on the char yield. For the successive range of ratios [PB - MF (5/0) -> PB MF (2/3)]. the char yield is lower than predicted in Vanreppelen et al. [13]. In the case of PB - MF (1/4) a higher yield is observed. It can be seen that the resulting AC yield after activation decreased in the successive range [PB - MF (5/0) -> PB - MF (1/4)] with a bum-off between 18.5 wt% and 59 wt%. Nevertheless, the char yields are lower (with exception of PB - MF (1/4)) than predicted in Vanreppelen et al. [13] and higher AC yields are achieved for all the ratios except for the pure PB which is somewhat lower.

The chemical composition of the produced ACs with their standard deviations is given in Table 2. By increasing the fraction of MF in the mixture a significant higher N-content is obtained with an increase of 84% from 2.2 wt% to 14 wt%.

Phenol is an important raw material and/or product of the chemical and allied industries [20]. Phenol and phenolic compounds are very toxic with a fixed low admissible level following the Flemish regulation of 0.1 mg/1 of surface water for the production of drinking water, < 0.05 mg/1 of surface swimming water and 0.5 mg/1 of groundwater [21]. It is well known that ACs containing nitrogen-containing surface groups, have a basic nature and thus have enhanced adsorption capacity toward phenol [22]. To evaluate the performance of the produced AC, phenol adsorption tests have been performed.

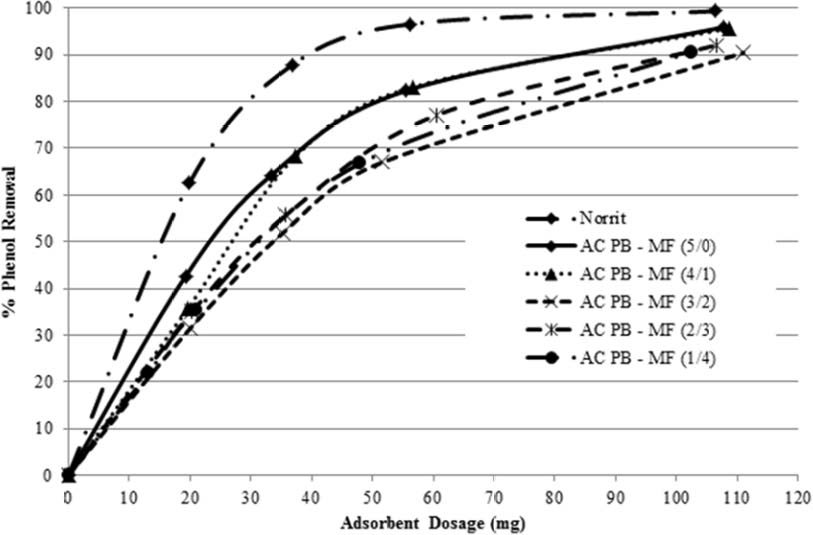

The effect of the adsorbent dosage on the phenol removal against a commercial AC is shown in Fig. 3. It can be seen that the performance of AC PB - MF (5/0 & 4/1) are similar but somewhat lower than the commercial AC. At anadsorbent dosage of 0.1 g, phenol removal efficiency for all the produced carbons is higher than 90%.

Figure 3.

Effect of adsorbent dosage

When combining Fig. 3 and Table 2 no correlation can be found with the incorporated N. This is probably due to a decrease of surface area by blocking of pores [23]-[25].

Based on theeconomical model and process design proposed by Vanreppelen et al. [13] the total capital investment is estimated by using the Percentage of Delivered-Equipment cost method and various literature sources. The pyrolysis and activation reactor are calculated as a first plant cost. The total expenditure consists of two parts, namely the operating cost and the yearly interest payments. It is assumed that the investment is financed by means of a loan with a yearly interest of 4.0%. The operation costs are divided into the following categories: maintenance, insurance, overhead, labour, nitrogen gas, delivered feed, energy and water costs which are generally expressed as a percentage of the total fixed-capital investment for the first three [13],[15],[26]. Table 3 provides a guideline for the calculation of the annual operating costs for the all eight items. In this model, a gate fee of 70 EUR/t[22] for processing the PB waste is paid. In Belgium a MF factory pays 220 EUR/t for disposing its waste to a landfill site (including transport) [13]. However in this model the cost for MF is set at 0 EUR/t to have a worst case scenario.

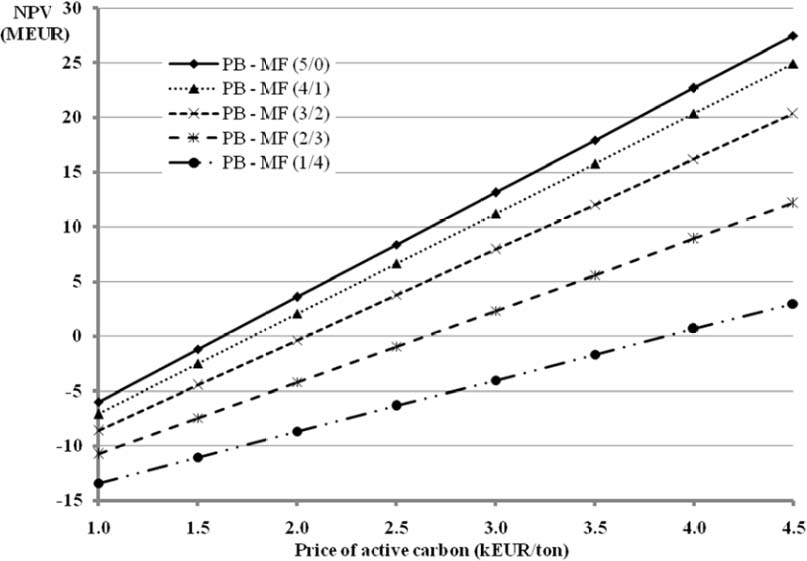

NPVs have been calculated for different blends of PB and MF resin waste for a processing capacity of 1 t/h. These different ratios result in different yields (see Table 2), different qualities and hence different costs are incurred. The total capital investment and the total expenditure for this facility are displayed in Table 4. The total capital investment is about the same for every facility except for the pure MF resin (PB - MF 0/5). Compared to the predicted values in Vanreppelen et al. [13], the lower char yields (with exception of PB - MF (1/4)) result in a lower total capital investment than predicted in Vanreppelen et al. [13]. There is a very little difference in the sum of the operating costs and the yearly interest payments for all the ratios. Due to the gate fee from the delivered feed, the total expenditure cost decreases with a decrease of MF in the mixture. The total expenditure is similar to the total investment cost and is lower than predicted with exception of the PB - MF (1/4) ratio. The corresponding NPVs for selling prices between 1 kEUR/t and 4.5 kEUR/t are presented in Fig. 4. The minimum selling price (NPV = 0 EUR) of the produced AC can be found in Fig. 4 and Table 4. Fig 5 shows the discounted cumulative cash flow of an AC production facility operating at 1 t/h and a selling price of 2.5 kEUR/t. With increasing share of MF the minimum selling price increases from 1.6 kEUR f¹ until 3.9 kEUR/t. Girods et al. [22] estimated the selling price of AC from PB ( N-content 1.5 wt% - 2 wt%) to be around 2.0 kEUR/t. They state that by optimising their activation conditions a higher N-content could be obtained and hence yield a higher quality (better adsorption properties) and thus yield a higher value.

Figure 4.

NPV for a 1 t/h production facility

Figure 5.

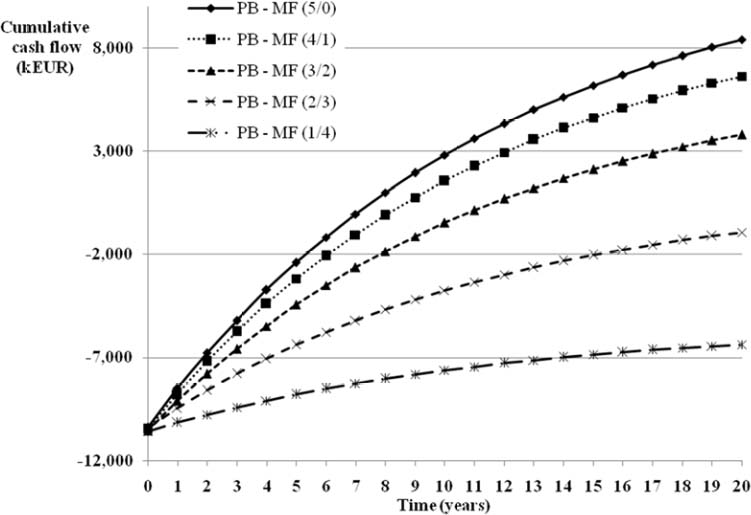

Payback time for a 1 t/h production facility at a selling price of 2. 5 kEUR/t

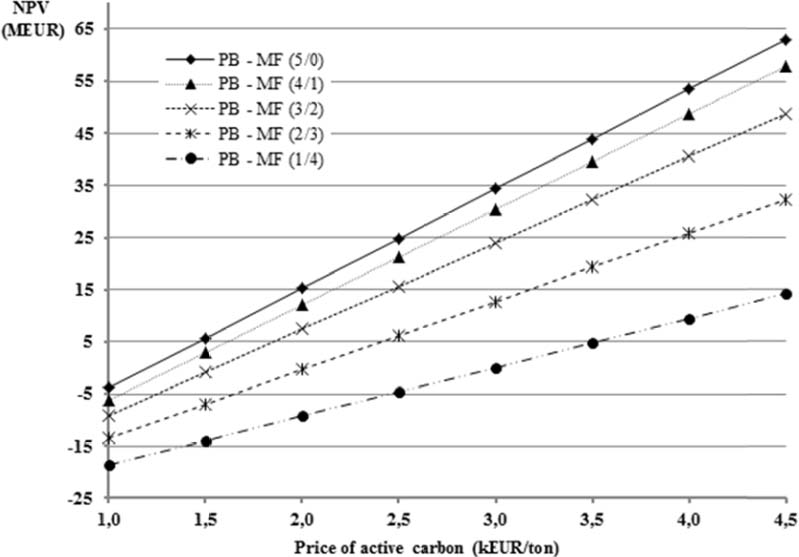

Vanreppelen et al. [13] expect that optimized AC from PB could yield a selling price of maximum 2.5 kEUR/t. When looking at Fig. 4, Fig. 5 and Table 4 in the interval 2.0 kEUR/t - 2.5 kEUR/t only the ratios where the share of PB is greater than the share of MF are profitable. For example the pure PB would yield a NPV of the cash flows of 3.6 MEUR - 8.4 MEUR when the product is sold at a price of 2.0 kEUR/t and 2.5 kEUR/t respectively. The payback time for this AC production facility is 11 and 7 years respectively.

By combining the previous economic analysis, the AC yields from Table 2 and the preliminary phenol adsorption test (Fig. 3) one could argue that it is only useful to study the pure PB. Moreover, the possible gate fee from the MF waste needs to be considered. The minimum gate fee for MF waste needs to be calculated to match at least the NPV of AC from PB (3.6 MEUR at a selling price of 2.0 kEUR/t).

When a gate fee of 180 EUR/t is paid for processing the MF waste, the PB - MF (4/1) mix ratio is economical at least equally attractive as the AC from pure PB. Taking the landfill cost into account, a MF production facility is already satisfied to pay less than 220 EUR/t. In addition two waste streams are reused and so the value of the AC production facility is enhanced.

Recent literature [13],[22],[27],[28] states that nitrogen incorporation is a key parameter for the adsorption properties of AC, especially for the removal of acid gases and phenolic compounds. Such a nitrogenised AC could yield a very high selling price (as high as 4 kEUR/t - 6 kEUR/t) as discussed in [13]. When looking at the N incorporation (Table 2) in the produced AC, high N-contents have been achieved. Analysing the phenol adsorption test at low phenol concentration (see Fig. 3), these high N-content carbons perform somewhat lower than the commercial AC.

Nevertheless, at higher phenol concentrations better performances and thus a higher value could be obtained [22]. It is thus necessary to further investigate other concentrations, target molecules, char characteristics and activation routes to thoroughly judge the economic feasibility of the different mixing ratios.

Another important factor determining the profitability of the process is the processing capacity. As a consequence of the economies of scale, which are incorporated in the total equipment cost equation, doubling the processing capacity augments the total capital investment with only 57%. The total expenditure with only 36% to 53% and the break-even selling price decreases on average with 22.5% to 25.9% (compare Fig. 4 [1 t/h] with Fig. 6 [2 t/h]).

Figure 6.

NPV for a 2 t/h waste processing facility

The economic viability of the AC production facility, i.e. the calculated NPVs, is also dependent on the accuracy of the predicted variables of the base case. Nevertheless some of these values are uncertain by definition, additionally other variables might strongly influence the NPV if their value changes slightly.

In order to investigate the effect of possible changes of the variables on the NPV a Monte Carlo sensitivity analysis is performed. Ten variables are selected and listed below:

• - Total Capital Investment

• - Electricity Cost

• - Water Cost

• - Delivered feed cost

• - Discount rate

• - Liquid nitrogen cost

• - Char output

• - AC output

• - Staff cost / shift

• - Annual working hours facility

The selected variables are now allowed to change with 10 % above or below their initial value following a triangular distribution (characterized by a most likely, a minimum and a maximum value). Monte Carlos simulation calculates numerous (10000 per ratio) NPVs, for which in each run of the simulation a random value for each variable is drawn from the triangular distribution.

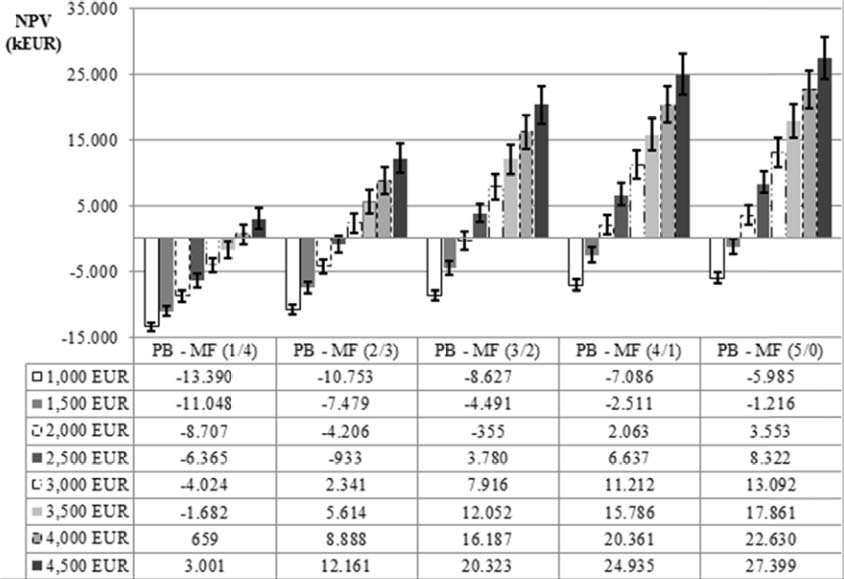

The minimum selling prices in order to guarantee a 95 % chance on a positive NPV are calculated from the NPVs distributions. This distribution for a 1 t/h processing plant is characterized by the mean with their respective standard deviations as shown in Fig. 7. In the successive range [PB - MF (5/0) -> PB MF (4/1)] the minimum selling prices are respectively 2.0 kEUR/t, 2.2 kEUR/t, 2.5 kEUR/t, 3.1 kEUR/t, 4.5 kEUR/t. These are somewhat higher than defined in the base case (Table 4). The results indicate that in the 2.0 kEUR/t to 2.5 kEUR/tprice range no supplementary ratios are rejected compared to the base case. At the expected selling price of 2.0 kEUR/t only the AC produced from pure PB is profitable in order to guarantee a 95 % chance on a positive NPV. The mean NPV calculated for the Monte Carlo simulation at this price is 3,5 MEUR.

Figure 7.

NPV distribution

Nevertheless, the same considerations (gate fee, N-content and economies of scale) as in the base case need to be taken into account to analyse these results.

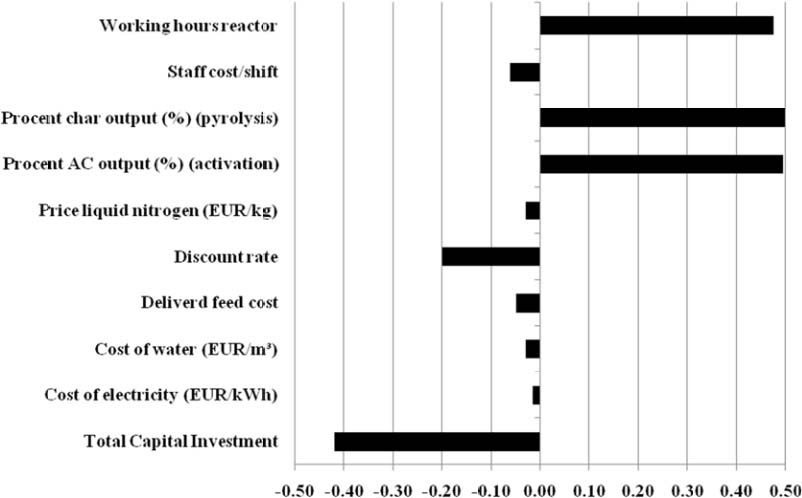

Finally, the average (normalized by the standard deviation of the output and the standard deviation of the input as defined in[l3]) sensitivity of the NPV (Fig. 8) to the ten selected variables is determined. A positive value means that the NPV increases and a negative value means that the NPV decreases by an increase in the variable. The char and AC yields are almost independent of the ratio and are on average the most determining factors. The total annual hours of production is on average the third most important factor. The sensitivity of this variable increases by an increase of the selling price and by an increase in the share of PB. The Total Capital Investment (fourth most important factor) closely follows the sensitivity of the latter. The sensitivity increases by an increase in the share of MF and decreases as the selling price increases. The other variables have a negative sensitivity and are almost negligible compared to first four variables, except for the discount rate.

Figure 8.

Average sensitivity for a 1 t/h processing facility
