Electric energy harvested from solar, wind or hydropower is acknowledged to have little impact on the earth’s climate and should therefore be utilized in a preferred manner to electricity obtained from combustion of fossil fuels with regard to its impact on CO₂ emission and sustainability. However, due to the fluctuating and unpredictable nature of these sources, energy obtained in such a way needs to be stored in order to level out periods of low yields. Until storage systems are widely implemented, the electric grid still is very dependent on energy obtained from fossil fuels to maintain its stability [1].

Such storage facilities need to be able to have large capacities, high achievable cycle numbers and thus long operation times, while being able to cycle to low depths of discharge, and all at a reasonable cost. As electrical energy cannot be stored as such, except in capacitors, it generally has to be converted to some other form of energy in order to be stored and retrieved when needed. One method of storage is electrochemical storage, as employed in water-electrolysis or secondary batteries.

Currently, lead-acid batteries are being widely used for residential storage of power from Photovoltaic (PV) plants in the range of up to several kWh. While having an eminently low price and thus being very economic at small scales, their limitation in cycle life performance makes them non-ideal candidates for larger scale applications such as grid-stabilisation plants. Due to the lack of deep discharge ability and the rather short life of individual cells, such a system tends to have an increased service cost, elevating the price significantly. Soluble-Lead-Flow-Batteries (SLFB) are promising candidates for these large scale applications, as they solve many of the shortcomings of lead-acid batteries, such as poor deep cycle capability, low overall cycle life performance and high maintenance costs [2]. In addition to that, SLFB systems tend to be highly economic, they have an easy chemistry with only a single electrolyte and thus have a great improvement on energy density compared to other Redox-Flow-Battery (RFB) systems. As an ecological benefit, the methanesulfonic acid used in these batteries is non oxidising and has a high degree of biodegradability [3]. However, besides adhesion issues of lead dioxide on the positive electrode [4] as a common failure mechanism, lead has a tendency to deposit in a dendritic crystal form, which may eventually short the cell and require regeneration cycles for the cell to regain its performance. These dendrites have to be minimized in order for SLFB systems to enter the market of energy storage systems. It has been shown by the group of Meng et al. [5] that 2,000 cycles are possible in a laboratory beaker cell, however, these results have not yet been transferred to a flow cell. By adding suitable additives to the electrolyte and employing advanced charging techniques, as well as periodic renewal of electrode surfaces, laboratory flow-cells with high cycle numbers are shown to be feasible and thus smooth the way for economic and efficient energy storage systems. For examinations of deposit qualities, deposits formed from lead electrodeposition were characterized by Hull-cell experiments and Scanning Electron Microscopy (SEM), whereas full cell experiments were performed in laboratory scale modular flow cells, designed and constructed solely for this purpose. These flow-cells have an active surface area of 3.8 cm² for each electrode respectively and are cycled at 20-40 mA cm⁻² at 100% DoD. Additionally, periodic renewal of electrode surfaces has been implemented by fully stripping both electrodes to 0 V. In these laboratory scale prototype setups, more than 450 full cycles were achieved at 40 mA cm⁻², demonstrating the state of SLFB technology.

Flow-battery-systems

RFB, also named flow-batteries, are one promising approach of converting electrical energy to chemical bonding energy, so that the energy may be easily retrieved when needed with high efficiencies of up to 100%. While classical batteries contain their active masses within the battery housing, their power and capacity are directly linked to each other. Power is determined by the active surface area and maximum current density of the electrode interface (separator between the two active masses), capacity is determined by the amount of electroactive species within the electrodes, which correlates directly to the thickness of the electrode. The inherent design constraints of batteries allow for very little variation of one parameter without affecting the other. Flow-batteries, however, consist of an electrochemical cell or rather a series (stack) of cells connected in a bipolar assembly (each cell is connected to its adjacent cell by means of an electrically conductive bipolar plate), employing a certain active surface area responsible for power, while the active masses are usually dissolved in an electrolyte and being stored within an external container. During charge or discharge of the system, fresh electrolyte is fed to the cell by means of pumps at an appropriate flow to allow electrochemical reactions at the electrode surfaces and at the same time removing reaction products. Such a system allows for much easier scaling of power and capacity as both variables may be scaled fully individually within a large range. Current flow battery systems are mostly based on vanadium compounds dissolved in sulfuric acid electrolyte Vanadium-Redox-Flow Battery (VRFB). Due to the relatively low solubility of vanadium-ions in the electrolyte, as well as the need for two separate electrolytes, each with its own pump and storage container, for the anode and the cathode, such systems are rather bulky and have a correspondingly low energy density of 20-25 Wh/L [6]. Additionally, for these systems in order to work properly, an ion exchange membrane is needed to keep the two electrolytes separated from each other, which adds further complexity and cost to the system.

Soluble-lead-flow-batteries.

This type of flow-battery, also referred to as all-lead-flow battery, describes a form of a hybrid RFB system. While for most RFB systems all active masses are in a solvated state within the corresponding electrolyte at all times, a hybrid RFB system differs significantly as at least one of the electroactive species is being deposited onto the electrode substrate within the electrochemical cell. For an SLFB system, both active masses are plated onto the electrodes to form a solid film during charge of the battery, namely lead (Pb) on the negative and lead dioxide (PbO₂) on the positive electrode. During discharge, both active masses are oxidised and reduced, respectively to their soluble form (Pb²⁺) and dissolved within the Methanesulfonic Acidic (MSA) electrolyte. Since the surface of the electrochemical cell, opposed to other RFB systems, also plays a role in determining the capacity of the system, power and capacity may not be scaled fully independently from each other. However, there is still a lot more variation regarding different plating thicknesses for different use cases than for classical battery systems. The SLFB system has been extensively researched and described by Pletcher et al. [7]-[15] and there were prototypes built and tested in the past [14]. Still some major problems have not yet been overcome, so that this system is not ready for the market yet. SLFB, however, is a very promising candidate for a means of energy storage, as it has some significant benefits compared to other RFB Systems. For one, an SLFB system only needs a single electrolyte for both electrode reactions. Therefore, only one electrolyte reservoir, one pump and one set of pipes/tubing is needed (Figure 1). This also means that an ion exchange membrane or separator is redundant for such a system which significantly eases the system design and reduces the footprint by up to a factor of 50% compared to other RFB systems. In addition, the overall cell reaction involves a 2 electron transition as seen in eq. (1), which further increases energy density. As the active species has a very high solubility, an electrolyte of 50% Pb MSA (commercially available from chemical suppliers) has a theoretical energy density of more than 180 Wh/L. A more practicable electrolyte containing 1 mol/L Pb, still has 86 Wh/L, which is more than two times the energy density of a single VRFB electrolyte and more than four times that of a VRFB system needing two electrolytes.

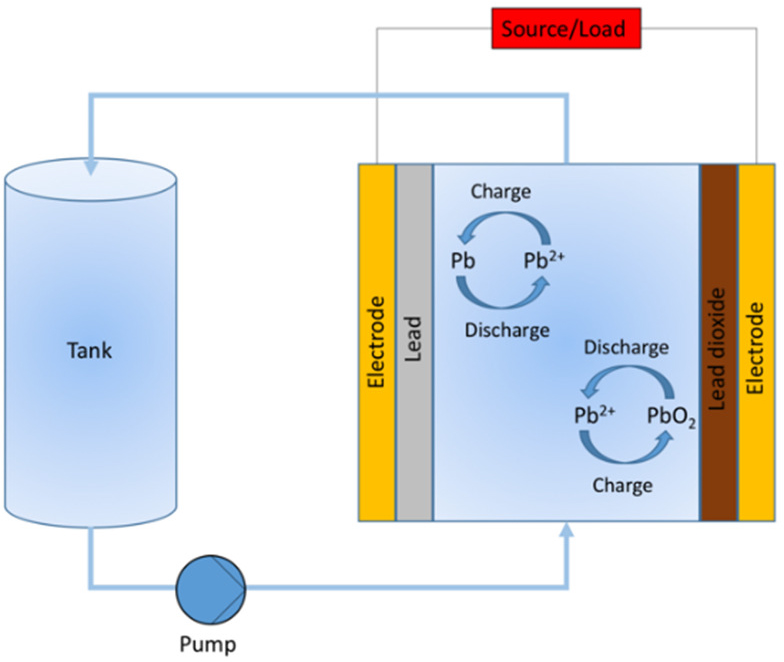

Figure 1.

Schematic diagram of a SLFB-cell

2 Pb 2 +2 H 2 O ⇄ Discharge Charge Pb + PbO 2 +4 H + E 0 =+1.544V(1)

All experiments were performed in a lab scale, using a battery tester BT-G-501 from ARBIN Instruments for full cell experiments and a battery test system from BaSyTec for pulse plating experiments. Full cell setups consisted of modular cells machined from acrylic glass (PMMA) with EPDM-rubber gaskets and Polypropylene (PP) fittings equipped with Polyvinylchloride (PVC) tubing (Figure 2). As a means of electrolyte circulation, a Watson-Marlow peristaltic benchtop pump was used with flow rate set to approx. 44 ml/min. All full cells were cycled at 20 mA cm⁻² or 40 mA cm⁻² respectively, for both charge and discharge. End of charge was determined by a certain capacity (20 mAh cm⁻²) and end of discharge by a certain potential (1.1 V) (Table 1). Characterisation of additives was performed using a Hull-cell and applying a current of 5 A for 90 s. As a counter electrode for lead deposition experiments, a pure lead cathode was used (Table 2). All experiments were performed at room temperature of approximately 295 K. SEM pictures were taken using a HITACHI tabletop microscope TM3000. Electrolyte composition for all experiments was 1.0 mol/L lead-methanesulfonate with 0.7 mol/L methanesulfonic acid added as described by Meng et al. [5].

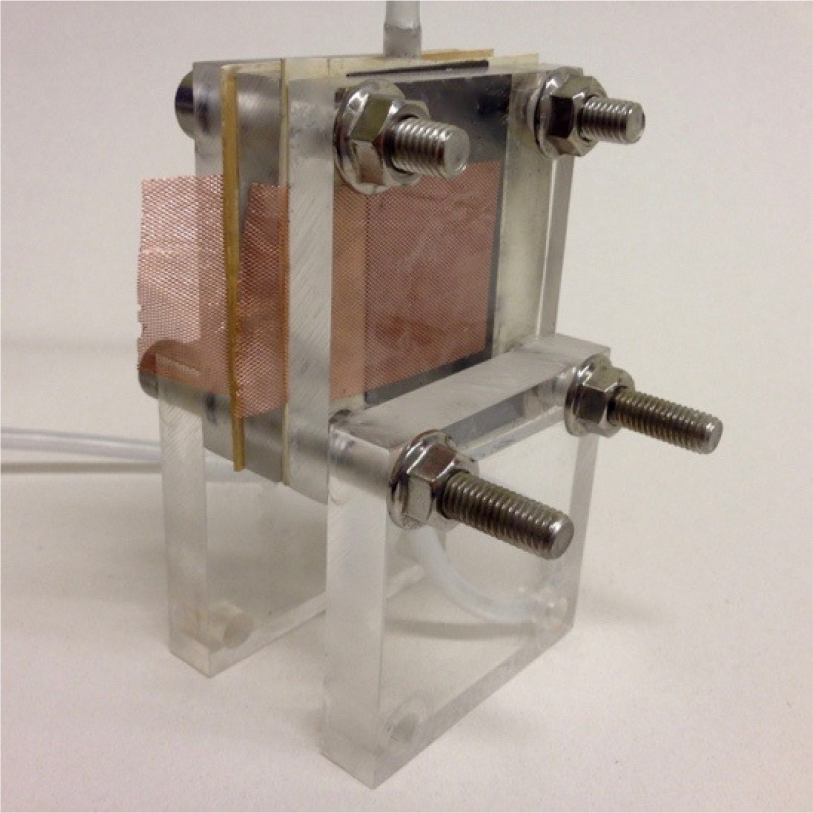

Figure 2.

Acrylic test cell with electrolyte inlet at bottom and outlet at top (copper current collectors were used to connect carbon compound electrodes)

It has been shown by Hull-cell experiments (Figure 3), that without the use of additives, lead coatings may be deposited up to a current density of approx. 75 mA cm⁻² in a non-dendritic way. Above these current densities, clearly dendritic crystals were observed. The addition of 5 mmol/L HDTMA to the electrolyte increases the non-dendritic current density to more than 250 mA cm⁻². Dendritic growth then is only seen on the very edge of the Hull-cell sheet, where not only extremely high current densities are achieved, but also edge effects play an increasing role. In addition, the deposit quality seems to be considerably enhanced, even at lower current densities, leading to a matte and uniform lead deposit. This leads to the conclusion that HDTMA is a very suitable brightener for the use in SLFB cells.

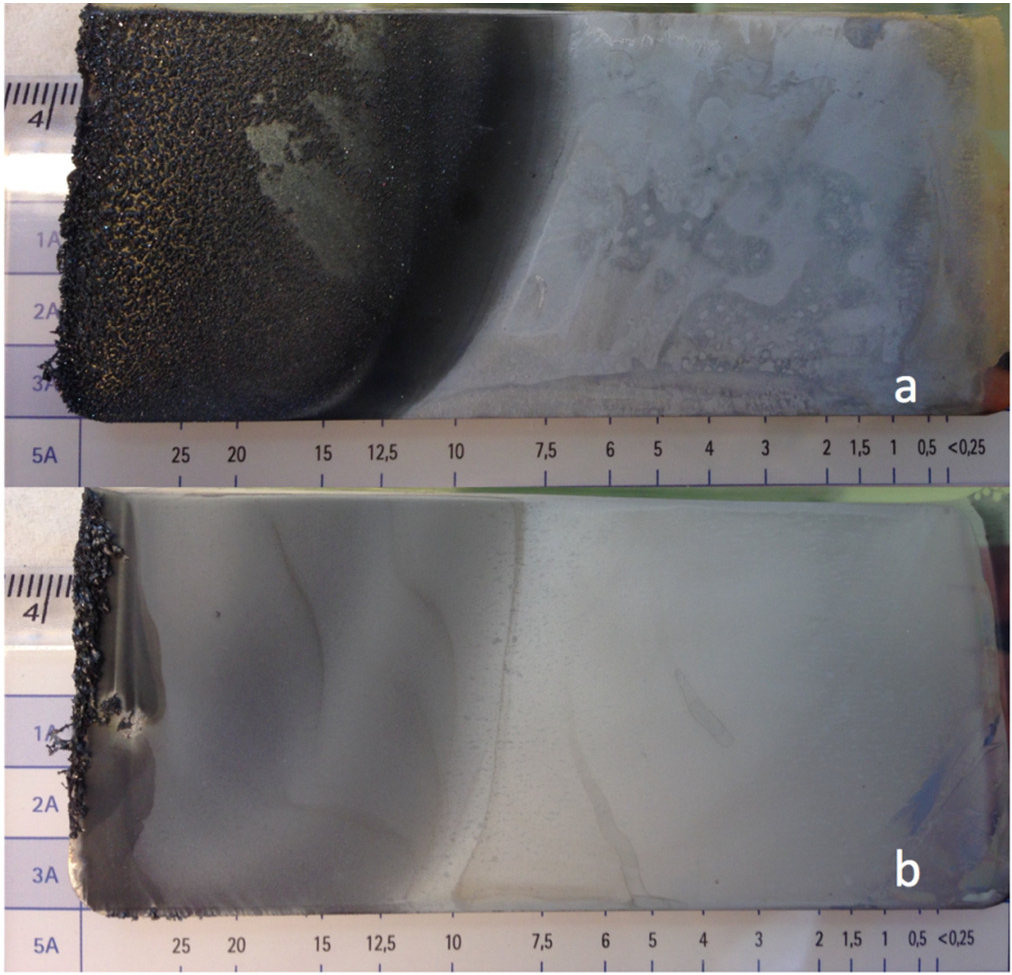

Figure 3.

Comparison of Hull-cell experiments where: is a cell without (a) additives and is a cell with 5 mmol/L HDTMA added to the electrolyte (b) (the shown scale is in A dm⁻² as usual for electroplating)

In full cells, according to Hull-cell experiments, uniform deposits should be obtained without the need of any additives at current densities of up to 40 mA cm⁻² (Figure 3a). Full cell experiments, however, showed that it was impossible to run a cell at 40 mA cm⁻² as dendrites would short the cell within the first few cycles. Even at 20 mA cm⁻² which was chosen as an alternative, dendritic structures were formed very early during cycling experiments. Usually, these dendritic structures would accumulate over as few as 20 cycles and short the cell, leading to a cell failure. It can be seen from the cycle diagram of a full cell at 20 mA cm⁻² with charge duration of 1 h and discharge to 1.1 V (Figure 4) that dendrites develop starting in cycle 16 (29 h), creating shorts and discharge periods getting significantly shorter after cycle 22 (40 h). The relation of the charge capacity vs. the very short discharge capacity shows that most of the charge energy is consumed by the current flowing through the dendrites shorting the cell, and that there is only very little energy being converted to Pb and PbO₂, as it is shorted out. Analysis of the cell after cycling [Post Mortem Analysis (PMA)] shows heavily dendritic lead deposits leading to shorts (Figure 5). The fact that dendritic growth within the full cell develops, despite the Hull-cell experiments predicting non-dendritic deposits, is being attributed to the non-optimized flow pattern within the test cells being used. Possibly the very basic inlet/outlet design in combination with the cylindrical cell used, promotes stationary areas within the cell where depletion of electrolyte occurs, leading to dendritic growth.

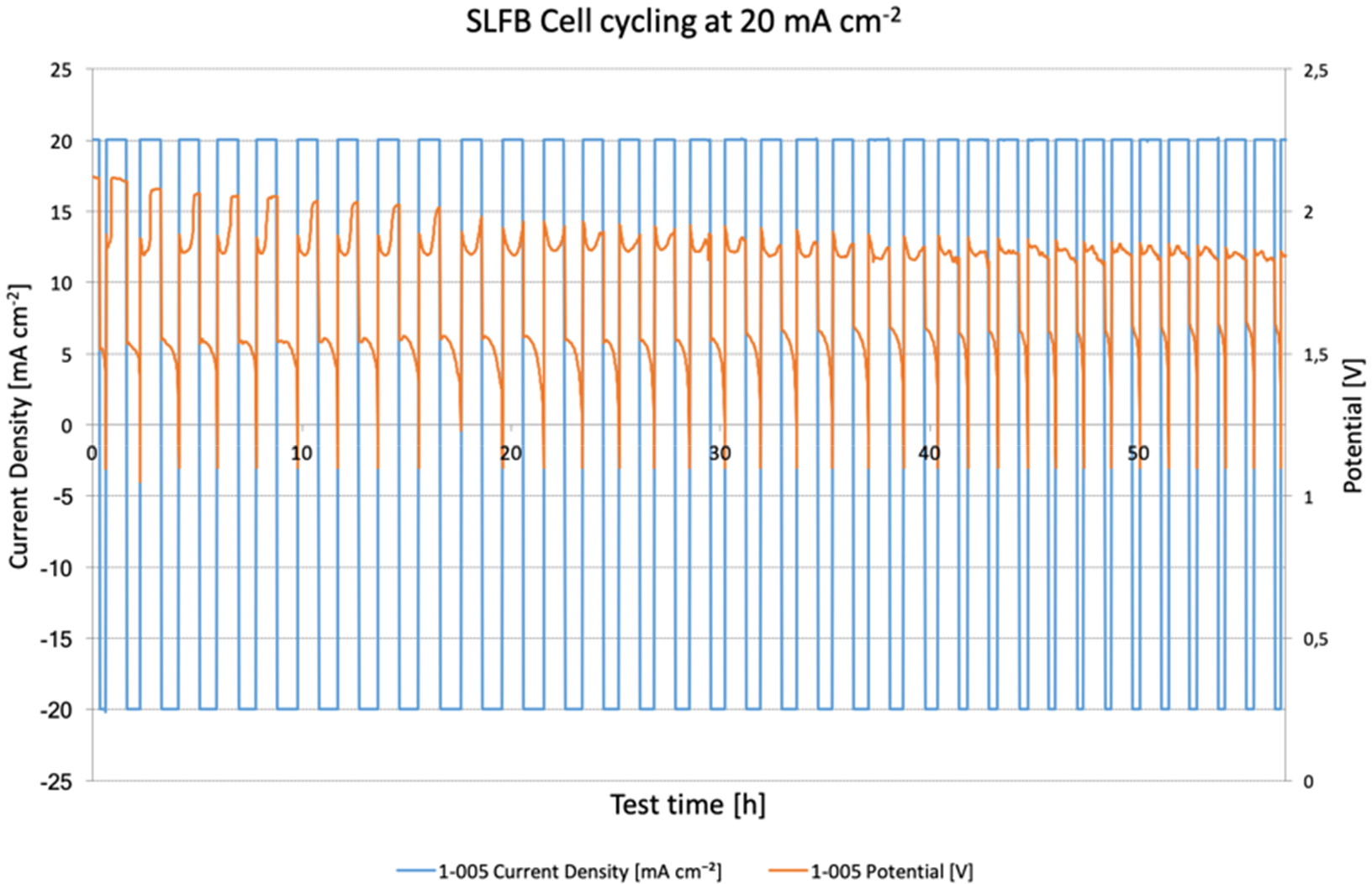

Figure 4.

Cycle diagram of cell cycled at 20 mA cm⁻² with 1 h charge and discharge to 1.1 V, after 22 cycles (40 h), discharge periods get significantly shorter and charge potentials show micro-shorts (visible as drop in potential), leading to the conclusion that the cell is shorted due to dendrites (cycling was performed over a period of 58 hours)

Figure 5.

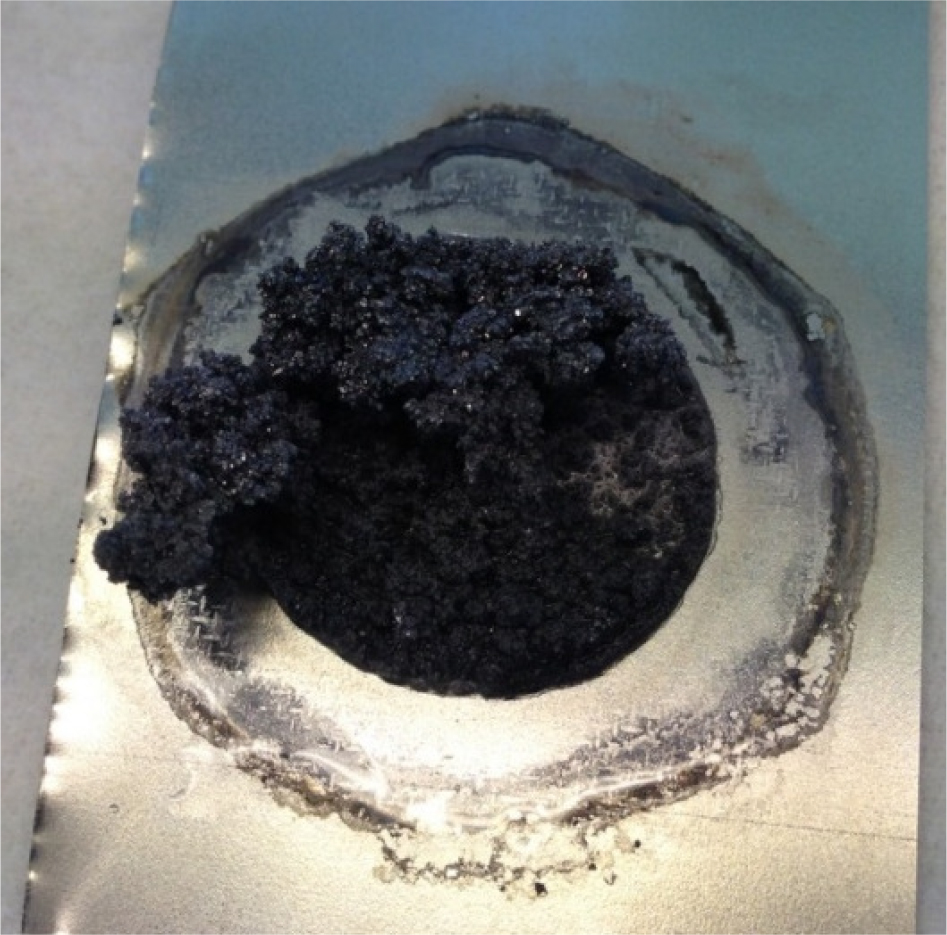

Dendritic structures on negative electrode after 33 charge and discharge cycles (shown in Figure 4)

An equivalent cell with the addition of HDTMA as an additive, was cycled for a period of more than 4,000 hours and efficiencies were calculated for each cycle. The cell shown was cycled for more than 7,000 cycles at a current density of 40 mA cm⁻² but with the same capacity, so charge duration was 30 minutes. After an initial formation phase of approx. six cycles, voltaic and energy efficiencies for the cell are usually between 70% and 80%, whereas coulombic efficiencies are usually above 90%. Once the cell has stabilized after approx. 40-50 cycles, coulombic efficiencies rise to even more than 97% (Figure 6). This is especially notable, as Pletcher et al. [11] have determined the coulombic efficiency of a cell with HDTMA to be at 93% for a current density of 20 mA cm⁻². However, it is still unclear what happens during that initial stabilisation phase. The pronounced spikes in voltaic efficiency every 100 cycles are due to electrode stripping and reconditioning in order to remove accumulated deposits from the electrode surfaces by deep-discharging the cell to 0 V. There is one additional spike in energy and coulombic efficiency visible at 290 cycles, which most likely is related to an operating error during testing. The strategy of stripping the cell after a specified number of cycles allows the cell to theoretically run for an infinite time, as the electrode surfaces are renewed each time a stripping reaction is performed and the cell restarts from its initial configuration. From a diagram showing a selection of the individual cycles (Figure 7), it can be seen that there is virtually no change in charge potential once the cell has stabilized to cycle 7,000. There is a slight deviation in discharge behaviour from cycles prior to 1,000 and cycles after 1,000. This also explains the shift in potential- and energy efficiency, observed in Figure 6. The cell had to be eventually stopped after 7,012 cycles, as one of the electrodes was not completely inert and subject to corrosion. In order to achieve the highest possible adhesion of anode active mass onto the electrode substrate, antimonial lead was chosen for an electrode material, as adhesion of lead on lead is expected to be superior to most other materials. However, antimonial lead is not fully corrosion resistant to MSA electrolyte and this has led to some corrosion effects, leading to penetration of electrolyte through the electrode and thus a leakage of the flow-cell.

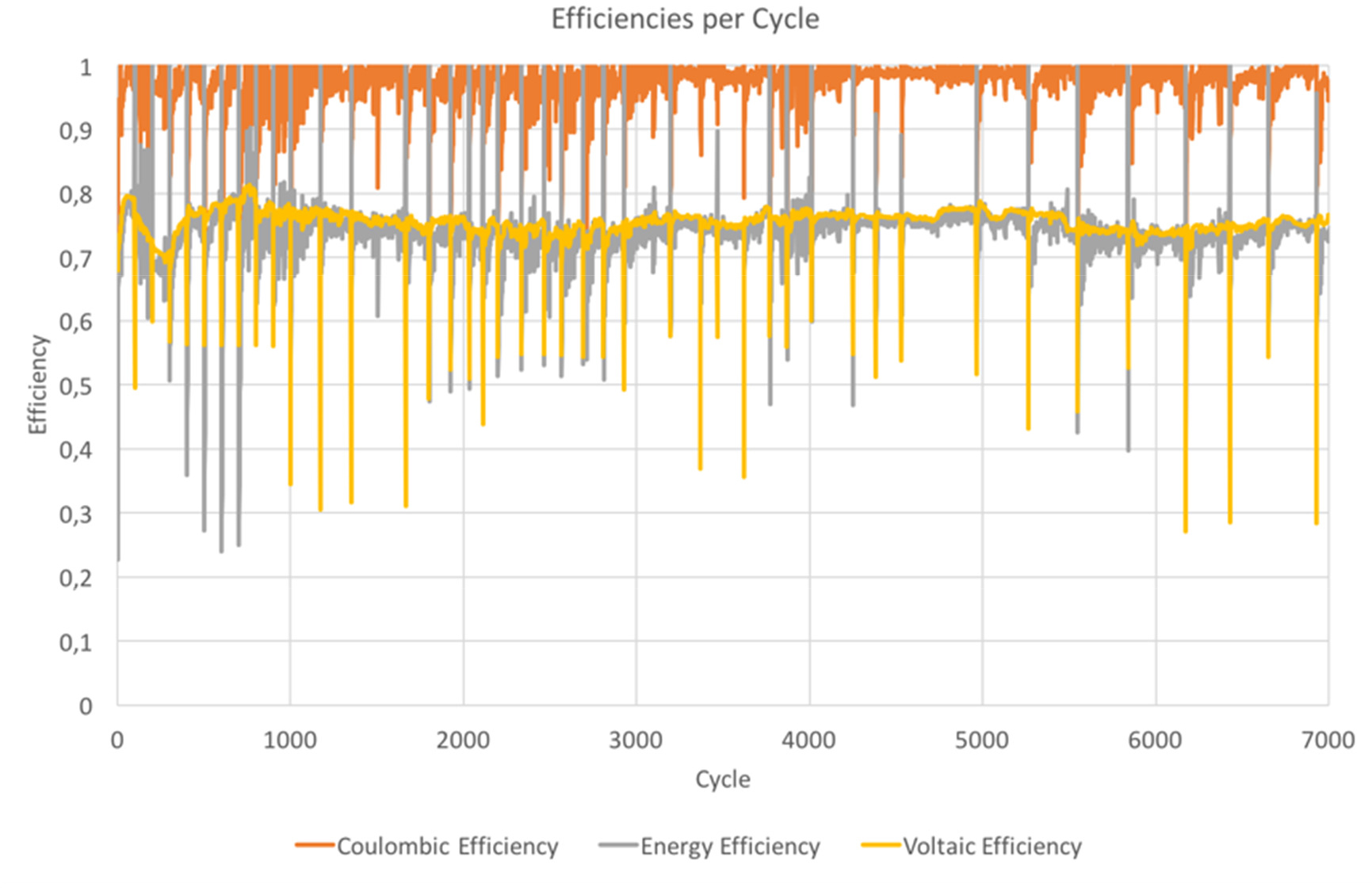

Figure 6.

Calculated efficiencies for each cycle from 1 to 7,000, Coulombic efficiencies are usually beyond 90%, whereas voltaic and energy efficiencies are usually greater than 70% [eq. (5-7)]

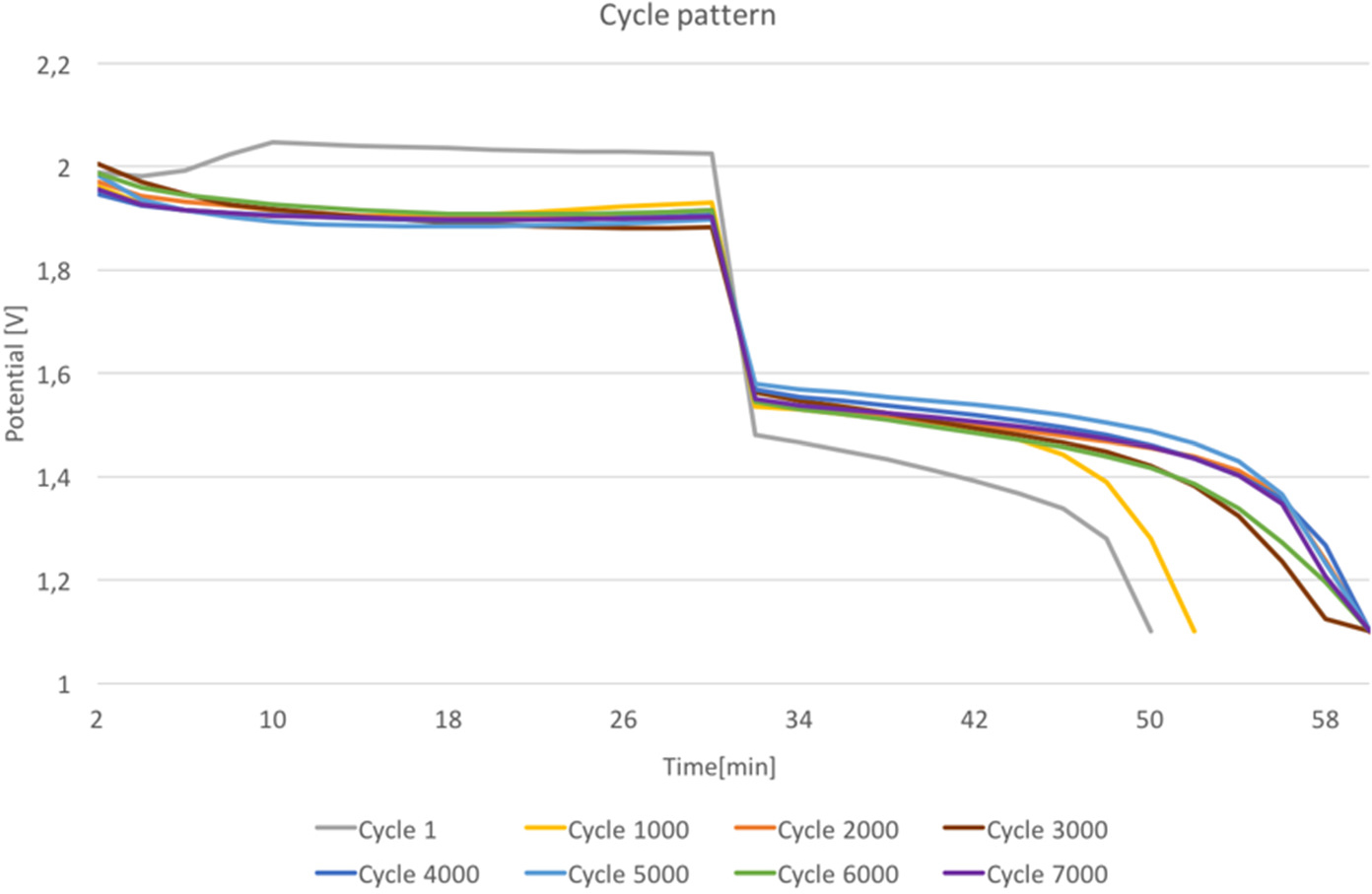

Figure 7.

Overlay of cycle patterns, showing very constant potential behaviour over a wide range of cycles

While this cell does not include pulse plating yet, it is expected that the performance can be further improved by utilizing pulses of 60 mA cm⁻² at a duty cycle of 1/3 (T_ON/T_OFF = 100 ms/200 ms). Experiments on pulse plating have shown that this is a favorable pattern for lead electrodeposition. While Constant Current (CC) experiments yielded a high degree of crystallinity on the microscale (face-centered cubic crystals of 1-2 µm diameter), the overall structure of the electrode is rather amorphously arranged in lumps of 20 to 30 µm diameter (Figure 8). Notably, there are flake-like structures above the mentioned structures, covering approximately 50% of the entire surface. It can be seen that the layers deposited with CC are rather thick, and thus have a high degree of porosity. Pulse Current (PC) experiments, however, showed a very high degree of crystallinity. These crystals are in the range of 20-30 µm, whereas the flake like structures are not evident at all. With larger magnification, it can be seen that the single crystals also are more pronounced and up to three times the size of crystals deposited with CC (Figure 9). The needle-like crystals seen in these pictures are related to insufficient flushing of the prepared samples and are very characteristic of lead methanesulfonate. Adhesion tests showed that these structures show a better adhesion to the electrode substrate and thus increased mechanical stability.

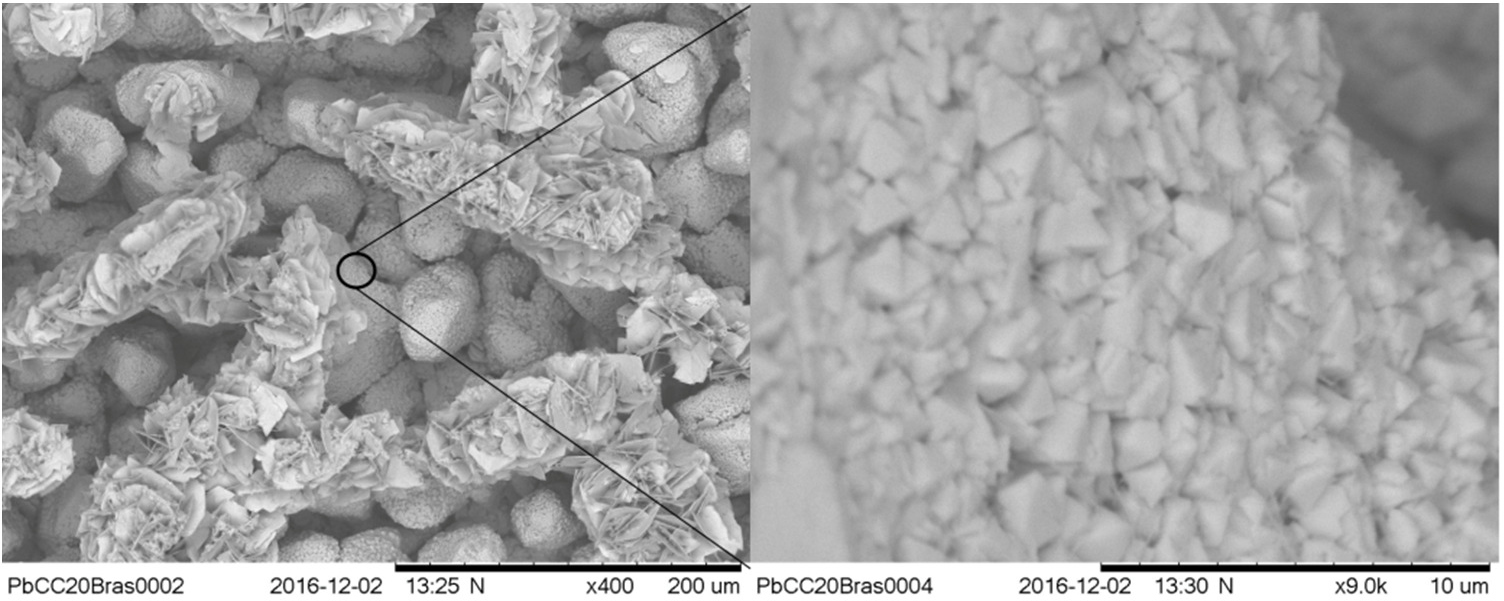

Figure 8.

SEM pictures of a cell charged at a constant current density of 20 mA cm⁻², left hand picture is at 400× magnification, right hand at 9,000× magnification, total charge capacity is 20 mAh cm⁻²

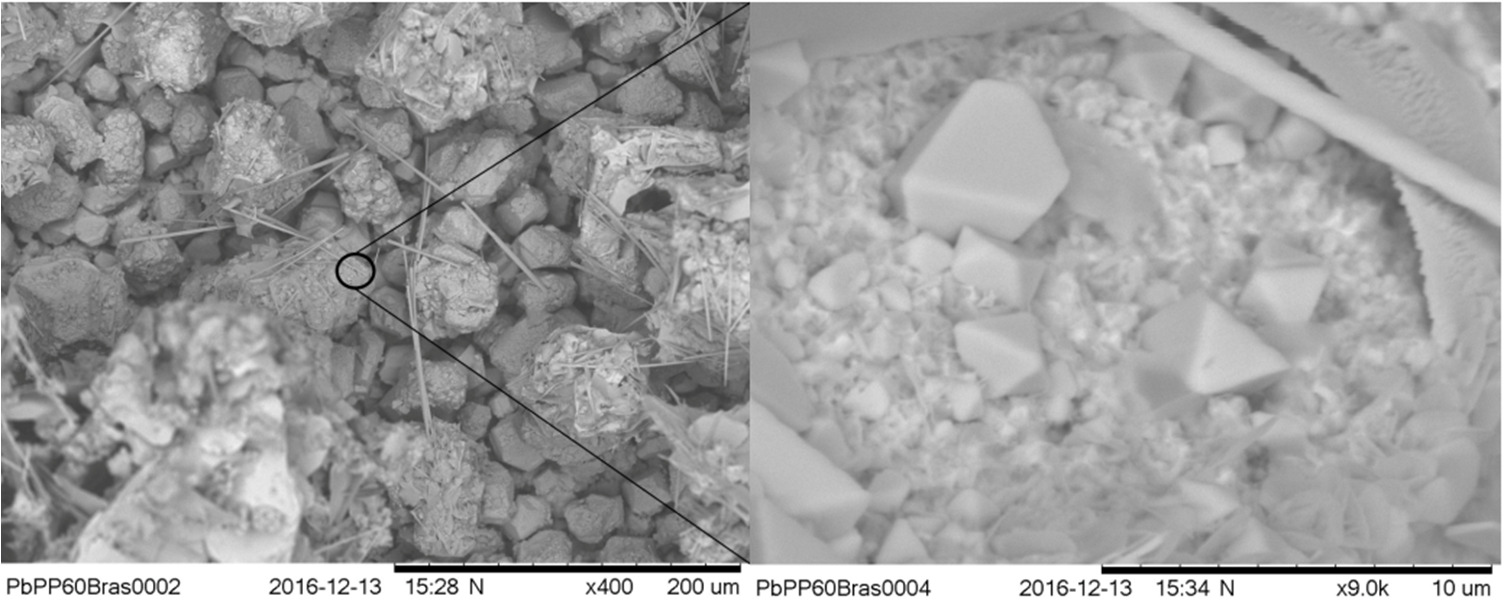

Figure 9.

SEM pictures of a cell charged with pulse current algorithm of 60 mA cm⁻² for 100 ms, followed by 200 ms rest for equilibration, resulting in an averaged current density of 20 mA cm⁻², left hand picture is at 400× magnification, right hand at 9,000× magnification, total charge capacity is 20 mAh cm⁻²

It has been shown that SLFB flow-cells with HDTMA as an anti-dendrite additive show a high cycle life of more than 7,000 cycles at 40 mA cm⁻² with high efficiencies and without intervention to the system. These experimental setups included a periodic electrode renewal by shorting both electrodes to 0 V and thus fully discharge the cell, leading to fresh electrode substrates for successive cycles. Pulse plating algorithms are expected to further increase the time span between electrode reconditioning as it has been shown that they can further increase plating qualities for electrodeposited active masses, particularly for the anode. These characteristics combined with the inherent safety of the system make SLFB a very promising candidate for energy storage applications. However, the limiting factor is still the electrode substrate, which has been a sheet of antimonial lead for the experiments presented in this publication. This material was subject to corrosion effects when cycled for a prolonged time and thus alternative materials are still a subject of research.
