Decarbonised District Heat, Electricity and Synthetic Renewable Gas in Wind- and Solar-Based District Energy Systems

Original scientific paper

Journal of Sustainable Development of Energy, Water and Environment Systems
Volume 9, Issue 2, June 2021, 1080340
DOI: https://doi.org/10.13044/j.sdewes.d8.0340
Robert Weiss , Heidi Saastamoinen, Jussi Ikäheimo, Rinat Abdurafikov, Teemu Sihvonen, Jari Shemeikka
VTT Technical Research Centre of Finland, P.O. Box 1000, 02044 VTT, Espoo, Finland

Abstract

Low availability of sustainable biomass prevents transition of district heating in Europe away from fossil fuels. The need for sustainable fuels stems from current energy generation structure, which mainly relies on centralised combined heat and power operated as baseload units. Our study shows that districts with generation of renewable power, heat and synthetic natural gas can reach complete energy system decarbonisation even without biomass, only using wind and solar power as primary energy. It requires rethinking of interactions between electricity, gas and heating networks and a polygeneration solution with power-to-heat and power-to-gas technologies to fully utilise local solar and wind power and cover peak demands. Power-to-heat as baseload units supported with power-to-gas for seasonal and back-up energy storage are proposed as novel district heating approach. The operation of such polygeneration is tested successfully using a model of a Finnish district. Carbon dioxide circulation is analysed together with capacity requirements to synthetic natural gas and needed wind power installation. Resulting complete decarbonisation requires coordination and flexible operation of power-to-heat and power-to-gas capacity together with gas-fired combined heat and power plants and heat-only boilers, which ensures that renewable power production, heating and power needs, security of supply and grid limitations are met.

Keywords: Renewable energy, Decarbonisation, District heating, Sector coupling, Polygeneration, Power-to-gas, Power-to-heat, Synthetic gas.

Creative Commons License
Views (in 2024): 1040 | Downloads (in 2024): 241
Total views: 6862 | Total downloads: 1674
INTRODUCTION

Today, large district heating (DH) systems are often well-established co-/poly- generation systems that generally consists of conventional centralized combined heat and power (CHP) units, used as baseload units, and heat-only boilers (HOB) for peak heating needs [1]. For some regions with good biomass availability e.g. Baltic and Nordic countries, such energy systems are often based on biomass fuels. Biomass accounts for about 90% of renewable heating in Europe [2]. In general, European district heating and cooling systems are still mainly based on utilization of fossil fuels such as coal (15%), natural gas (46%), and oil (10%) [2], often because of limited availability of local, sustainable and affordable biomass fuels [3]. Many towns and cities in Europe have such efficient but fossil-based polygeneration systems in place, and face large challenges with their future deep decarbonisation targets, e.g. fossil-free energy production in 2030-2050 [4]. This opens up interest for power-to-heat (P2H) and power-to-gas (P2G) district heating solutions based on renewable power. Our study investigates possibilities of the foregoing technologies in decarbonisation of a local energy system.

Similarly to power generation, replacement of fossil-fuelled power plants with variable wind and photovoltaic solar (PV) power production leads to challenges in balancing the production fluctuations on different time scales [5] [6]. Storage or other sources of flexibility are needed to avoid curtailment during periods of high intermittent generation and ensure generation adequacy [7]. For reliable DH generation in urban areas situated in colder climates, this challenge could be even more pronounced because of the limited availability of solar power [8] and risk of low wind production coinciding the times of peak heating demands in wintertime. Our study quantifies this specific problem and estimates the possibilities to carbon neutral district energy system in Nordic latitudes.

P2H technology is needed to convert renewable power into district heat. Large-scale heat pumps are already commonly used in district heating production in Scandinavia, especially Sweden [9]. Heat pumps can start up and be turned off quickly, which makes them a convenient source of flexibility [10]. The utilization of large-scale heat pumps have increased due to relatively low electricity prices, requirements for renewable heat production, technology development and successful investments [11]. According to analysis of Pieper et al. [12], specific investment costs of heat pumps generally decrease with increase in the capacity. Due to high investment costs, P2H plants are not used to cover peak loads [1]. Except for some pioneering installations e.g. ground source heat pumps in Olot [13] and datacenter waste heat recovery by heat pump system in Mäntsälä [14], the centralized P2H plant have not been used as the main source for district heat production, but the available large-scale installations supplement the heat source arsenal of the district heating systems of cities. Our study shows that the idea of utilizing heat pump (HP) as a baseload source of heat can be justified.

Hydrogen has been long studied as an energy carrier and a storage solution [15]. Water electrolysis (WE) systems can convert renewable power and water into renewable hydrogen (H2) and oxygen (O2), while conversion losses are mainly waste heat. According to [16] utilisation of waste heat can increase total efficiency of electrolysis by 15%. Cost and technical characteristics of WE technologies as well as future trends are presented in reviews [17], [18] and [19], all indicating that attractive investment costs and performance are within reach before 2030. For a 6 MWel WE demonstration facility, [20] show that H2 production costs are strongly dependent on use-case and annual full load hours (FLH), anticipating that high FLH are needed for WE and P2G to have a chance to reach an economy of interest.

For urban energy systems with its power and heating sectors, the impact of fossil natural gas (NG) blended with renewable H2 from WE is studied in [21], emphasizing requirements of older building stock to supply of heat at higher temperatures that can be generated by CHP and HOB units using such hybrid fuels. Still, the maximum H2 content in an operative natural gas grid is restricted to a few percent by volume by widely varying national limits that depend on the grid operator and connected customer devices [22], which imposes strong limitations on direct H2 feed at least into the networks connected to national or international gas grid [23]. The case study in [24] shows that for such limiting circumstances, direct H2 feed provides only a very small decarbonisation potential for the needed local gas consumption. In addition, H2 storage especially in liquid form which requires substantially less space is expensive and inconvenient and, therefore, other chemicals e.g. ammonia [25] and methanol [26], which serve as H2 carriers have been considered.

P2G, the conversion of renewable power via H2 and methanation (i.e. hydrogenation) of carbon dioxide (CO2) into synthetic fossil-free methane (SNG), has received attention in recent years [5], with recognition of key role of fossil-free CO2 [27] besides the renewable H2. Renewable energy integration with energy storage to SNG has been found to have significant potential at different regions of Europe. For example in Northern Germany, wind power storage by biogas upgrading process was estimated to enable storing up to 1.5 TWh of electricity annually as renewable gas [28]. In Berlin-Brandenburg region, the methanation technology together with gas storage to complement bioenergy, wind and photovoltaics production was seen as a pathway to high-level renewable energy contribution [29]. In UK, use of natural gas network different energy carriers was found to significantly contribute to network’s CO2 emissions [30]. In addition, the interactions of P2G with the gas, electricity, heat and/or CO2 markets have been found to partially transfer capacity and flexibility problems from the electricity to the gas sector [31] and as a long-term energy storage to reduce LCOE of the energy system [32]. P2G has the advantage of existing infrastructure for methane transport, storage, and utilization, compared to H2 which requires new challenging infrastructure [33]. Still, P2G suffers from additional energy losses compared to WE, which however can be recovered as waste heat for e.g. DH purposes. A proper DH-integration could therefore enhance P2G as well as P2H efficiency, but to the authors’ knowledge, no such integration study has yet been presented.

Integration of RES into CHP-based DH systems exploiting thermal heat storages has been widely modelled [32] [34] [35] [36] [37]. It has been found that the optimal operation of thermal heat storages depends on the heat demand and power price [34]. Also, heat storages has been considered for biomass-fired CHP system and it has been found that optimal configuration is different depending on whether economics or energetic aspects are considered more important [35]. In addition, balancing large amounts of wind power with heat storages in the energy systems, where CHP provides flexibility to power production has been analysed [36]. In DH network fed by CHP or HOB, load allocation between the plants has been optimized to enable more accurate operation of the network [38].

Less attention has been paid on HP utilisation in RES integration to DH. According to review made by [39], the most of the modelling approaches related to HP utilisation for renewable energy integration concentrate on cost minimisation. Our study focuses more on renewable power integration to maximize decarbonisation and efficient gas utilisation. In two of the studies concentrating on flexibility maximisation and dispatch simulation, the HP solution involved a set of hundred domestic heat pumps [40] or space heating and domestic hot water heat pumps [41] instead of a centralized HP solution for DH as in our study. Although, large amount of small-scale heat pumps has been shown to enable integrating significant amount of wind energy to heating, resulting in system-wide emission reduction when fossil fuel burning heating equipment is replaced with heat pumps [41], such decentralized solution has been found to cause difficulties in harvesting of especially downward load modulation [40].

Models of centralized HP solutions for renewable electricity integration to DH are rare. In [42], centralized heat pumps are used in modelling approach, but their operation is optimized against spot market, instead of evaluating the potential for energy system decarbonisation, as done in our study. In [43], power-to-heat conversion was used in load shifting for wind and PV in Helsinki. They suggested that 80% of the energy of the needed DH could be covered by a centralized HP solution, up to 90% if supporting electric boilers were used, but did not account for the performance decrease of the HP during peak heating times that need higher DH supply temperatures. Also, during peak heating times the proposed solution relied strongly on the heating power from conventional HOB and CHP assets, that were assumed to use conventional fossil fuels like natural gas. The study found also that loss of CHP production from existing plants made P2H configurations less profitable, but it was indicated that replacing some of the CHP plants with variable renewable energy and P2H should be studied. Our study evaluates the new technical solutions for renewable energy integration regardless of the existing system merit order, which opens up the discussion of whether the original merit order should be respected at all if the goal is full decarbonisation.

In our study, the energy system on a district level and interactions between power, gas and district heating grids in European subarctic climate regions are analysed in order to evaluate the future medium-scale district heating and polygeneration system in terms of capacities, utilization rates and emissions. A detailed simulation model of a district from the Finnish town of Suonenjoki is used to illustrate the energy system operation at medium-scale district heating network level and possibilities of conversion assets, namely P2H and P2G. The energy consumption, building stock and DH grid part of the model has been earlier presented in [44]]in the context of assessing energy-efficient refurbishment of buildings at district scale. This validated model integrates building and district heating network simulation, and was extended in our study for the H2020-project PLANET with a polygeneration model for district level P2H, P2G, CHP and HOB units. CO2-circulation and renewable synthetic natural gas (SNG) production and storage needs of this novel polygeneration system are analysed. The results show, how such a district with a novel polygeneration solution consisting of renewable power, heat and fuel gas generation can reach a complete energy system decarbonisation, without the utilization of biomass.

METHODS

The district energy system and interactions between power, gas and district heating grids in European subarctic climate regions are analysed using a polygeneration model. The parts of the model describing conventional district heating and power production, interactions between power, gas and heat, potential of renewable energy sources as well as simplified merit orders used to operate polygeneration systems are described in the following.

Polygeneration model

The energy system of the modelled district is schematically presented in Figure 1. It consists of energy demand and district heating (DH) network model as well as a polygeneration plant model connected to external electricity and gas supply networks. In our study, the focus is on the polygeneration model and related generation scenarios for decarbonisation.

Modelled district energy system

In districts with small to medium-size district heating networks, generation is often concentrated to one or two locations only. For our study, and for the use of H2020 project PLANET [45], a single-point polygeneration model was created, describing a local polygeneration plant with P2H, P2G, CHP and HOB units connected to the local DH and power grids, and having at least a feeding line from the gas grid.

District heat and power demand

The energy demand feeding the polygeneration model can be covered by power and DH measurements directly, if available. Such measurements must have good enough granularity, being at least hourly measurements. Besides district’s aggregated active power consumption, a minimum measurement set must contain required DH supply temperature TDH, supply and mass flow mDHfrom the plant to the DH network and its heat consumers, and the resulting DH return temperature TDH, return to the plant. Using the heat capacity of water cp, such measurement set provides for a small to medium DH network the momentary DH consumption Qcons,DH as follows

Qcons,DH=cp mDH˙  (TDH,supply- TDH,return)

Alternatively, a detailed enough model of the buildings’ energy consumption behaviour, the DH network dynamics and power consumption can be used. In our study, a high fidelity thermal-hydraulic model of the districts buildings and DH network, which is presented briefly in [44], was used to calculate the time and weather dependent power and heat demands as well as resulting DH supply and return temperatures and mass flows at the DH plant.

Conventional district heating and power production

Gas-fired conventional DH production assets are not restricted to only use fossil natural gas, but can also be fired with renewable gas, i.e. biomethane from biogas or SNG. They could therefore be valuable assets in a decarbonized future, and are included in this decarbonisation analysis.

Gas-fired heat-only boilers. The thermal efficiency of a condensing gas-fired HOB, including the dependency of flue gas recovery efficiency on the incoming DH-return temperature, was modelled using theoretical curves from [46] and [47] for an excess air coefficient α= 1.05 typical for standard boilers. A linear relationship was fitted to the non-condensing temperature regime and a 3rd degree polynomial on the condensing regime of the flue gas recovery unit (c.f. Figure 2).

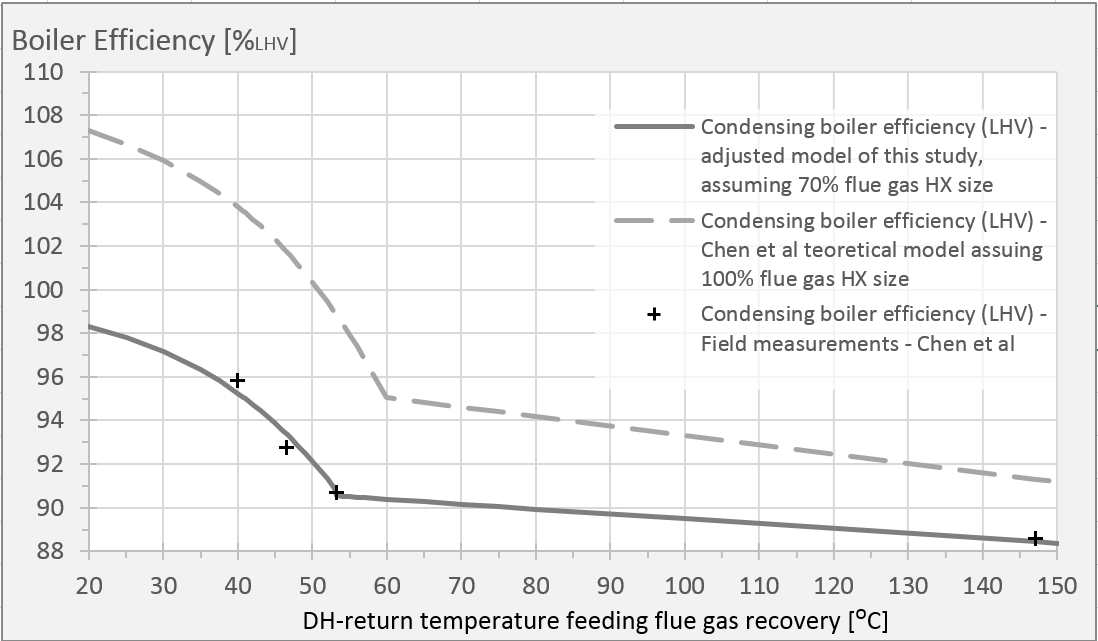

The effect of district heating return temperature on boiler efficiency

A limit on the size of heat exchanger for flue gas heat recovery was added. Here a limitation of 70% of the theoretical maximum potential was used to fit the theoretical curve to the field measurement data of a 2.1 MW gas-fired HOB presented in [47].

Gas-fired combined heat and power units. The thermal efficiency of a CHP was modelled in a similar way as for HOB. In addition, for a requested heat output QCHP, the resulting power output PCHP was modelled using the power-to-heat ratio rCHP [48] of the CHP, which for conventional CHP units is assumed constant:

PCHP=rCHP QCHP

In the scenarios where P2G was present, the plant was equipped with post-combustion carbon capture with capture efficiency of 85% [49].

Power-to-heat

The power-to-heat unit considered in our study was a high-performance heat pump, supplying the heat to district heating network.

District heating level heat pump. A heat pump providing heat at temperature levels higher than a certain threshold, e.g. 70 °C to a DH network or an industrial process, can be considered a high-performance HP. The coefficient of performance (COP, i.e. ratio of useful heat outputQHP to power inputPcons,HP) of the HP is modelled using the following equation:

COPDH=QHPPcons.HP=η × TSINKTSINK-TSOURCE

where TSINK and TSOURCE are the absolute temperatures [K] of heat exchanger on the hot side (sink) and cold side (source), respectively. η is a dimensionless degradation factor, describing process imperfections compared to ideal Carnot cycle. In [50], a market overview of commercially available high-temperature heat pumps reports COP-values which on average correspond to η = 0.6 (range between 0.4 and 0.7, depending on HP design) for an operation environment with TSINK of 363.15 K (90 °C) and TSOURCE 293.15 K (20 °C) or lower. A value of η = 0.7 corresponds to some HP designs using environmentally friendly CO2-based refrigerant; this HP was reported to have a capacity to reach TSINK of 383.15 K (110 °C). As a conservative estimate for our model, η = 0.6 was used for a modern high-performance HP [51]. For TSINK,the momentary value of the DH supply temperature was used, while TSOURCE depends on the available waste or environmental heat source.

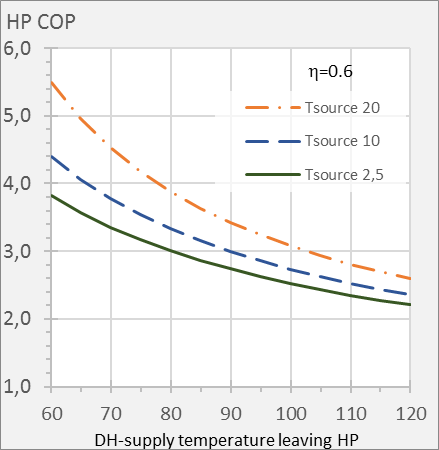

The resulting values of heat pump COP for selected temperature ranges of heat pump source and district heating supply are shown on Figure 3.

The effect of heat pump source and district heating supply temperatures on coefficient of performance

Power-to-gas

A P2G unit producing SNG consists of at least a water electrolyser (WE), and a subsequent methanation unit. Optionally, if local utilization is possible, such a configuration can also produce useful waste heat and oxygen.

Polymer Electrolyte Membrane Water Electrolysis. The PEM-WE technology has experienced an increased preference in P2G applications [52]. It has a fast response, in the order of seconds and is thus able to provide grid management services, such as, e.g., load following and peak shaving [53], and was selected as technology for our study. Because of fast response time (compared to simulation time step of one hour), the PEM-WE unit could be straight-forward modelled to produce H2 from local excess power with a simple conversion efficiency of 70% HHV (Higher heating value) [24]. Part of the energy lost in this conversion can be recovered as waste heat. In our study, a recovery factor of 0.5 was assumed for the PEM energy loss.

Methanation. In a decentralized employment supporting distributed power generation, the methanation process unit must also be responsive and suitable for load-following operation. Biological methanation has a far better load-following capability than chemical (catalytic) methanation, and laboratory tests have shown that immediate load changes from 100% to 0% and several weeks long rest periods can be achieved [54]. Also, in contrast to chemical methanation, biological methanation is tolerant to several gas impurities such as hydrogen sulphide (H2S) and ammonia (NH3), and is easier to handle with low operating temperatures (40-70 °C)[55]. Consequently, biological methanation was selected for our study. Because of the load-following capability, the methanation unit could be modelled using a simple thermodynamic conversion efficiency of 78%. The energy lost in this conversion can efficiently be recovered as waste heat. In our study, a recovery factor of 0.9 was assumed for the methanation energy loss.

Solar and wind power

Generation of local renewable energy using rooftop photovoltaic panels and a wind turbine, was considered as alternative electricity sources for the polygeneration model of the district.

Local on-shore wind power. For the location of the district, local wind power potential can be calculated using the Virtual Wind Farm model [56], which is part of renewables.ninja project [57].

Merit orders and power grid limitations

Heat and electricity generation installations are usually operated in a certain order determined by operation costs. Selected orders assumed in our study are described below.

Conventional merit order for district heating production. In small and medium-size district heating networks, the conventional merit order is to operate the CHP as baseload unit and use the HOB as peak unit [58]. If cheap or free waste heat is available, such as P2G waste heat, this heat is usually utilized first, before using the CHP. In our study, if a HP is available within imposed power grid import limitations, it is used as intermediate unit on top of the CHP before the HOB is started. This kind of a conventional straightforward merit order, which results from the normally low net heat production cost [59] and high investment cost of the CHP, is referred to as “CHP first” merit order in our study.

Power-to-heat merit order for district heating production. In contrary to the “CHP first” merit order, the HP is used as a baseload unit within imposed power grid import limitations, CHP as intermediate unit, and HOB as peak unit. If P2G waste heat is available, this heat is utilized first, before using the HP. This novel kind of a merit order is referred to as “HP first” merit order in our study.

Power production merit order and grid limitations. The merit order of the DH production determines the power production of CHP plant. Together with the local solar PV and wind power production, the power produced by CHP can locally be utilized to cover baseload and P2H consumption, whenever possible. In case of remaining excess local renewable power exceeding a selected threshold, the P2G unit is started in the polygeneration model. In case of remaining excess power despite P2G operation at full capacity, this power was exported within the grid limits for reverse power flow, and remaining power exceeding the reverse flow limits was curtailed.

Targets

The objectives set for the district may be split into two categories: decarbonisation and self-sufficiency, and security of supply and avoided grid expansion.

Decarbonisation and self-sufficiency. For the district, the primary targets are to meet the district heating and power demand and to decarbonise this demand as completely as possible. Our study assumes that there is no net CO2-import via the (national) power grid on annual base, if the district exports on annual base more renewable power to the power grid than it imports, regardless of the CO2-emission levels of the power grid. Therefore, to support the decarbonisation target, one primary target for the district is also to reach, in terms of electrical energy, zero import or net export to the power grid. To achieve this, local renewable power generation (wind) power capacity is increased until zero import or net export of power is reached. For scenarios with a P2G unit, the self-sufficiency target can be to attain a level of SNG fuel production that entirely covers the local fuel needs for the operation of CHP and HOB.

Security of supply and avoided grid expansion. During extended periods with very low outdoor temperatures, there will be a peak period in DH energy consumption. At the same time, there may be a considerable risk for non-existent solar and wind power production. The local DH and power production must meet such challenging peak heating periods without exceeding import limits of the power grid.

CASE DISTRICT WITH MEDIUM-SIZE DISTRICT HEATING NETWORK

To illustrate the operation of a mid-scale district heating network level and its future P2H and P2G options in cold climate conditions, the central district from the small town of Suonenjoki, located in the middle of Finland (62°37′30″N, 27°07′20″E), was selected for detailed study.

Description of the case district

Figure 4 presents the buildings and local district heating network in the centre of Suonenjoki.

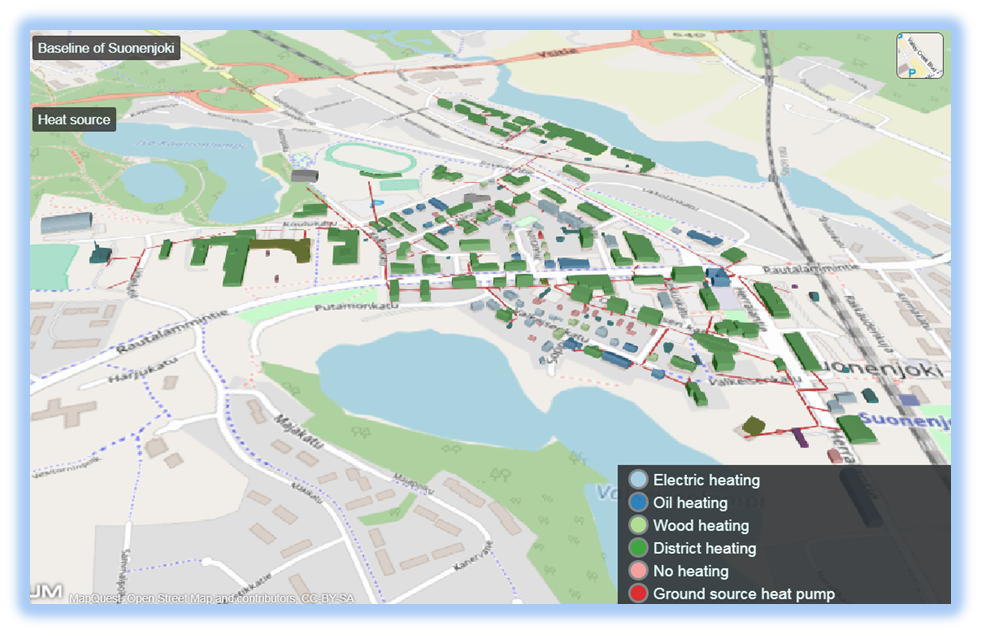

Schematic diagram of Suonenjoki district heating network and building stock

The approximately 100 buildings in the area had a total floor area of ca. 116 000 m2. Buildings represent several types: mainly residential but also school, hospital, office and other public and industrial buildings. Major part of the building stock was built between 1960 and 1980. Most of the buildings are connected to the district heating network but there are also other types of heating systems, such as direct electrical heating.

The total annual energy use in buildings amounts to approximately 16.7 GWh of district heat and 9.1 GWh of electricity. The climate conditions are characterized with average outdoor temperature 4.2 °C with summer high of 27.4 °C and winter low -31.8 °C. The potential of solar PV production is ca. 810 kWh/kWp.

District’s power and heat consumption

DH and power consumptions are dependent on both heating needs and user-patterns. To estimate these consumptions, a validated physical simulation model of the example district was used [44]. This detailed model includes residential power and domestic hot water consumption patterns, electric heating, building rooftop-PV, thermal mass and heat demands of buildings, temperature levels at buildings’ heating substations, as well as pressures, mass flows, supply and return temperatures in pipes of the district heating network.

One-year simulation runs with the weather conditions of 2016 were performed in order to obtain simulation data with hourly resolution, from which resulting DH and power consumptions (displayed in Figure 5 ) as well as DH supply and resulting return temperatures of the DH grid (Figure 6), which were used in our study.

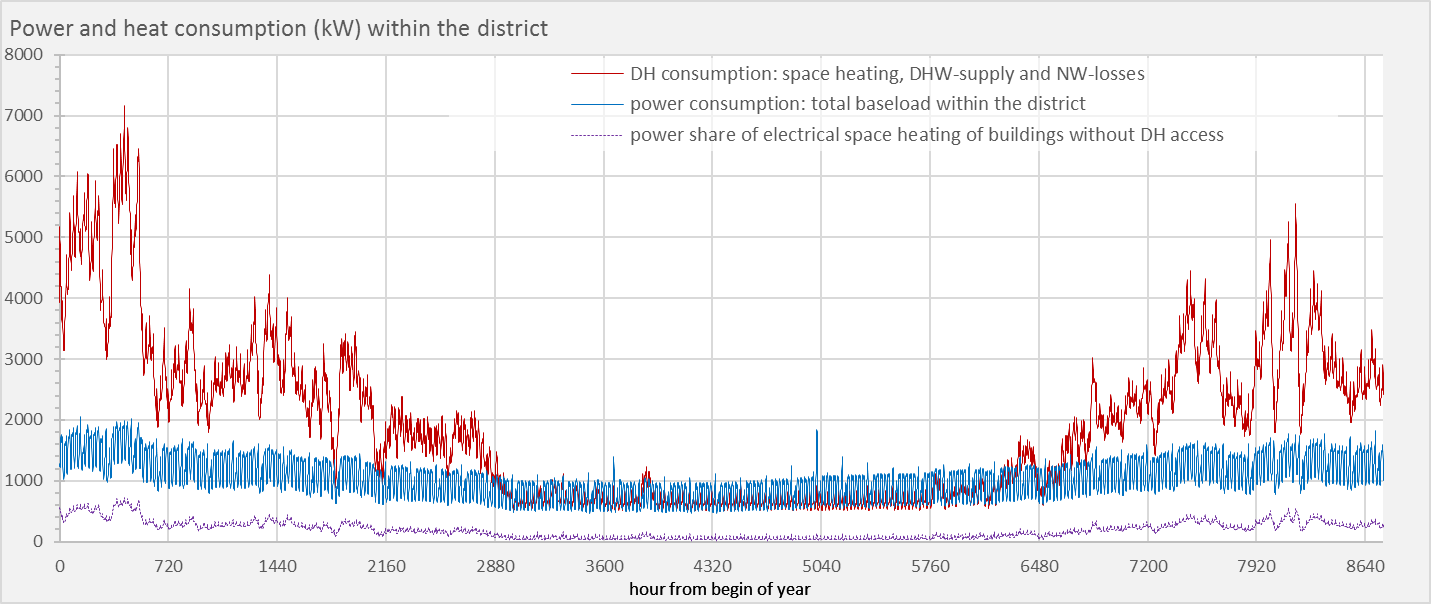

Simulated district heating and power consumption in Suonenjoki district

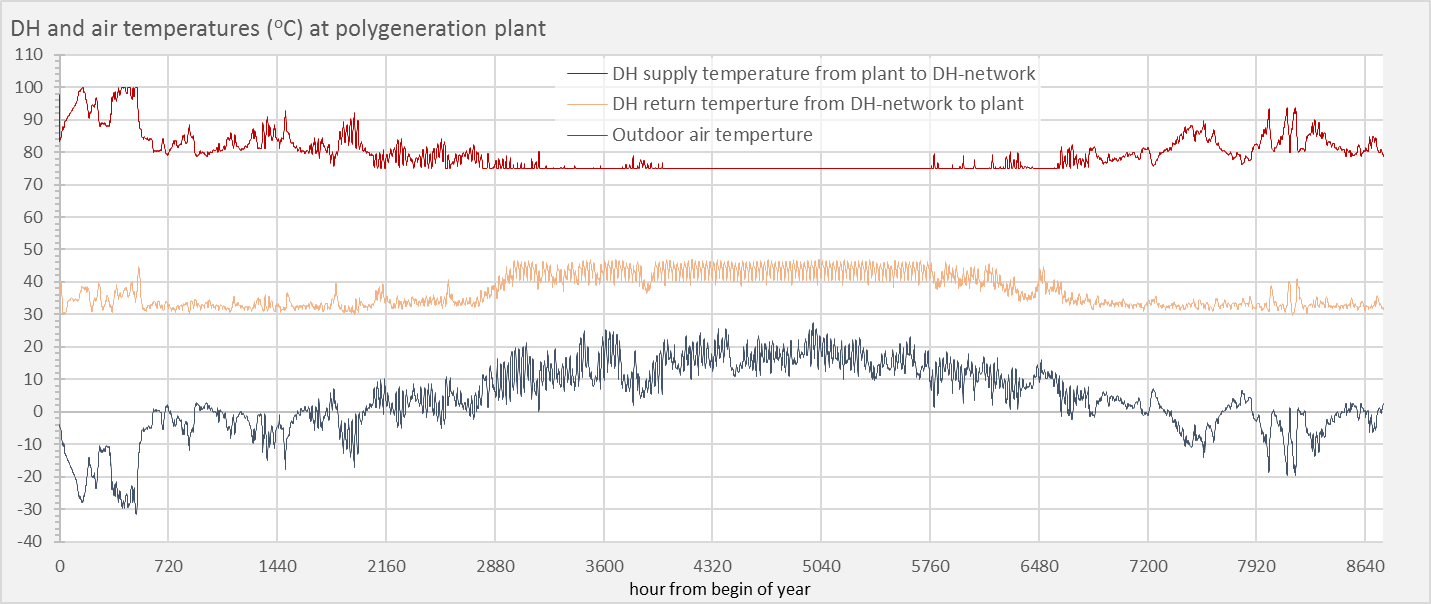

District heating supply and return temperatures in Suonenjoki district

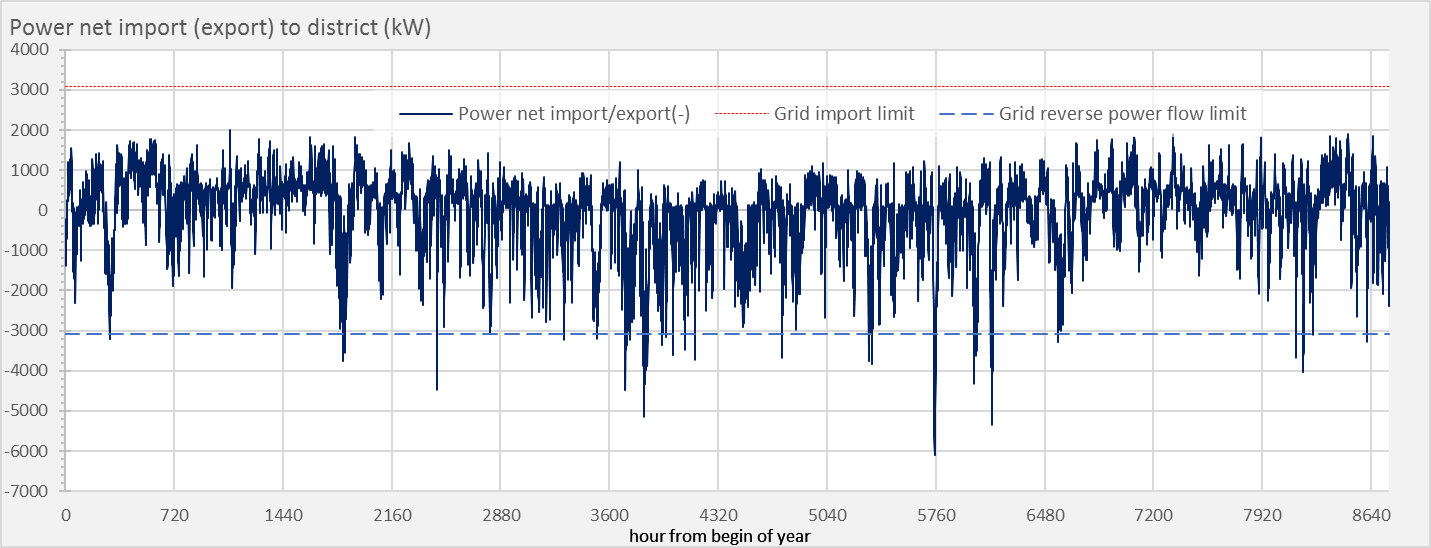

Security of supply. From Figures Figure 5 and Figure 7, it can be seen that there is a peak period in DH energy consumption in the beginning of the year (approximately 1.5 week long period with very low outdoor temperature), while at the same time almost no wind nor solar power is produced. The DH and power production must meet this challenging peak heating period so that the import limits of the power grid are not exceeded.

District’s polygeneration scenarios

A baseline scenario “Baseline” describing the starting point scenario with current conventional CHP and HOB assets was created, solely based on gas-fired DH-production. CHP production capacity was set to 2500 kW DH / 1000 kW power, (at a power-to-heat ratio set to be rCHP=0.4, typical for systems with high heat demand) [48], to reach a typical high utilization over 5000 FLH, while a HOB capacity of 4660 kW was needed to completely cover the remaining peak demand. Power grid limits for import and reverse flow to and from the district were selected to be 3000 kW i.e. 50% higher than the estimated 2000 kW power consumption peak for the district with conventional polygeneration system (c.f. Figure 5).

The first evolution scenario “noP2H-CHPfirst” for decarbonizing the power use describes the introduction of local solar and wind power to reach a 100% self-sufficiency in power on yearly basis, without any P2H or P2G assets on the DH production side.

In the subsequent scenarios, the P2H and P2H+P2G related scenarios, a lake water-source HP was added with the same DH capacity as the CHP. The “P2H only” scenarios have only the HP added, while the “P2H+P2G” scenarios have a P2G unit with a capacity set to a level that delivers the needed SNG for the CHP and HOB operation. In case of remaining excess local renewable power exceeding a selected threshold of 200 kW, the P2G unit was started. The objectives of the scenarios are summarized in Table 1 below.

Objectives of the scenarios

Scenario

Description

self-sufficient in renewable electricity

self-sufficient in renewable gas

DH de-carbonisation

HP runs before CHP

Baseline

No

No

No

No HP

no P2H-CHP first

100%

No

No

No HP

P2H only-CHP first

100%

No

Partial (11%)

No

P2H only-HP first

100%

No

Partial (84%)

Yes

P2H+P2G-CHP first

100%

100%

100%

No

P2H+P2G-HP first

100%

100%

100%

Yes

For the HP added in the scenarios, our study assumes lake water as heat source. For a large Finnish lake, we approximate TSOURCE using a yearly sine wave characterized with a minimum of 2 °C (lake bottom temperature in wintertime) and a maximum of 12 °C (summertime, higher water layers). This approximation corresponds to the measured lake water temperatures of the Finnish large lake Kallavesi (located at 62°45′N, 27°47′E, and having a maximum depth of 75 m) at 40 m depth during wintertime and 15m during summertime [60].

In the scenarios, the local wind power of the district was calculated with the Virtual Wind Farm model [56]. For this calculation, the library model of the “Vestas V90” turbine with a rated capacity of 2000 kW was selected, and a hub height of 80 m was assumed. The resulting hourly time series was multiplied to the needed total wind power capacity of each scenario.

Local solar PV power was calculated using the physical simulation model [44] of the example district In the example district, rooftop-PV was assumed to be installed on all roofs of public buildings (hospital, school, ice arena, swimming hall, etc.) having relatively good solar potential. Technically possible panel area was assumed to be 50% of this roof area. For panel azimuths and tilt angles, the available data on roof slopes were used with the exception of flat roofs, for which the assumptions made were south orientation and a slope angle of 40°, which gives optimal solar electricity production in Suonenjoki [61]. No open-field installations were assumed. The resulting local solar PV production was calculated using hourly local irradiation measurements for 2016 and the building-integrated PV sub-models [62] of the physical simulation model [44] of the example district.

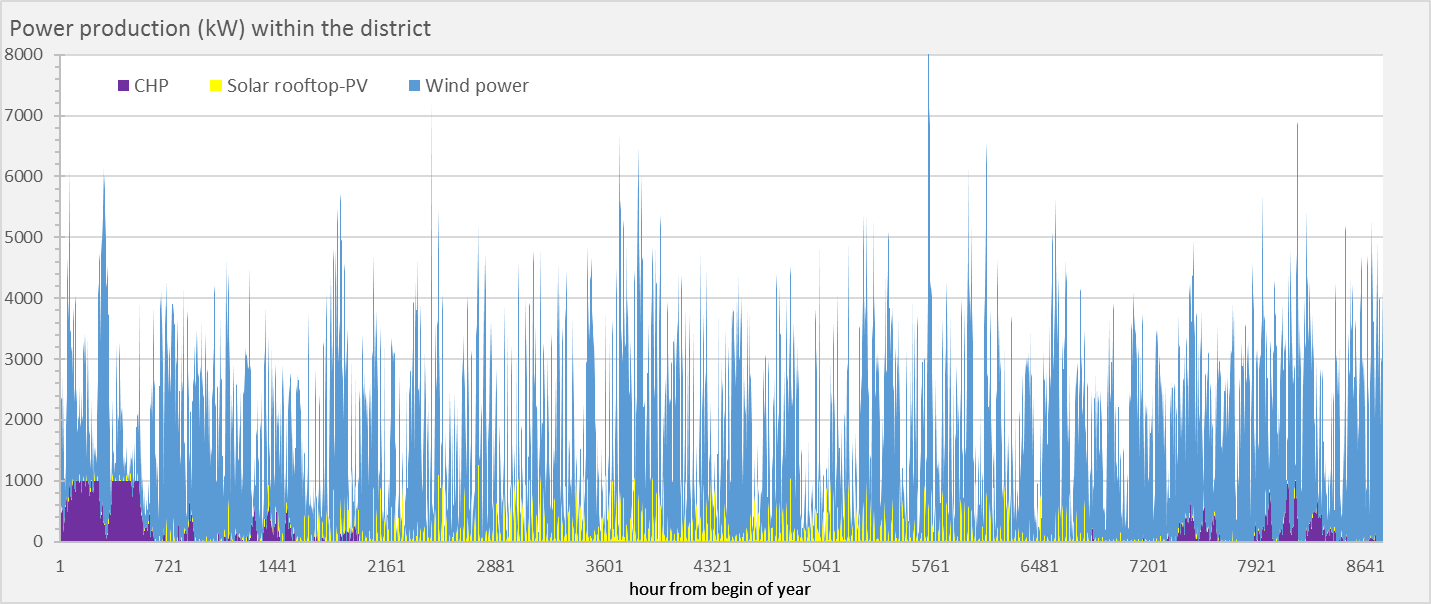

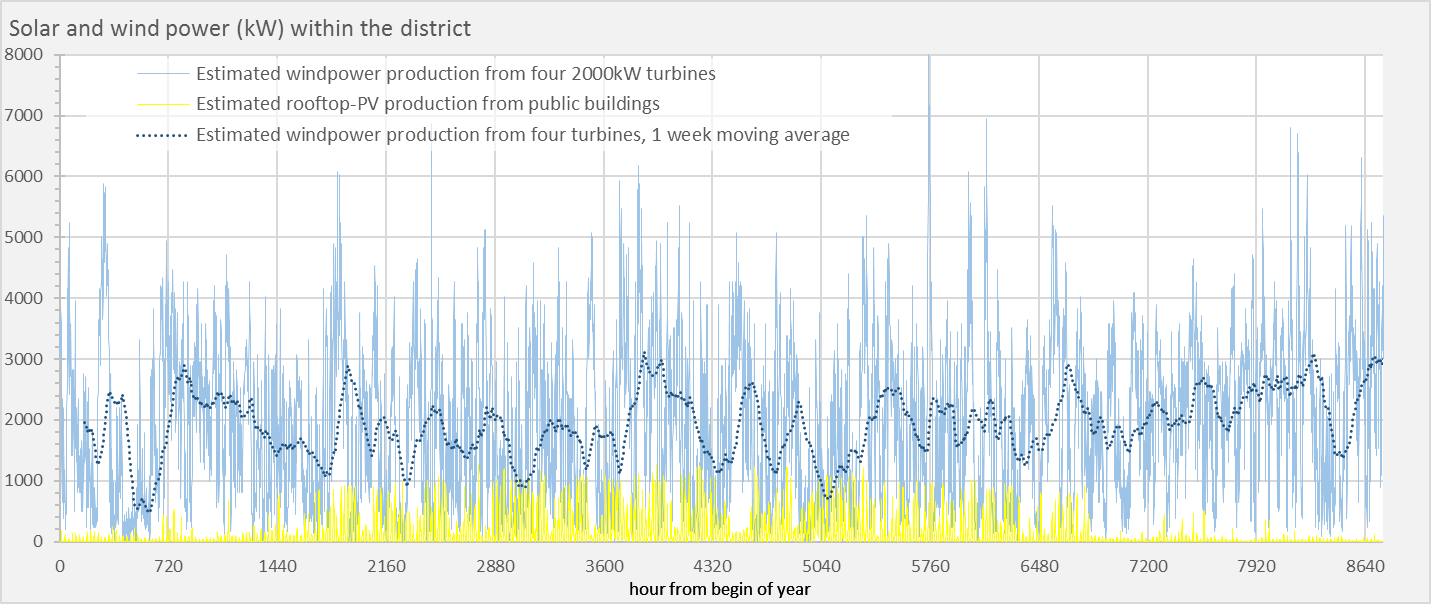

As example, the resulting curves of solar and wind power generation (kW) within the district are shown in Figure 7 for the full decarbonisation scenario “P2H+P2G-HP first”.

Estimated wind and solar power generation within the example district, scenario “P2H+P2G-HP first”.

RESULTS AND DISCUSSION

The calculation results for the scenarios described above and using the data of the year 2016 on weather and estimated renewable generation for the location of the example district are summarised in Table 2. Detailed duration curves for the district heat production are also displayed in Appendix 1.

Results for calculation year 2016

SI-Unit

baseline

no P2H

P2H only

P2H+P2G

Merit order (=baseload unit)

CHP

CHP

CHP

HP

CHP

HP

HOB capacity (DH)

kW

4660

4660

2160

2160

2160

2160

CHP capacity (DH)

kW

2500

2500

2500

2500

2500

2500

HP capacity (DH)

kW

-

-

2500

2500

2500

2500

P2G capacity (power input)

kW

-

-

-

-

7000

1250

PV capacity (nominal)

kW

-

1270

1270

1270

1270

1270

Wind power capacity (nom.)

kW

-

1200

1500

5200

16500

8000

HOB FLH

hours

545

545

85

85

65

80

CHP FLH

hours

5560

5560

5560

940

3550

790

HP FLH

hours

-

-

940

5560

540

5005

P2G FLH

hours

-

-

-

-

3780

4960

PV FLH

hours

-

860

860

860

860

860

Wind FLH

hours

-

2116

2116

2116

2116

2116

CHP power production

MWh

5560

5560

5560

940

3550

790

PV power production

MWh

-

1090

1090

1090

1090

1090

Wind power production

MWh

-

2540

3170

11000

34910

16930

Power consumption*

MWh

9100

9100

9640

12840

35970

18690

Power net export

MWh

-3540

90

180

190

3580

120

Wind Power curtailment

MWh

-

0

0

10

120

60

NG or SNG consumption

MWh

23060

23060

20590

3640

13140

3080

SNG production

MWh

-

-

-

-

13130

3080

Flue-gas CO2 emissions

ton

4570

4570

4080

720

2600

610

CO2 captured for P2G

ton

-

-

-

-

-2210

-520

CO2 deficit for P2G (import)

ton

-

-

-

-

-390

-90

District‘s local CO2 emissions

ton

4570

4570

4080

720

0

0

CO2 emissions from grid power**

ton

1050

-30

-15

-56

-1060

-35

Local CO2 emission reduction

%

-

0%

11%

84%

100%

100%

Total CO2 emission reduction**

%

-

19%

28%

88%

119%

101%

*Including P2H and P2G

**Assuming emission factor of 296 g.CO2/kWh for EU average electrical grid in 2016 [63]

Polygeneration and decarbonization results

The results obtained in the scenarios are briefly described below, and the impact on security of heat supply and needs for power grid expansion are discussed in the end of this section.

The scenario for decarbonizing only the power use. The scenario “no P2H-CHP first” could reach with a modest 1200 kW wind power installation a full decarbonisation of the district’s power consumption, but not the DH consumption. The district’s direct net CO2-emissions would be 4570 ton CO2/year because of CHP and HOB operation for DH production. To reach a full decarbonisation, the needed fuel amount of 23060 MWh must be bought as SNG or biomethane from outside the district.

The scenario with heat pump and prioritised combined heat and power. The scenario “P2H only-CHP first” could reach with a modest 1500 kW wind power installation a full decarbonisation of the district’s power consumption including the power needed by the HP, but only marginally decarbonised the DH consumption. The district’s direct net CO2-emissions would remain at the level of 4080 ton CO2/year, i.e. only a 20% reduction compared to the baseline, because of prioritized CHP operation for DH production. To reach a full decarbonisation, the needed external 20590 MWh of renewable gas fuel must be bought as SNG or biomethane from outside the district.

The scenario with prioritized heat pump and combined heat and power. The scenario “P2H only-HP first” needed a 5200 kW wind power installation to reach a full decarbonisation of the district’s power consumption including the power needed by the HP, and decarbonized the DH consumption by 84%. The districts direct net CO2-emissions would drop to 720 ton CO2/year, because of prioritized HP operation for DH production, and to reach a full decarbonisation the needed external fuel amount dropped to 3640 MWh of renewable gas.

The scenario with heat pump, power-to-gas and prioritised combined heat and power. The scenario “P2H+P2G-CHP first” needed a large 16500 kW wind power installation, combined with a large 7000 kW (in terms of electrolyser power input) P2G installation, to reach a full decarbonisation of the both district’s power and DH consumption including the power needed by the HP and P2G unit. Approximately 2600 ton CO2/year would be used by the P2G unit, corresponding to all CO2 of the polygeneration system’s flue gas, i.e. enabling a full CO2-reuse. However, because post-combustion carbon capture is estimated to have a capture efficiency of 85%, 390 ton flue gas CO2/year would be lost into the air and must be obtained from other CO2-sources, e.g. direct air capture (DAC) or imported from outside the district.

The scenario with prioritized heat pump, power-to-gas and combined heat and power. The scenario “P2H+P2G-HP first” needed only an 8000 kW wind power capacity, i.e. less than half compared to previous “P2H+P2H-CHP first” scenario due to the prioritized HP operation. The full decarbonisation of the district’s power and DH production is still reached with P2H and P2G. The needed P2G capacity would, anyhow, be dramatically reduced to 1250 kW, which is only one fifth of the previous scenario, due to increased HP heat production. The reduction in P2G capacity reduces needed investment considerably. Approximately 610 tons of CO2/year would be used by the P2G unit, and a full CO2-reuse would be enabled. Only 90 tons of flue gas CO2/year would be lost into the air and must be obtained from other CO2-sources. The resulting district heating and electricity production, electricity consumption and exchange with external electrical network for this scenario are presented on Figure 8.

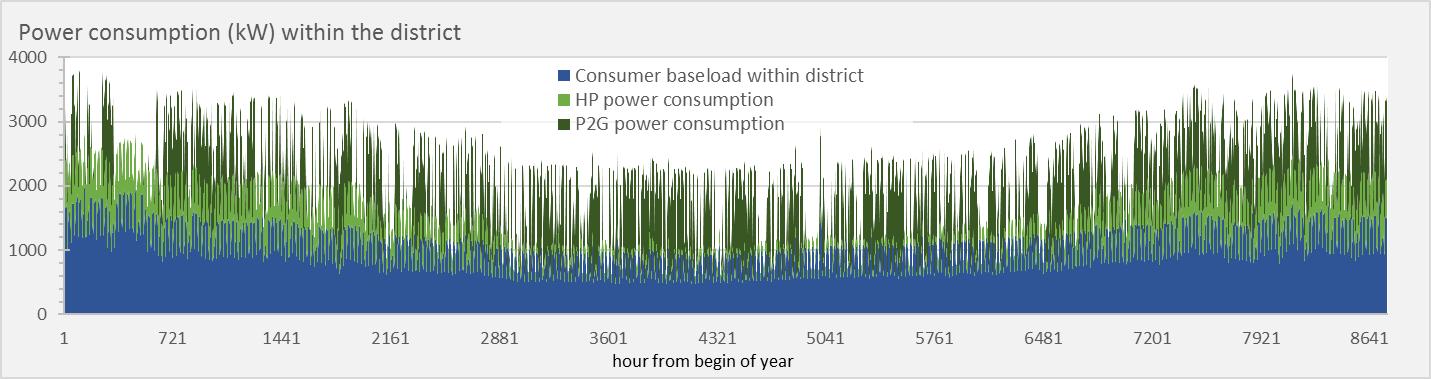

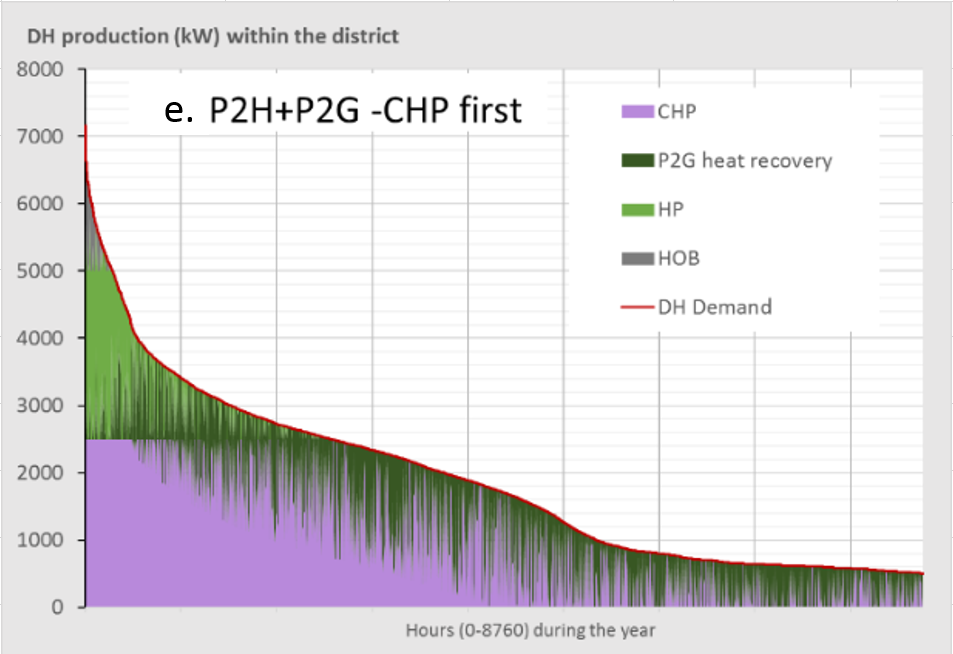

Figure 8 (a-b) depicts the utilization of different generation types in DH and power production. Baseload-type utilisation of HP can be clearly seen, while the P2G plant continuously operates throughout the year with high utilisation but in an intermittent mode with many start-ups and shut-downs, capturing the wind power intermittency. CHP plant is utilised only during rather rare periods of peak heat consumption, with less than 10 start-ups of the CHP during the year. The HOB is only activated during the coldest weeks.

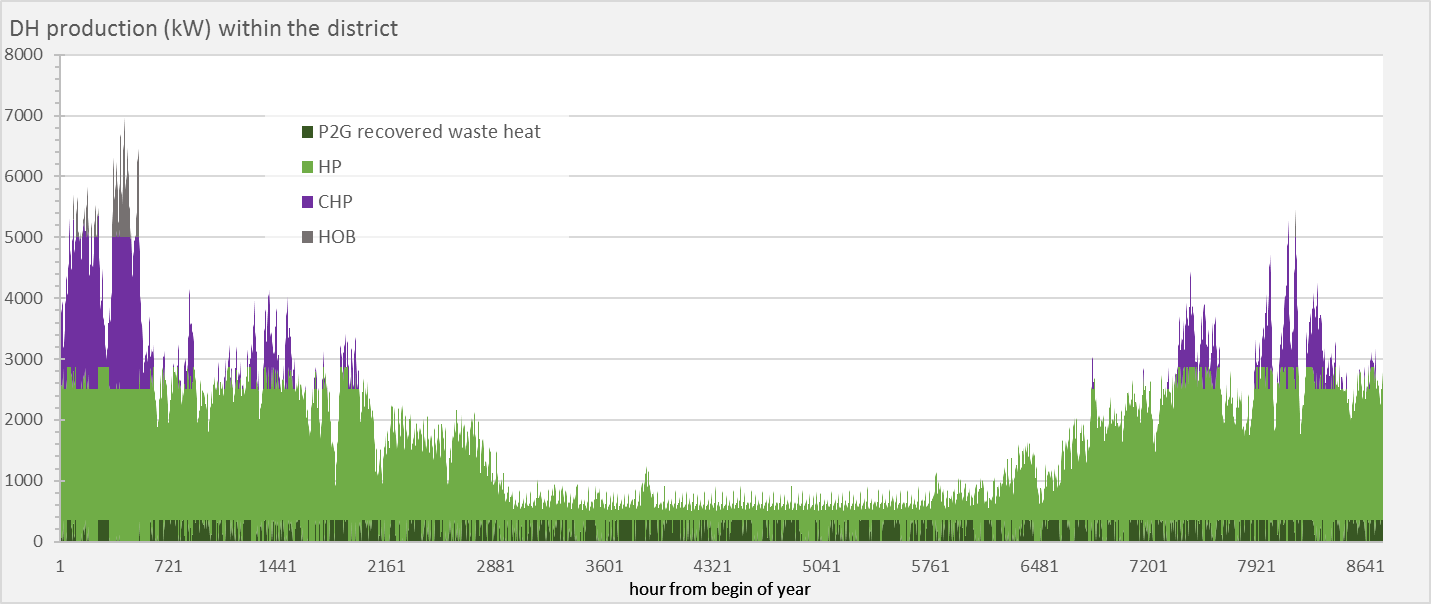

District heating production (a), power consumption (b), power production (c) and net grid exchange for the “P2H+P2G, HP first” scenario, enabling 100% decarbonisation

Security of supply and avoided grid expansion. For all scenarios, the needed DH could be supplied to the customers, even during the coldest winter week without wind and solar power production, as shown for the “P2H+P2G, HP first” scenario in Figure 8. At the same time, the estimated current power grid limitations could be met for both power export and import. This target was met despite the quite large wind power installations in the scenarios with P2G units, where 2.7–5.5 times larger wind power installation compared to the grid reverse power limit could be handled or absorbed within the district itself.

Sensitivity analysis of complete decarbonisation scenario

In complete decarbonisation scenario, the CHP plant is not likely to achieve high capacity utilisation (FLH). Unless the plant is not required for such purposes as provision of grid services or emergency power supply, it might turn out beneficial not to have a CHP plant in the system at all. In this case, the HOB would fulfil the remaining heat requirement not covered by waste heat from P2G and P2H units.

Decarbonisation with power-to-heat and power-to-gas. The results of a sensitivity analysis in the scenario “P2H+P2G, HP first” are shown in Figure 9. In case of decarbonisation of the modelled district when heat is generated by HOBs only (without CHP), and the system is decarbonised using P2H, then a large 6.5 MW P2G and 15 MW wind power capacity would be required. This requirement decreases substantially with first 1500 kW of HP installation, as displayed in Figure 9, showing a clearly decreasing trend in needed capacity for both P2G and wind power installations, until flattening after P2H installations reach 3 MW.

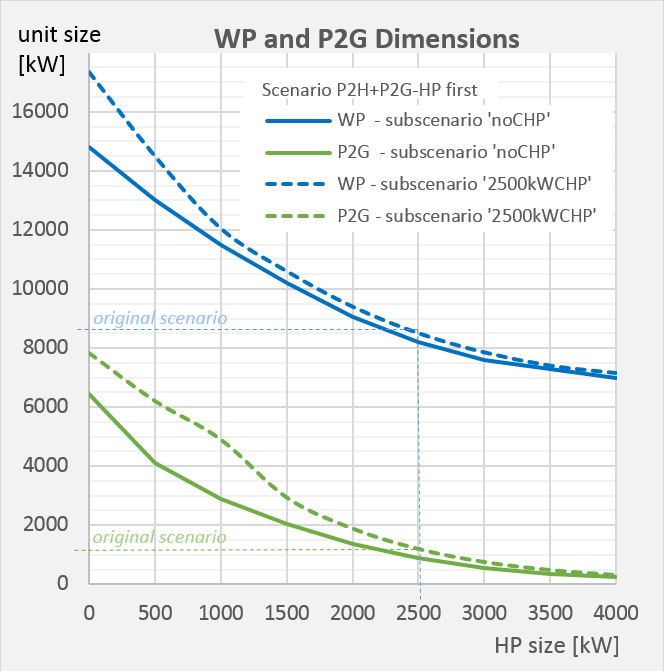

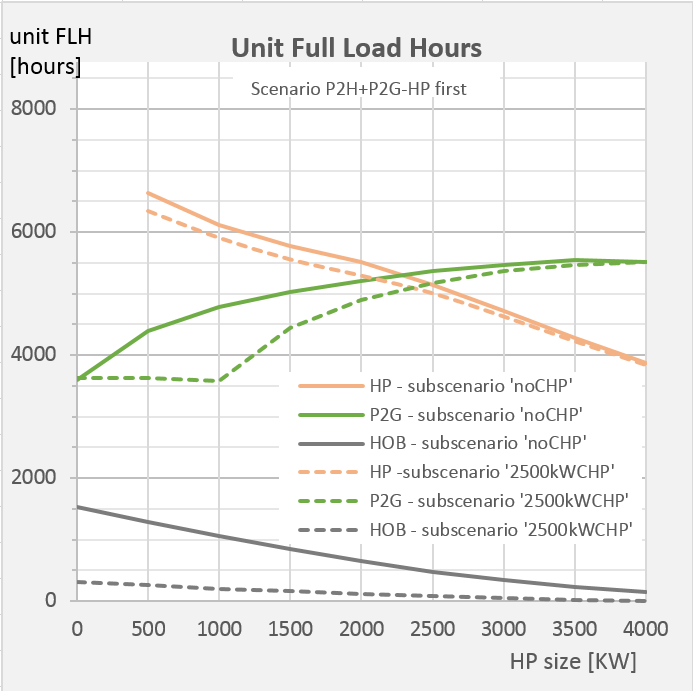

Heat pump vs. needed P2G and wind power capacities to reach complete decarbonisation of heating (left) and corresponding full load hours of heat production units (right)

Compared to the original scenario “P2H+P2G-HP first”, keeping the HP at 2500 kW but leaving the CHP out would have decreased the needed WP installation by 300 kW to 8200 kW and P2G installation by 320 kWe to 880kWe nominal sizes, which is shown in Figure 9. For very large HP installations, over 3500 kW, this difference would more or less disappear. However, at smaller HP installations, this dimensioning difference, i.e. saving, would have been much larger, over 2000 kW of the needed P2G and 1500 kW of the needed wind power capacity if capacity of P2H in the system would only be 500kW. This clear saving would however come with the loss of capacity for emergency reserves or grid services the CHP could provide for the decarbonised system.

Decarbonisation with power-to-heat and excessive wind power production. A complete decarbonisation, i.e. 100% or more reduction in the total CO2 emissions of the district energy system can also be reached with only P2H and excess wind power, without using P2G. The scenario “P2H-HP first” was further analysed for this case, for various nominal sizes of the local wind power installation. The local wind power was utilised to cover local electricity consumption as well as consumption of the 2500 kW P2H installation, and excess wind power was fed to external electrical grid within the limits of identified existing grid interface. The fed wind power replaces average grid power production, and corresponding national grid CO2 reduction was accounted for. The results of this sensitivity analysis in the “P2H-HP first” scenario, including the sensitivity to the CO2-emission factors, are shown in Figure 10.

In this case, the district energy system could efficiently reach a complete decarbonisation if the national grid had considerable CO2 emissions that could be reduced. For EU-average power grid emissions (296 gCO2/kWh in 2016 [63]), a full decarbonisation could be reached if the local wind power installation capacity was increased from 5700 kW to 7000 kW, reaching 20% over-production annually. For the Finnish power grid, with lower average emission factor (113 gCO2/kWh in 2016 [63]), the increase in local wind power installation capacity has to be greater, up to 9000 kW, reaching 50% annual over-production.

However, for a practically carbon-free power grid like in Sweden (13 gCO2/kWh in 2016 [63]), this indirect way of decarbonisation could not be utilized, since practically no additional carbon reduction would be achievable. Consequently, in such clean power system, a complete decarbonisation of the heating sector cannot be reached by simply feeding wind power into the clean power grid, and decarbonisation measures must instead be taken on the heating itself e.g., by increasing capacity of heat pumps and utilization of green fuels.

In addition, the use of larger wind power installations resulted in strongly increasing curtailment losses, where 15% of added wind power was lost at a 9000 kW wind power installation, and 60% of added wind power was lost at a 15000 kW wind power installation. These significant curtailment losses could be avoided using the P2G installations.

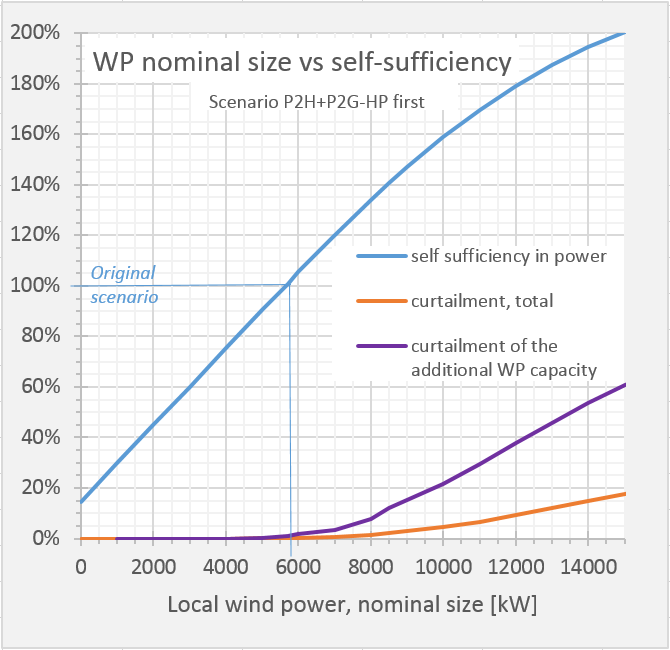

Impact of wind power generation capacity on district’s self-sufficiency level (left) and total CO2 emission reduction of the corresponding district energy system (including heat and electricity) using power-to-heat

Comparison to earlier studies

The earlier study of Kötter et al. [32] found that regional electricity and heat demand could be covered by 100% RES also in the Rhineland Palatine region with help of P2G and P2H, even if their study did not explicitly investigate district heating. In their cost-optimized wind-scenario, 56% of produced energy was covered with wind power and 19% with PV, the rest being hydropower and gas-fired CHP. In our study, no hydropower was assumed to be available. In our “P2H-only” scenarios, with P2H as baseload, 84% of local CO2 emission reduction was obtained using PV and wind power generation. Adding P2G storage further decreases the emissions to negative total emissions. In our study, the PV panels were installed on roofs of public buildings, which limited the share of PV output in total generation (6% “P2G HP-first” scenario) and the share of wind power was larger. It is likely that availability of roof surface for PV installation limited the output of PV.

In our study, by meriting heat pump production, CHP production can be significantly decreased. Similar need for decreasing CHP production to was also observed by Salpakari et al. [43], who proposed that replacing CHP with P2H should be studied. In one of their renewable energy scenarios, significant loss of CHP production was found when used together with P2H, which made the configuration unprofitable. The full load hours used in the study of Salpakari et al. [43] were in line with the results of our study for the scenarios with prioritized heat pump and CHP, but not utilising P2G. Salpakari et al. [43] did not reach 100% decarbonization in their study, most likely because P2G was not investigated by them.

CONCLUSIONS

The district heating production in Europe is still largely covered by fossil fuels most often by natural gas. In Northern Europe, biomass accounts for most of the baseload heating. This study shows that a complete decarbonisation of the example district’s power and heating energy can be reached even without the availability of biomass, if sufficient P2H and P2G capacity is integrated to the DH grid, and sufficiently more wind- and solar power is installed or contracted to replace all the fossil fuels. To reach this target, the P2H and P2G capacity, together with the legacy gas-fired CHP and HOB, must be coordinated and flexibly operated, which ensures that both the extensive wind- and solar power is used and both heating and power needs as well as hard power grid limitations are met.

It was shown that the merit order of the polygeneration, normally meriting CHP as baseload, should be changed towards P2H and P2G as baseload and CHP as intermittent or peak unit to avoid expensive over-investments to wind and P2G capacity. By meriting heat pump production, CHP production can be significantly decreased, which decreases the need for CO2 reduction and SNG in the system. This leads to both reduced P2G capacity and reduced electricity need for P2G, which again decreases the need for wind power.

Ultimately, the need for P2G capacity and wind power could be further reduced, if the polygeneration system is operated completely without a CHP unit, relying only on the P2H, P2G and HOB heating capacities. However, leaving out the CHP unit might not always be possible, as it would reduce the amounts of emergency reserves and grid services available to the power system below a certain security level.

ACKNOWLEDGMENT

This work has been done within the project “PLANET - Planning and operational tools for optimizing energy flows and synergies between energy networks” carried out in European Union’s Horizon 2020 research and innovation programme under grant agreement 773839. Jussi Ikäheimo also acknowledges funding from Wihuri Foundation.

NOMENCLATURE

c p

heat capacity

[J/(kg∙K])

mass flow

[kg/s]

P

electric power

[W]

Q

heat power

[W]

r

power-to-heat ratio

-

T

absolute temperature

[K]

Greek letters

α

excess air coefficient

η

dimensionless degradation factor

Subscripts and superscripts

CHP

combined heat and power

cons

consumption

DH

district heat

e

electrical (capacity)

HP

heat pump

return

return

sink

sink

source

source

supply

supply

Abbreviations

CHP

Combined Heat and Power

COP

Coefficient of Performance

DH

District Heating

FLH

Full Load Hours

HHV

Higher Heating Value

HOB

Heat Only Boiler

HP

Heat Pump

HX

Heat Exchanger

LHV

Lower Heating Value

NG

Natural Gas

P2G

Power-to-Gas

P2H

Power-to-Heat

PEM

Polymer Electrolyte Membrane

PV

Photovoltaic

SNG

Synthetic Natural Gas

WE

Water Electrolyser

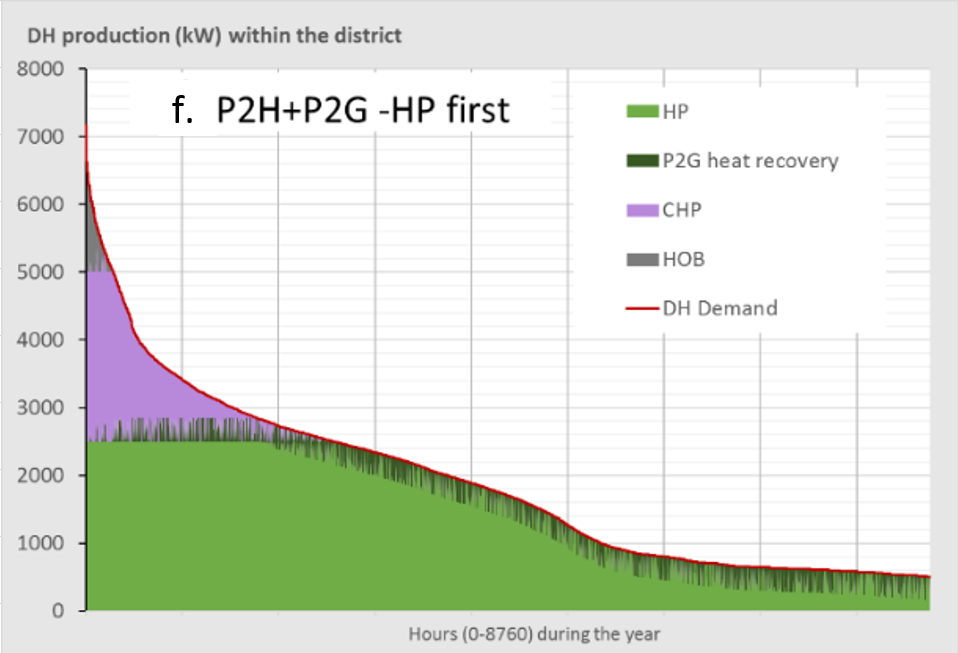

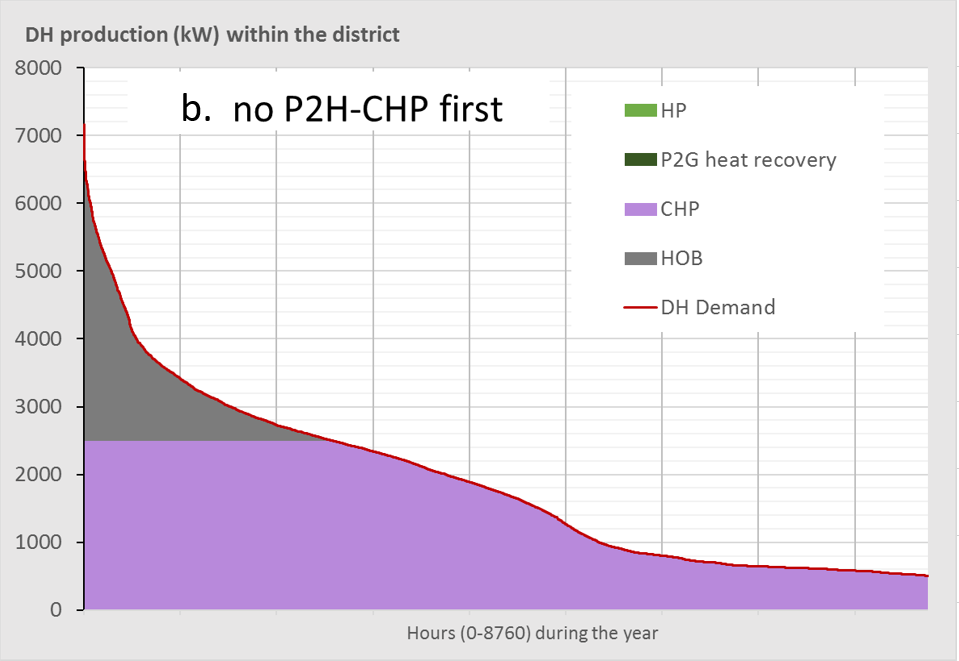

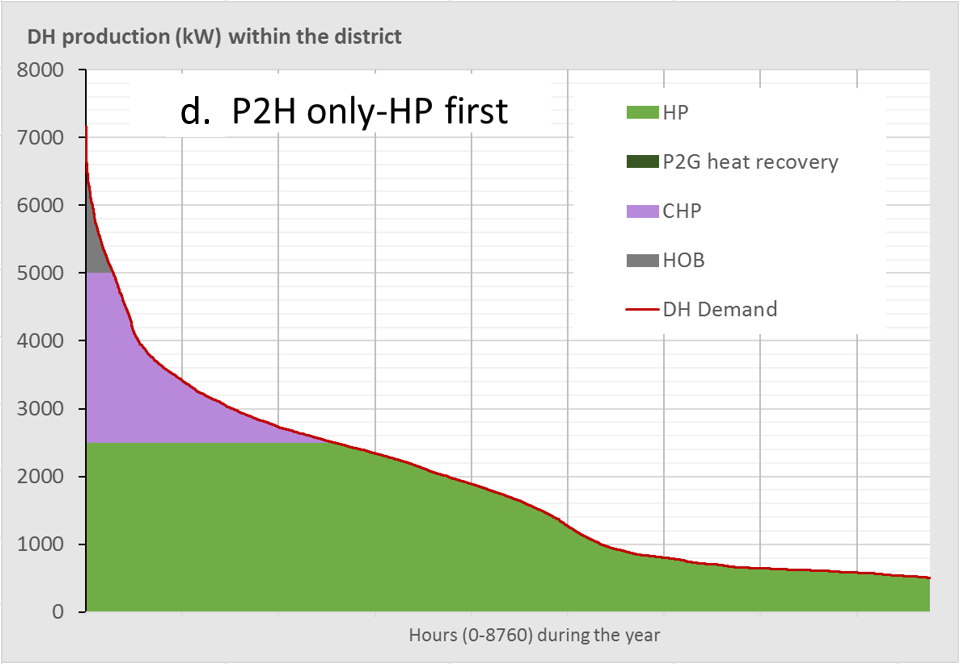

APPENDIX. Duration curves for the district heat production of the scenarios
REFERENCES
  1. Rutz D., Witercheid C., Pauschinger T., Grimm S., Roth T., Doračić B., Dyer G., Østergaard T., Hummelshøj R.Upgrading the performance of district heating networks. Best practice examples on upgrading projects - Technical and non-technical approaches , 2019
  2. European CommissionCommunication from the Commission to the European Parliament, the Council, the European Economic and Social Committee and the Committee of the Regions. An EU Strategy on Heating and Cooling , COM(2016), 2016
  3. IEA BioenergyThe Availability of Biomass Resources for Energy: Summary and Conclusions from the IEA Bioenergy ExCo58 Workshop IEA Bioenergy: ExCo:2008:02, 2008
  4. Bringault A., Eisermann M., Lacassagne S.Cities heading towards 100% renewable energy , 2016
  5. Guandalini G., Campanari S., Romano M., Power-to-gas plants and gas turbines for improved wind energy dispatchability : Energy and economic assessment, Applied Energy, Vol. 147 , pp 117-130, 2015, https://doi.org/10.1016/j.apenergy.2015.02.055
  6. Galindo Fernandes M., Roger-lacan C., Gährs U., Autmaitre V.Efficient district heating and cooling markets in the EU: Case studies analysis, replicable key success factors and potential policy implications JRC Science Hub, 2016
  7. Jentsch M., Trost T., Sterner M., Optimal use of Power-to-Gas energy storage systems in an 85% renewable energy scenario, Energy Procedia, 2014
  8. Hakkarainen T., Tsupari E., Hakkarainen E., Ikäheimo J.The role and opportunities for solar energy in Finland and Europe VTT Technology 217, 2015
  9. Averfalk H., Ingvarsson P., Persson U., Gong M., Werner S., Large heat pumps in Swedish district heating systems, Renewable and Sustainable Energy Reviews, Vol. 79 (June 2016), pp 1275-1284, 2017, https://doi.org/10.1016/j.rser.2017.05.135
  10. Fischer D., Triebel M., Erge T., Hollinger R., Business Models Using the Flexibility of Heat Pumps - A Discourse, 12th IEA Heat Pump Conference, 2017
  11. Valor Partners OySuuret lämpöpumput kaukolämpöjärjestelmässä (Large Heat Pumps in District Heating Systems) , 2016
  12. Pieper H., Ommen T., Buhler F., Paaske B., Allocation of investment costs for large-scale heat pumps supplying district heating, Energy Procedia 147, pp 358-367, 2018
  13. ehpa - european heat pump associationCity of Olot, ,
  14. ehpa - european heat pump associationCity of Mäntsälä, ,
  15. Mazloomi K., Gomes C., Hydrogen as an energy carrier: Prospects and challenges, Renewable and Sustainable Energy Reviews, Vol. 16 (5), pp 3024-3033, 2012, https://doi.org/10.1016/j.rser.2012.02.028
  16. Bohn U., Lindner F., Power-to-Gas demonstration plant Ibbenbüren - Project description and background information, 2015
  17. Schmidt O., Gambhir A., Staffell I., Hawkes A., Nelson J., Few S., Future cost and performance of water electrolysis: An expert elicitation study, International Journal of Hydrogen Energy, Vol. 42 (52), pp 30470-30492, 2017, https://doi.org/10.1016/j.ijhydene.2017.10.045
  18. Saba S., Müller M., Robinius M., Stolten D., The investment costs of electrolysis – A comparison of cost studies from the past 30 years, International Journal of Hydrogen Energy, 2018
  19. Buttler A., Spliethoff H., Current status of water electrolysis for energy storage, grid balancing and sector coupling via power-to-gas and power-to-liquids: A review, Renewable and Sustainable Energy Reviews, 2018
  20. Kopp M., Coleman D., Stiller C., Scheffer K., Aichinger J., Scheppat B., Energiepark Mainz: Technical and economic analysis of the worldwide largest Power-to-Gas plant with PEM electrolysis, International Journal of Hydrogen Energy, Vol. 42 (19), 2017, https://doi.org/10.1016/j.ijhydene.2016.12.145
  21. Nastasi B., Basso G., Power-to-Gas integration in the Transition towards Future Urban Energy Systems, International Journal of Hydrogen Energy, Vol. 42 (38), pp 23933-23951, 2017, https://doi.org/10.1016/J.IJHYDENE.2017.07.149
  22. Floristean A., Brahy N., Kraus N.HyLAW - Deliverable 4.1 - List of Legal Barriers ,
  23. Hayter D., HyLAW - Horizontal Position Paper - Gas Grid Issues, 2019
  24. Simonis B., Newborough M., Sizing and operating power-to-gas systems to absorb excess renewable electricity, International Journal of Hydrogen Energy, Vol. 42 (34), pp 21635-21647, 2017, https://doi.org/10.1016/j.ijhydene.2017.07.121
  25. Wang G., Mitsos A., Marquardt W., Conceptual Design of Ammonia-Based Energy Storage System: System Design and Time-Invariant Performance, AIChE Journal, Vol. 63 (5), pp 1620-1637, 2017, https://doi.org/10.1002/aic
  26. Andersson J., Grönkvist S., Large-scale storage of hydrogen, International Journal of Hydrogen Energy, Vol. 44 (23), pp 11901-11919, 2019, https://doi.org/10.1016/j.ijhydene.2019.03.063
  27. Rönsch S., Schneider J., Matthischke S., Schlüter M., Götz M., Lefebvre J., Prabhakaran P., Bajohr S., Review on methanation - From fundamentals to current projects, Fuel, 2016
  28. Jürgensen L., Ehimen E., Born J., Holm-Nielsen J., Utilization of surplus electricity from wind power for dynamic biogas upgrading: Northern Germany case study, Biomass and Bioenergy, Vol. 66 , pp 126-132, 2014, https://doi.org/10.1016/j.biombioe.2014.02.032
  29. Moeller C., Meiss J., Mueller B., Hlusiak M., Breyer C., Kastner M., Twele J., Transforming the electricity generation of the Berlin–Brandenburg region, Germany, Renewable Energy, Vol. 72 , pp 39-50, 2014, https://doi.org/10.1016/j.renene.2014.06.042
  30. Ma L., Spataru C., The use of natural gas pipeline network with different energy carriers, Energy Strategy Reviews, Vol. 8 , pp 72-81, 2015, https://doi.org/10.1016/j.esr.2015.09.002
  31. Vandewalle J., Bruninx K., D'Haeseleer W., Effects of large-scale power to gas conversion on the power, gas and carbon sectors and their interactions, Energy Conversion and Management, Vol. 94 , 2015, https://doi.org/10.1016/j.enconman.2015.01.038
  32. Kötter E., Schneider L., Sehnke F., Ohnmeiss K., Schröer R., The future electric power system: Impact of Power-to-Gas by interacting with other renewable energy components, Journal of Energy Storage, Vol. 5 , pp 113-119, 2016, https://doi.org/10.1016/j.est.2015.11.012
  33. Bertuccioli L., Chan A., Hart D., Lehner F., Madden B., Eleanor StandenDevelopment of Water Electrolysis in the European Union , 2014
  34. Noussan M., Cerino Abdin G., Poggio A., Roberto R., Biomass-fired CHP and heat storage system simulations in existing district heating systems, Applied Thermal Engineering, Vol. 71 (2), pp 729-735, 2014, https://doi.org/10.1016/j.applthermaleng.2013.11.021
  35. Rinne S., Syri S., The possibilities of combined heat and power production balancing large amounts of wind power in Finland, Energy, Vol. 82 , pp 1034-1046, 2015, https://doi.org/10.1016/j.energy.2015.02.002
  36. Ikäheimo J., Kiviluoma J., Synthetic Natural Gas Production and Utilization in the North European Power System in 2050, 6th International Workshop on Integration of Solar Power into Power Systems, 2016
  37. Kötter E., Schneider L., Sehnke F., Ohnmeiss K., Schröer R., The future electric power system: Impact of Power-to-Gas by interacting with other renewable energy components, Journal of Energy Storage, Vol. 5 , pp 113-119, 2016, https://doi.org/10.1016/j.est.2015.11.012
  38. Fang T., Lahdelma R., Genetic optimization of multi-plant heat production in district heating networks, Applied Energy, Vol. 159 , pp 610-619, 2015, https://doi.org/10.1016/j.apenergy.2015.09.027
  39. Bloess A., Schill W., Zerrahn A., Power-to-heat for renewable energy integration: A review of technologies, modeling approaches, and flexibility potentials, Applied Energy, Vol. 212 , pp 1611-1626, 2018, https://doi.org/10.1016/J.APENERGY.2017.12.073
  40. Georges E., Cornélusse B., Ernst D., Lemort V., Mathieu S., Residential heat pump as flexible load for direct control service with parametrized duration and rebound effect, Applied Energy, Vol. 187 , pp 140-153, 2017, https://doi.org/10.1016/j.apenergy.2016.11.012
  41. Waite M., Modi V., Potential for increased wind-generated electricity utilization using heat pumps in urban areas, Applied Energy, Vol. 135 , pp 634-642, 2014, https://doi.org/10.1016/j.apenergy.2014.04.059
  42. Østergaard P., Andersen A., Booster heat pumps and central heat pumps in district heating, Applied Energy, Vol. 184 , pp 1374-1388, 2016, https://doi.org/10.1016/j.apenergy.2016.02.144
  43. Salpakari J., Mikkola J., Lund P., Improved flexibility with large-scale variable renewable power in cities through optimal demand side management and power-to-heat conversion, Energy Conversion and Management, Vol. 126 , pp 649-661, 2016, https://doi.org/10.1016/j.enconman.2016.08.041
  44. Paiho S., Ketomäki J., Kannari L., Häkkinen T., Shemeikka J., A new procedure for assessing the energy-efficient refurbishment of buildings on district scale, Sustainable Cities and Society, Vol. 46 (November 2018), pp 101454, 2019, https://doi.org/10.1016/j.scs.2019.101454
  45. PLANET Consortium, , www.h2020-planet.eu
  46. Kuck J., Efficiency of vapor-pump-equipped condensing boilers, Applied Thermal Engineering, Vol. 16 (3), pp 233-244, 1996
  47. Che D., Liu Y., Gao C., Evaluation of retrofitting a conventional natural gas fired boiler into a condensing boiler, Energy Conversion and Management, Vol. 45 (20), pp 3251-3266, 2004, https://doi.org/10.1016/j.enconman.2004.01.004
  48. Verbruggen A., Dewallef P., Quoilin S., Wiggin M., Unveiling the mystery of Combined Heat & Power ( cogeneration ), Energy, Vol. 61 , pp 575-582, 2013, https://doi.org/10.1016/j.energy.2013.09.029
  49. Li K., Leigh W., Feron P., Yu H., Tade M., Systematic study of aqueous monoethanolamine (MEA)-based CO2 capture process: Techno-economic assessment of the MEA process and its improvements, Applied Energy, Vol. 165 , pp 648-659, 2016, https://doi.org/10.1016/j.apenergy.2015.12.109
  50. Arpagaus C., Bless F., Uhlmann M., Schiffmann J., Bertsch S., High temperature heat pumps: Market overview, state of the art, research status, refrigerants, and application potentials, Energy, Vol. 152 , pp 985-1010, 2018, https://doi.org/10.1016/j.energy.2018.03.166
  51. Ertesvåg I., Uncertainties in heat-pump coefficient of performance (COP) and exergy efficiency based on standardized testing, Energy and Buildings, Vol. 43 (8), pp 1937-1946, 2011, https://doi.org/10.1016/J.ENBUILD.2011.03.039
  52. Reiter G., , Fuel Cells : Data, Facts and Figures, 2016
  53. Carmo M., Fritz D., Mergel J., Stolten D., A comprehensive review on PEM water electrolysis, International Journal of Hydrogen Energy, 2013
  54. Götz M., Lefebvre J., Mörs F., McDaniel Koch A., Graf F., Bajohr S., Reimert R., Kolb T., Renewable Power-to-Gas: A technological and economic review, Renewable Energy, 2016
  55. Graf F., Götz M., Henel M., Schaaf T., Tichler R., Technoökonomische Studie von Power-to-Gas-Konzepten: Abschlussbericht DVGW-FKZ G 3/01/12 TP B-D, (November), 2014
  56. Staffell I., Pfenninger S., Using bias-corrected reanalysis to simulate current and future wind power output, Energy, Vol. 114 , pp 1224-1239, 2016, https://doi.org/10.1016/j.energy.2016.08.068
  57. Renewables.ninja, 2018, https://www.renewables.ninja/, [Accessed: 27.9.2018]
  58. Roth T., Grimm S., Rutz D., Grimm S., , Upgrading the performance of district heating networks. Best practice examples on upgrading projects, 2019
  59. Andersen A., Østergaard P., Analytic versus solver-based calculated daily operations of district energy plants, Energy, Vol. 175 , pp 333-344, 2019, https://doi.org/10.1016/J.ENERGY.2019.03.096
  60. Korhonen J.Suomen vesistöjen lämpötilaolot 1900-luvulla (In English: The temperature conditions of Finnish water systems during the 1900s) , 2002
  61. PV GIS 5, 2020,
  62. Ruuska P., Aikala A., Weiss R., Modelling of photovoltaic energy generation systems, Proceedings - 28th European Conference on Modelling and Simulation, ECMS 2014, pp 651-656, 2014
  63. CO2 emission intensity — European Environment Agency, 2019,

DBG
